Expert solutions in coated steel production and global export.
With over two decades of expertise in coated steel production and export, we deeply understand global market needs and quality standards.
Successfully delivered to more than 1,000 clients in over 30 countries, earning long-term trust and repeat orders.
| Model NO. | PPGI/PPGL | Composition | Steel |
| Technique | Cold Rolled | Shape | Roll |
| Surface Treatment | Color Coated | Special Use | Building Material |
| Substrate | Galvanlume Steel Coil | Aluzinc Coating | Az30-150 |
| Production Standard | JIS G 3322, En 10169, ASTM A755 | Material | Cglcc/Cglch, Dx51d/Dx52D |
| Coil Weight | 3-5 Tons | Color | Any Ral Color or Sample |
| Parameter | Detail |
|---|---|
| Standard | JIS G 3322, EN 10169, ASTM A755 |
| Grade | CGLCC, CGLCH, DX51D, DX52D, S280GD-S550GD |
| Aluzinc Coating | AZ30-150G/M2 |
| Painting Film | Top: 10–30 μm, Back: 5-30μm |

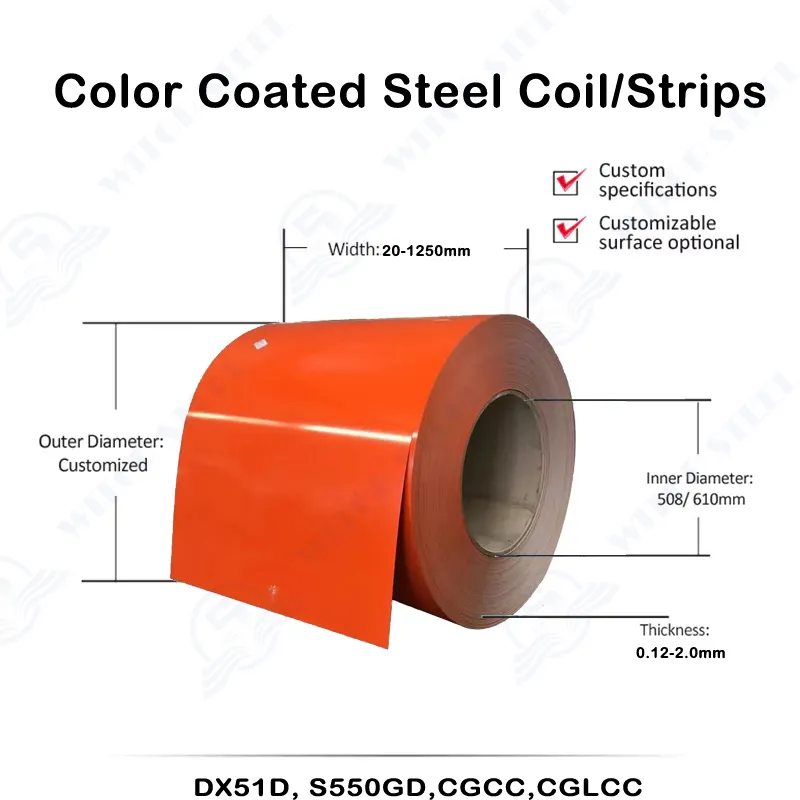

| Thickness | 0.12-2.00MM |
| Width | 20-1250MM |

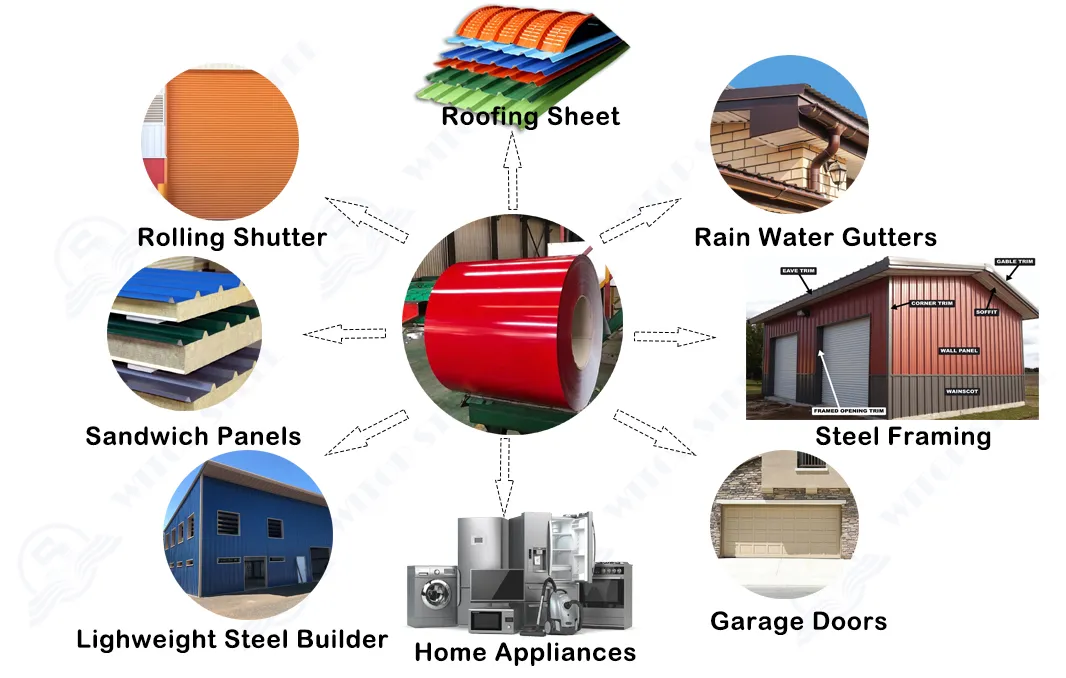

| Application | Roofing, wall cladding, Structural steel, Car body, Appliances |

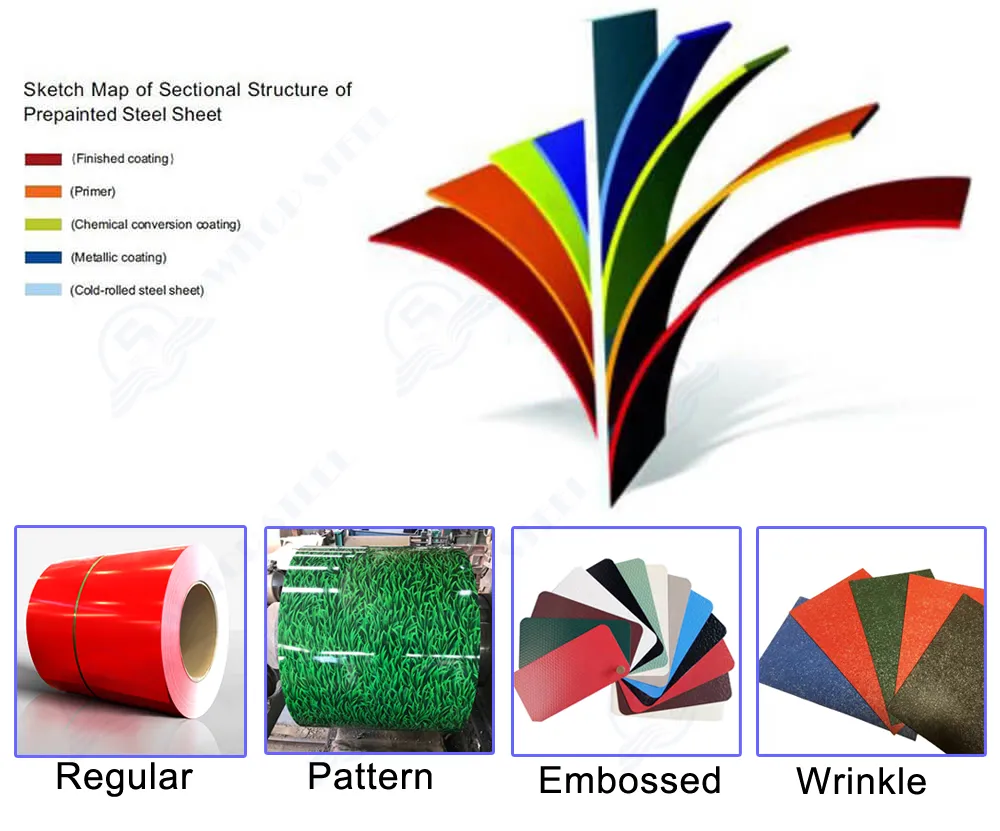

Color Coated Steel Structure:

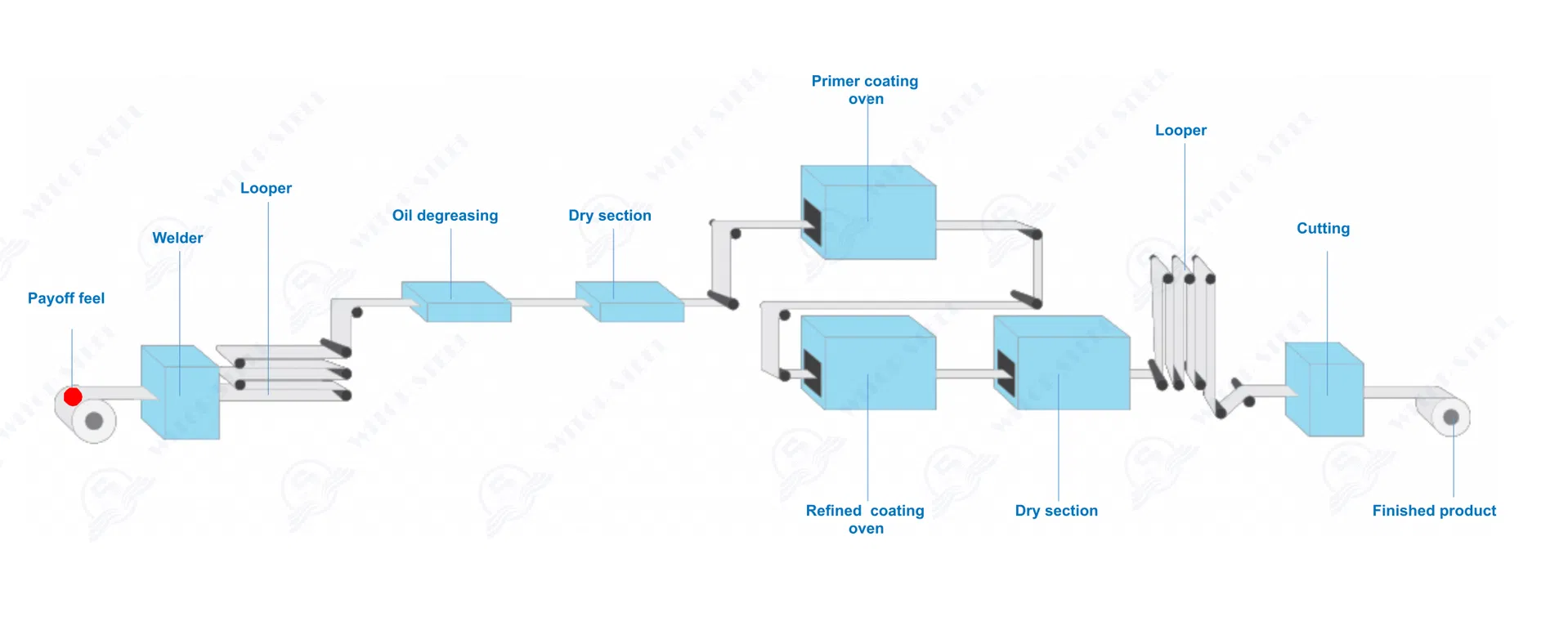

Process Flow Chart:
Pay Off → Welder → Cleaning → Coating → Baking → Cooling → Finished Products.

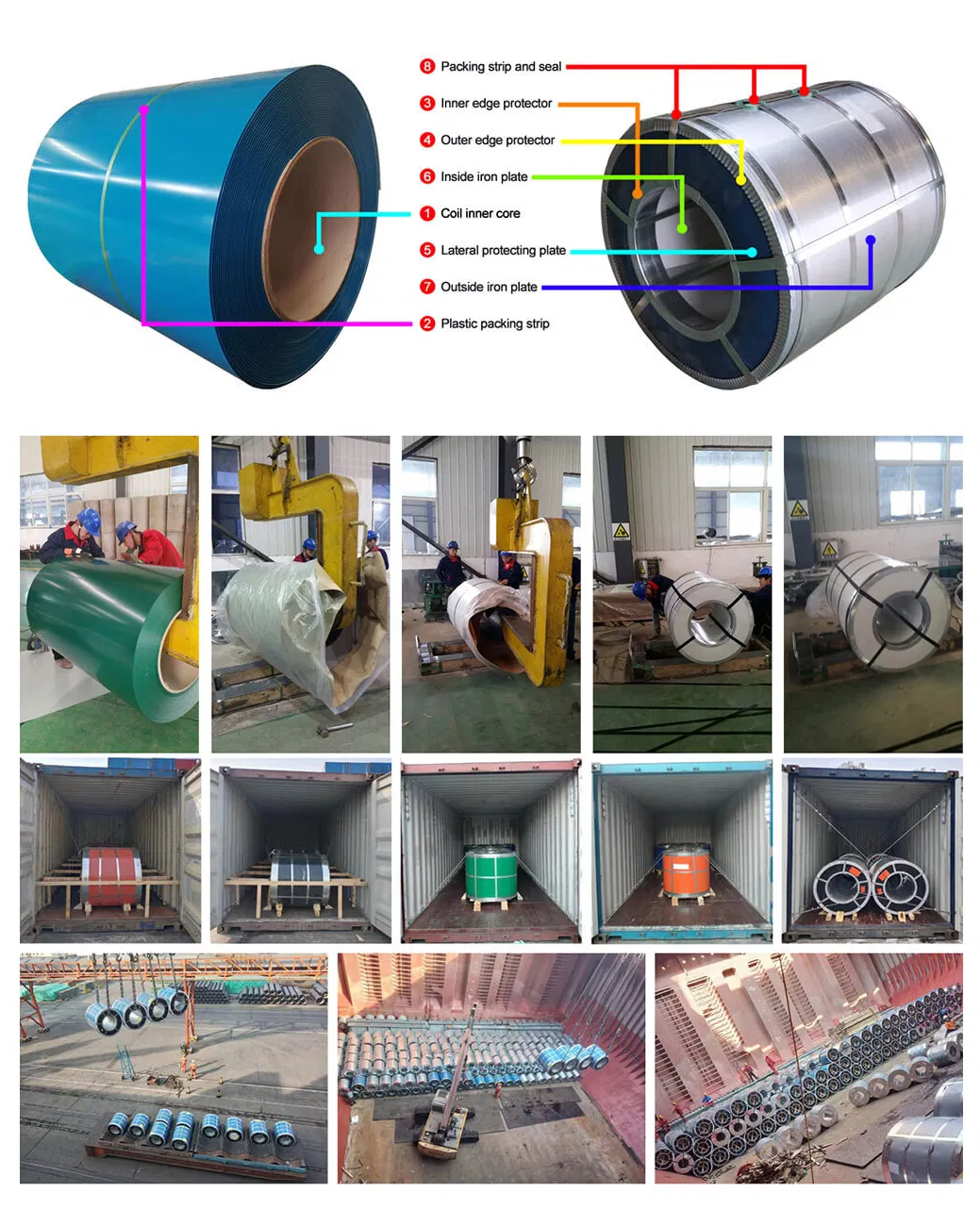

Standard export package: 3 layers including anti-water craft paper, PVC plastic film, and outer steel sheet covering (min 0.45mm thick), secured with seven steel strapping strips.
