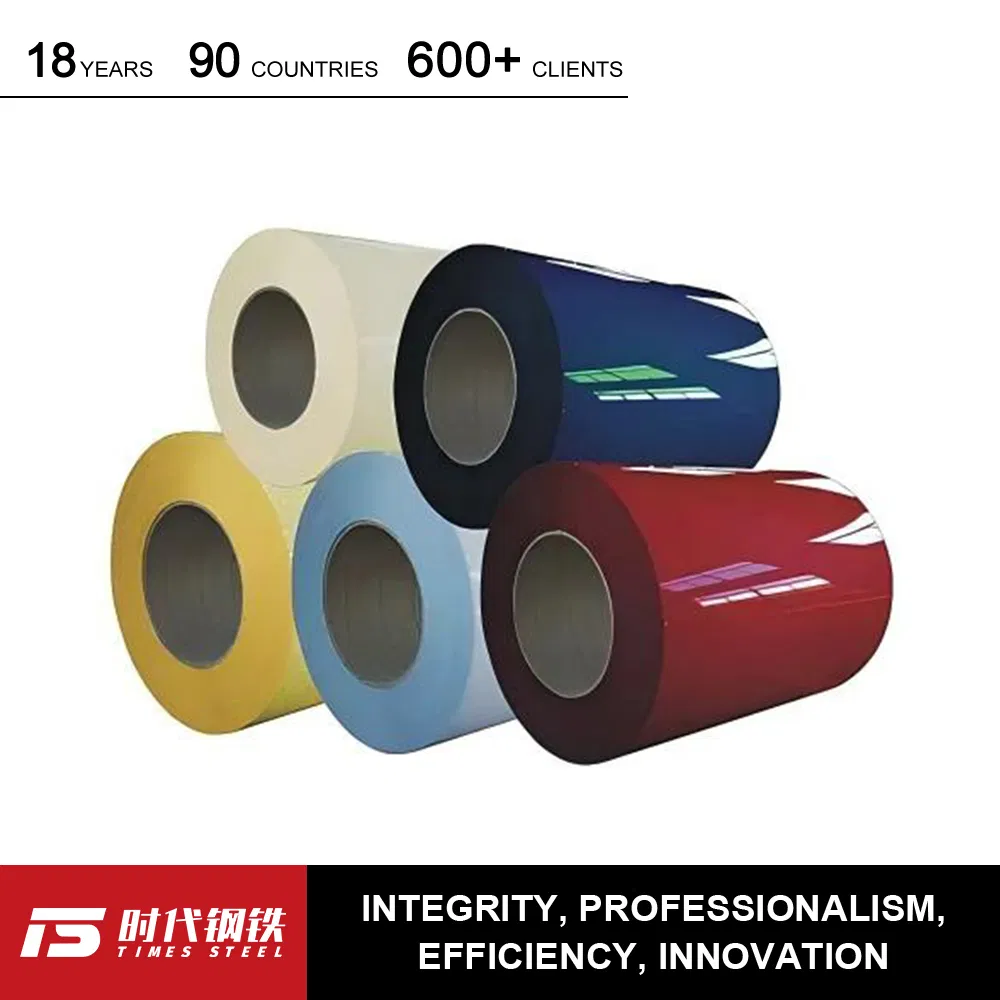

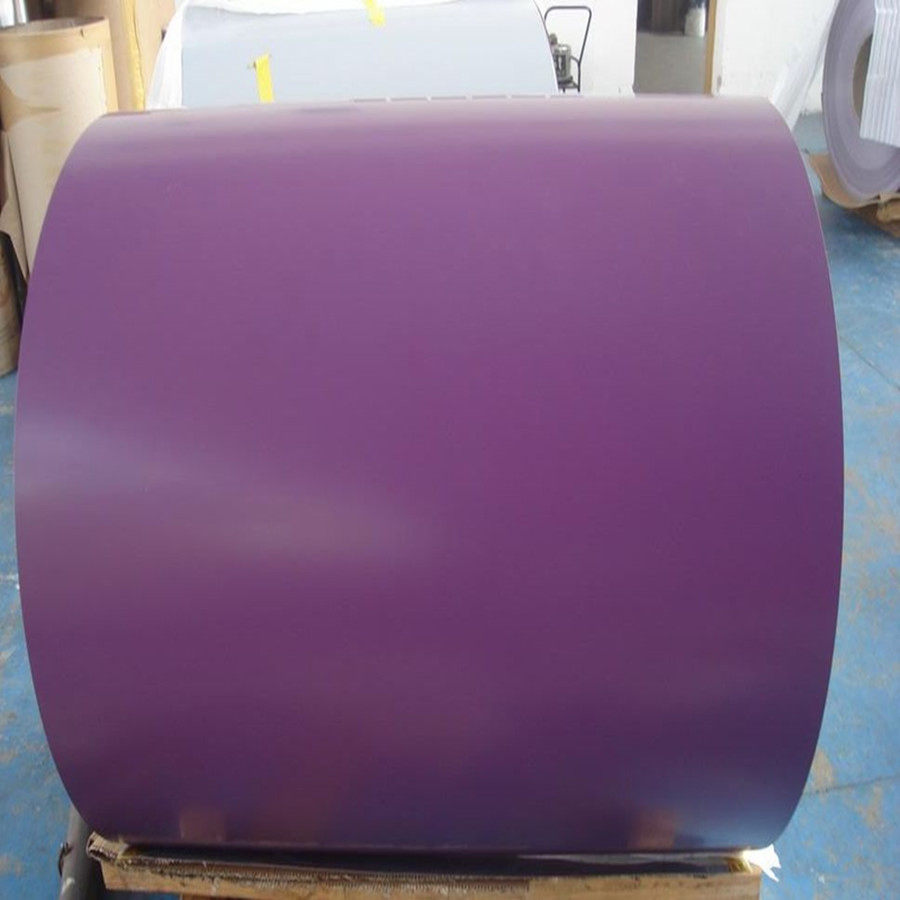

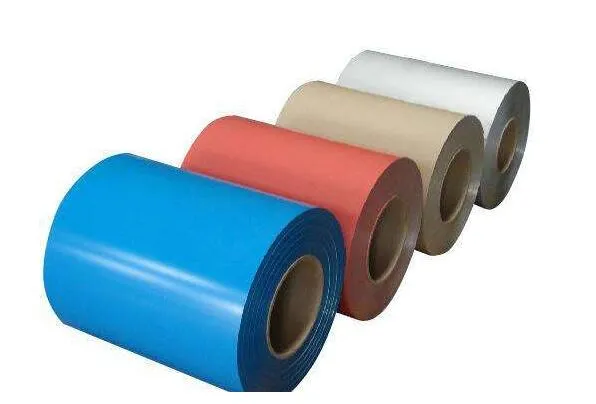

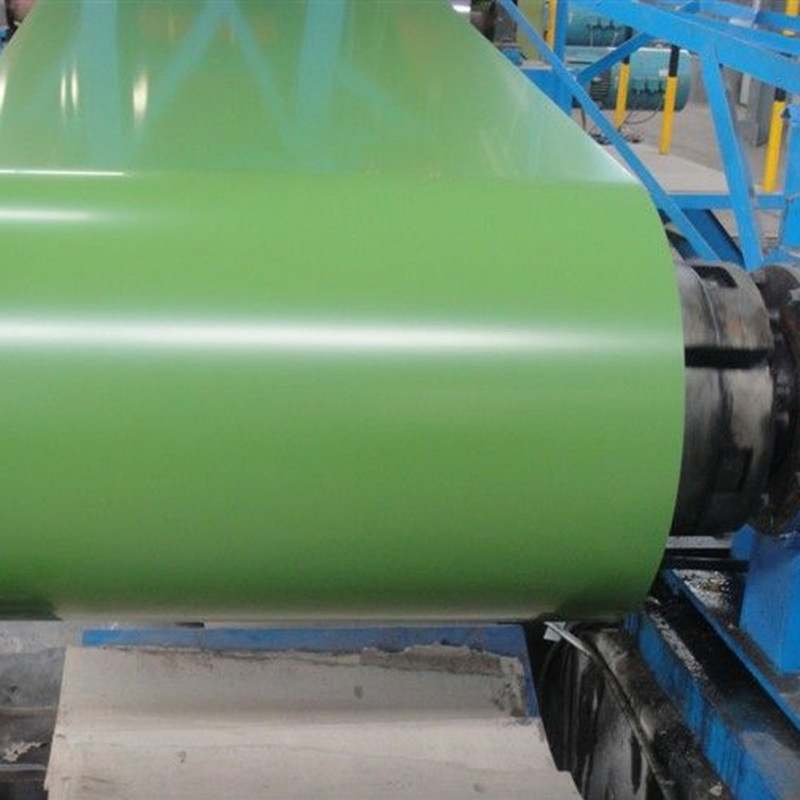

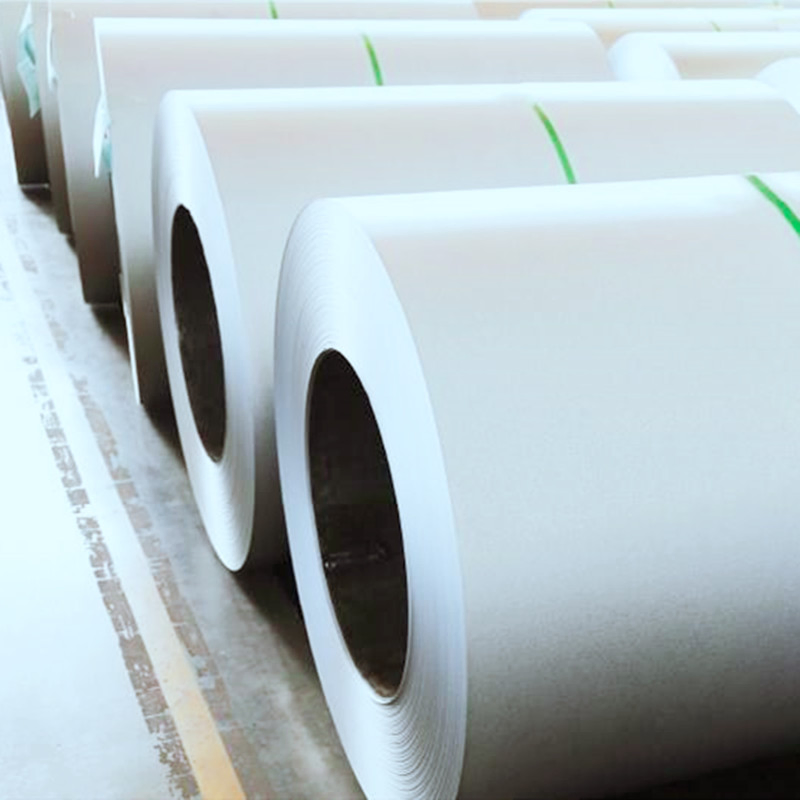

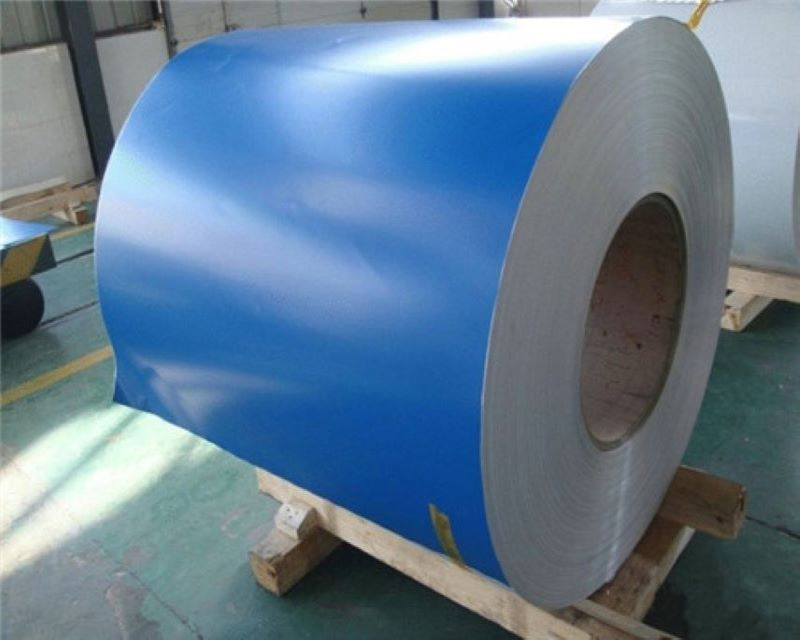

Color Coated Galvanized PPGI Coil Building Materials Prepainted Steel Roll for Metal Roofing & Bending Services

1 / 5

Color Coated Galvanized PPGI Coil Building Materials Prepainted Steel Roll for Metal Roofing & Bending Services

Customization:	Available
After-sales Service:	Offer
Warranty:	Times Steel

Send Inquiry

Product Description

📋 Overview

Model NO.

DX51D-Z S350GD-Z

Standard

ASTM, JIS, GB, AISI, DIN, BS

Certification

ISO, RoHS, IBR

Surface Treatment

Coated

Technique

Cold Rolled

Application

Boiler Plate

Edge

Mill

Stock

Package

Sea Worthy Packaging

Payment

L/C T/T

Transportation

Shipment

Specification

0.2mm-1.0mm

Origin

China

HS Code

7210490000

Capacity

10000tons/Year

Color-Coated Corrugated Sheets: Versatile Solutions

In the realm of modern construction, finding materials that balance durability, aesthetics, and functionality is crucial. Color-coated corrugated sheets have emerged as a top choice for architects, builders, and homeowners alike, thanks to their impressive performance and wide range of applications.

Classification	Key Details
Core Components	Base material: Aluminum-zinc coated steel (55% Al, 43.5% Zn, 1.5% Si in coating). Coatings: Primer (for adhesion/anti-corrosion) + Topcoat (polyester, silicon-modified polyester, PVDF, etc.)
Key Performances	Strong corrosion resistance (2-6× that of ordinary galvanized sheets). Good weather resistance (anti-UV, anti-fading). Excellent processability (cutting, bending, stamping). Long lifespan (15-30 years in general environments)
Main Applications	Construction: Exteriors, roofs, walls, garage doors. Home Appliances: Shells of refrigerators, washing machines, air conditioners. Transportation: Carriages, containers, train compartments

✨ Product Features

🏗️

Corrugated Design: Provides exceptional structural strength, allowing sheets to withstand heavy loads, strong winds, and minor impacts without adding excessive weight.

🎨

High-Quality Coating: Available in a vast spectrum of vibrant colors formulated to resist fading, chalking, and peeling even under harsh weather.

⚖️

Lightweight Nature: Much lighter than concrete or clay tiles, reducing the structural burden and lowering transportation and installation costs.

Corrosion Resistance

Thermal Insulation

The protective coating acts as a barrier against moisture and chemicals, ensuring long service life in high-humidity or industrial areas. When combined with appropriate insulation layers, these sheets contribute to better thermal performance and reduced energy consumption.

📏 Technical Specifications

Standard	Grade	Substrate Type	Coating Type	Thickness (μm)	Application
EN 10169	DX51D+Z	Hot-dip galvanized	Polyester (PE)	20–25	Roofing, wall cladding
EN 10169	S350GD+AZ	Hot-dip galvalume	PVDF	25–30	High-rise facades
ASTM A755	Type 1	Galvanized/galvalume	SMP	18–22	HVAC systems
JIS G3312	TDC51D+Z	Hot-dip galvanized	Polyester	15–20	Agricultural buildings
Baowu	TDC51D+AZ	Galvalume	Polyester	18–22	Industrial warehouses

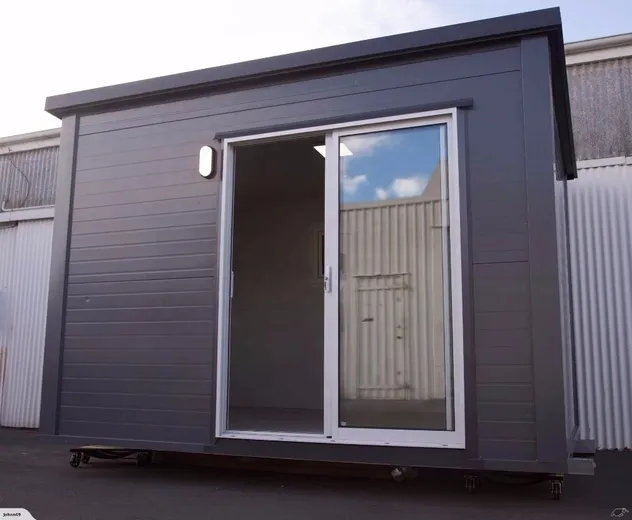

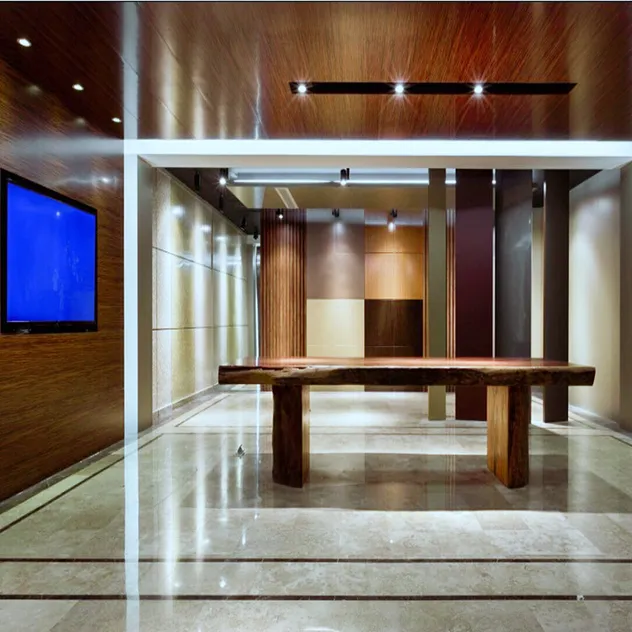

🌍 Application Scenarios

Frequently Asked Questions

What is the expected lifespan of these color-coated sheets?

Under general environmental conditions, these sheets typically have a lifespan of 15 to 30 years, depending on the coating type and local climate.

Are color-coated corrugated sheets suitable for coastal areas?

Yes, especially when using PVDF (Fluoropolymer) coatings, which provide superior resistance to salt spray and high-UV environments found in coastal regions.

What is the advantage of the corrugated design?

The corrugated shape significantly increases the structural rigidity and load-bearing capacity of the steel without adding extra weight, making it ideal for roofing.

Can these sheets be used for home appliances?

Absolutely. They are widely used for the exterior shells of refrigerators, washing machines, and air conditioners due to their aesthetic appeal and durability.

How do color-coated sheets compare to traditional galvanized sheets?

Color-coated sheets offer 2 to 6 times the corrosion resistance of ordinary galvanized sheets, along with a much wider range of aesthetic options.

Is the installation process difficult?

No, they are designed for easy installation. Their lightweight nature and standardized interlocking designs allow for quick assembly, saving time and labor costs.
