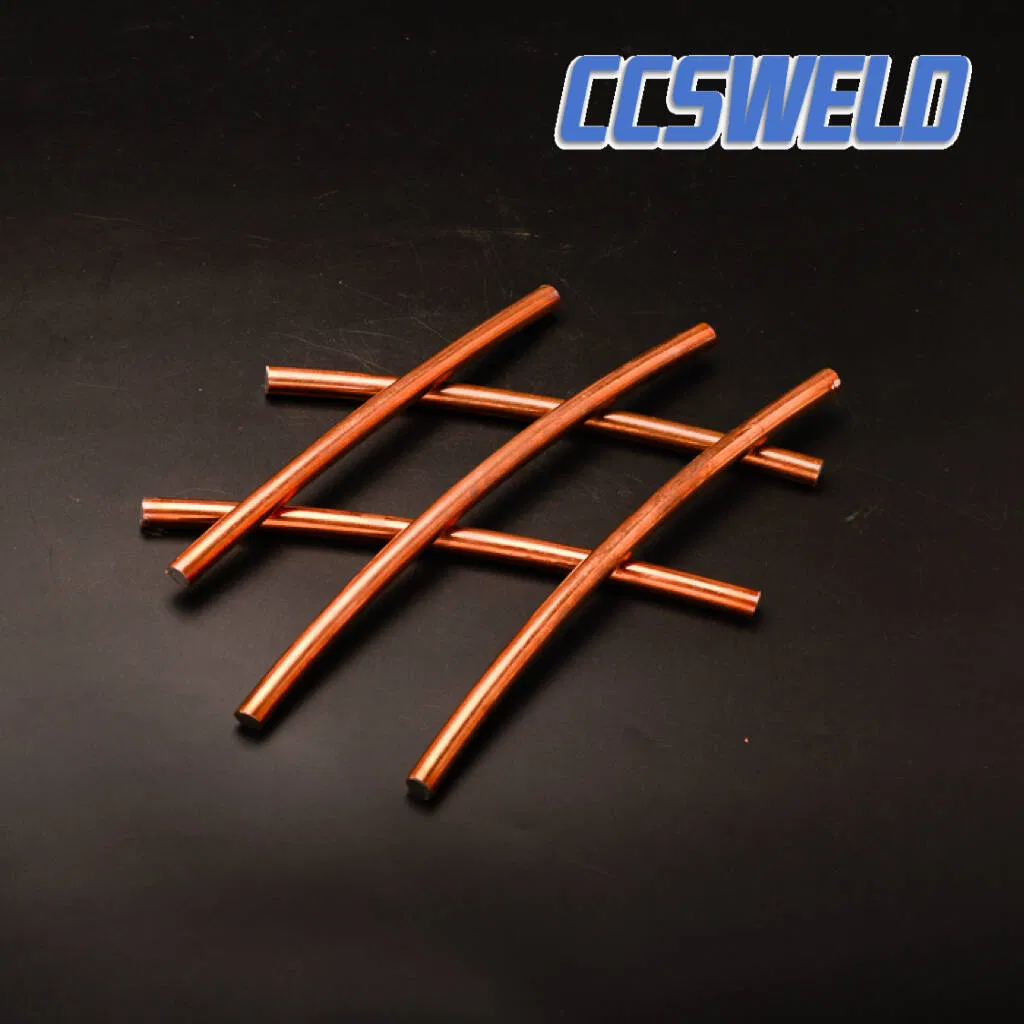

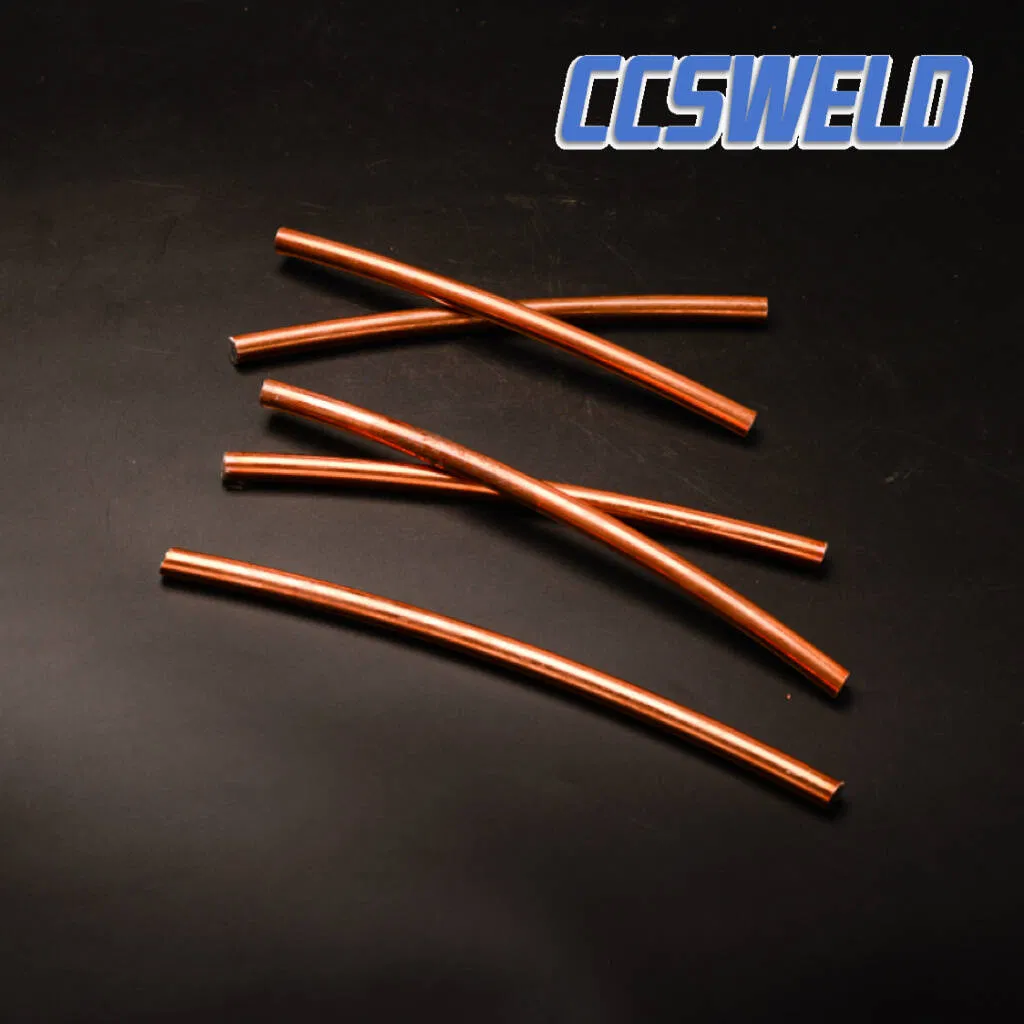

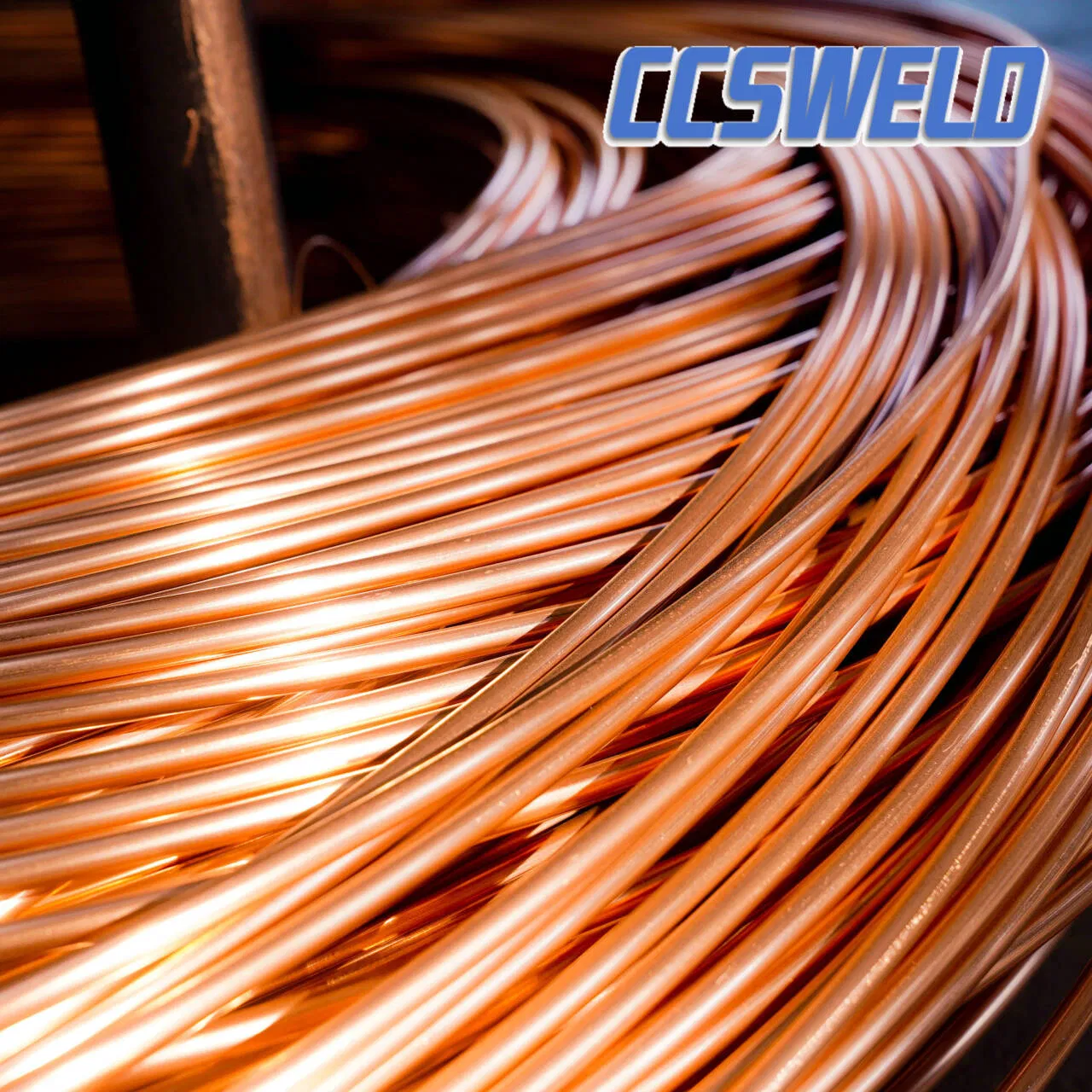

Our copper-coated steel round wire adopts a special process of alloying with a molecular-level structure. The metal interfaces are completely combined, achieving a ductile connection between copper and steel. This increases the mechanical strength and corrosion resistance of the finished product, in compliance with international standards and specifications.

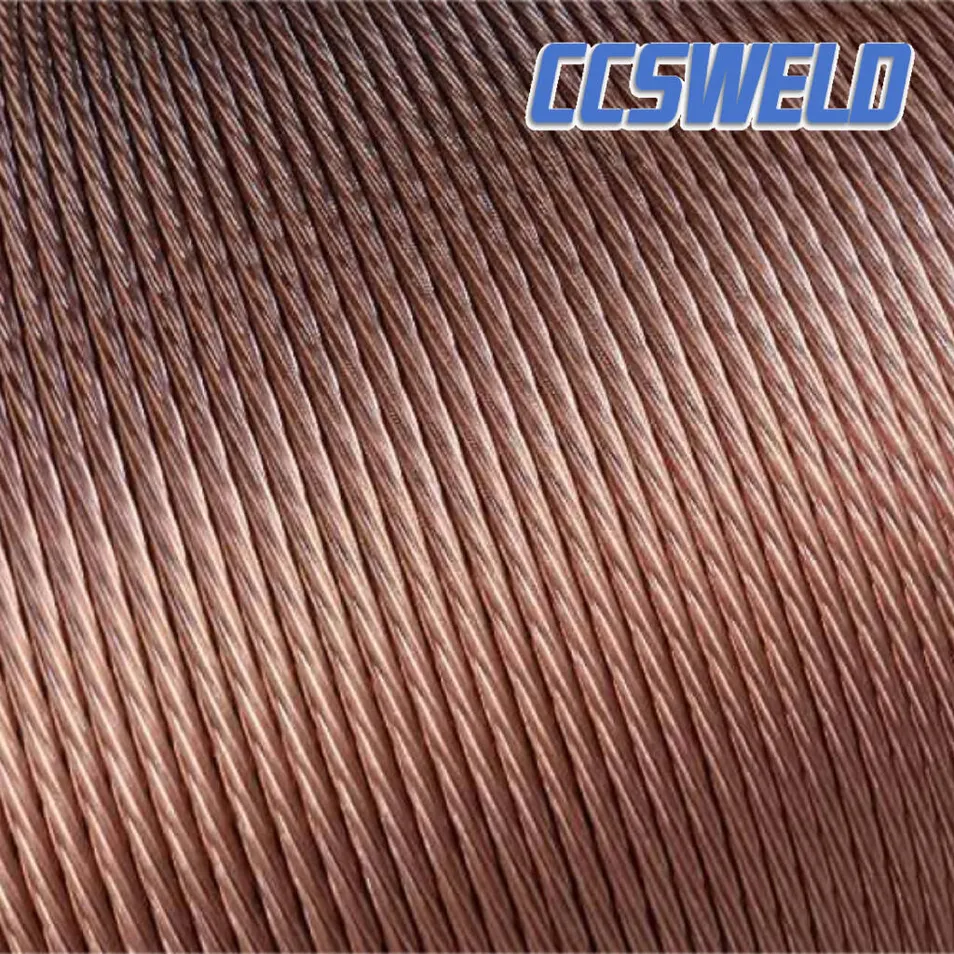

Produced through a continuous casting process, high-purity copper (over 99.9%) is coated onto the steel core. The single-sided copper thickness reaches a minimum of 0.262mm. The service life ranges from 30 to 50 years with a tensile strength of ≥ 350 megapascals, featuring a smooth and shiny surface.
| IACS (%) | AWG/MCM | Effective Section (mm²) | Wire Diameter (mm) | Copper Thickness (mm) | Weight (kg/km) | Resistance (Ω/km) |
|---|---|---|---|---|---|---|
| 30% | 1/0 | 53.4 | 8.25 | 0.45 | 430.1 | 1.537 |
| 30% | 1 | 42.4 | 7.35 | 0.40 | 341.4 | 1.937 |
| 30% | 2 | 33.6 | 6.54 | 0.36 | 270.3 | 2.446 |
| 30% | 4 | 21.1 | 5.19 | 0.29 | 170.2 | 3.884 |
| 30% | 10 | 6.6 | 2.91 | 0.16 | 53.5 | 12.356 |

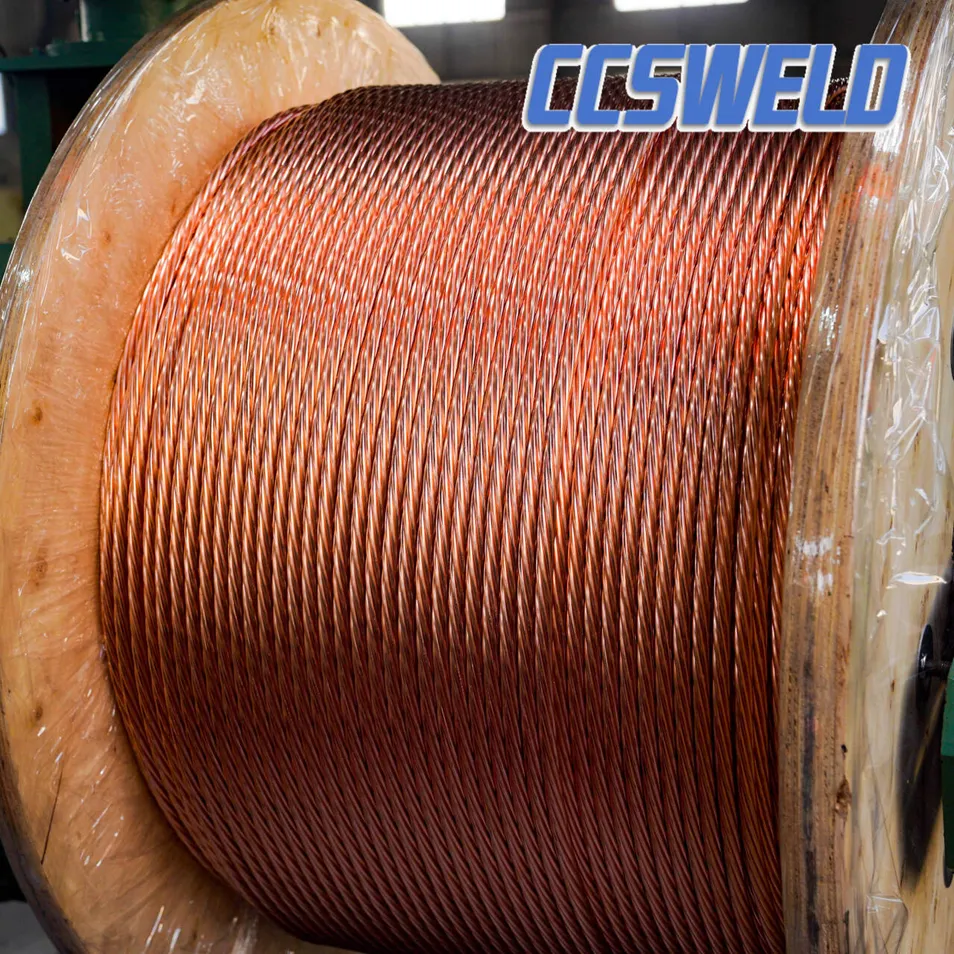

Achieved through a special alloying process, ensuring a strong, ductile connection between copper and steel for enhanced durability.

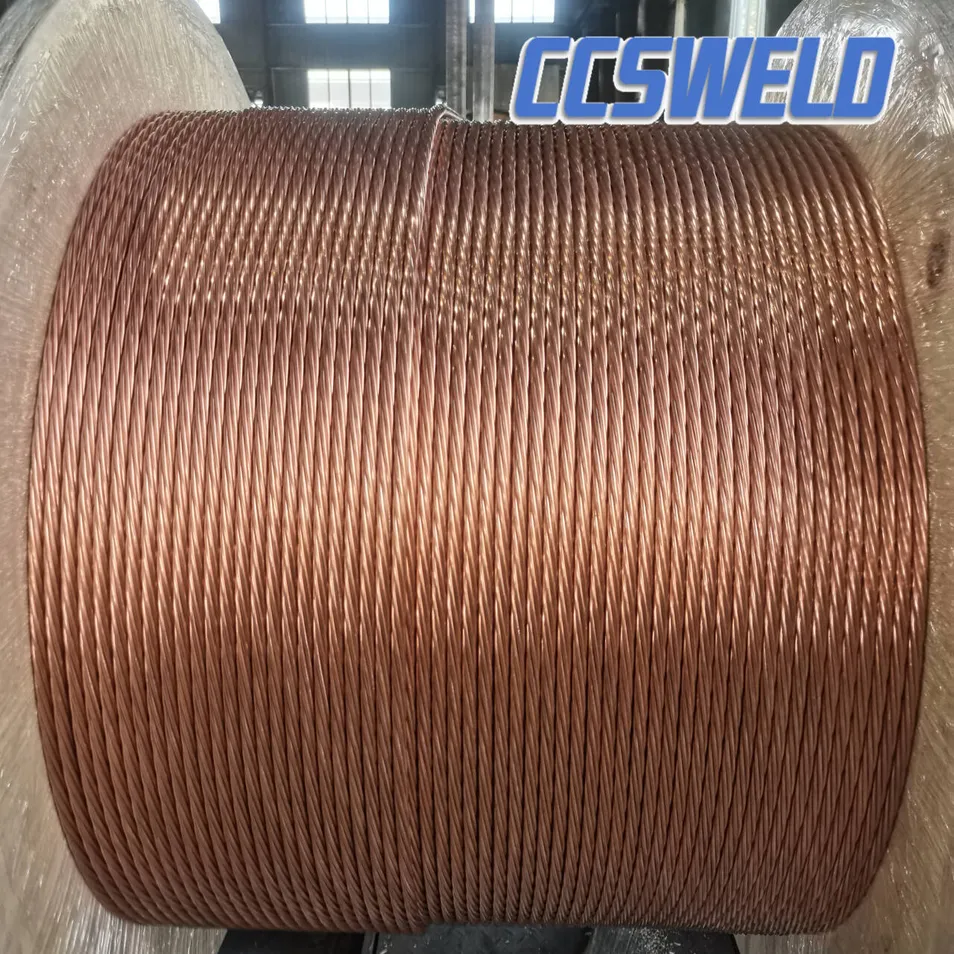

Features a copper layer with over 99.9% purity, promoting excellent electrical conductivity and minimizing resistance.

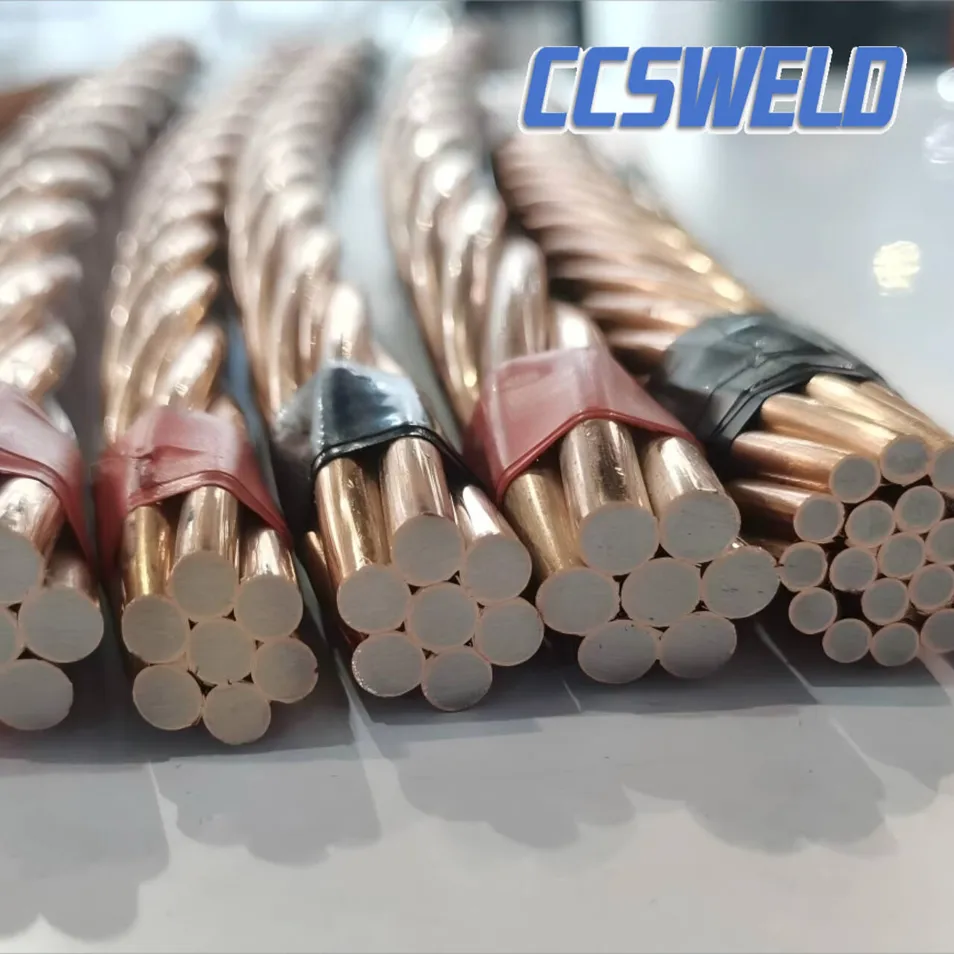

Engineered to last 30 to 50 years, our wire is built to withstand varying corrosion conditions, providing lasting performance.
