| Model NO. | Seismic Bracket |
| Type | Cold Bending Equal Channel |
| Standard | GB, ASTM, JIS, AISI, DIN, BS |
| Shape | U Channel |
| Product Name | C Channel/Strut Channel/Seismic Bracket |
| Surface Treatment | Galvanized Coated/Dacromet/HDG |
| Zinc Coating | 40-275g |
| Thickness | 0.8mm-3.0mm |
| Material | Stainless Steel/Carbon Steel |
| Production Capacity | 100000 Tons Per Month |
Specifications:
Application:

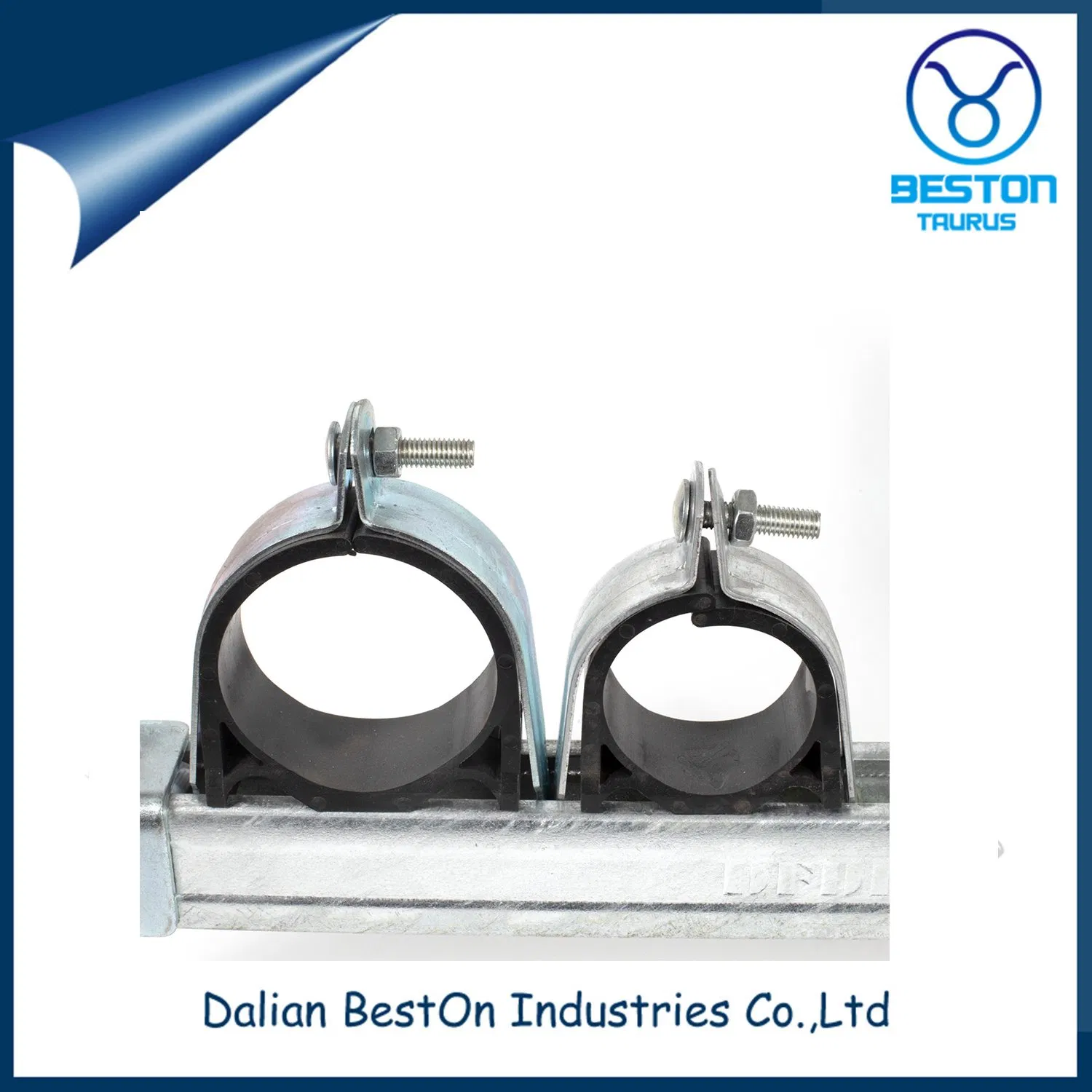

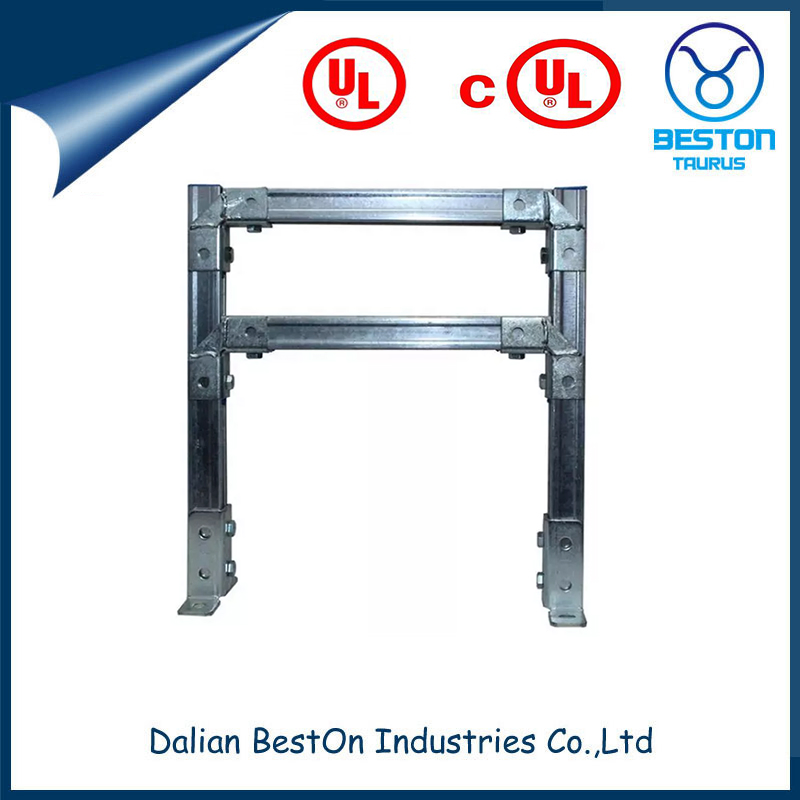

A strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, and mechanical systems such as ventilation, air conditioning, and other mechanical systems. It is also ideal for workbenches, shelving systems, and equipment racks.
| Support Channel Technical Data | |
|---|---|
| Products | Steel Strut Channel / C Channel / Plain and Slotted Support Channels |
| Grade | A36 / Gr.42 / Gr.50 / Gr.60 / ss440 / ss490 / S420NL / SM570 |
| Technique | Hot Rolled / Cold Rolled |
| Surface Processing | Pre-galvanized / Hot Dip Galvanized or Customized |

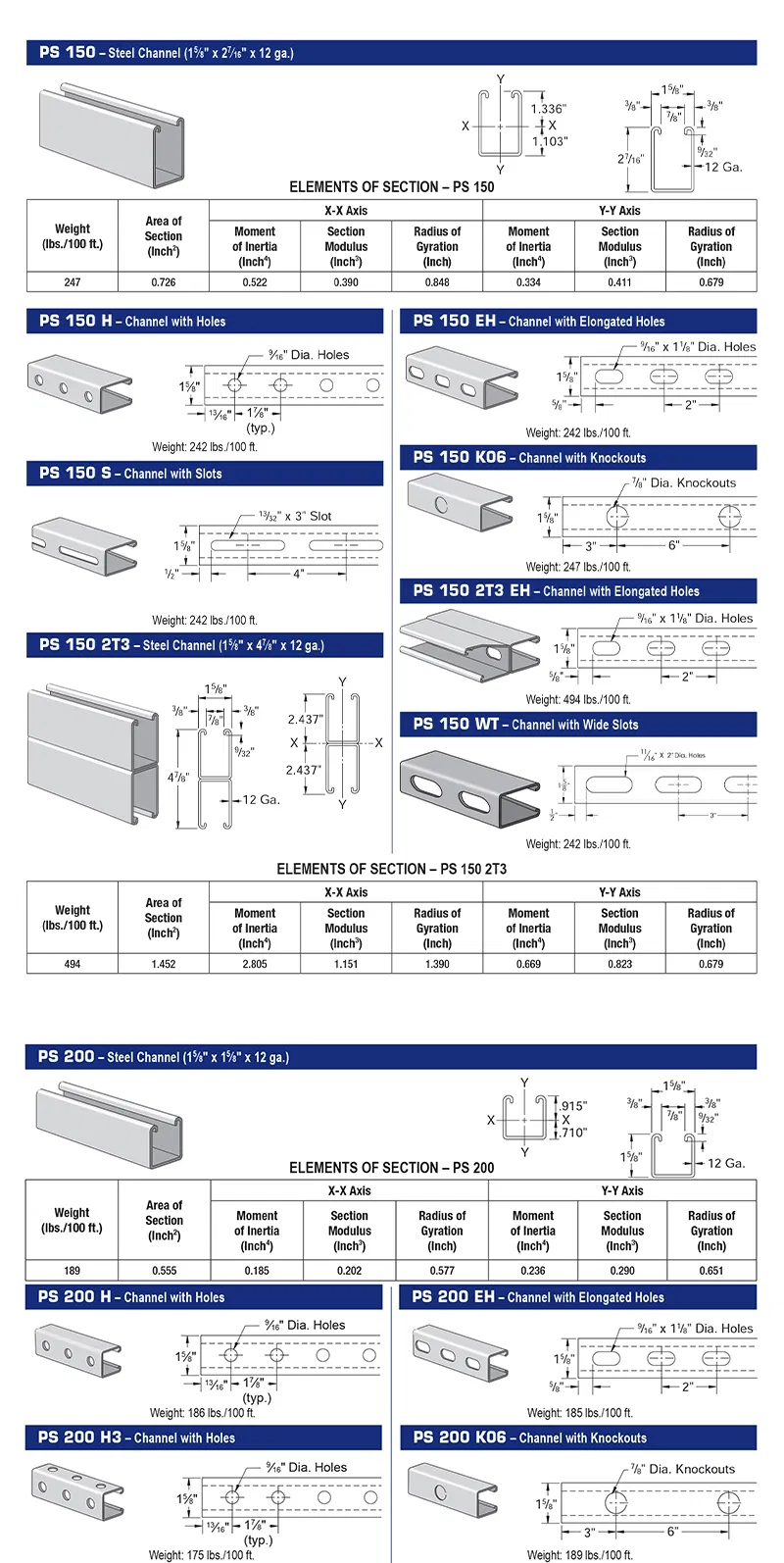

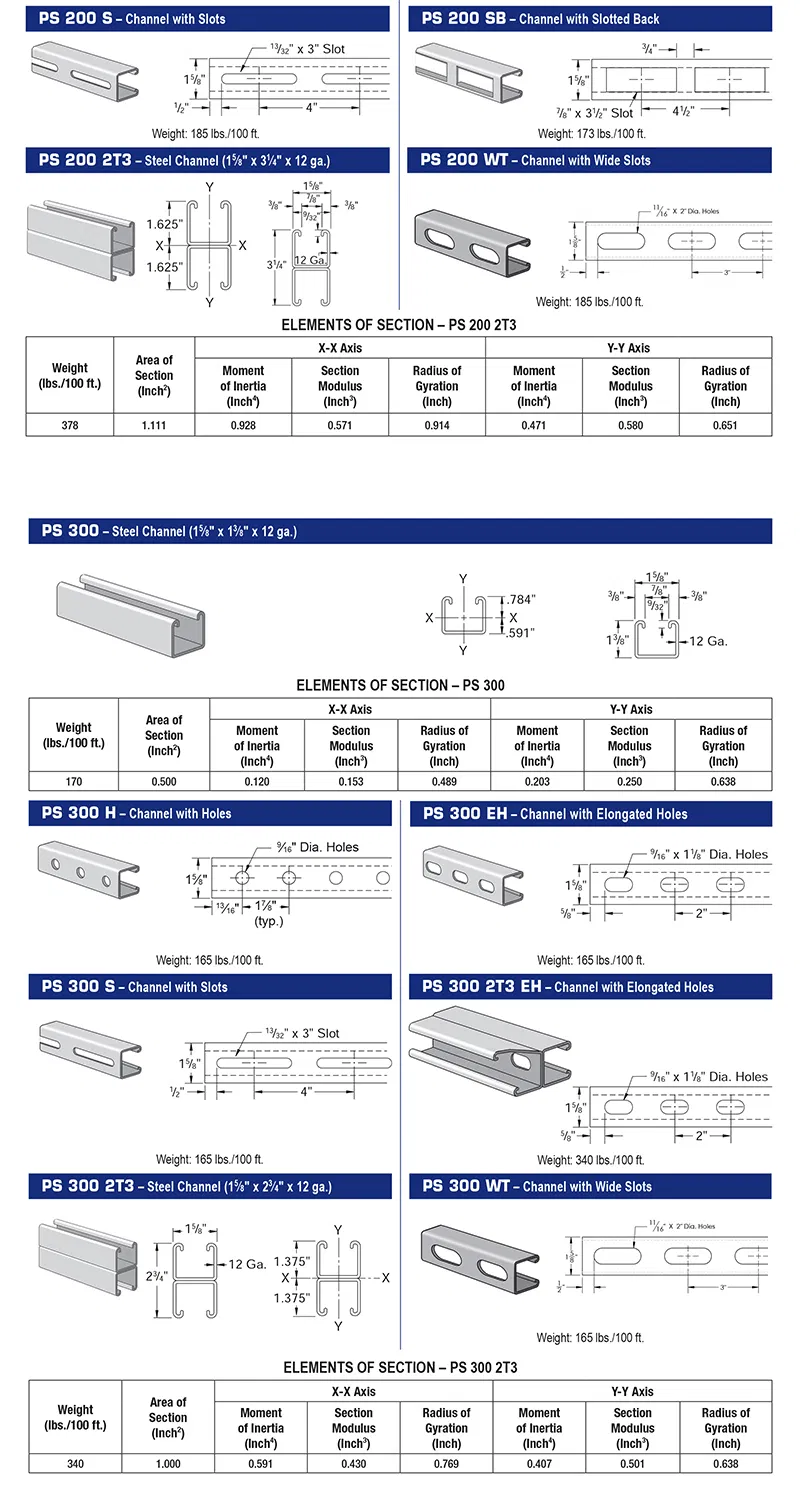

| No. | Width (mm) | Height (mm) | Thickness (mm) | Standard Length (mm) |
| 1 | 41 | 21 | 1.2, 1.5, 2, 2.3, 2.5 | 3000, 6000 |
| 2 | 41 | 25 | 1.2, 1.5, 2, 2.3, 2.5 | 3000, 6000 |
| 3 | 41 | 41 | 1.5, 2, 2.3, 2.5 | 3000, 6000 |
| 4 | 41 | 62 | 1.5, 2, 2.3, 2.5 | 3000, 6000 |
| 5 | 41 | 72 | 1.5, 2, 2.3, 2.5 | 3000, 6000 |
| 6 | 41 | 82 | 1.5, 2, 2.3, 2.5 | 3000, 6000 |
Surface Finishing Options:
