Introduction:

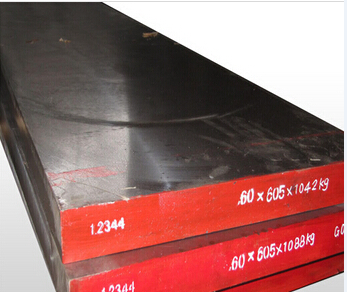

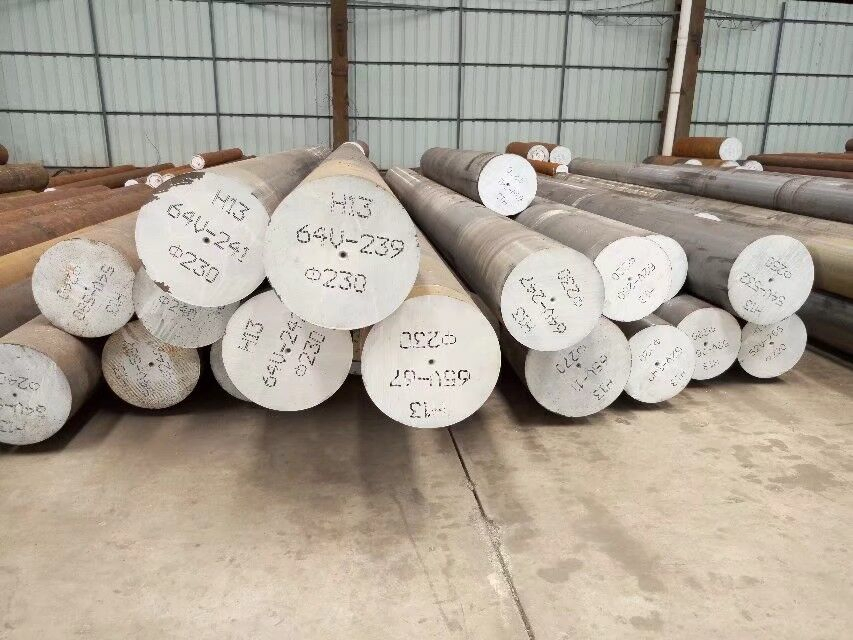

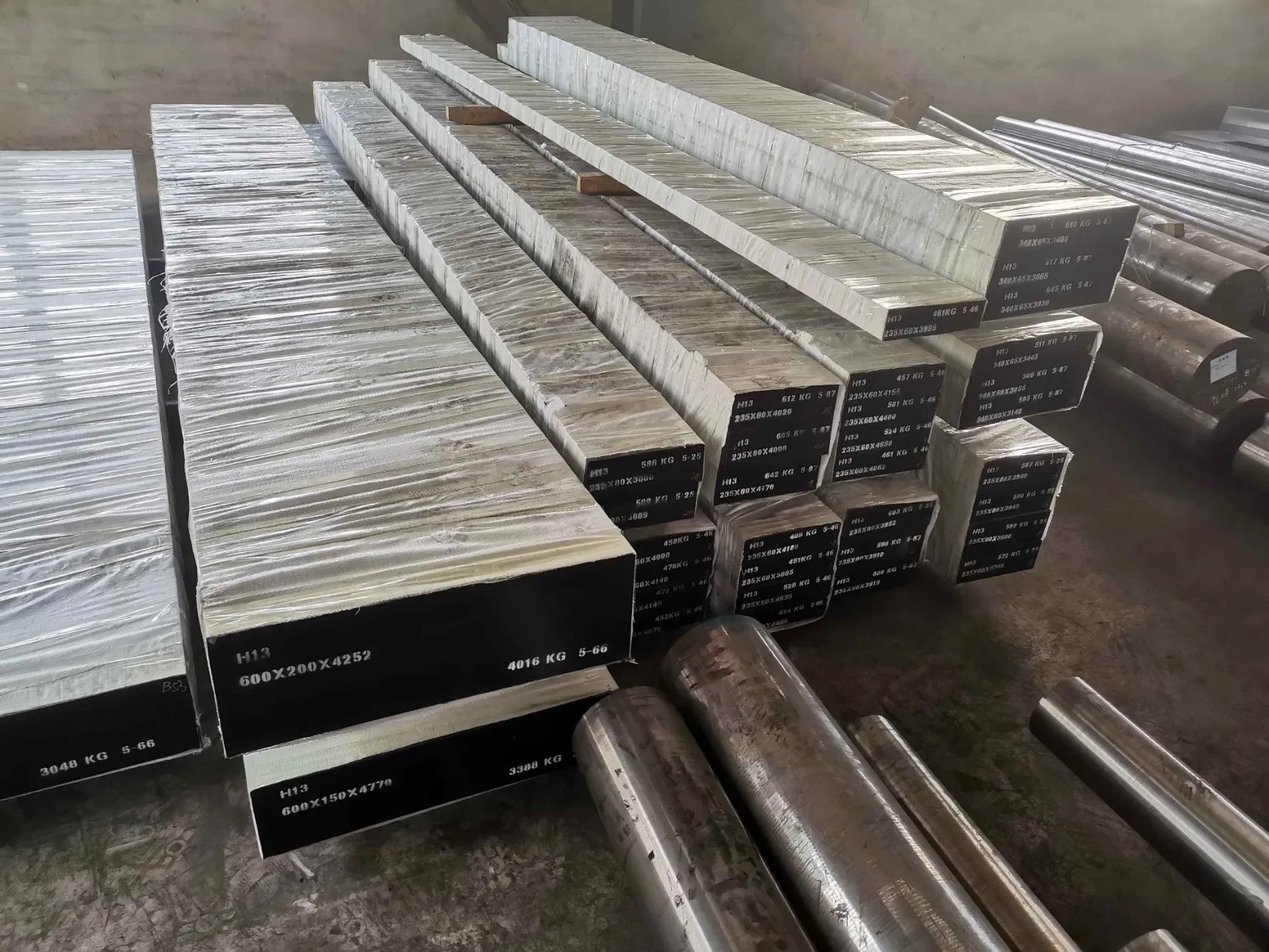

1.2344 flat bar is a versatile chromium-molybdenum hot work steel designed for demanding industrial applications.
📏Size Range:
⭐Service Advantages:
1.2344 flat bar is ideally suited for a wide range of applications including: Aluminium extrusion dies, backers and bolsters, stems and mandrels, die casting dies, and forging inserts.
| Logistic Details | Specifications |
|---|---|
| Packing Details | In seaworthy packing, as per requirement. |
| Delivery Details | Within 30-50 days |
Chemical Composition (DIN %):
| C | Si | Mn | P | S | Cr | Mo | V |
|---|---|---|---|---|---|---|---|
| 0.35-0.42 | 0.80-1.20 | 0.25-0.50 | 0.030 max | 0.030 max | 4.80-5.50 | 1.20-1.50 | 0.85-1.15 |
⚙Surface Condition: Black, Polished, Ground, Peeled, or Milled surface.
🔥Hardness Annealed: 229HB max.
🛠Smelting & Shaping: EF/ESR, Hot Forged / Hot Rolled.
📦Delivery Condition: Hot rolled, forged, annealed, or tailored to requirements.

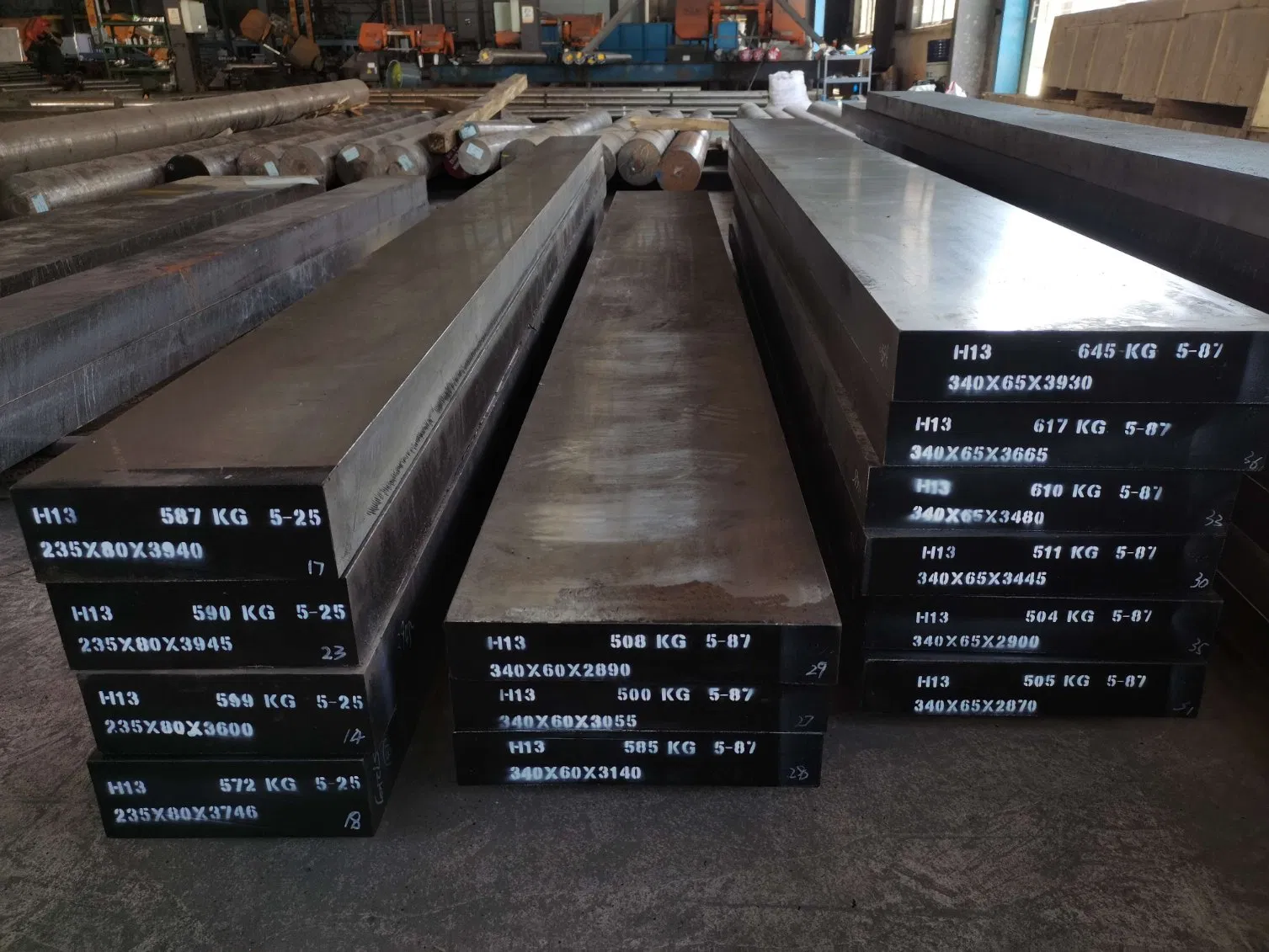

🏷Marking: Grade, heat NO. and length stamped on each bar with required identification colors.
