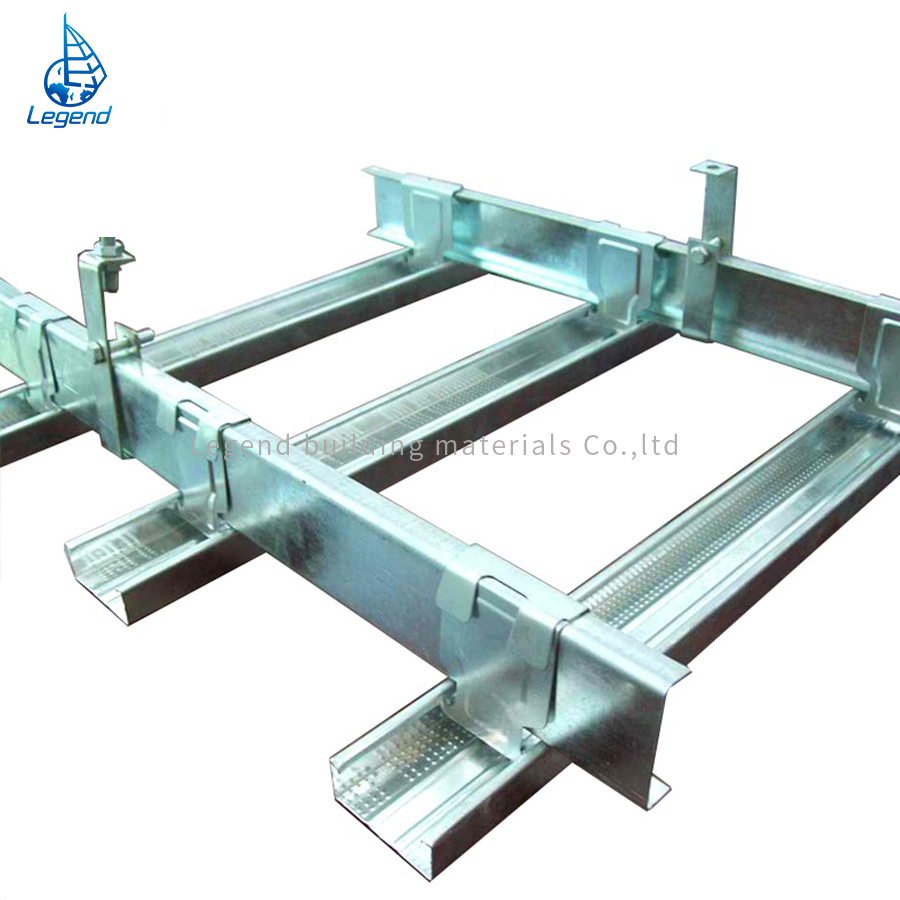

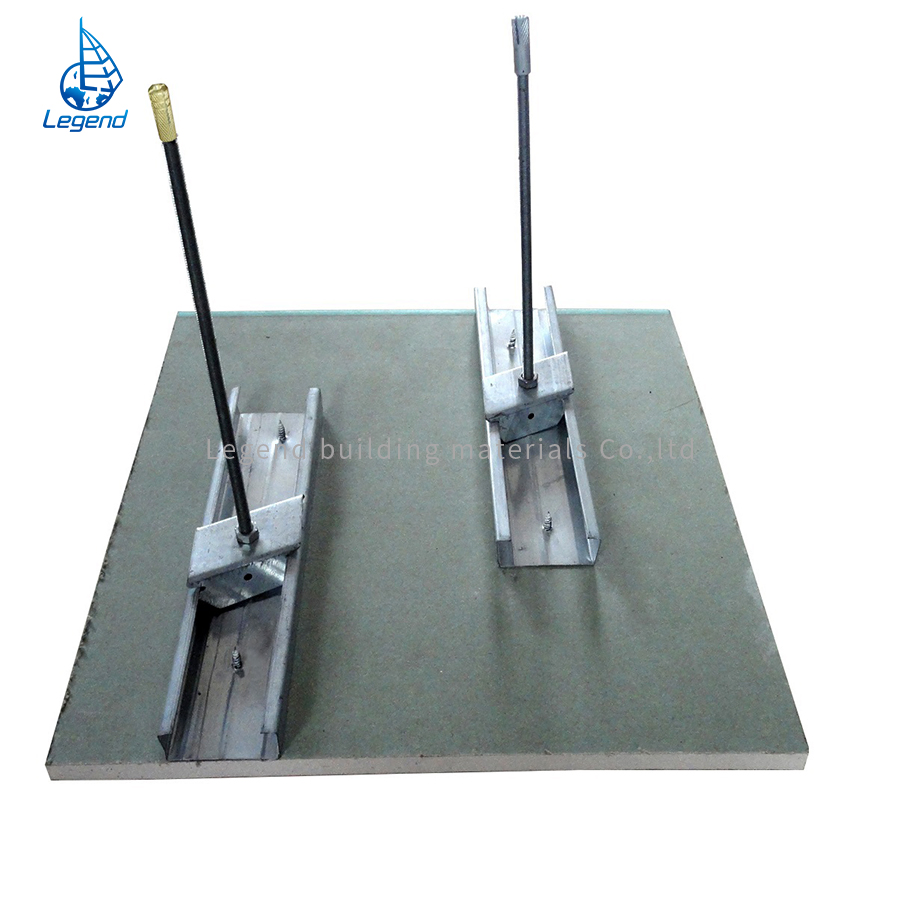

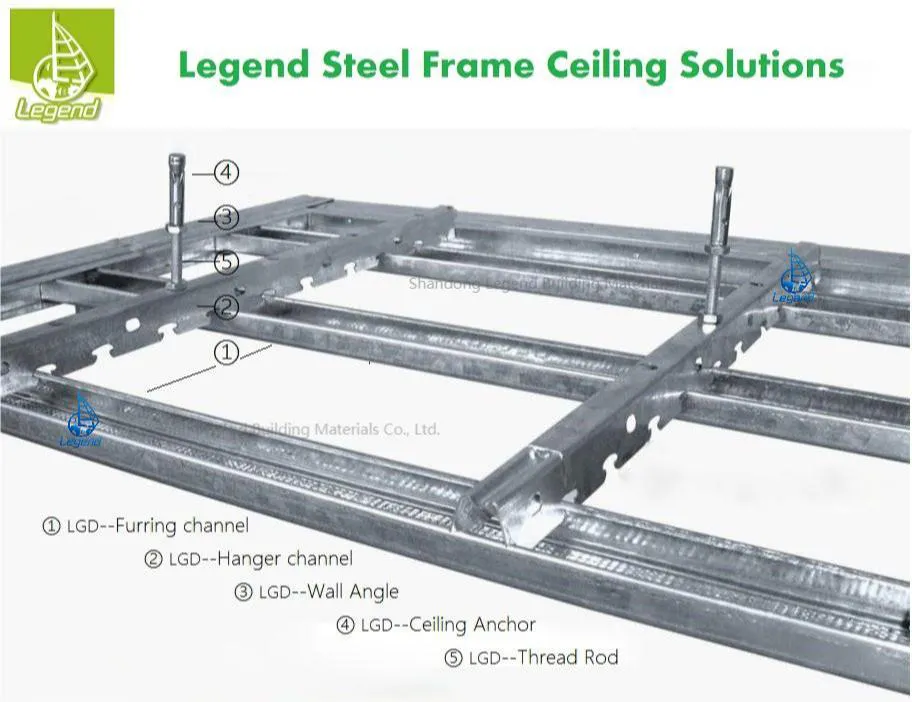

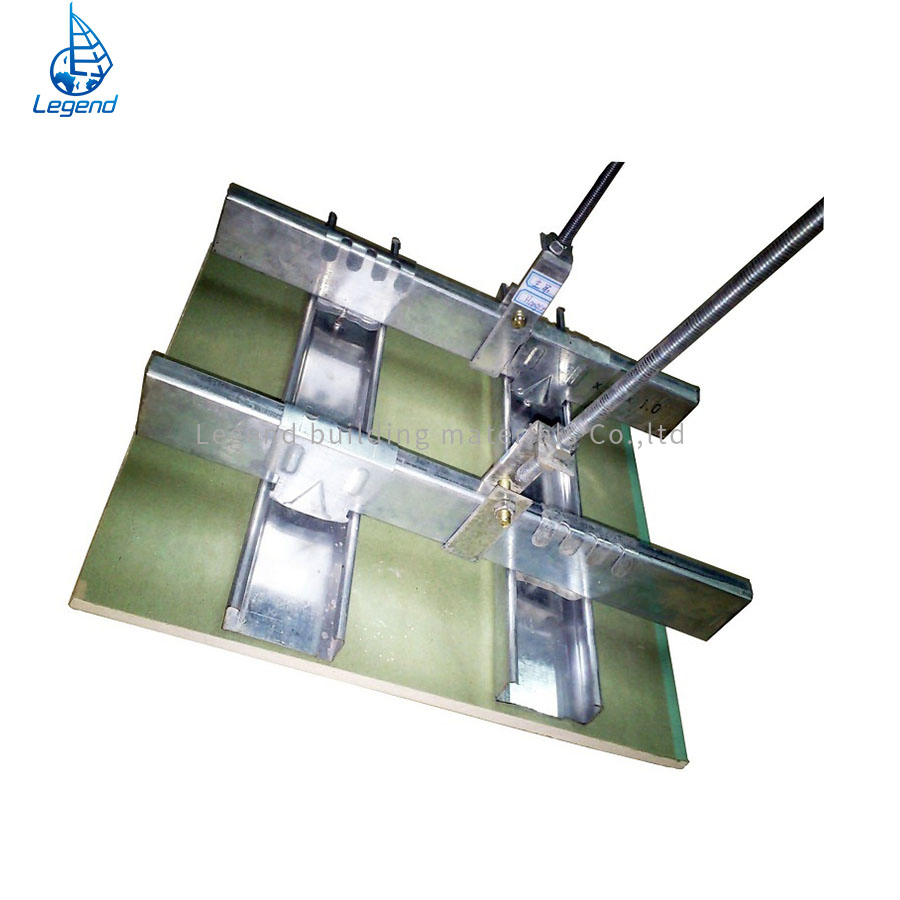

The Concealed Ceiling System is engineered for high-performance architectural needs, including fire resistance, moisture resistance, and superior sound insulation. The system integrates high-quality boards with a robust steel ceiling frame to meet various engineering budgets and physical property requirements.
Available Ceiling Board Options:
| Product Name | Specifications (WxHxT mm) | Product Name | Specifications (mm) |
|---|---|---|---|

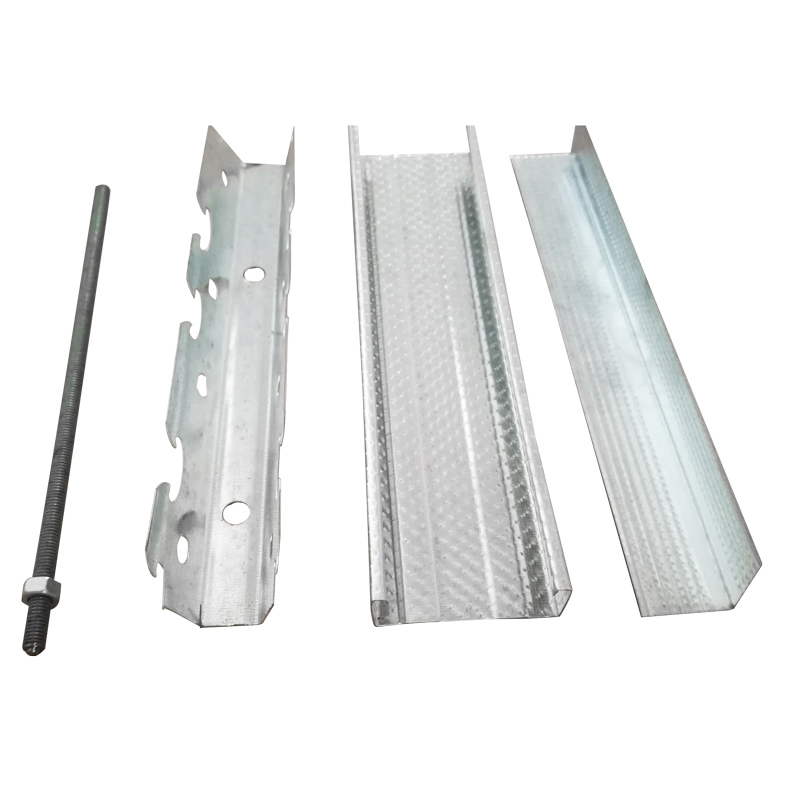

| 38 Main Channel | 38x12x0.8/1.0 | 50 Main Channel | 50x15x0.8/1.0/1.2 |

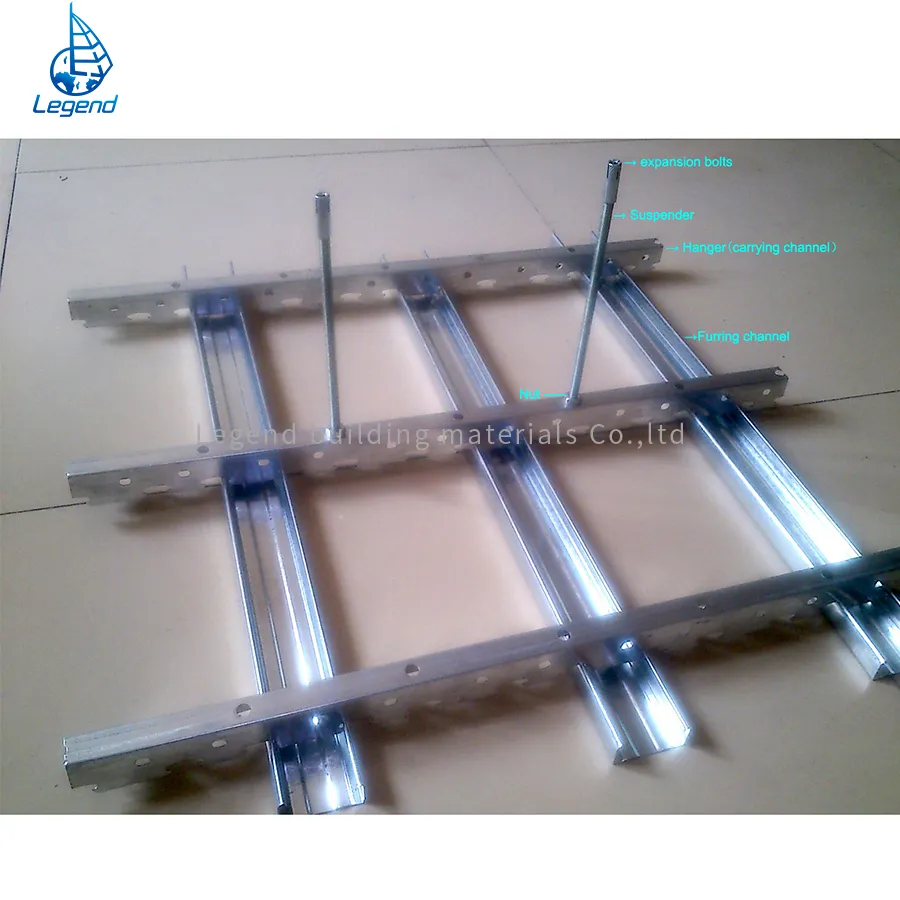

| 28 Hanger (Carrier) | 28x18x0.6/0.7/0.8 | 70 C-stud | 70x35x0.4/0.5/0.6 |
| 32 Hanger (Carrier) | 32x18x0.7/0.8/1.0 | 70 U-track | 70x30x0.4/0.5/0.6 |

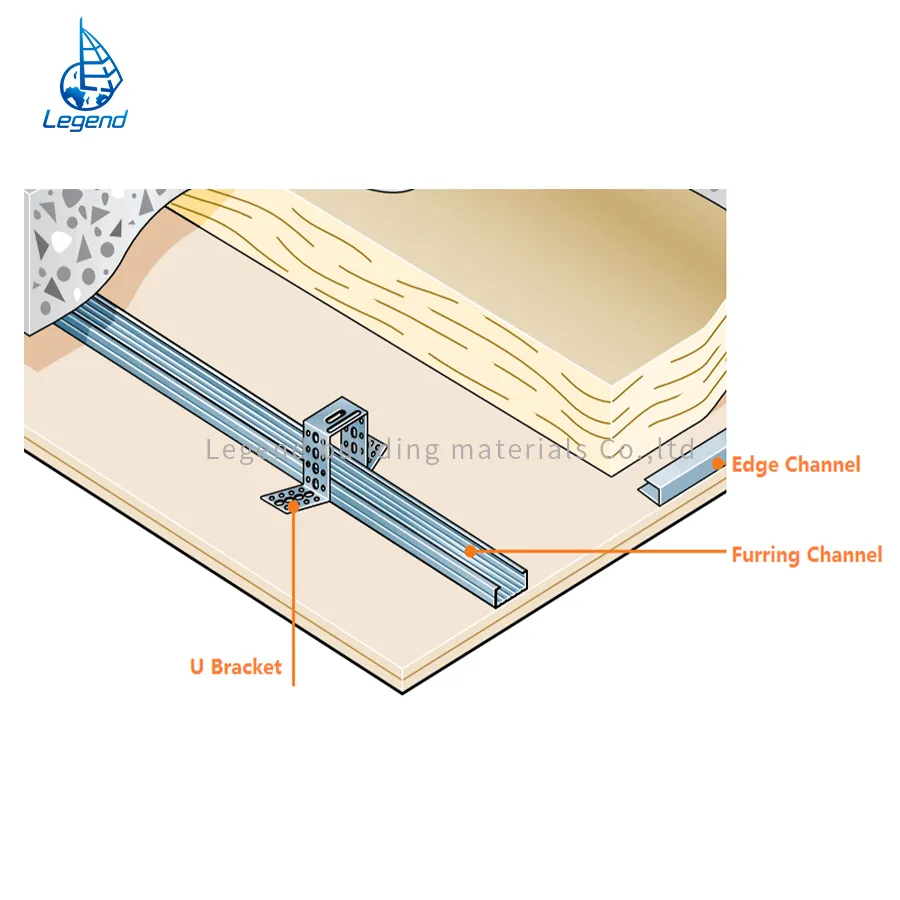

| Furring Channel | 50x19 / 45x17 / 60x27 | Corner Bead | 25x25 / 30x25 |
| Wall Angle (L / W) | 25x25 / 19x9x13x24 | Shadow Trim | 22.5x45x15x0.5 |
| Raw Materials | Magnesium Oxide, Magnesium Chloride, Perlite, Fiberglass mesh, Wood fibers |
| Standard Size | 2400x1200mm, 2440x1220mm, 3000x1200/1220mm |
| Thickness | 3.0-20mm |
| Density | 0.85-1.00g/cm³ |
| Fire Resistance | Incombustibility A1 Class (GB8624-1997) |
| Sound Insulation | ≥44dB |
| Security | 100% Asbestos-free, Formaldehyde-free, Benzene-free |
| Board Type | Standard Width (mm) | Thickness (mm) | Standards |
|---|---|---|---|
| Gypsum Board | 900 / 1200 / 1220 | 6.4 to 15.9 | EN520, ASTM C1396 |
| Fiber Cement Board | 1200 / 1220 | 5 to 30 | ISO, CE |
Our products are widely utilized in modern construction for suspension ceiling systems in hotels, terminal buildings, railway stations, theaters, shopping malls, office buildings, and high-end residential decorations.

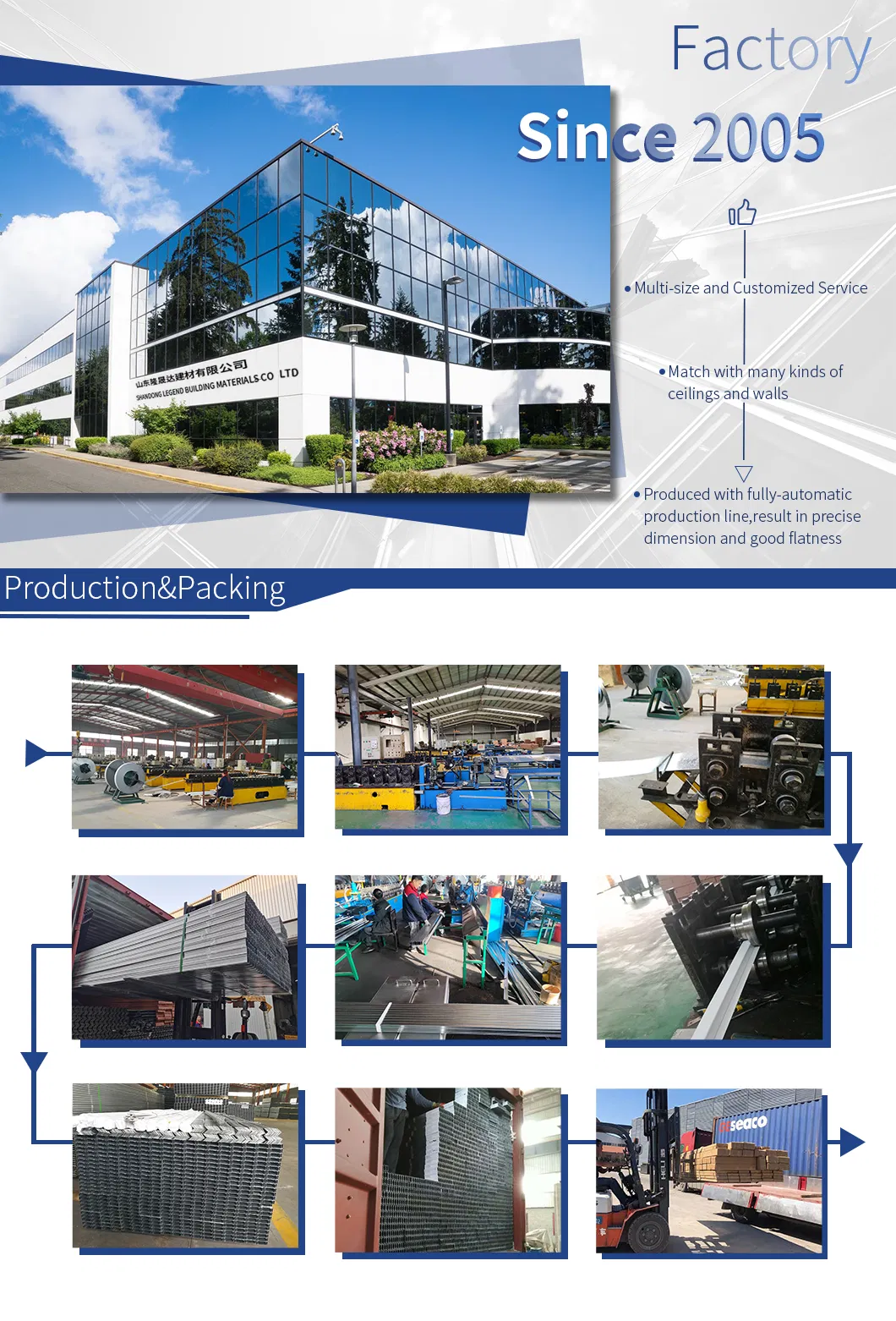

With large-scale production facilities exceeding 30,000m², our manufacturing capacity reaches 20 million square meters of gypsum products and 30,000 tons of metal profiles annually. We integrate advanced production techniques with rigorous quality control to ensure every component meets international construction requirements.
Our materials are certified by ISO9001:2008 and ISO14001:2006. Products fully comply with international standards including CE, ASTM C 1396, EN520:2005, and AS/NZS 2588.
