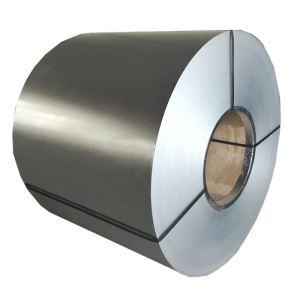

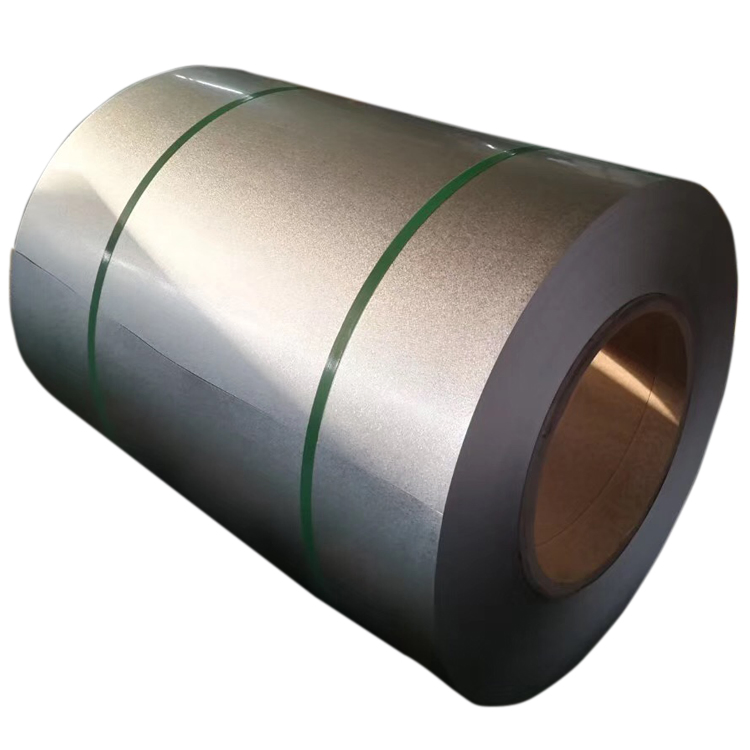

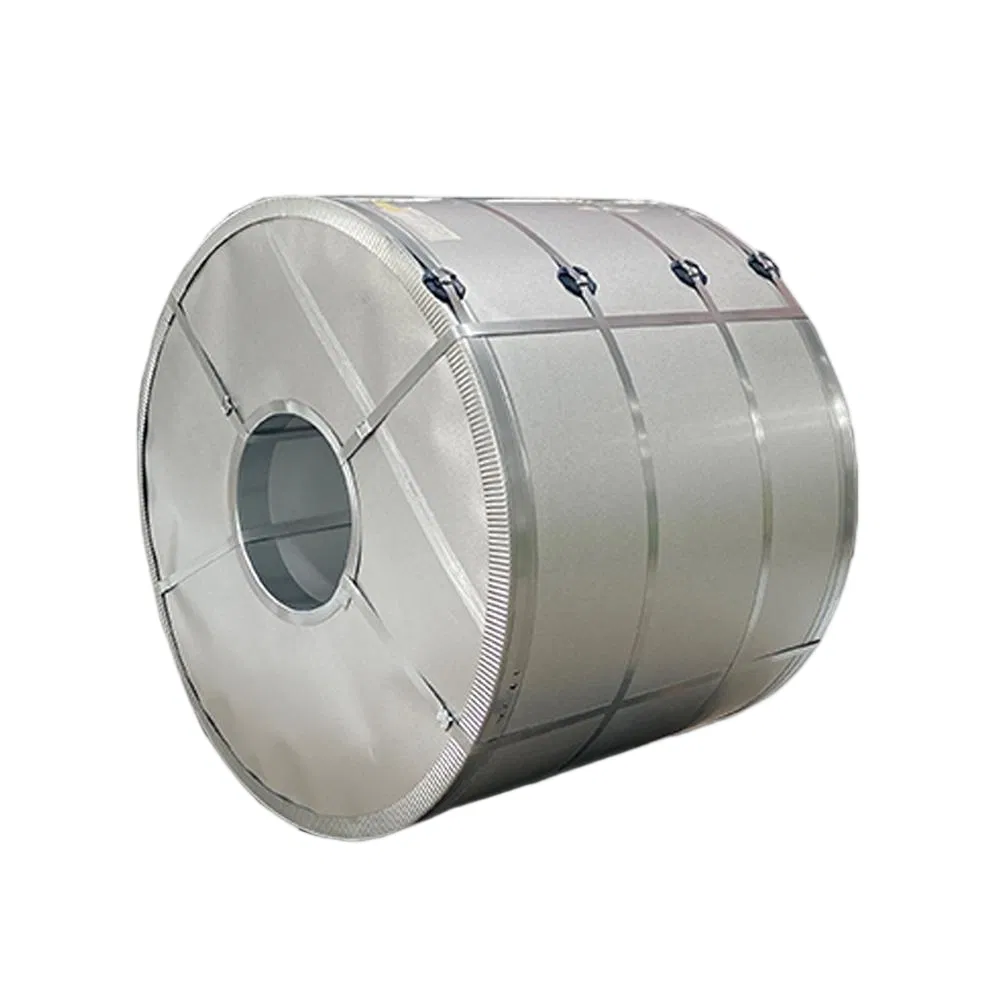

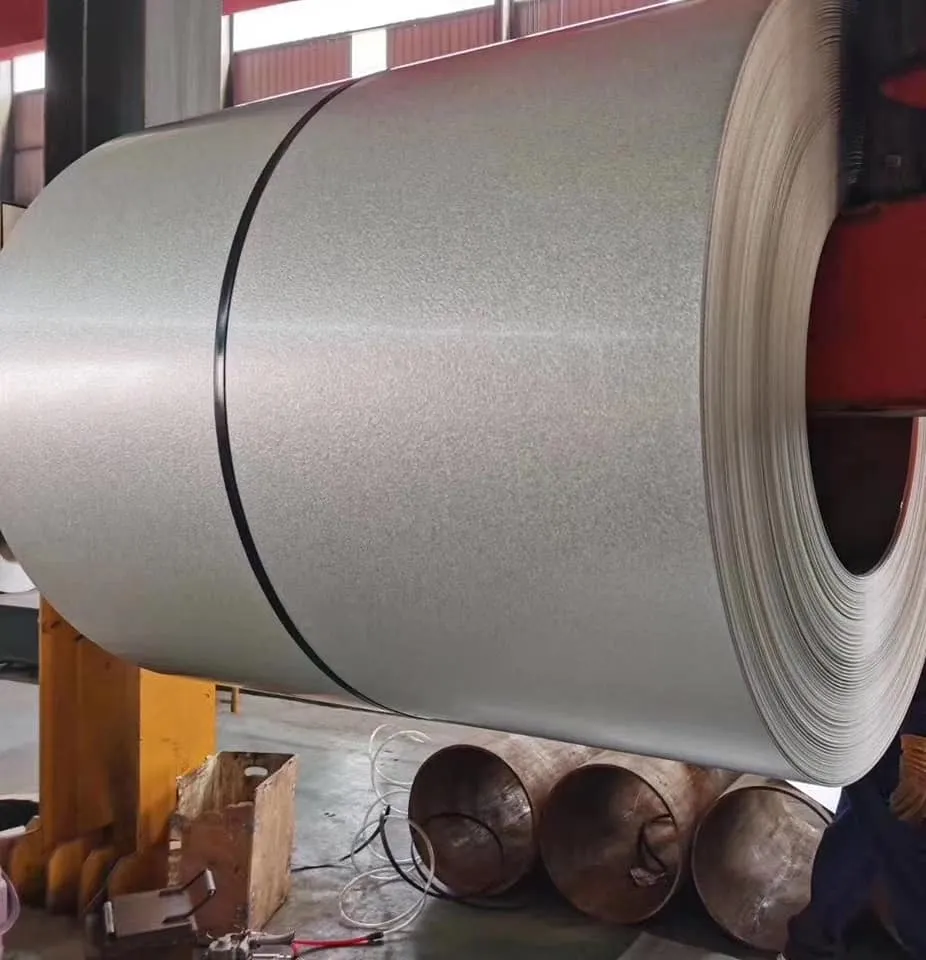

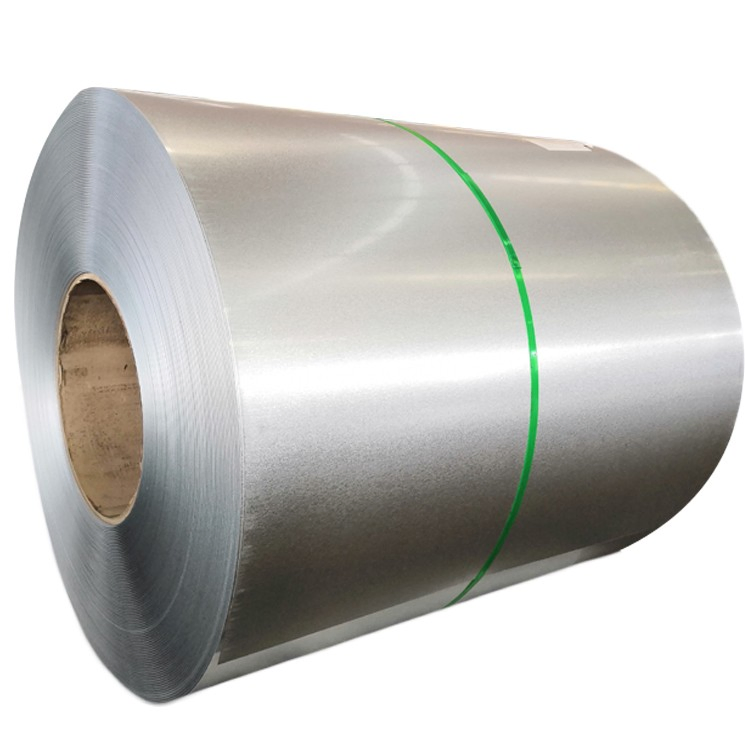

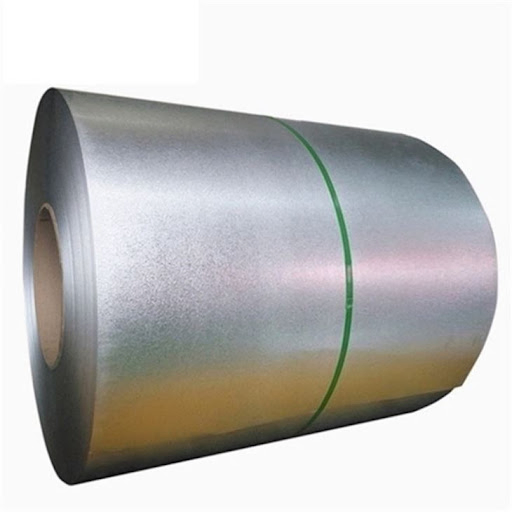

G550 Az150 az70 za55 aluzinc coil strip Zincalume Galvalume Steel Coil
| Specification | Details |
|---|---|
| Thickness | 0.12 ~ 6.0 mm |
| Width | 600-1500 mm |
| Zinc Coating | 30 ~ 275 G/M2 |
| Coil ID | 508 / 610 MM |
| Coil Weight | 3-5 Tons |
| Standard | ASTM-A653; JIS G3302; EN10147; EN10326 etc. |
| Hardness | Soft hard (HRB60), medium hard (HRB60-85), full hard (HRB85-95) |

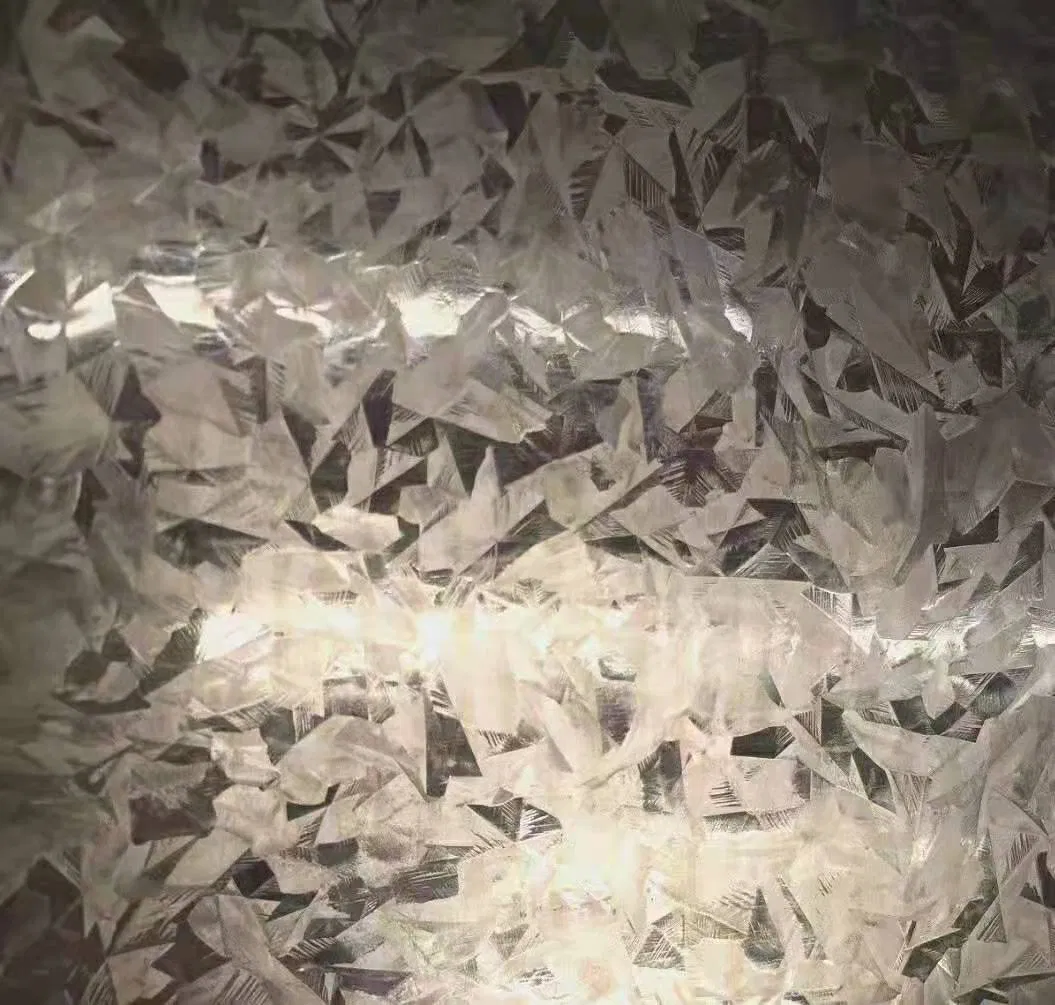

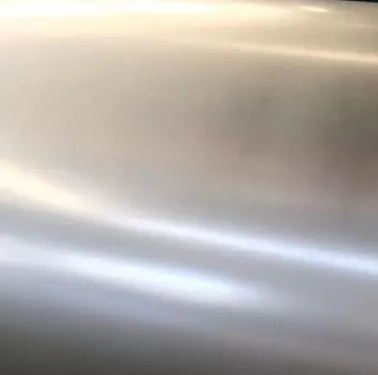

| Surface Structure | Regular spangle, Minimum spangle, Zero spangle, Big spangle |
| Surface Treatment | Chromated/Non-Chromated, Oiled/Non-oiled, Skin pass |
The surface of the galvanized steel sheet presents a unique smooth, flat and gorgeous star flower, and the base color is silver-white. The special coating structure makes it have excellent corrosion resistance. The normal service life of the aluminum-zinc plate can reach 25 years. It has good heat resistance and can be used in high temperature environments up to 315°C. The coating composition is 55% aluminum, 43.4% zinc, and 1.6% silicon by weight.
| Steel Grade | DX51D+AZ |

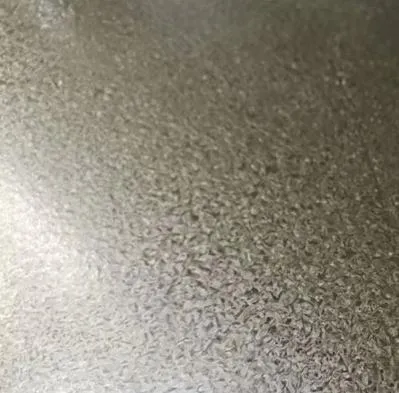

| Spangle Type | Minimized Spangle (M) |
| Chemical Treatment | Chemically Passivated (C) |
| Oil Treatment | Not Oiled |
| Zinc Coating Range | Z30 -- 275 |
| Steel Grade | C | Si | Mn | P | S | Ti |
|---|---|---|---|---|---|---|
| DX51D | 0.18 | 0.5 | 1.2 | 0.12 | 0.045 | 0.3 |
