Application Range of H Type Steel

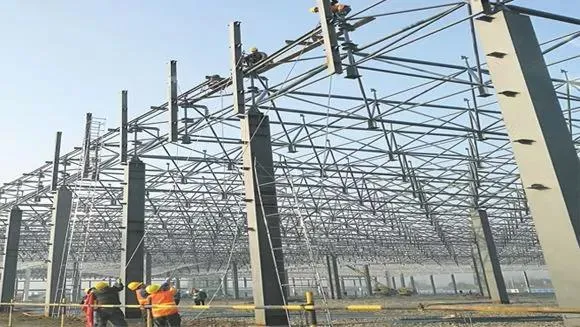

- Beam and column members in industrial and civil building steel structures.
- Steel structure bearing support for industrial structures.
- Steel pile and supporting structure for underground engineering.
- Structure of industrial equipment such as petrochemical and electric power.
- Long-span steel bridge components.
- Frame structure of shipbuilding and mechanical manufacturing.
- Train, car, tractor beam bracket.
- Port conveyor belt, expressway stalls support.
Technical Rationality
The use of H steel in industrial and civil buildings not only saves labor force and reduces cost, but also reduces the amount of steel used. For example, the steel structure of a workshop can be reduced by 15%-20% compared with hot rolled I-steel or wide flange H steel.
Specification Table (H-BEAMS)
| Nominal Size (mm) |
HXB (mm) |
T1 (mm) |
T2 (mm) |
Unit Weight (kg/m) |
Available Length |
| 100*100 | 100*100 | 6 | 8 | 16.9 | 6/10/12m |
| 150*150 | 150*150 | 7 | 10 | 31.1 | 6/10/12m |
| 200*200 | 200*200 | 8 | 12 | 49.9 | 6-16m |
| 300*300 | 300*300 | 10 | 15 | 93 | 6-16m |
| 400*400 | 400*400 | 13 | 21 | 172 | 6-16m |
| 600*300 | 582*300 | 12 | 17 | 133 | 6-16m |
| 900*300 | 900*300 | 16 | 28 | 240 | 6-16m |
Frequently Asked Questions
Q1: What are the primary advantages of using H-beams over I-beams?
A: H-beams have wider flanges and a more efficient cross-sectional area, offering higher strength-to-weight ratios and better resistance to bending compared to standard I-beams.
Q2: Which material grades do you supply for H-beams?
A: We provide various grades including Q235B, Q345B, SS400, A36, and ST37 to meet different structural and international requirements.
Q3: Can the length of the H-beam be customized for specific projects?
A: Yes, while standard lengths are 5.8m, 6m, 9m, and 12m, we can provide customized lengths ranging from 6m up to 16m based on your specifications.
Q4: What is the typical production capacity for H-beams?
A: Our current production capacity is approximately 5,000 tons per month, ensuring a steady supply for large-scale industrial and civil projects.
Q5: Are these H-beams suitable for marine or shipbuilding applications?
A: Absolutely. H-beams are widely used in the frame structures of shipbuilding and port conveyor systems due to their durability and load-bearing capacity.
Q6: Do you provide standard export packaging for international shipping?
A: Yes, all products are packed using standard export packaging methods to ensure safe transit and protection against the elements during long-distance shipping.
