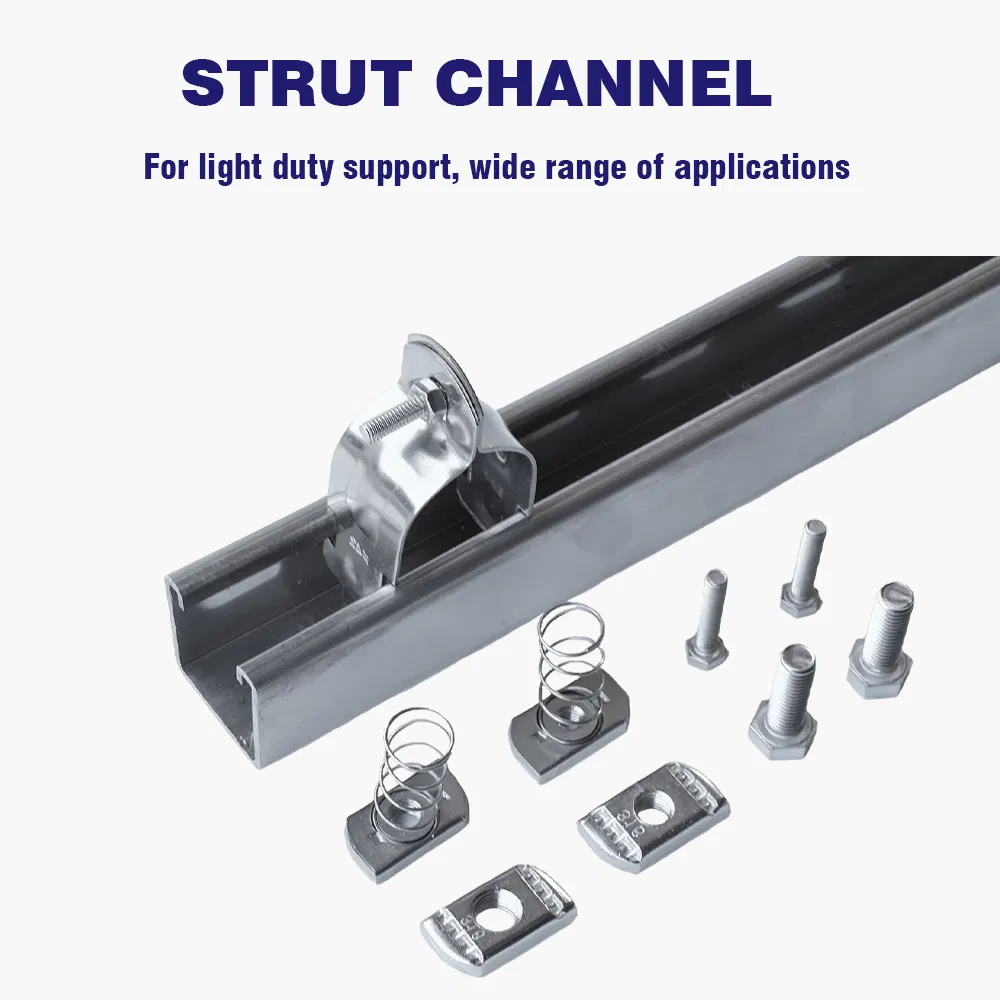

Galvanized Steel Strut Structure C U Steel Unistrut Channel for Solar Mounting

1 / 5

Galvanized Steel Strut Structure C U Steel Unistrut Channel for Solar Mounting

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

HM series Perforated C Channel

Shape

C Channel

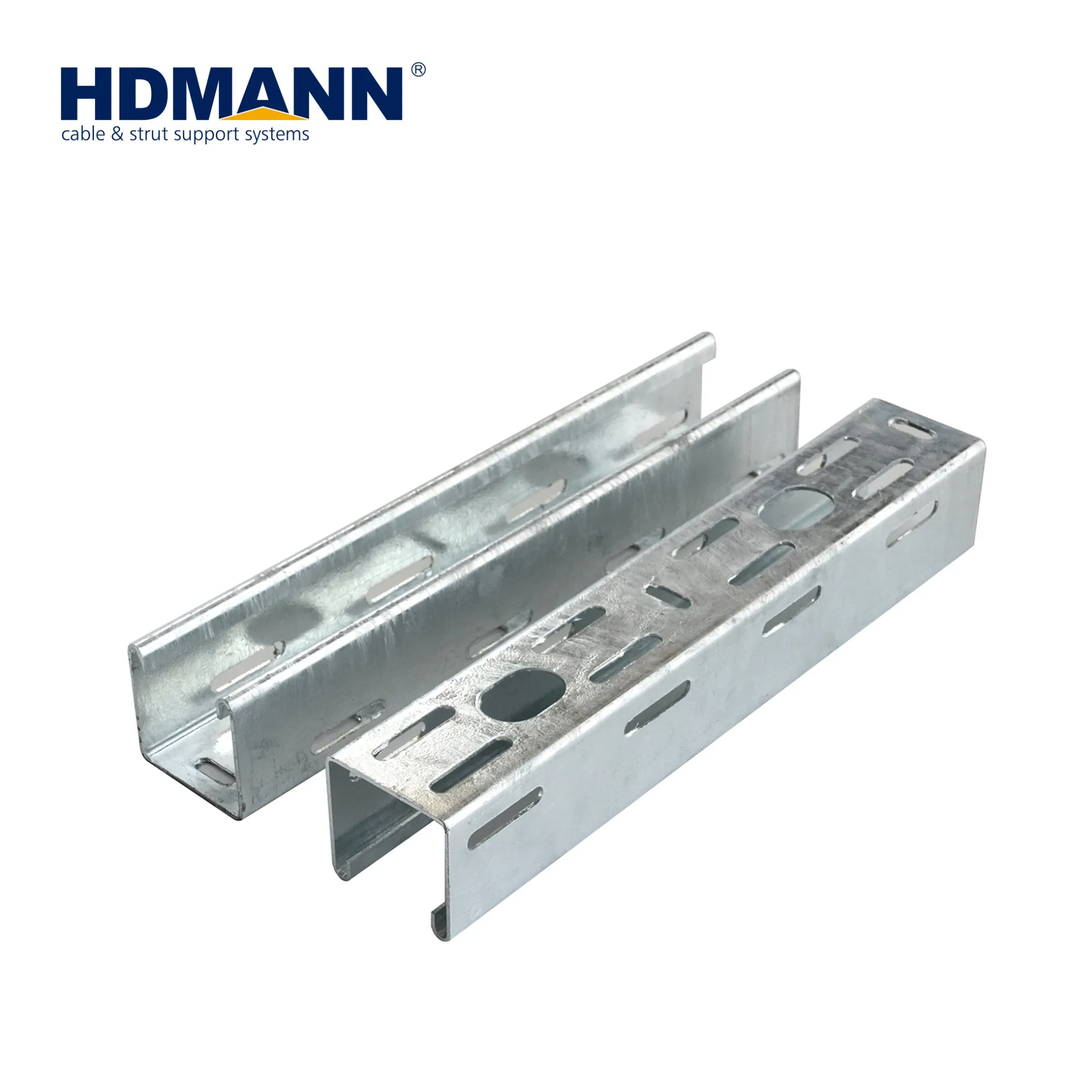

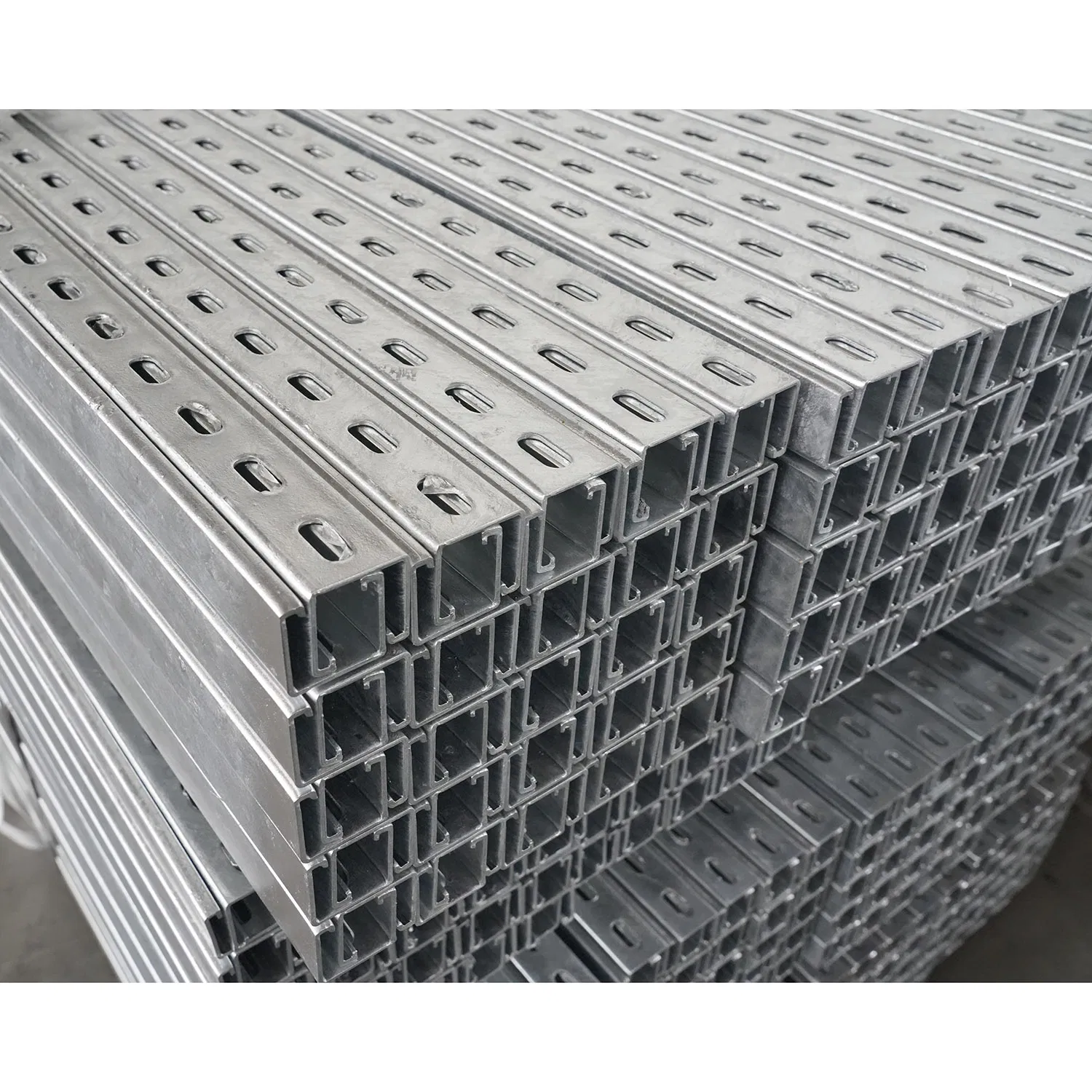

Perforated

Length

5-12m

Price Terms

Fob, CIF, CFR

Product Name

Perforated C Channel for Ceiling System with Clamp

Certificates

CE, NEMA, ISO, UL, SGS

Grade

Steel

Thickness

0.8 - 3mm

Application

Cable Tray / Solar Mounting

Production Capacity

500 Ton/Month

Processing

Bending, Welding, Punching, Decoiling, Cutting

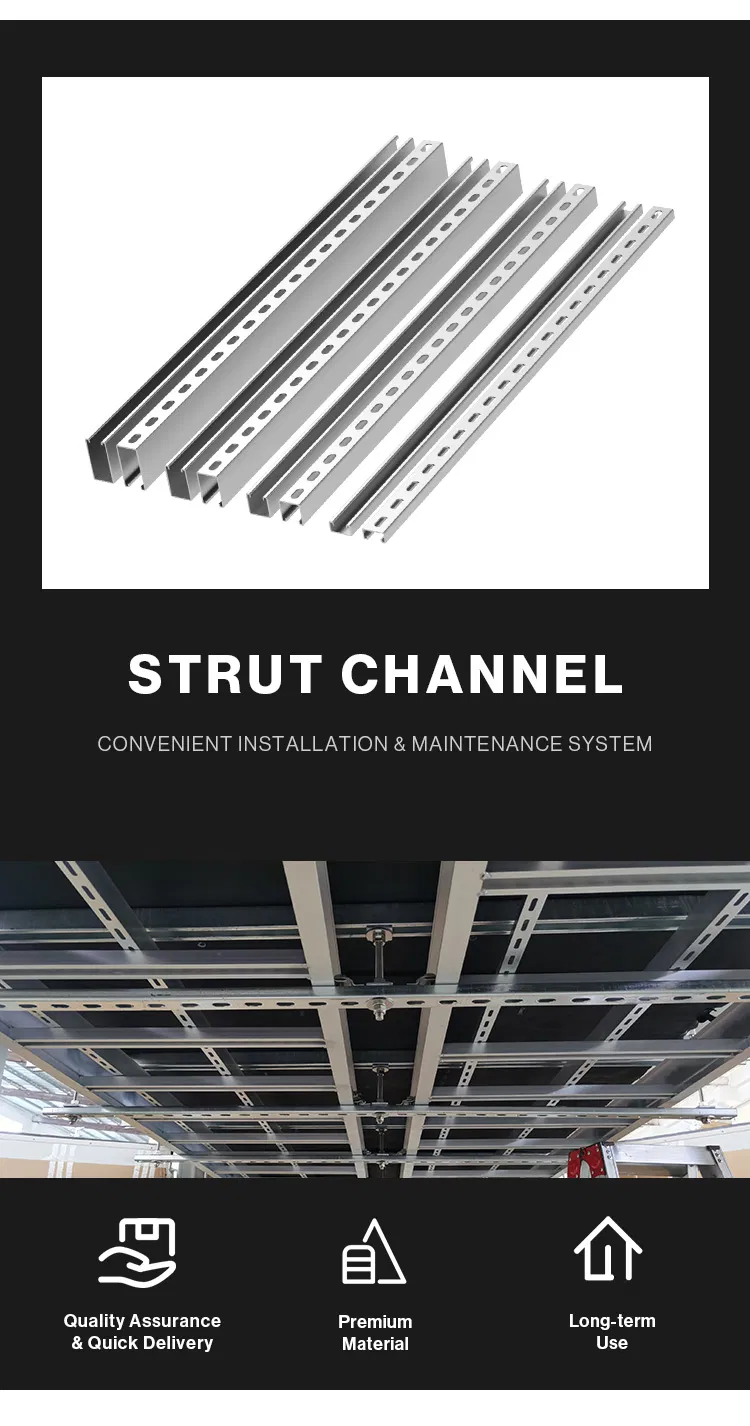

Product Visuals

Technical Specifications

Standard Dimensions, Thickness and Weight (kg/meter)
W*H / Thickness	1.5mm	2.0mm	2.5mm	2.75mm	3mm
41*41	1.68	2.22	2.78	3.07	3.35
41*25	1.29	1.72	2.14	2.36	2.57
41*21	1.18	1.59	1.98	2.2	2.37
41*72	2.42	3.22	4.03	4.43	4.82

Surface Treatment	Application Environment
Electro zinc plating (>12um)	Indoor: IDC, Factory, Hospital, Railway, Electricity industry, Energy resources.
Hot dip galvanized (>60um)	Indoor/Outdoor: Chemical Engineering, Railway, Electricity, Wind power, Solar energy.
Powder coating (>60um)	Indoor: Colored channel for Railway, Electricity, Solar energy resources.
Acid washing (Stainless Steel)	High corrosion: Pharmacy, Machinery, Seaborne, Robotics, Food Industry.

Available Materials: Q235B(SS400B), Aluminum, Pre-galvanized steel, FRP, Stainless steel 304/316/316L.

Professional Support Systems

Providing pioneer-standard quality and performance in cable & strut support systems for over 13 years. Continuous efforts at improving both products and services have been rewarded by a wide and growing user base and global projects.

All products are quality assured to ISO9001 and meet certificates including ABS, TUV, UL, CE, CGS etc.

Our range includes materials such as Hot Dip Galvanized, Electrical Galvanized, Aluminum Alloy, Pre-galvanized, Stainless Steel and Fiber glass to suit specific environmental conditions.

Frequently Asked Questions

1. What services can be offered?

We are a manufacturer providing a range of electrical and network cable tray systems. You can enjoy one-stop shopping for reliable products with competitive pricing, backed by ISO9001, CE, NEMA, UL, ABS, and SGS certifications.

2. Can I order if my trial order does not reach the MOQ?

If your trial order is small, we can still provide the cargo. However, extra customs fees may be required for balance if the shipment is by sea.

3. What are the accepted payment and delivery terms?

We offer FOB, CIF, and CFR terms. Standard delivery time is between 7-20 days after receiving your deposit, as we maintain stock of normal sizes.

4. Do you provide free samples?

Yes, free samples are available for our customers to evaluate product quality.

5. What quality tests do the products undergo?

Our professional lab performs safe loading tests, galvanized thickness tests, salt spray tests, and electrical continuity tests to ensure performance.

6. What are the main advantages of these products?

Our products reduce installation cost and time, are easy to modify or move, and feature a bright surface indicating high-quality material equivalent to international famous brands.
