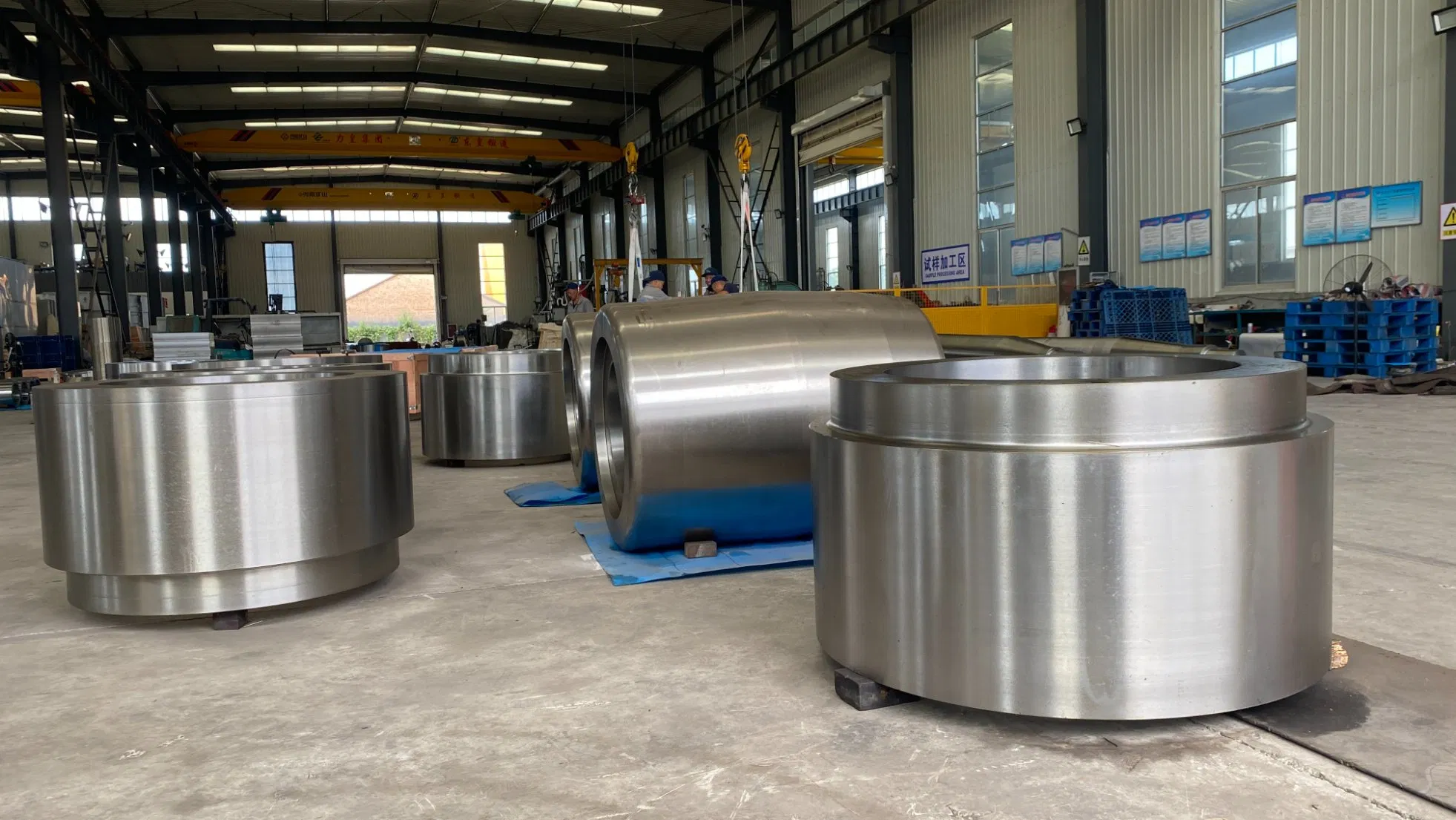

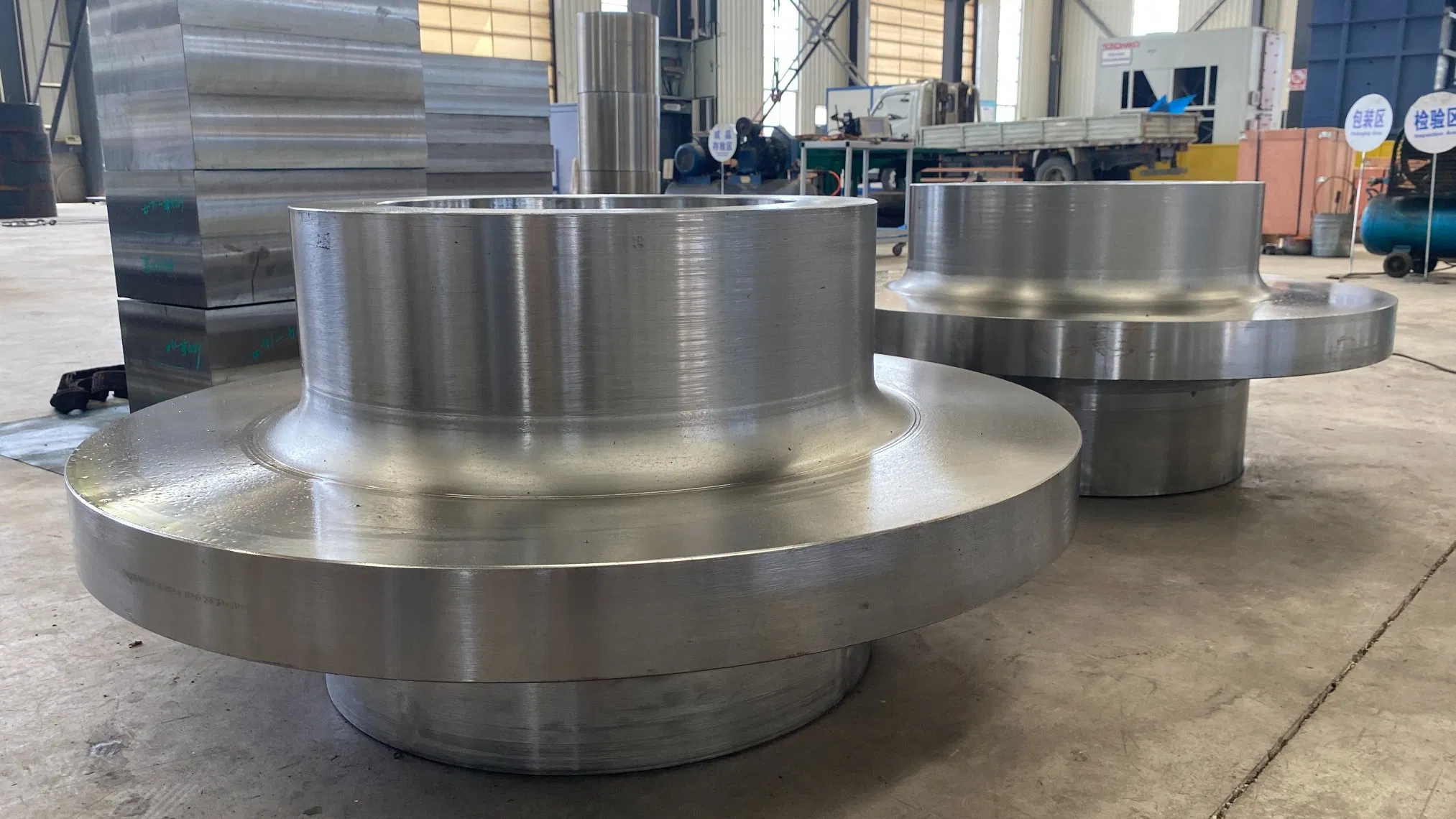

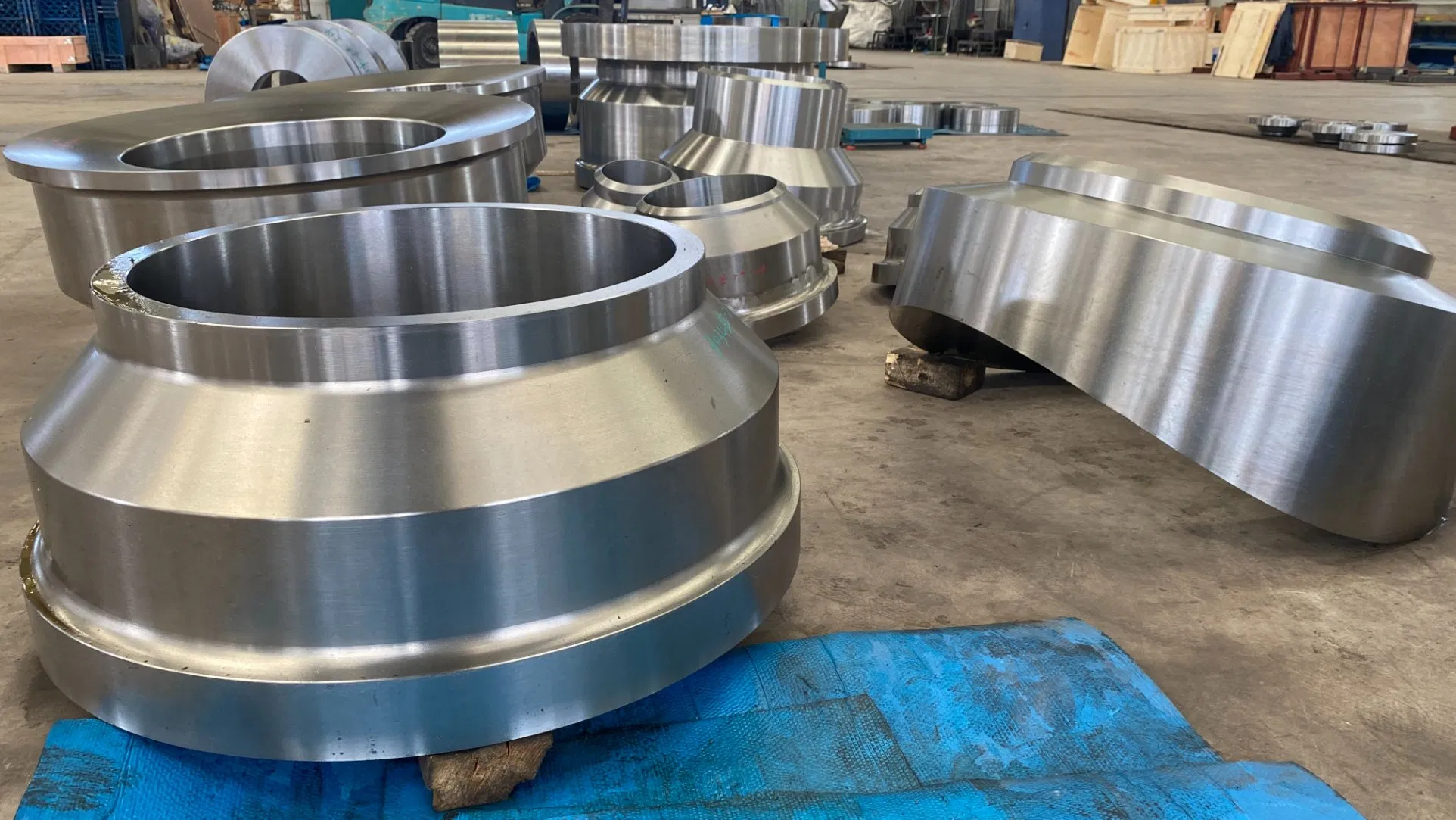

Heavy Forging Cylinder Forging Large Piston Nozzle Forged for Steel Plant

1 / 5

Heavy Forging Cylinder Forging Large Piston Nozzle Forged for Steel Plant

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

FLGMG

Molding Technics

Pressure Casting

Application

Machinery Parts

Material

Heat Treatment

Quenching

Surface Treatment

Polishing

Forging Tolerance

+/-0.1mm

Standard

AISI

Certification

ISO 9001:2015 & PED

Processing

Ring Rolling

Weight Limit

40ton/PC

Origin

China

⚙️

Product Description

Heavy forging Cylinder Forging Large Piston Nozzle Forged for Heat Exchanger

Specification	Details
Name:	Solid Bar Shaft Forgings
Size range:	Ø 30x50mm ~ Ø8000x10000mm
Weight range:	0.50kg ~ 40000kg
Heat treatment:	Normalize/Quench/tempering/ Solution Anneal
Raw material:	Carbon/Stainless/Alloy steel
Steel Code:	AISI4130, AISI4140, AISI4340, AISI8620, AISI8630, SS410, SS420, SS304, SS316/316L, A105, etc.

Manufacturer of High Quality Steel Flanges and Forgings based on different standards: ASME, JIS, BS, ISO, DIN, EN, SABs etc.

Forgings include: Blocks, Disks, Rings, Cylinders, Shafts, Tubes, Bars, and other Customized forgings.

Materials: Carbon Steel, Stainless Steel and Alloy steels.

📐

Forging Product Size Range

Forgings	Min.Size (mm)	Max.Size (mm)	Max.Weight (kgs)	Heat Treatment
Shaft	Φ30×50	Φ1500×10000	40000	Normalizing, Queching, Tempering, Annealing, Solution Annealed
Ring	Φ75 ×Φ15×12	Φ8000 ×Φ7000×10000	30000

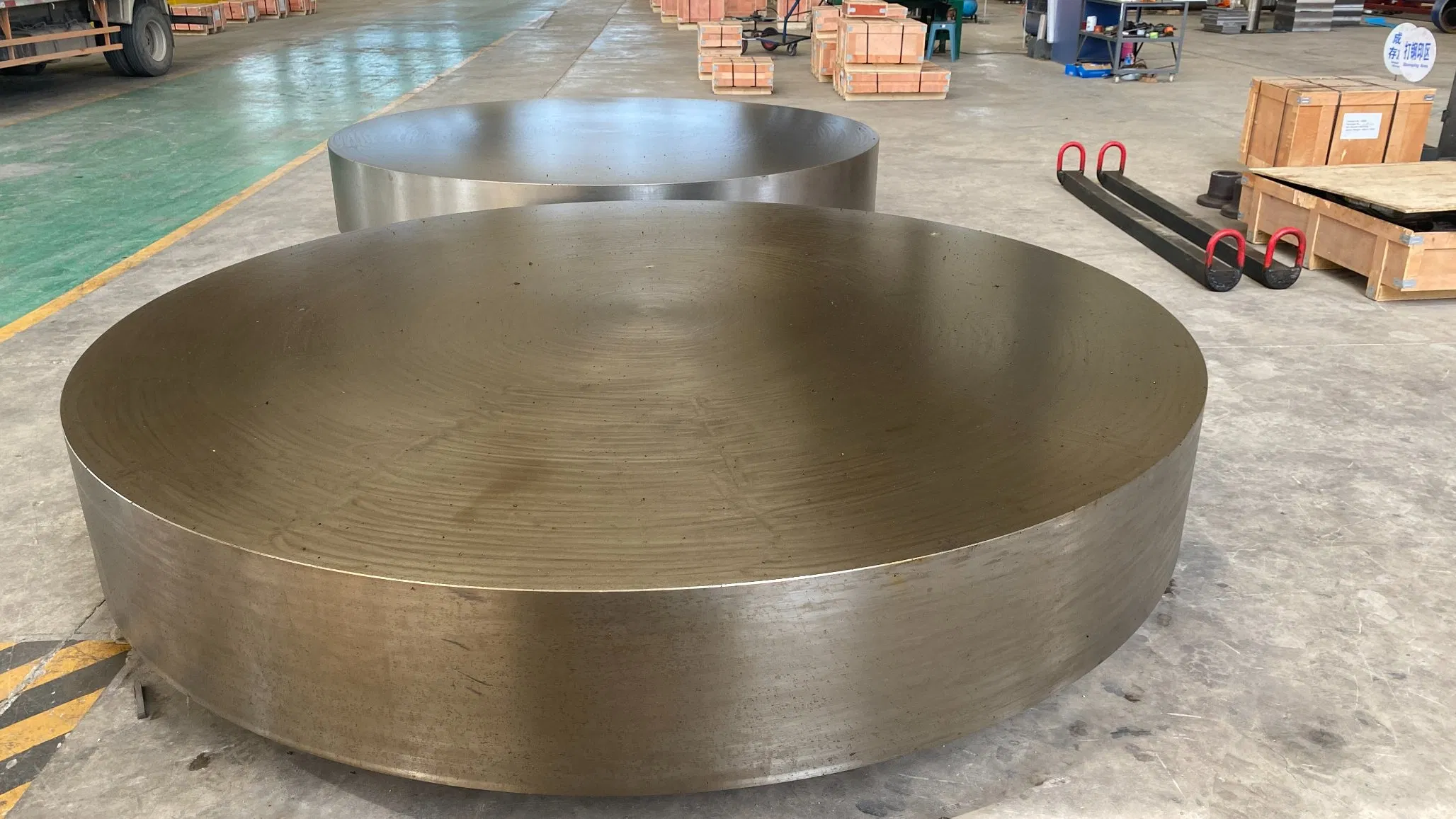

Disc	Φ90 ×20	Φ6000 ×1000	40000
Block	100 ×100×100	4000 ×4000×6000	40000

🏭

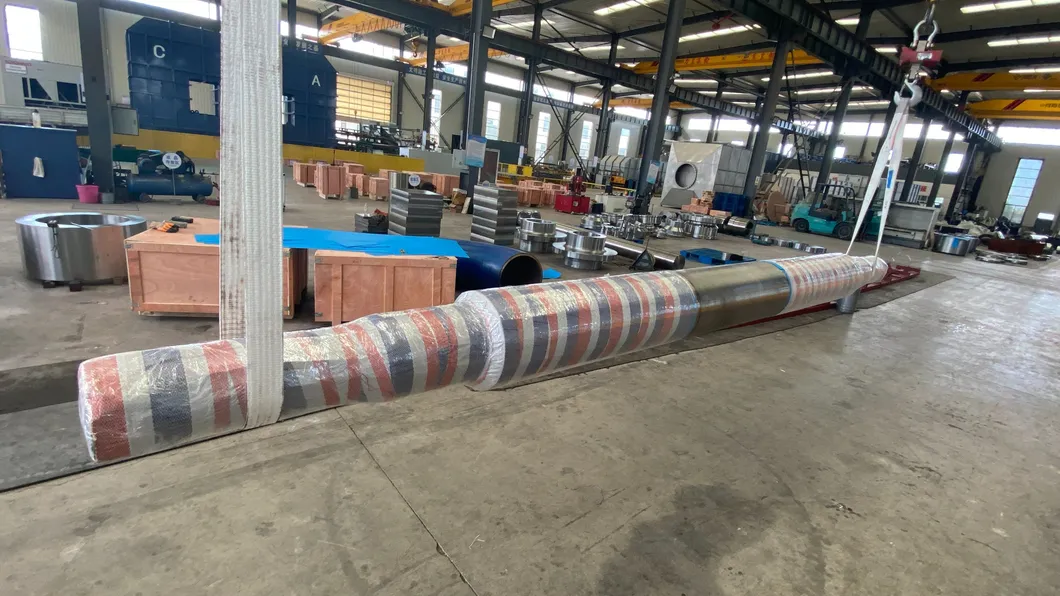

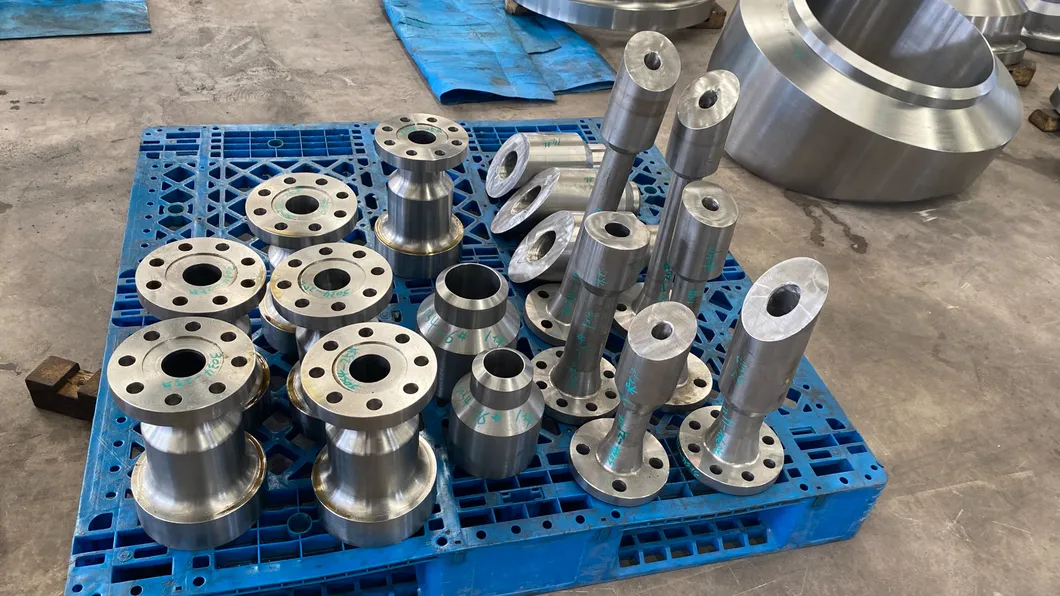

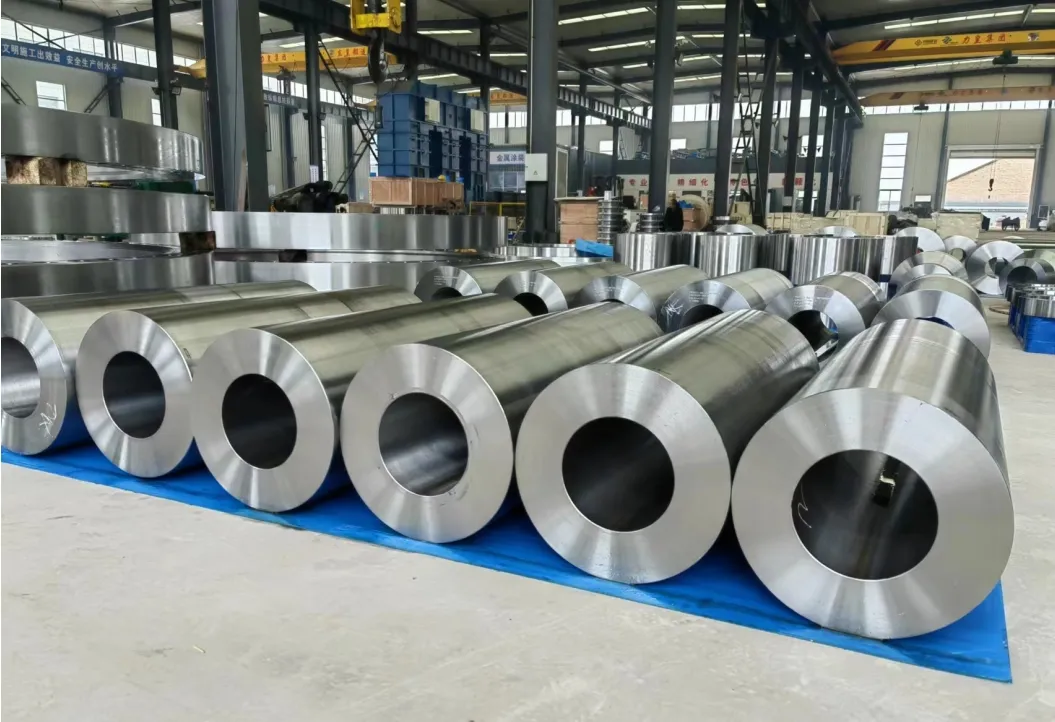

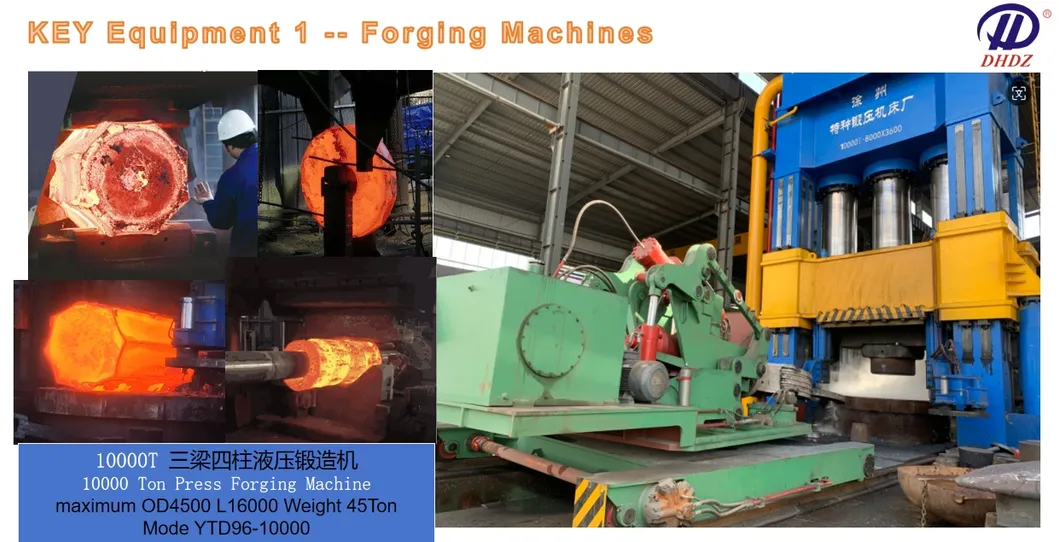

Factory & Equipment

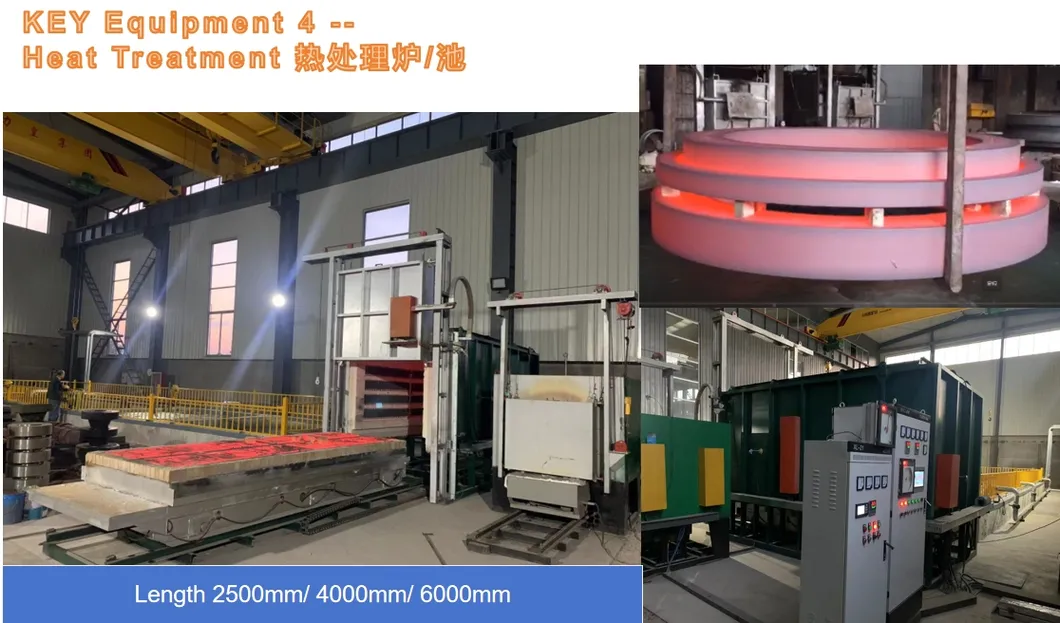

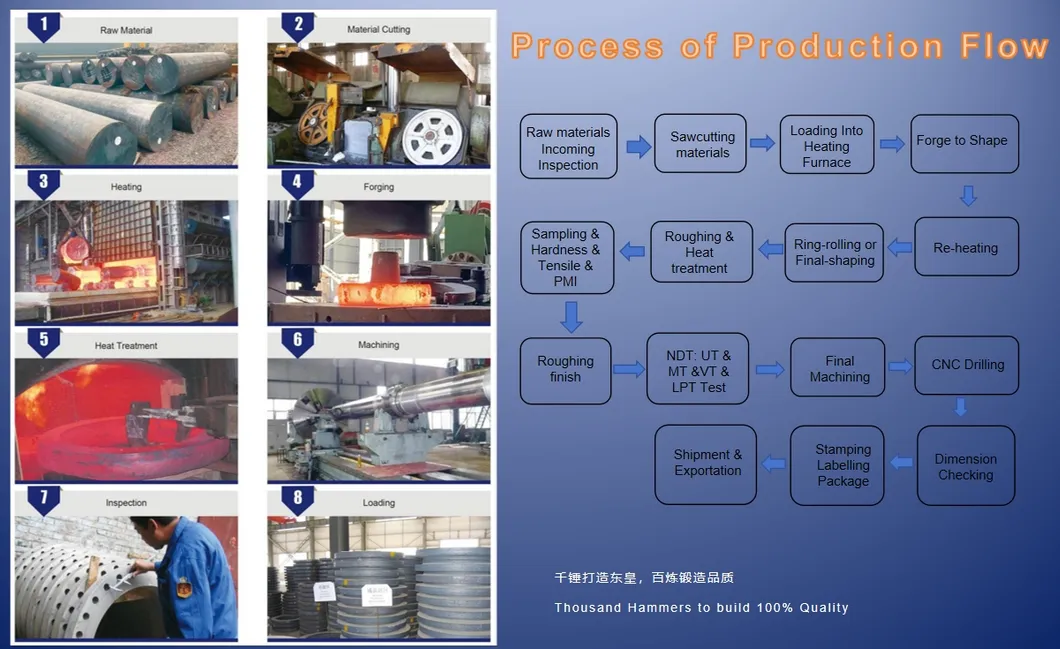

Heat Treatment & Production Flow:

🛡️

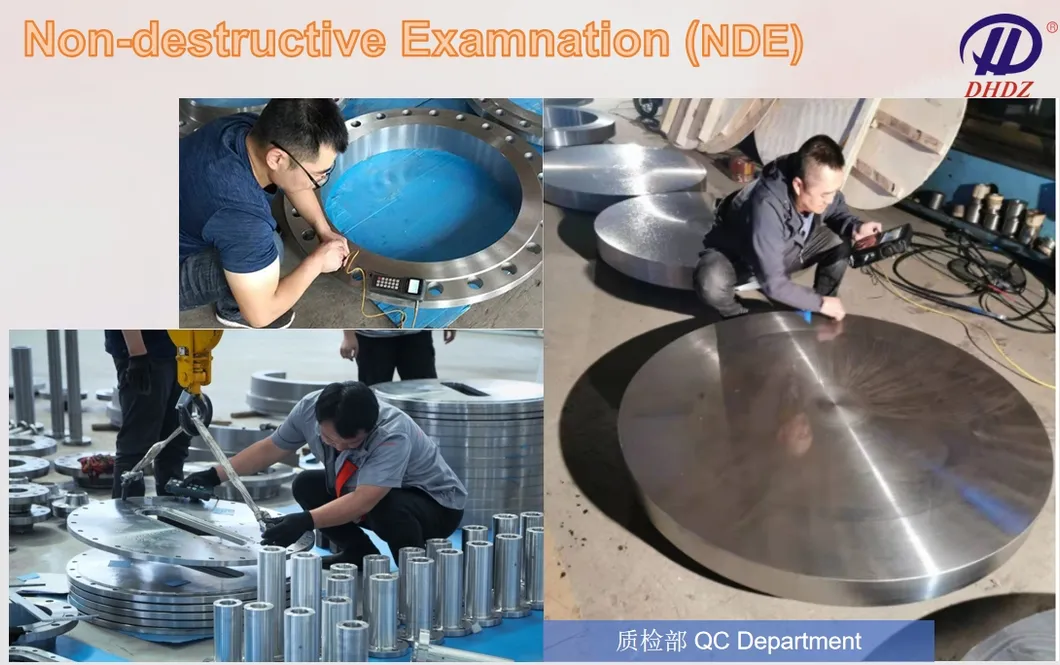

Quality Assessment & Certificates

❓

Frequently Asked Questions

What types of forging materials can you provide?

We work with a wide range of materials including Carbon Steel, Stainless Steel (such as SS304, SS316L, SS410, SS420), and various Alloy Steels (AISI 4130, 4140, 4340, 8630, etc.).

What is the maximum weight capacity for a single forging piece?

We are capable of producing heavy forgings with a maximum weight limit of up to 40 tons per piece.

Which heat treatment processes do you offer?

Our in-house facilities support multiple heat treatment processes including Normalizing, Quenching, Tempering, Annealing, and Solution Annealing to meet specific mechanical property requirements.

Are you capable of producing custom sizes (OEM)?

Yes, standardization and customization are both our advantages. We can process OEM sizes and materials according to your specific technical drawings and requirements.

What are the typical applications for these forgings?

Our forgings are widely used in machinery parts, heat exchangers, oil and gas industry, petrochemicals, pipelines, and marine or offshore industries.

What is the expected delivery time for an order?

The typical delivery time ranges from 4 to 8 weeks, depending on the complexity of the processing and the volume of the order.
