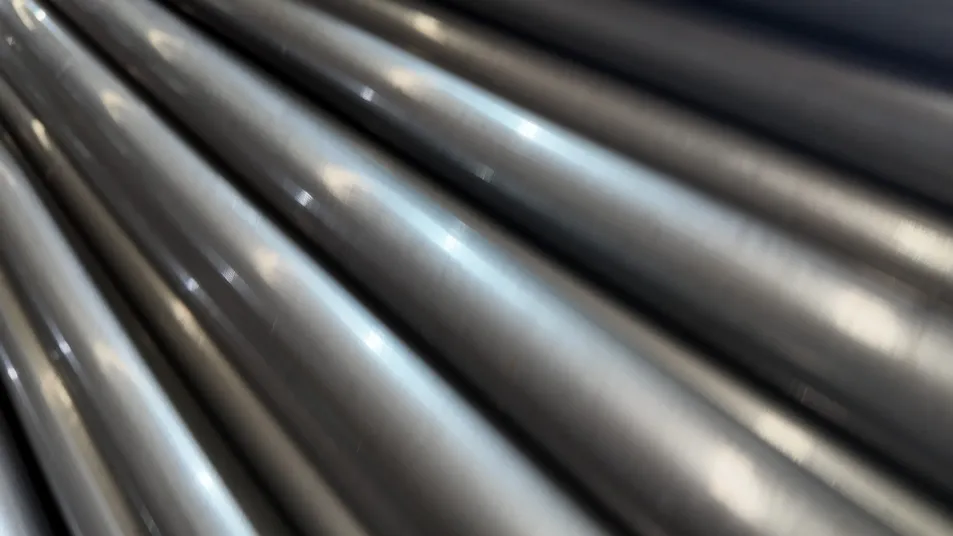

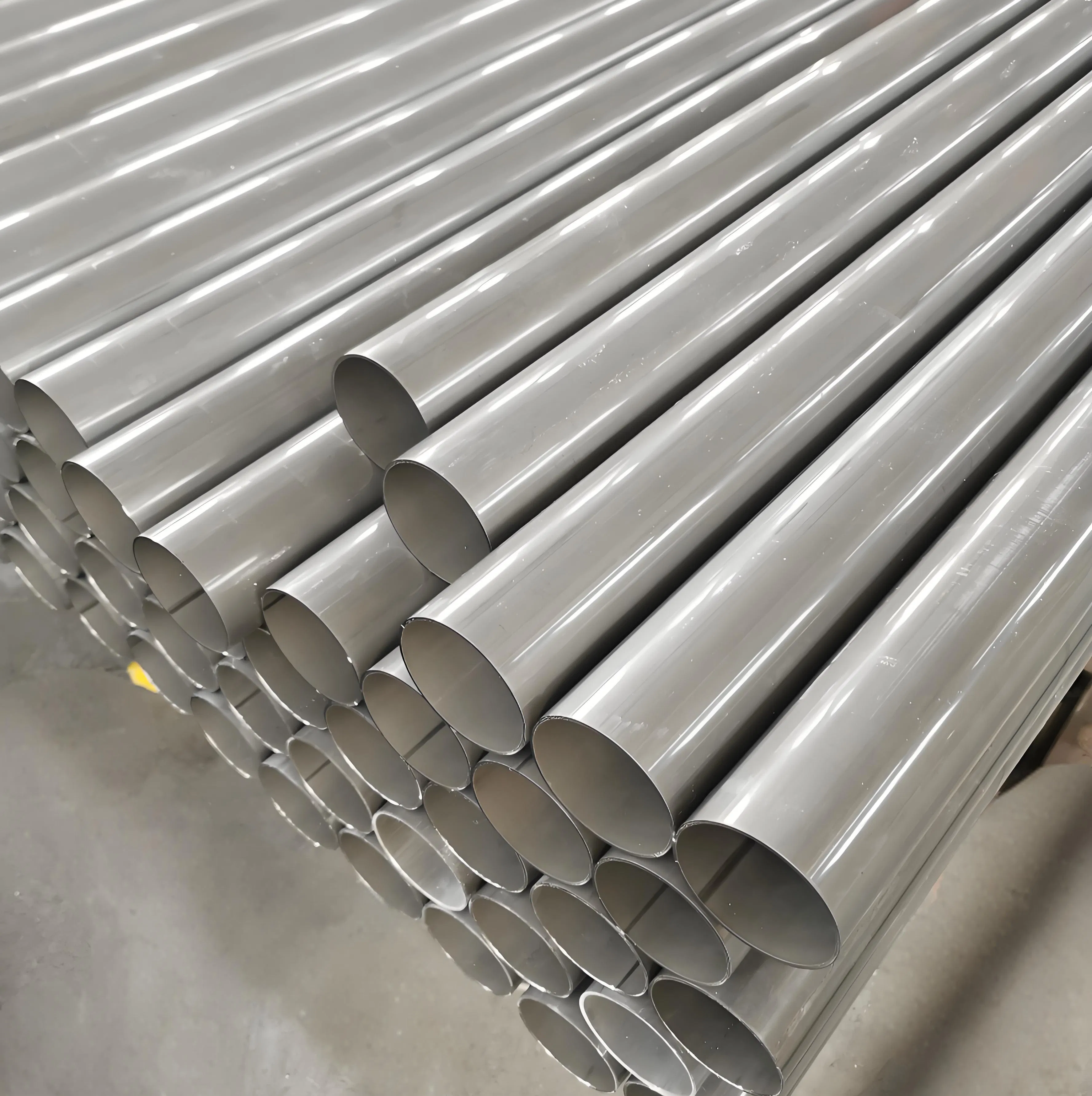

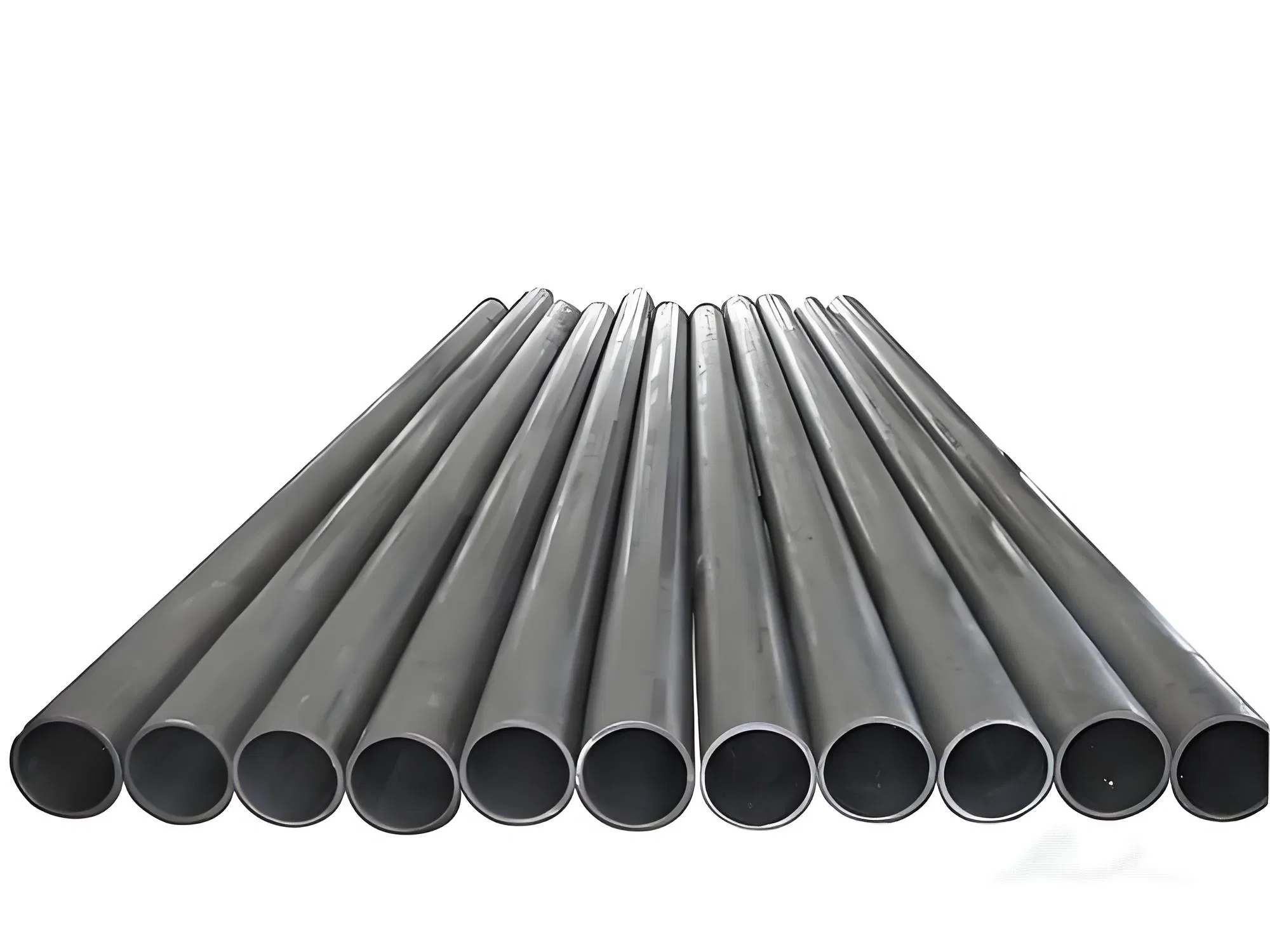

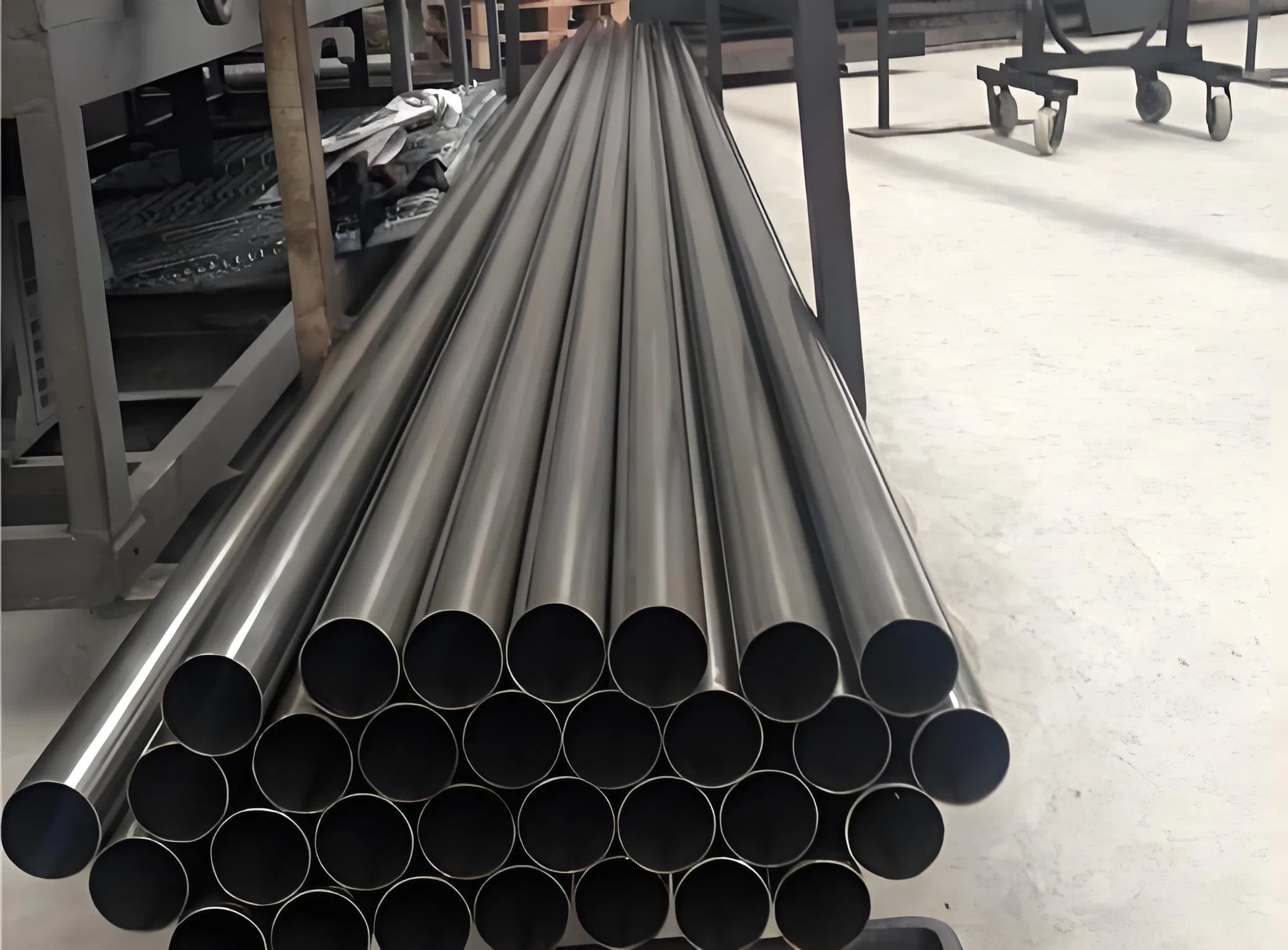

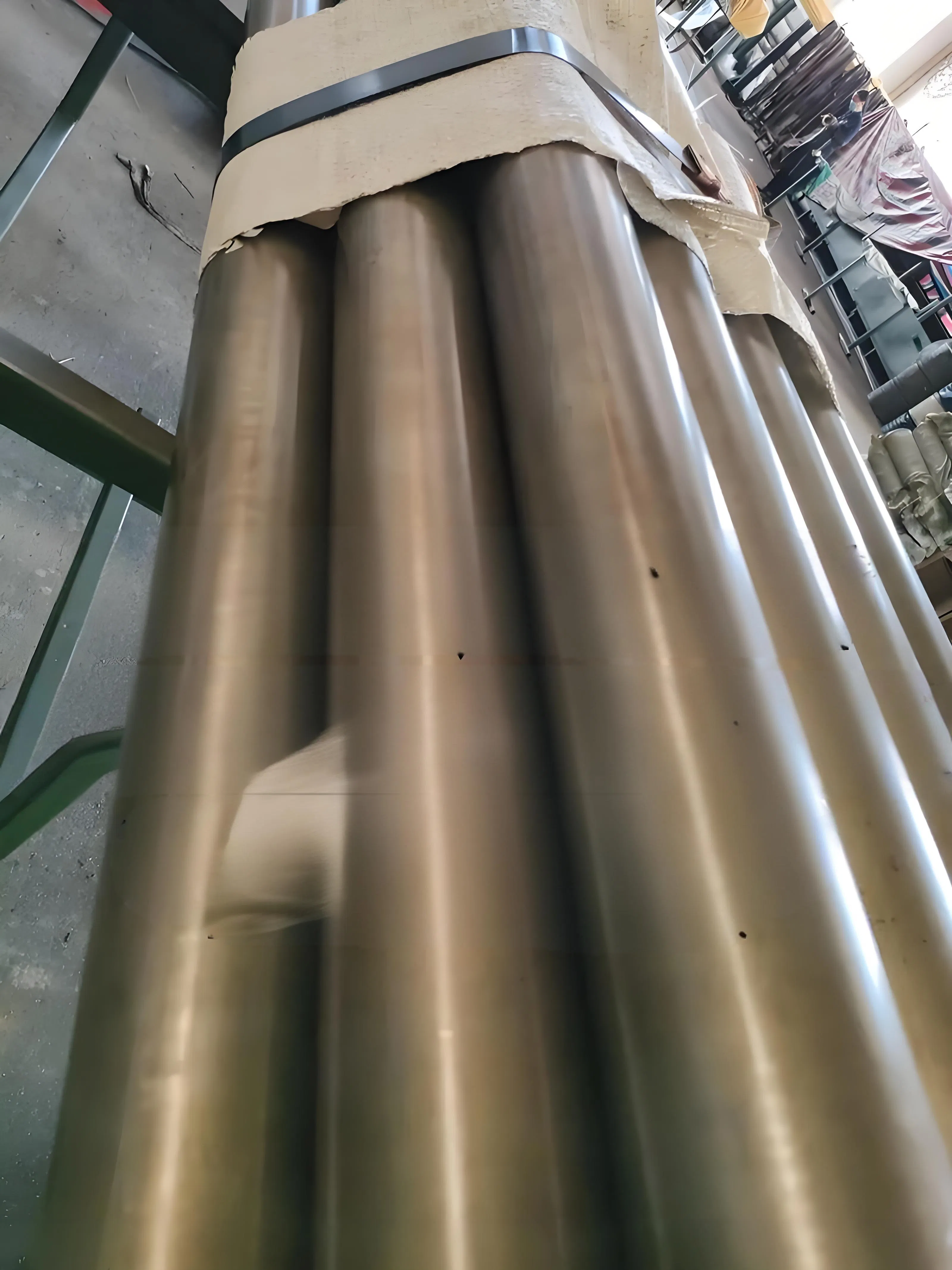

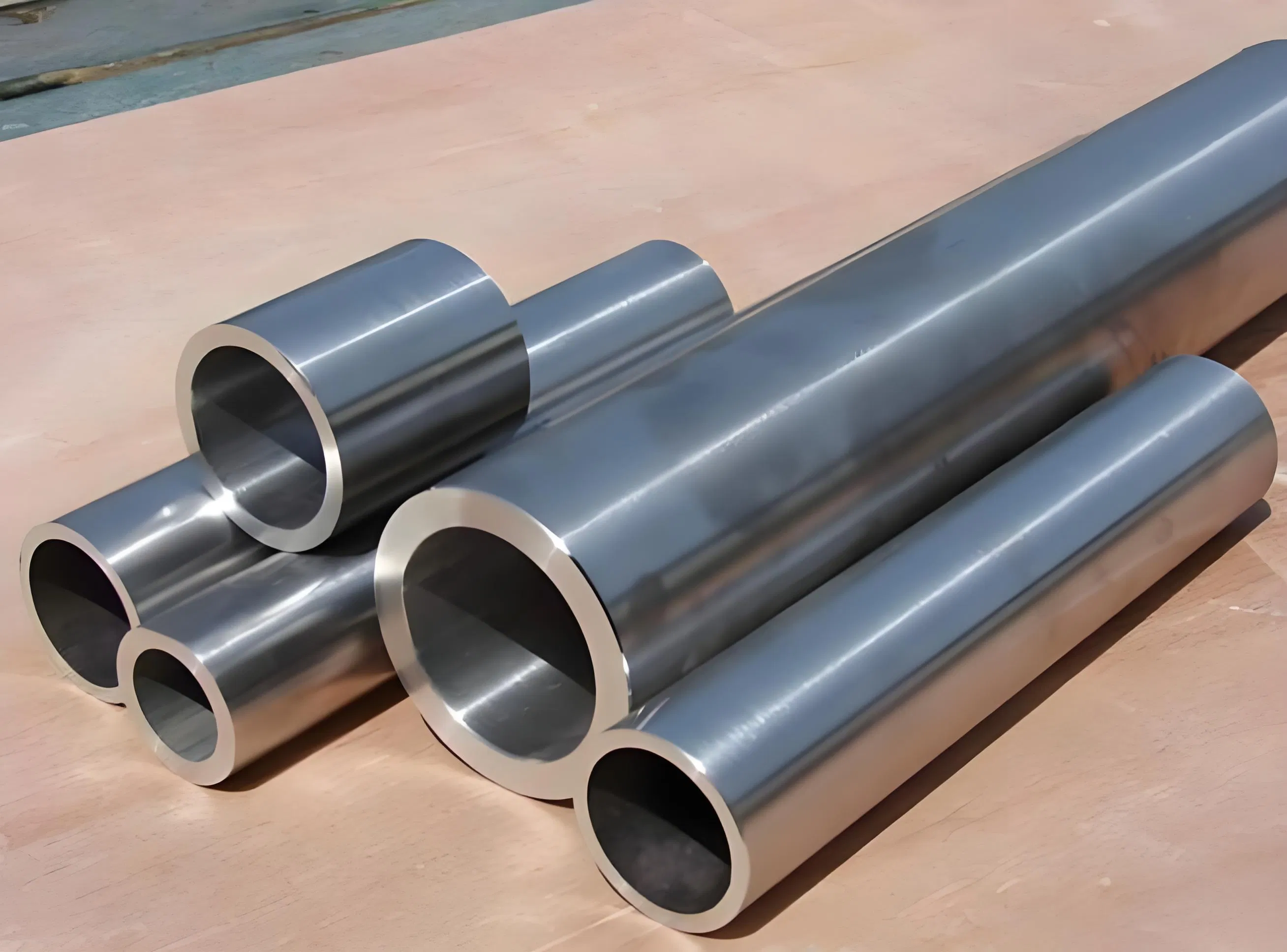

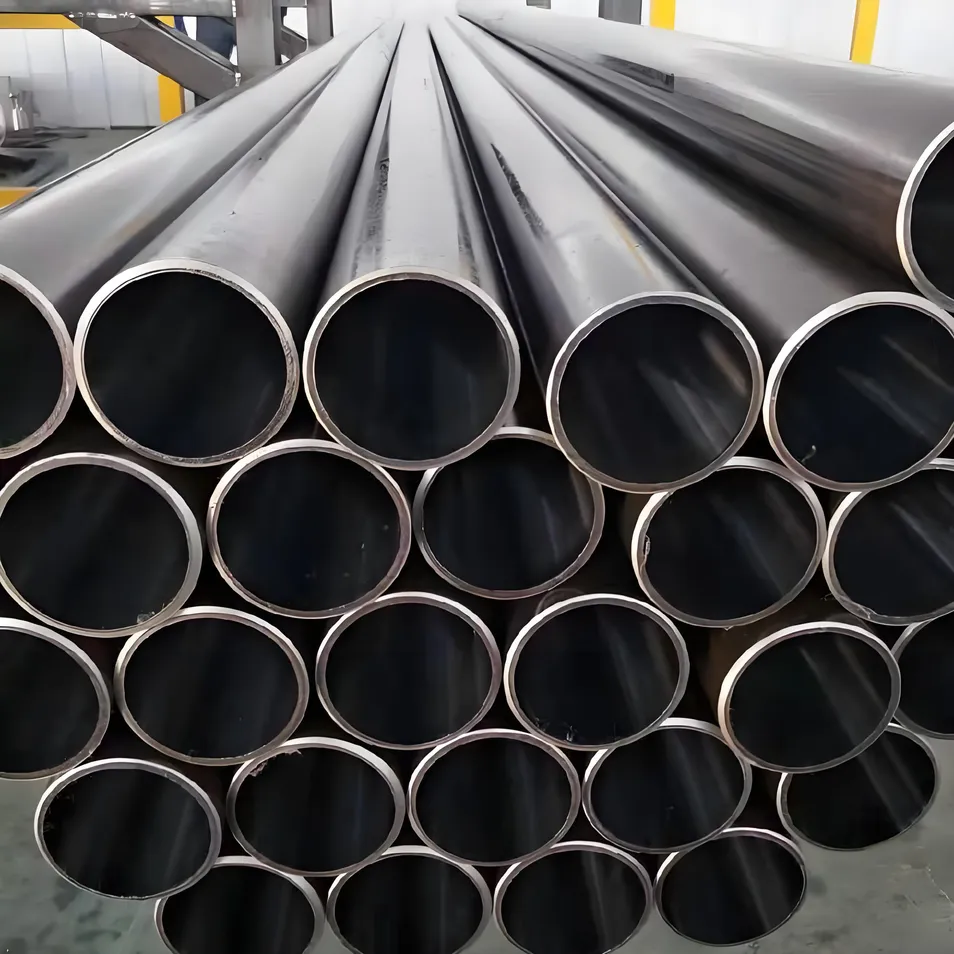

DOM tubing (Drawn Over Mandrel) is a high-strength steel tube manufactured using a specific cold-drawing process. It refines pre-existing electric resistance welded (ERW) tubing by pulling it through a die and over a mandrel, resulting in precise dimensions, smooth surfaces, and enhanced mechanical properties.
● Automotive & Components: Roll cages, suspension components, steering columns, and bearings.
● Hydraulic Cylinders: Smooth inner surfaces suitable for internal pressure workloads.
● Construction & Machinery: Structural elements, railings, and reliable industrial equipment tubes.
● Fitness & Furniture: Dynamic balance tests for treadmills and high-strength furniture frames.

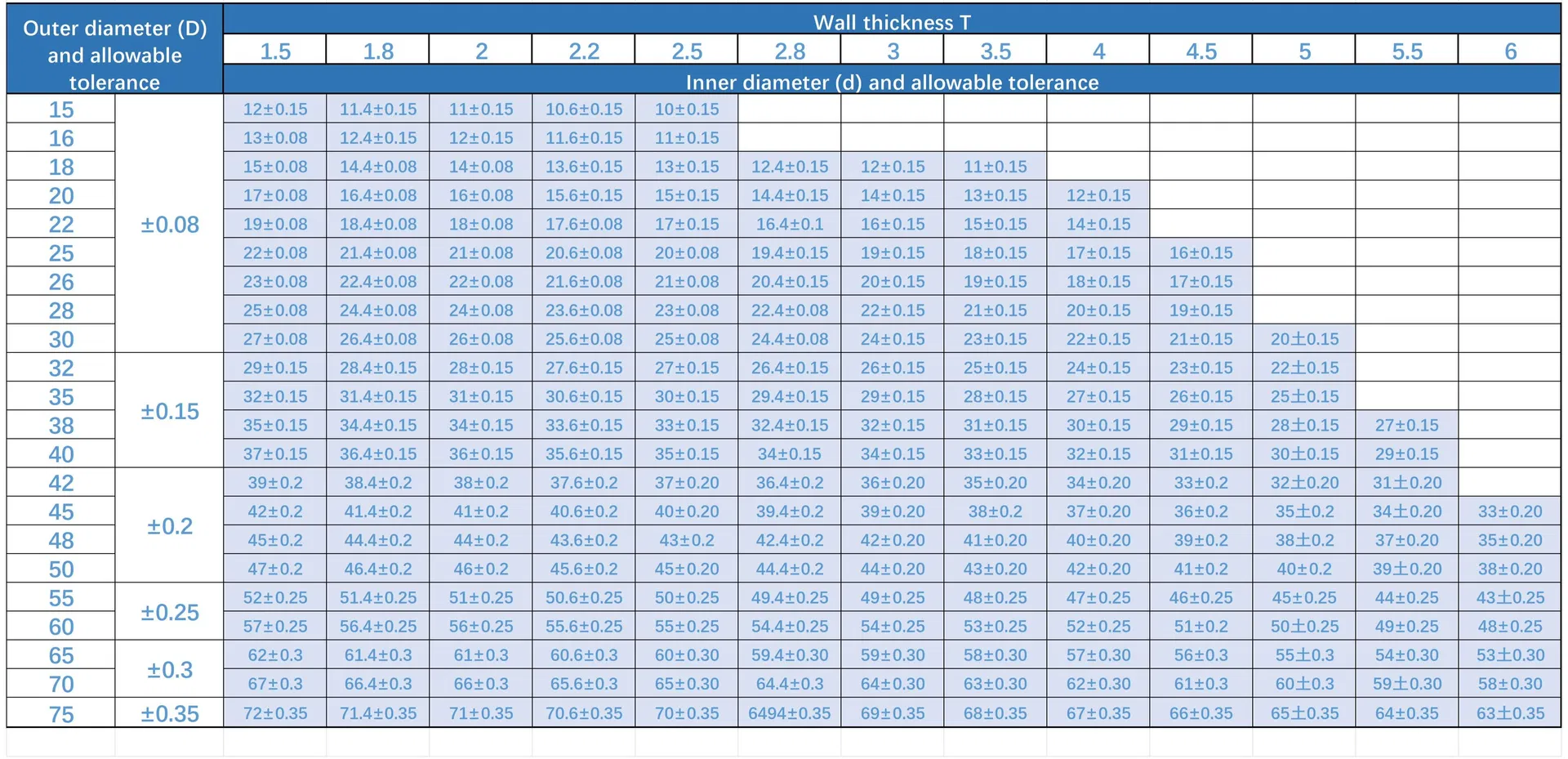

| OD | 15-75 mm or 0.5-3 in. | Wall Thickness | 1.5-6mm or 0.06-0.23 in. |
| Standard | ASTM A513 Type 5 or EN 10305-2 | Customized | Support |
| Steel Grade | 1010, 1020, 1035, 1040, 1340, 1524, 4130, 4140, E195, E235, E275, E355 | ||
| Surface | Oil, Phosphating, Polishing | MOQ | 1 ton |

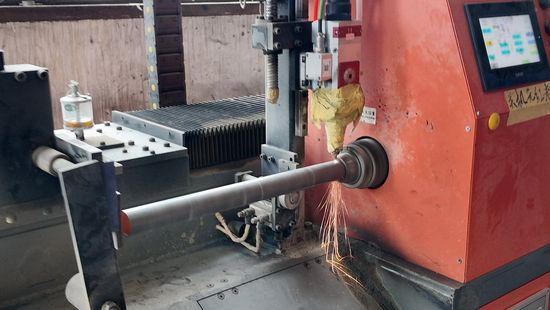

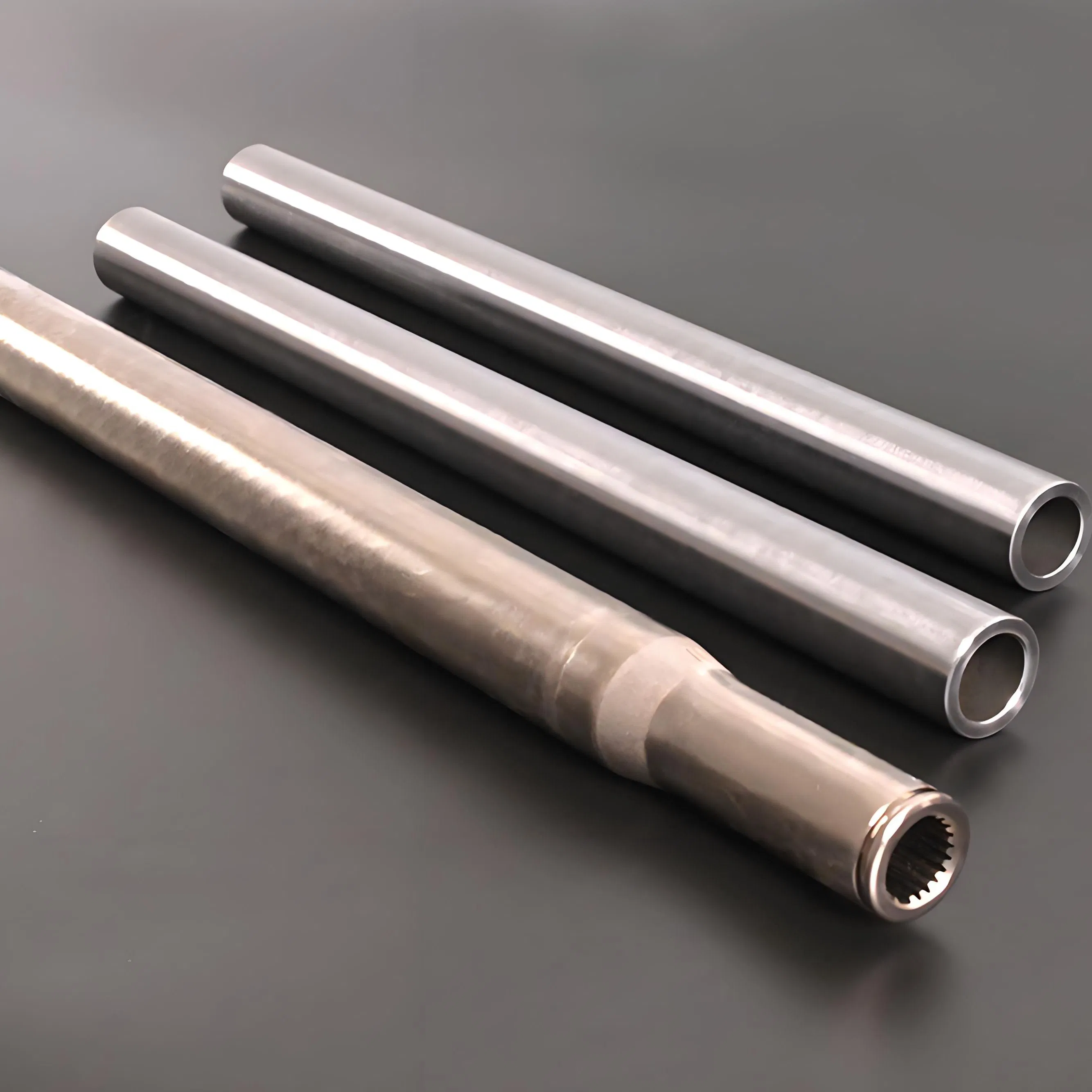

Custom Processing: We support steel pipe cutting and subsequent processing to provide finished tubular parts. Our precise straightening ensures straightness up to 0.05mm.
