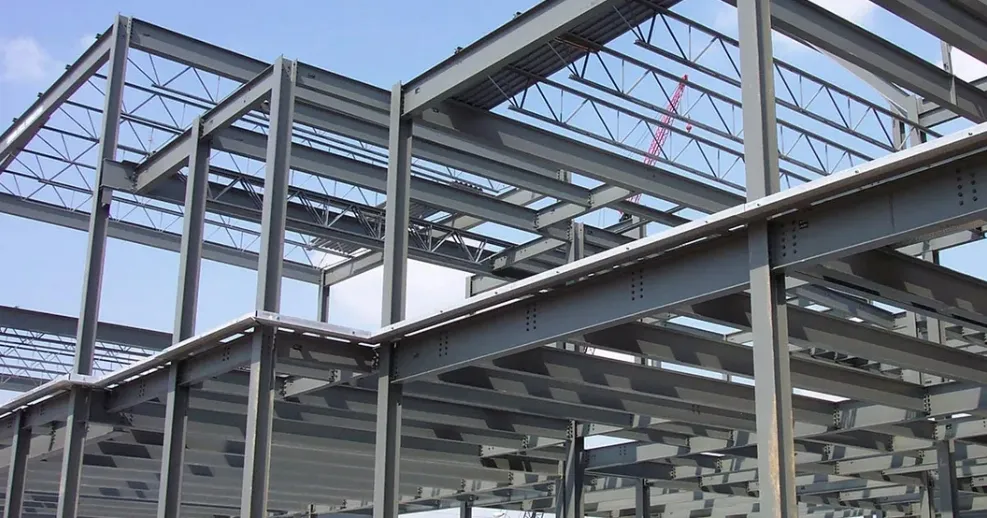

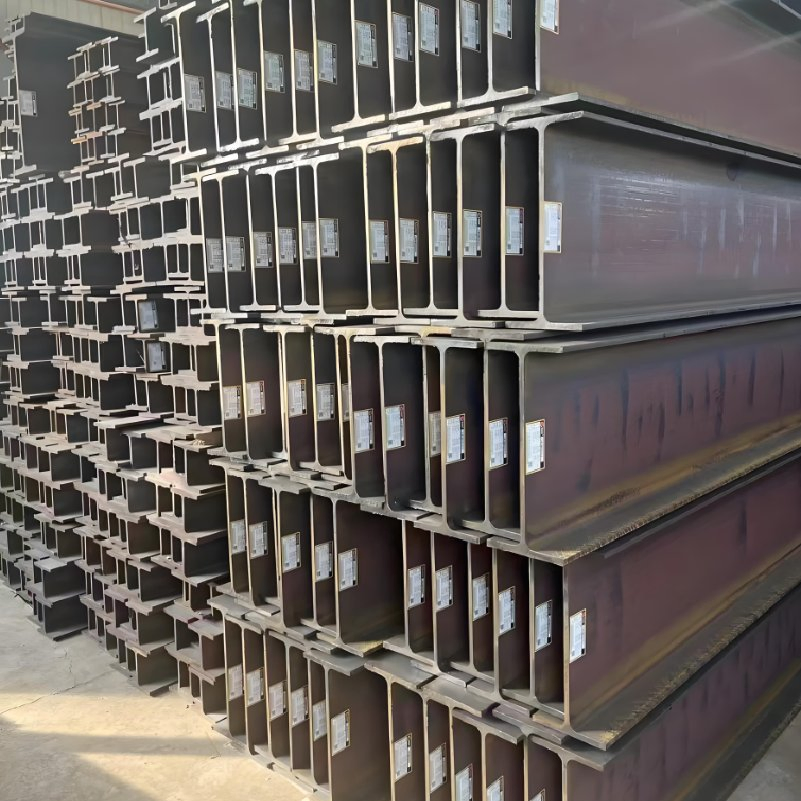

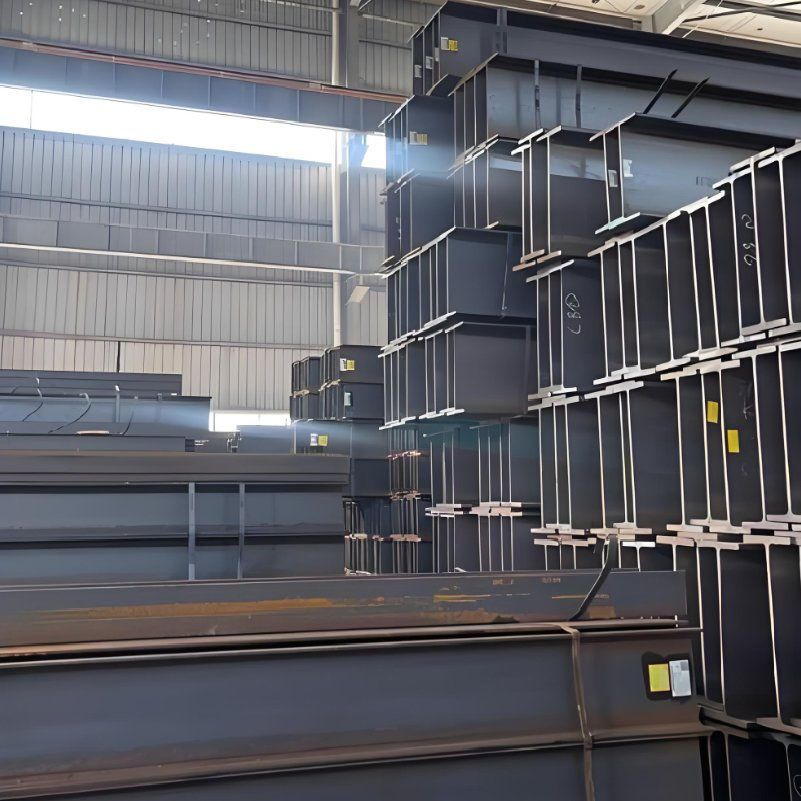

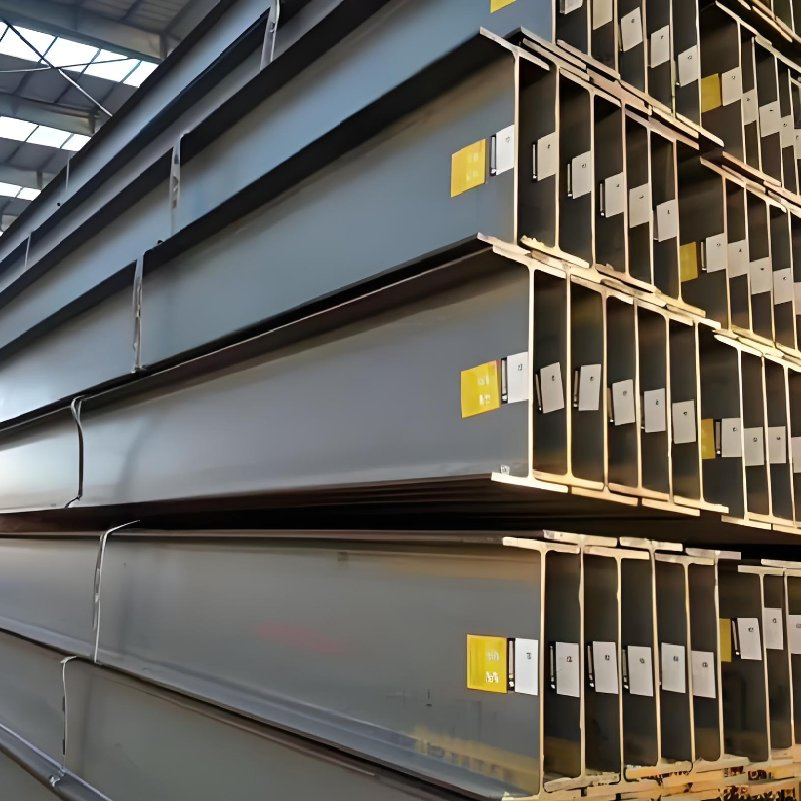

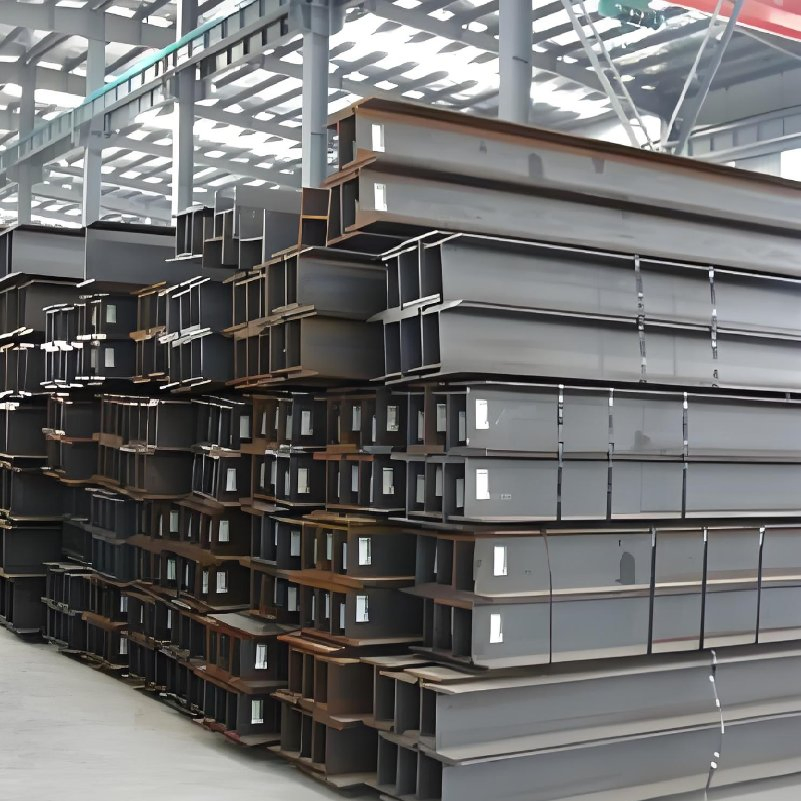

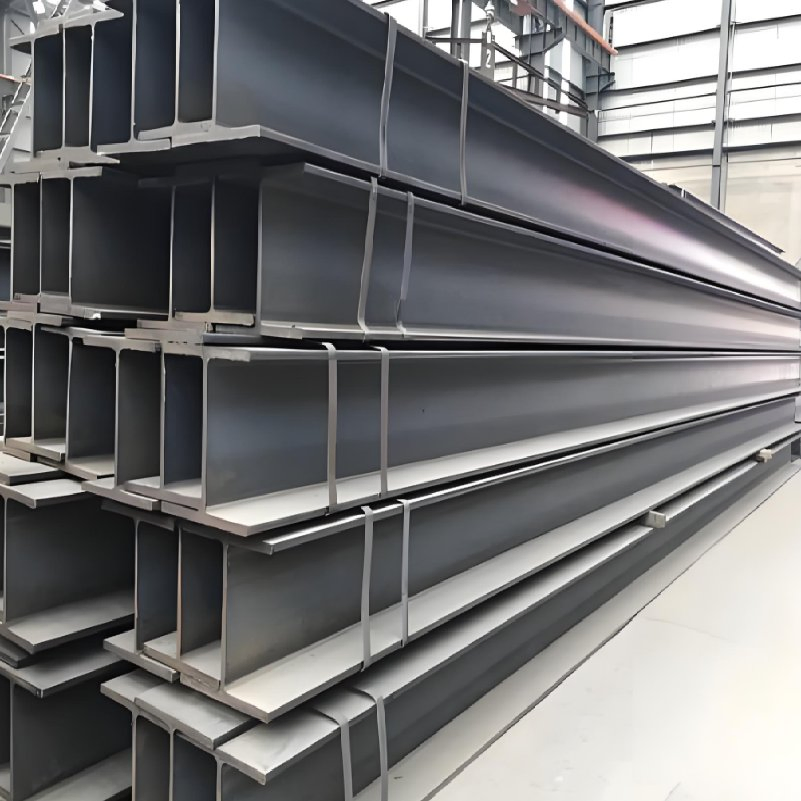

H beam steel boasts an iconic 'H' silhouette in its cross-section. Renowned for its unparalleled strength and expansive surface area, it forms the backbone of numerous construction projects. It is mainly used for: a wide array of civil and industrial building structures; expansive industrial plants and towering modern high-rises, particularly in seismically active zones and areas demanding resilience to high temperatures; colossal bridges requiring immense load-bearing capacity, superb sectional stability, and expansive spans.
| European Standard I-Beam Specification Table | |||||
|---|---|---|---|---|---|
| Specification | Height (mm) | Width (mm) | Web Thickness | Wing Thickness | Weight (kg/m) |
| IPE80 | 80 | 46 | 3.8 | 5.2 | 6 |
| IPE100 | 100 | 55 | 4.1 | 5.7 | 8.1 |
| IPE120 | 120 | 64 | 4.4 | 6.3 | 10.4 |
| IPE160 | 160 | 82 | 5 | 7.4 | 15.8 |
| IPE200 | 200 | 100 | 5.6 | 8.5 | 22.4 |
| IPE300 | 300 | 150 | 7.1 | 10.7 | 42.2 |
| IPE400 | 400 | 180 | 8.6 | 13.5 | 66.3 |
| IPE600 | 600 | 220 | 12 | 19 | 122 |

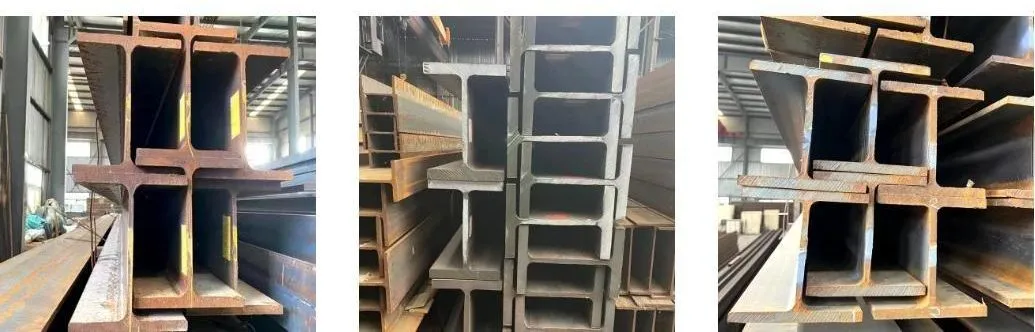

H-Beams are the quintessential choice in the realm of construction, recognized for their exceptional strength and versatility. They are pivotal in crafting expansive and open spaces with minimal reliance on support channels. Their utility extends to the framework of trolley ways, elevators, trailers, and truck beds. Distinguished by their thicker walls and flanges, H-shaped beams are the cornerstone of construction for mezzanines, platforms, bridges, and a myriad of common building endeavors.
