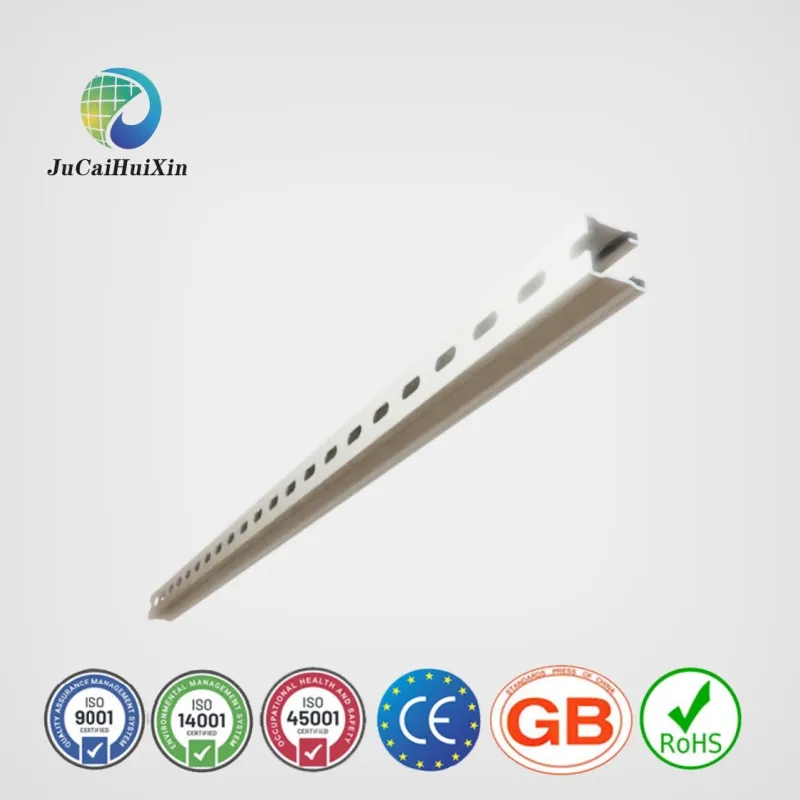

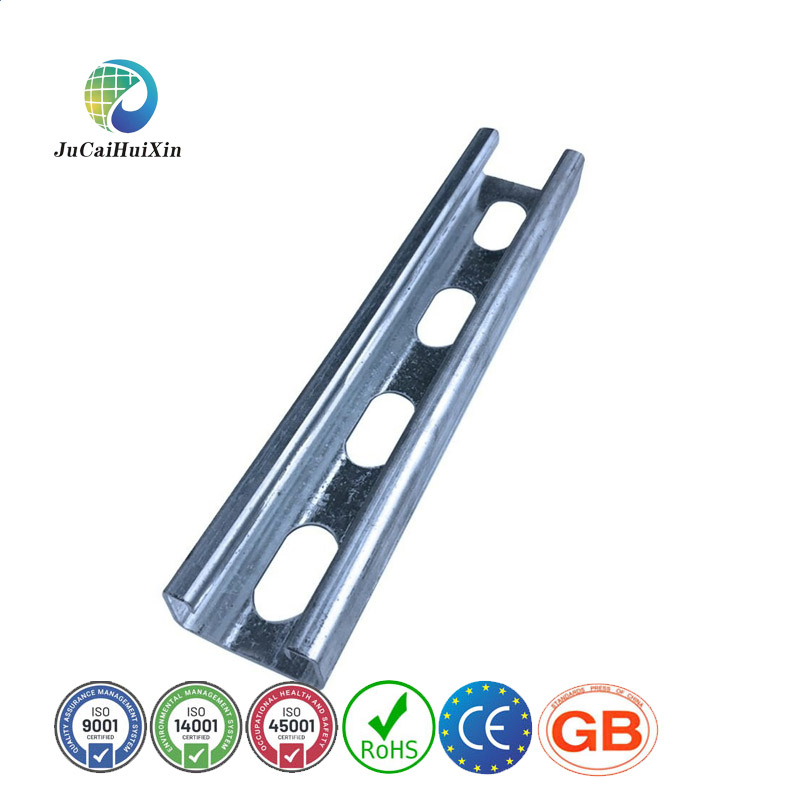

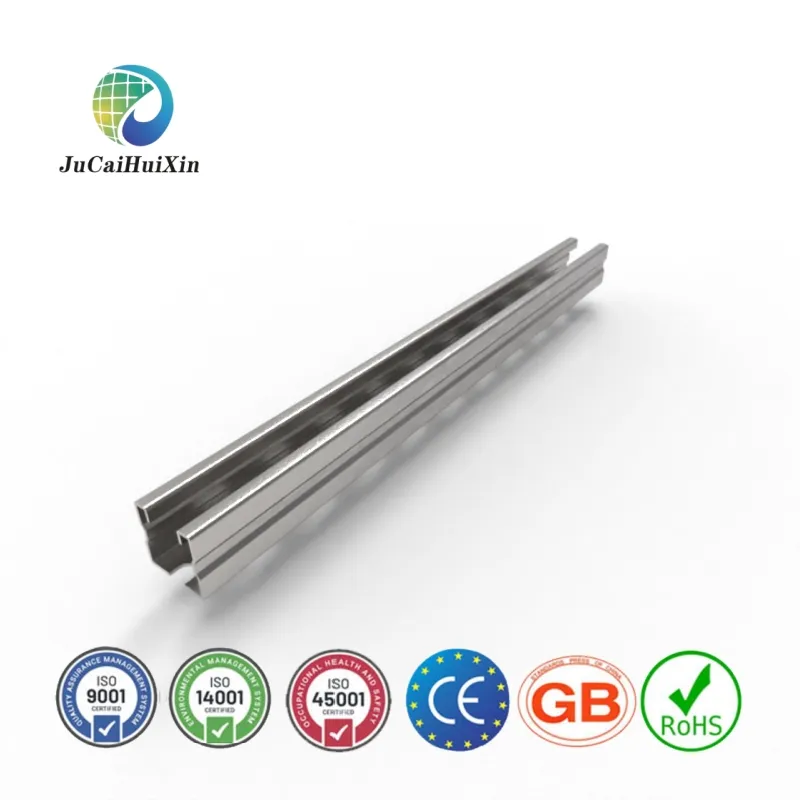

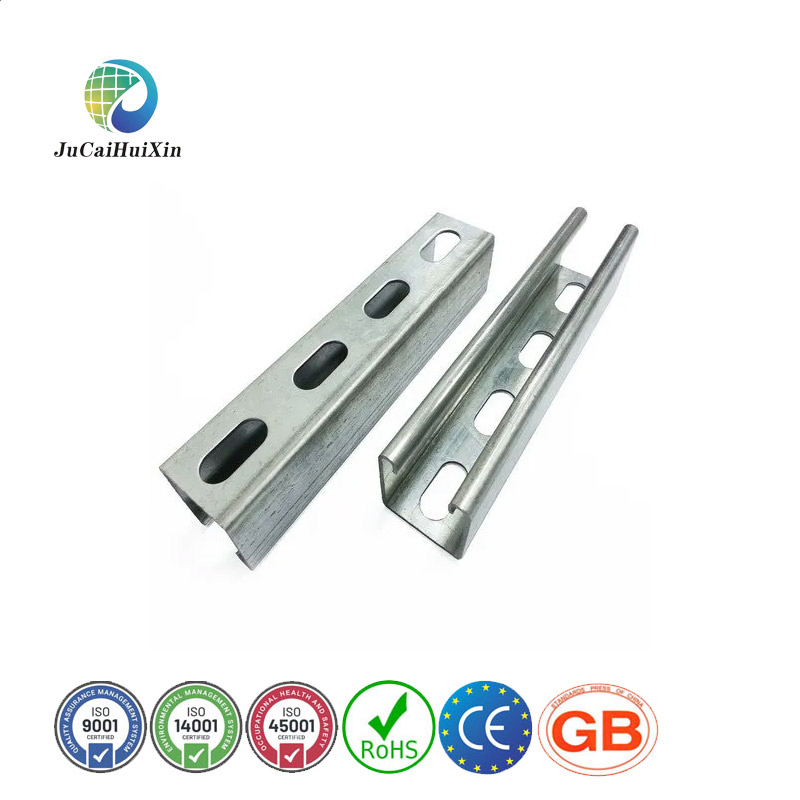

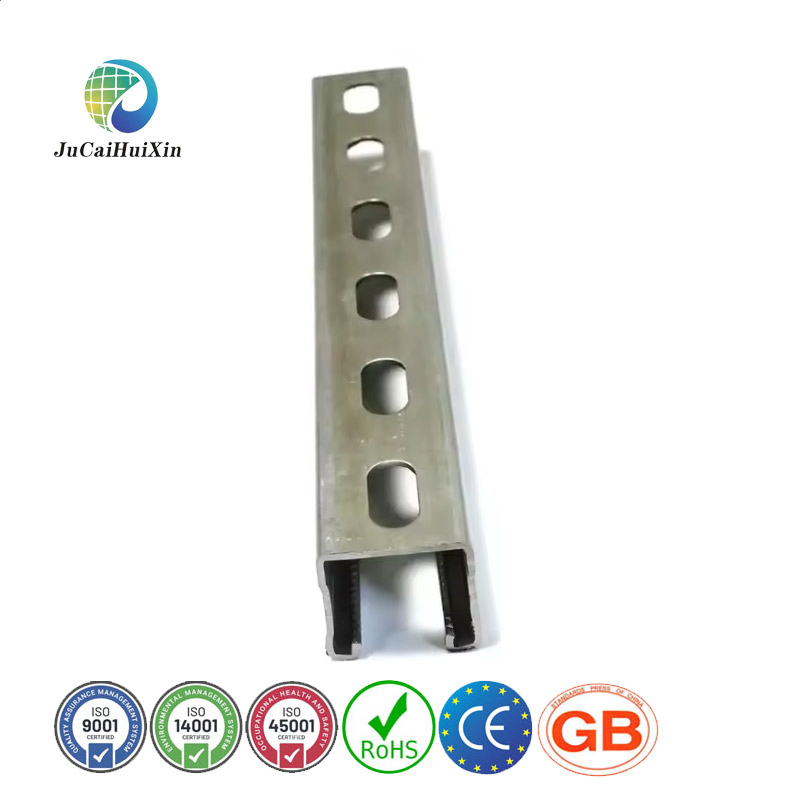

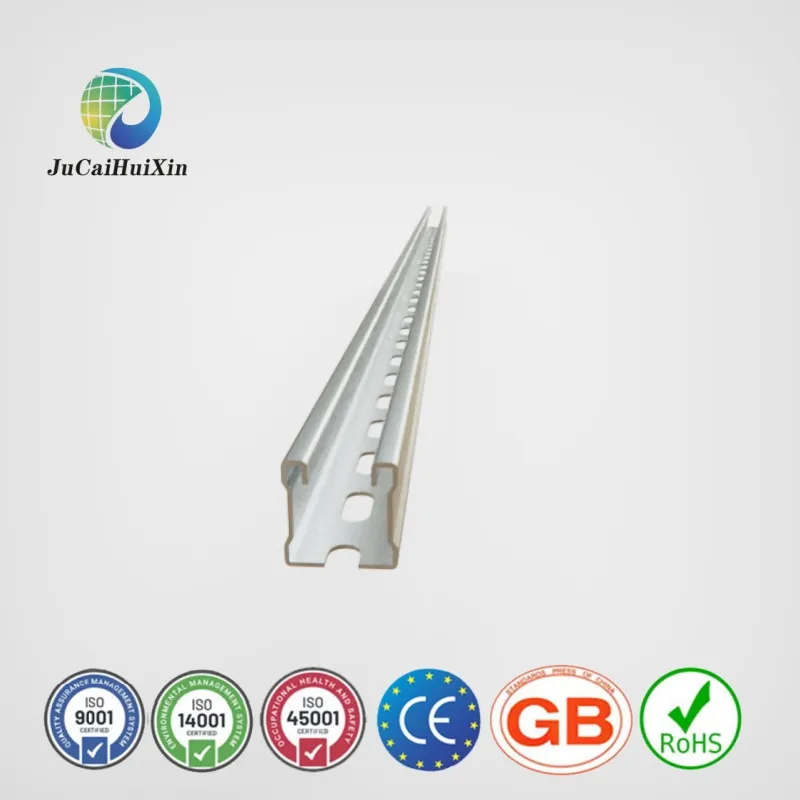

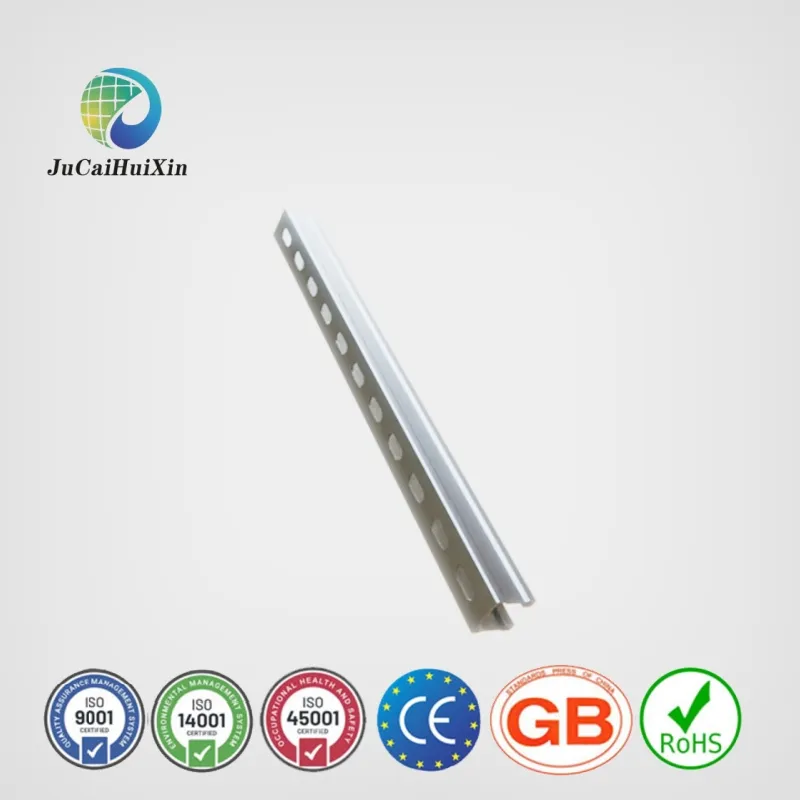

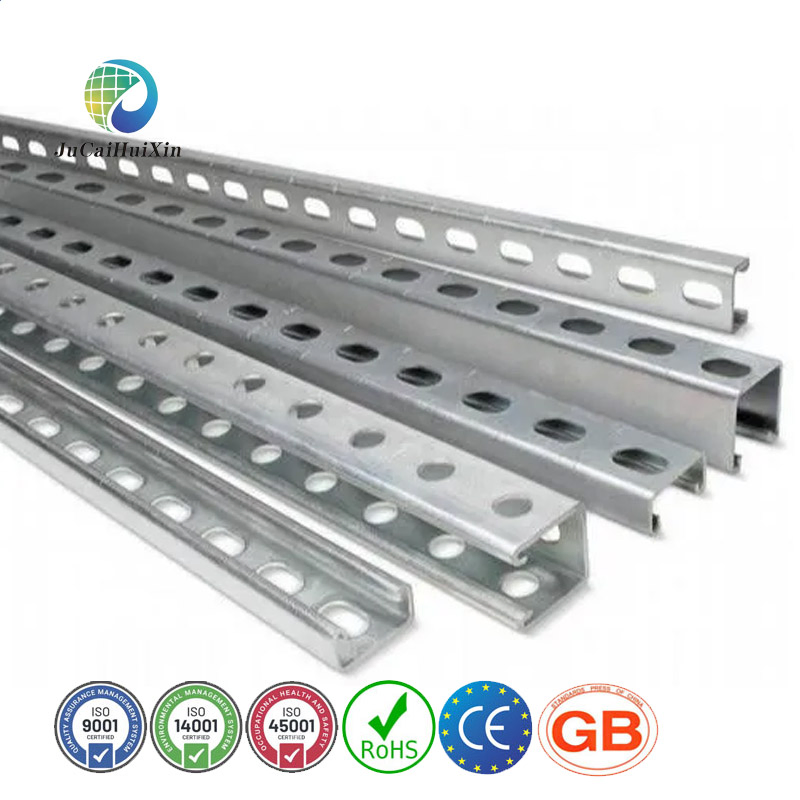

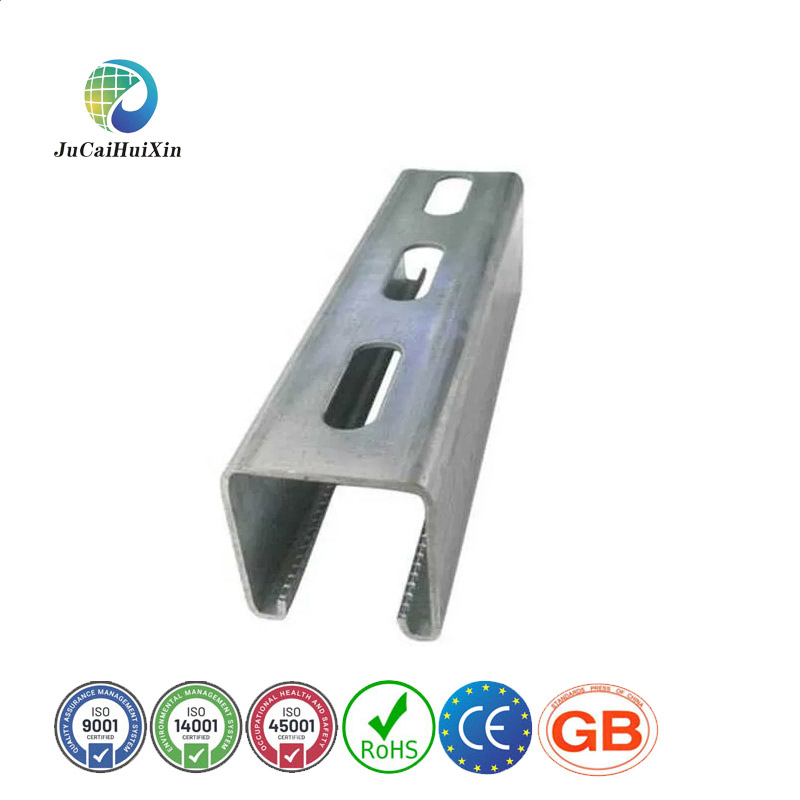

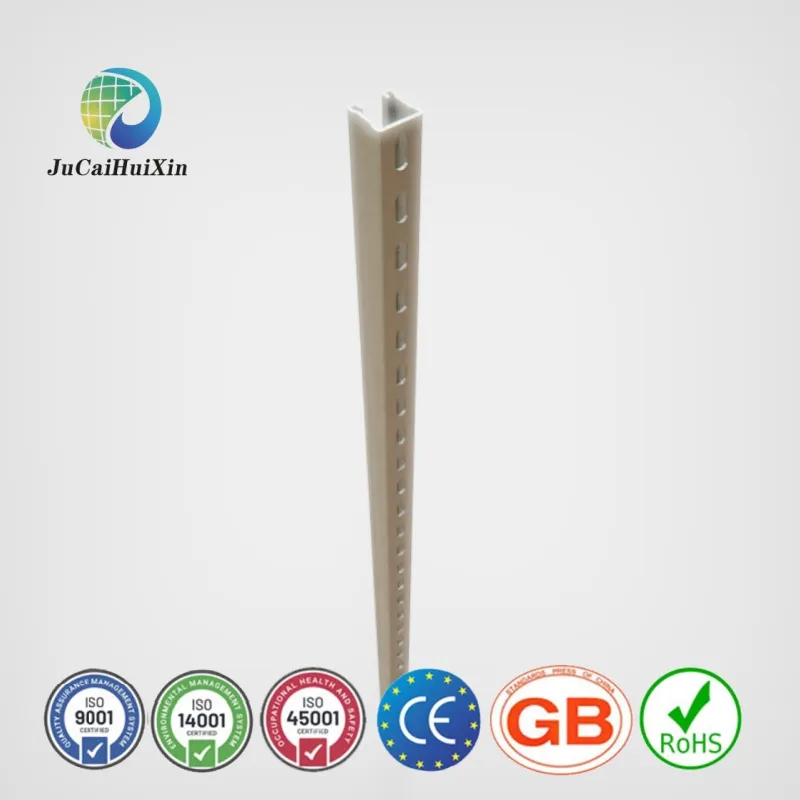

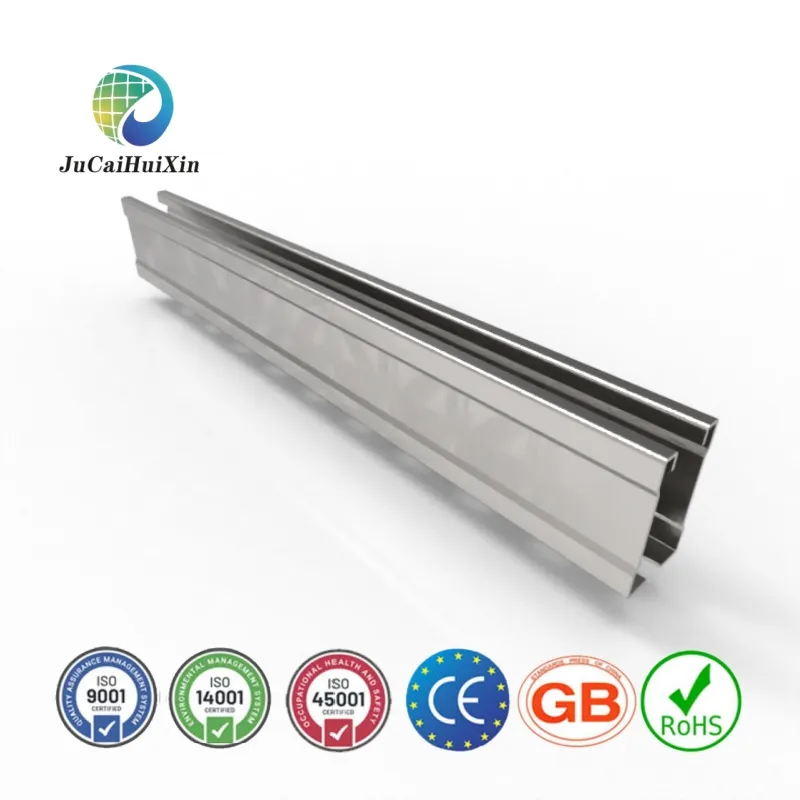

Hot Dipped Galvanized Steel Solar Panel Strut Unistrut Channel for Solar Bracket

Basic Information

Model NO.:U Channel-1

Certification:GB, ISO, CE, RoHS

Application:Home

Material:Aluminum Alloy / Galvanized Steel

Type:Solar Part

Coating:Anodic Oxidation / Hot Dipped Galvanized

Wind Load:0-60m/S

Snow Load:0-3kN/M²

Waterproof Grade:IP68

Production Capacity:100,000 Tons / Year

Product Description

Hot dipped galvanized steel solar panel strut channel is a core support component designed specifically for photovoltaic systems. The U-shaped groove structure provides excellent bending strength (tensile strength ≥ 160MPa) and surface treatment (thickness ≥ 12 μm). It is suitable for installation on roofs (metal/tile surfaces), floors, and carports. The pre-punched design is compatible with mainstream fixtures and supports horizontal/vertical layout.

Material	Galvanized Steel	Grade	Q235, etc.
Size	40*30mm (Width x Height)	Wall Thickness	1.5-2.5mm
Surface Treatment	Hot Dipped Galvanized	Service Life	Over 25 years
Length	4M or 1-6M custom	Load-bearing	≤ 180kg (spacing ≤ 1.5m)
Waterproof	IP67	Wind Resistance	≤ 60m/s

Product Advantages:

Factory direct supply: Cost is 15% - 30% lower than similar products.
Universal compatibility: Compatible with 90% of mainstream fixtures.
Super weather resistance: Passed 4800 hours of salt spray testing.
Fast delivery cycle: High daily production capacity ensures 3-7 days global shipment.

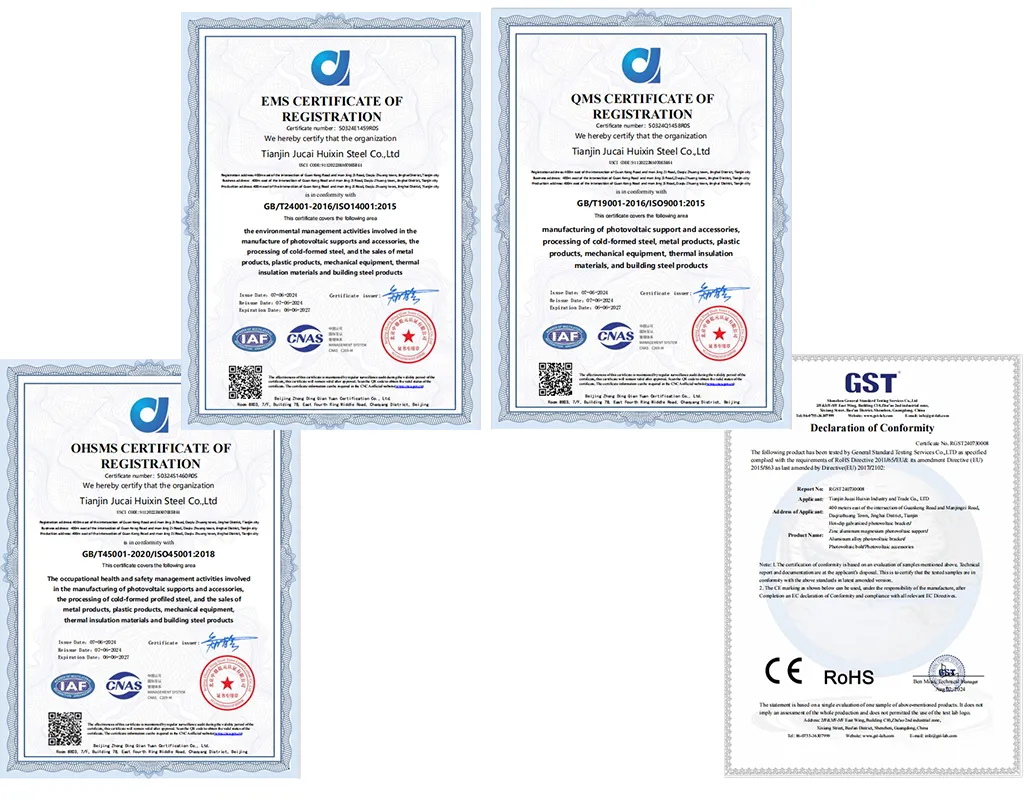

Certifications

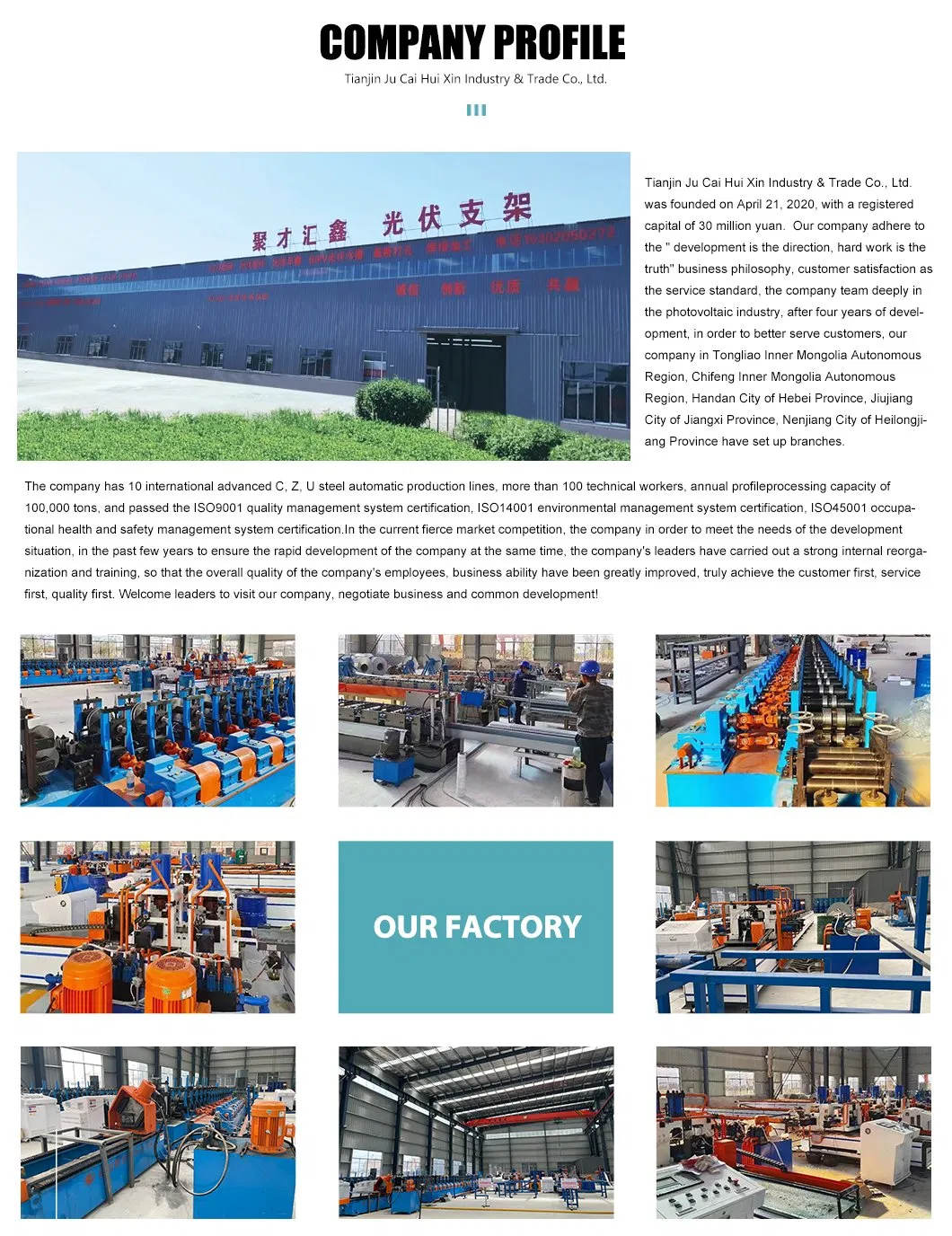

Manufacturing Excellence

Core Production Strengths:

√ 10,000 sqm Intelligent Base: Large scale physical factory ensuring robust supply.

√ Advanced Production Matrix: 10 automated CZU steel production lines, 200,000 tons annual capacity.

√ Global Compliance: ISO triple system, CE, and RoHS certified.

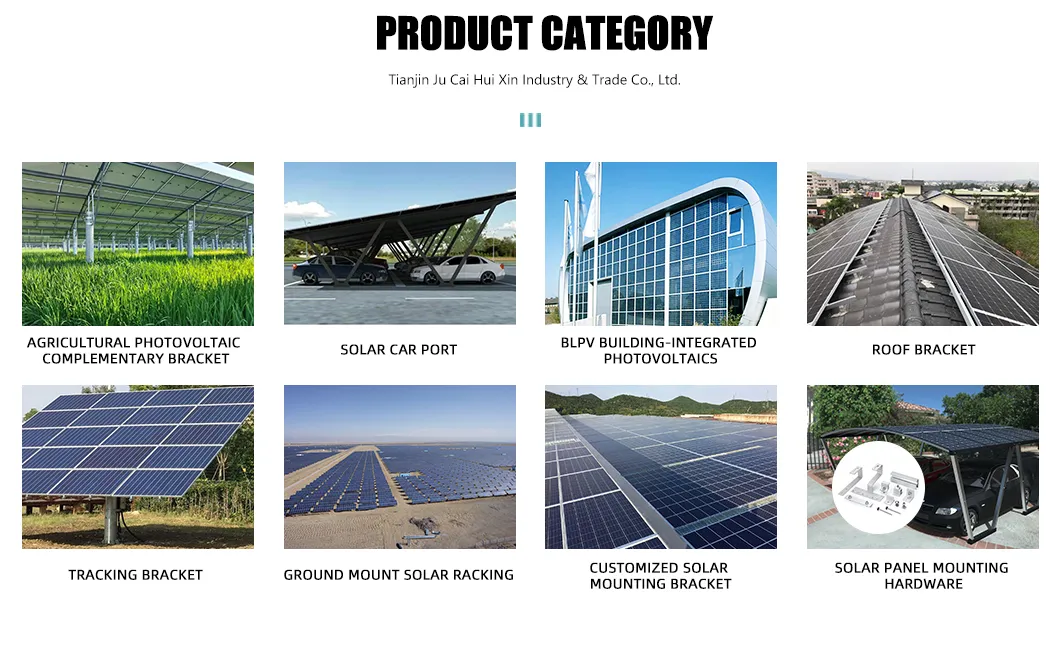

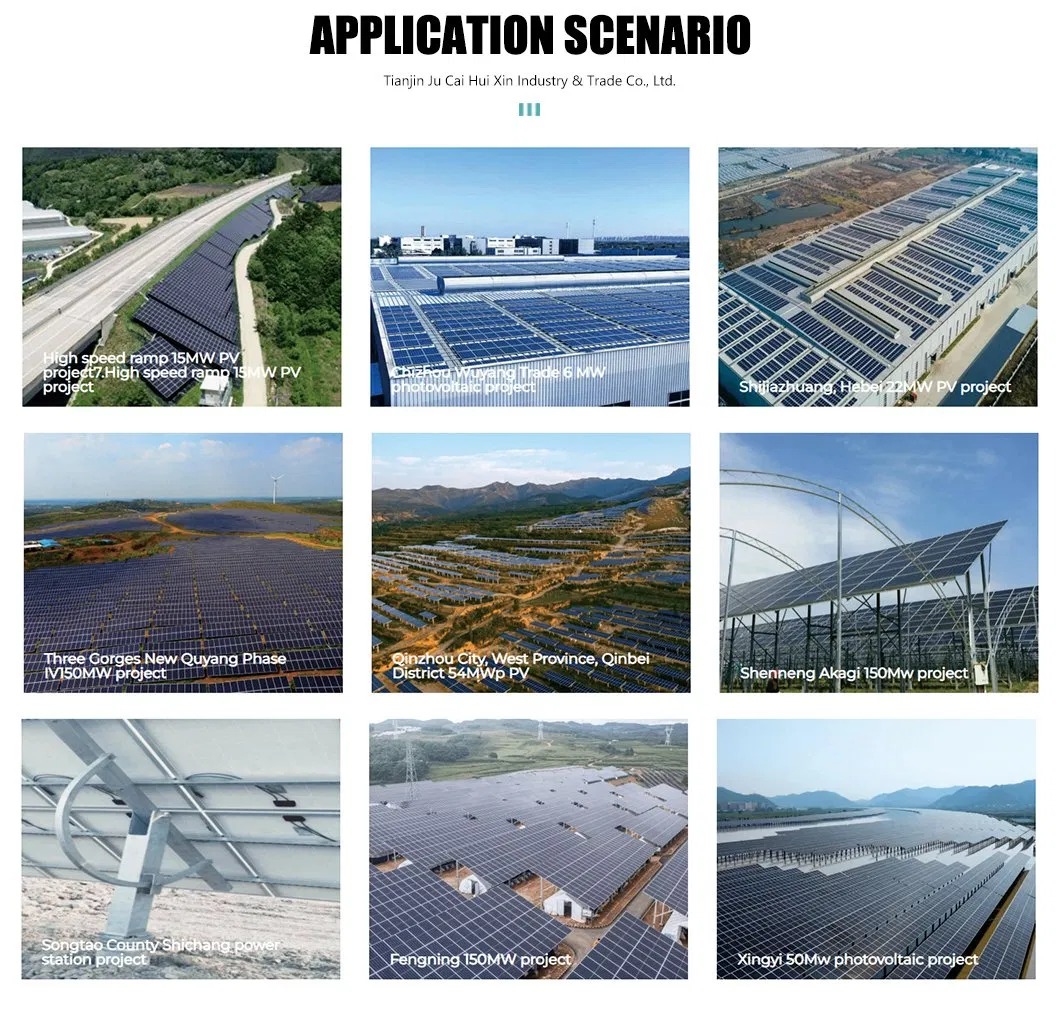

Application Scenarios

Expert solutions for diverse environments:

Hot-dip Galvanized Series: Protects power stations for over 25 years.
Zinc-Aluminum-Magnesium Series: Self-repairing technology for harsh environments.
Aviation Aluminum Series: Lightweight and high-strength for rooftop projects.
BIPV Systems: Building Integrated Photovoltaic Waterproof Brackets.

Professional Service

★ 1v1 Exclusive Butler: From design to installation guidance.

★ 24-hour Response: Uninterrupted global time zone support.

★ Free Design & Samples: 0 Yuan experience for customized solutions.

★ 3D Modeling: Provided within 48 hours.

Frequently Asked Questions

Do you need special tools to install solar panel strut channel?

Only standard wrenches and cutting tools (such as tungsten steel saws) are needed. Installation guides and video tutorials can be provided.

Can it be adapted to clay tile roofs?

Yes, special hooks (such as Tile Roof Hooks) are required, with a load of ≤ 18kg/m² and a spacing of ≤ 0.6 meters.

How to deal with extreme low temperature (-40 ºC) environment?

6063-T5 aluminum alloy and specific galvanized steel grades have excellent low-temperature toughness and can pass the -40 ºC impact test (IEC 61215 standard).

Does it support LOGO or color customization?

We support laser engraving of logos and customized black anodizing (standard MOQ applies).

What is the ultraviolet resistance of the system?

The system features an Ultraviolet Reflectance of ≥85%, ensuring durability under intense sunlight exposure.

What is the typical delivery timeframe?

Standard inventory products can be delivered within 3-7 days. Customized solutions typically take 15-45 days depending on specification.
