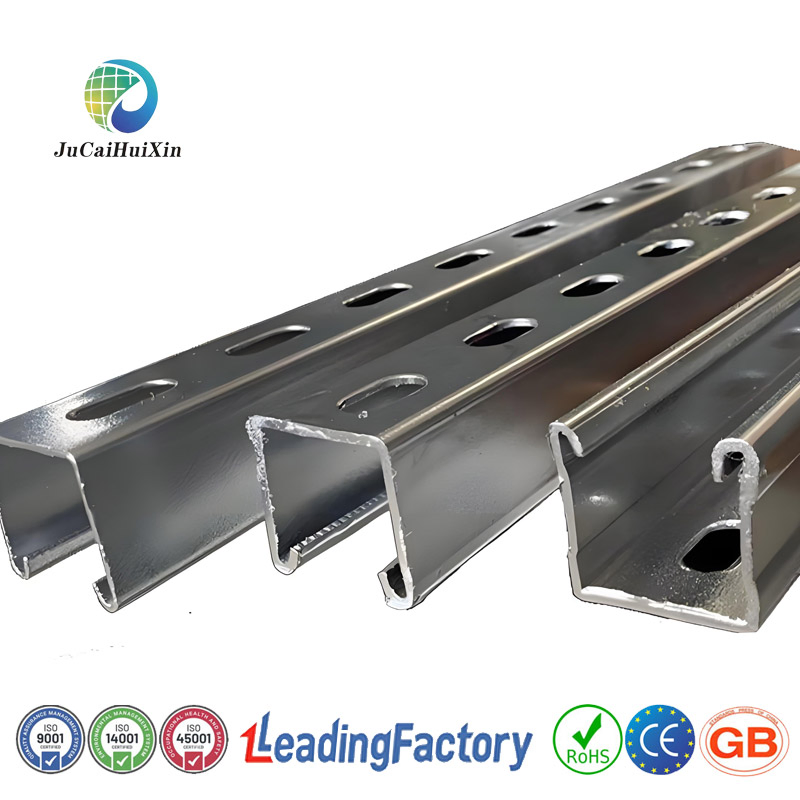

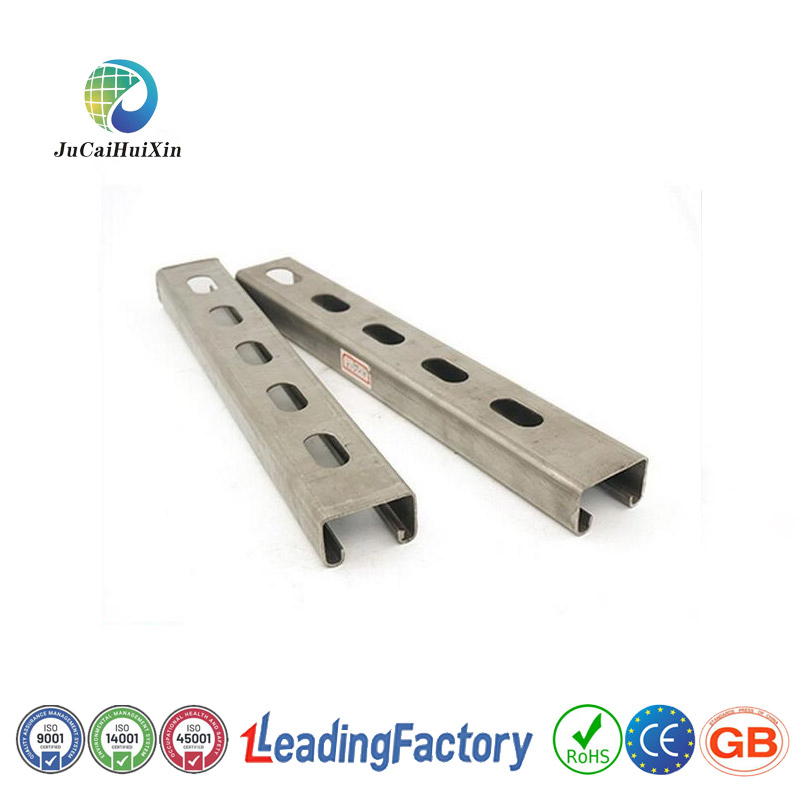

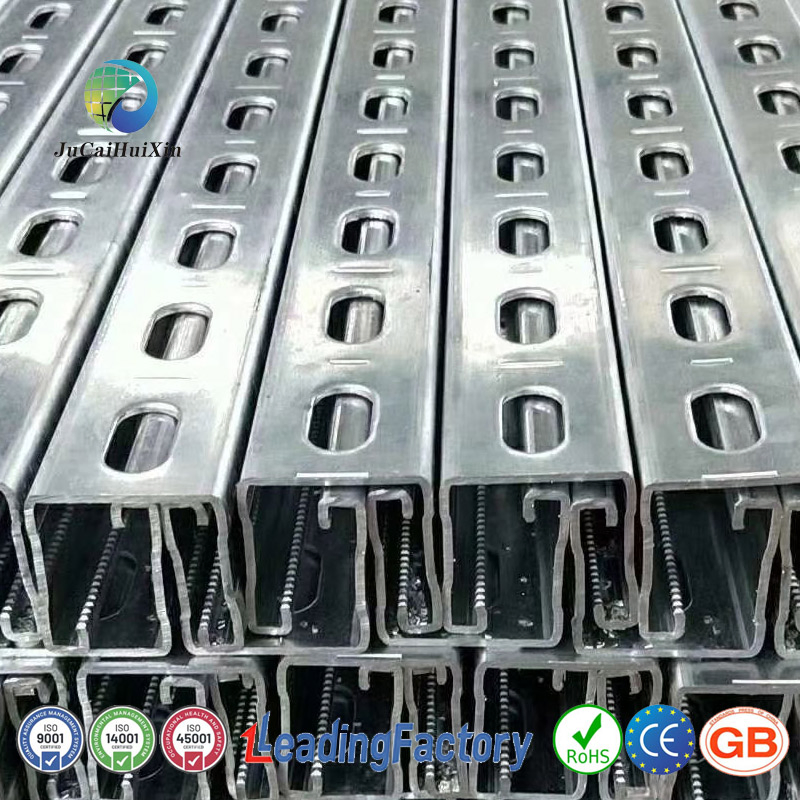

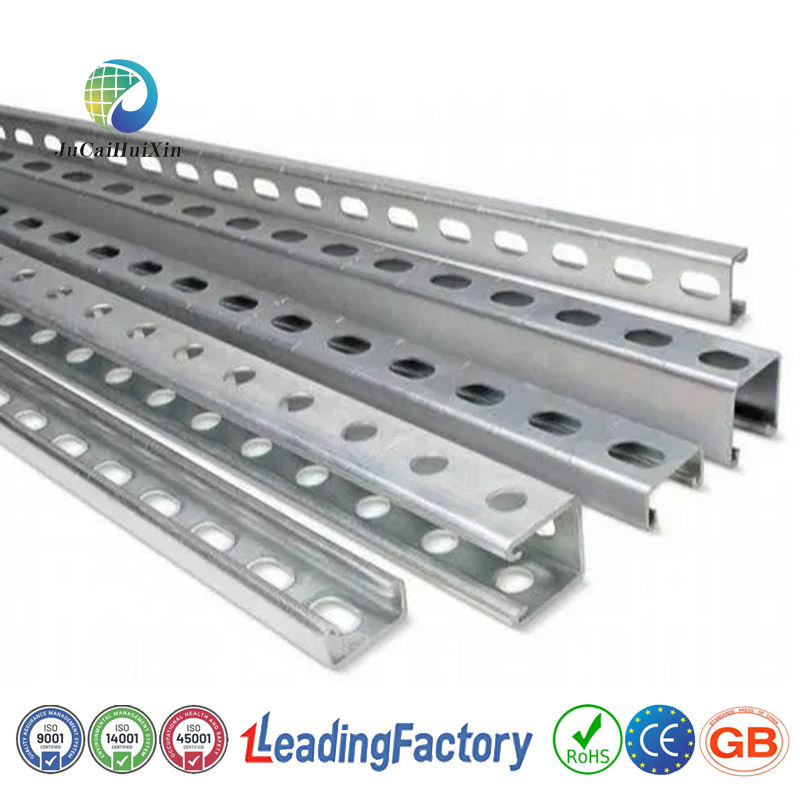

Jchx Hot Dipped Galvanized Steel C U Channel Structure for Solar Systems

Basic Specifications

Model NO.	Z00010 Series	Certification	GB, ISO, TUV, CE, RoHS
Application	Commercial & Industrial Solar Systems	Material	High-Strength Steel
Type	Solar Mounting Accessories	Coating	Zinc Aluminum Magnesium or Galvanized
Wind Load	0-60m/S	Snow Load	0-3kN/M²
Feature	Anti-Corrosion, Earthquake Resistance	Service Life	Over 25 Years

Product Description

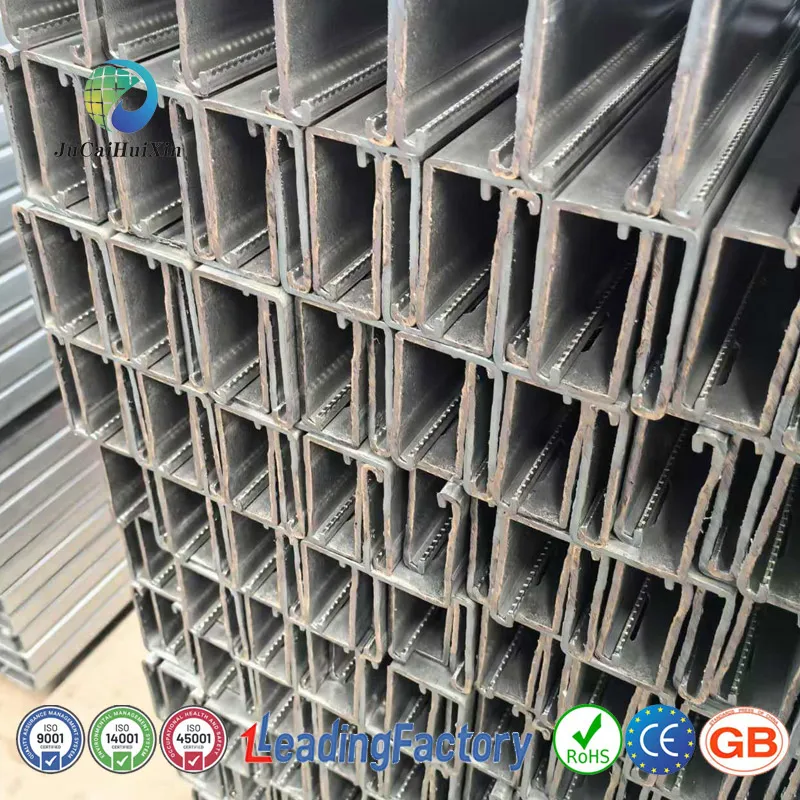

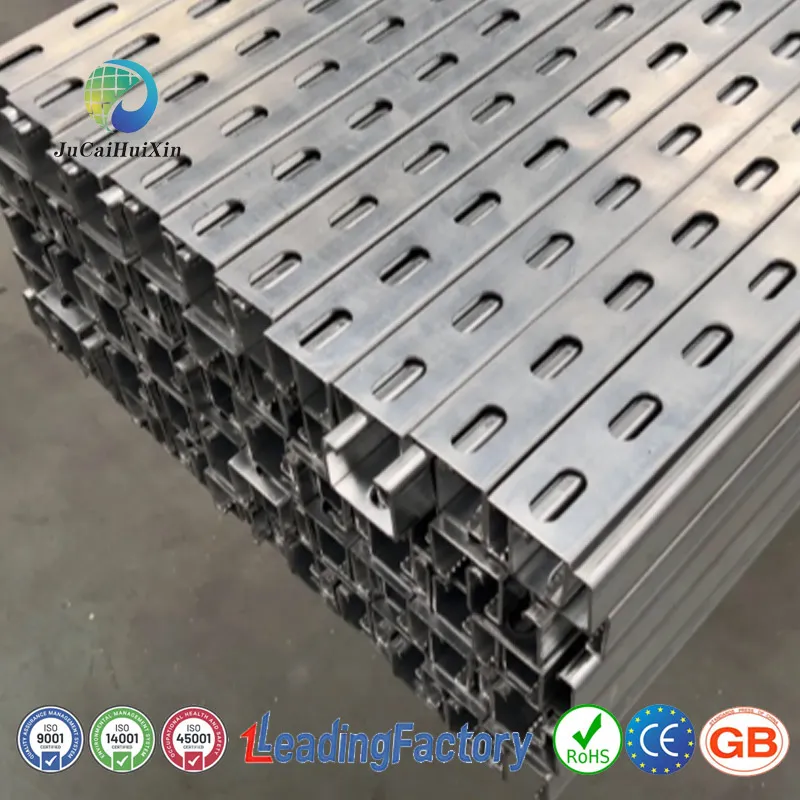

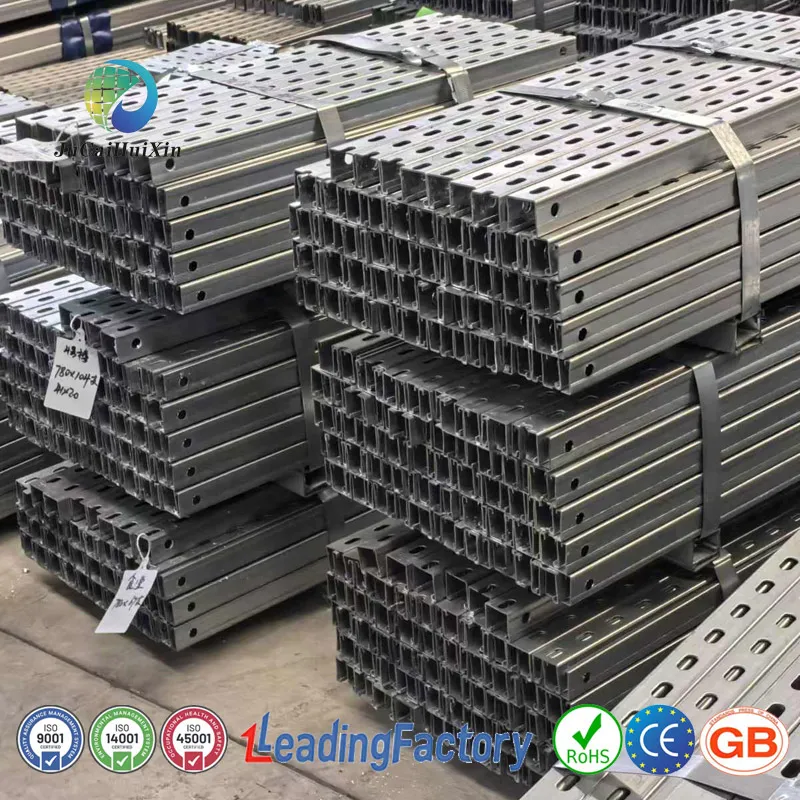

Our Hot Dipped Galvanized Steel C & U Channel structure is engineered for supporting solar panels in a sturdy and reliable manner. Made from high-quality C Channel Steel, these purlins are designed to withstand various weather conditions and provide long-lasting support for solar structures.

The versatile design allows for easy installation and compatibility with different solar panel sizes. Whether you are setting up a residential solar system or a large-scale commercial project, these solar purlins are the ideal choice.

Material Detail	Specifications	Feature	Value
Grade	Q235B, Q355, S350, S250	Wall Thickness	1.5-3.0mm or Custom
Size Range	4121 to 4172mm	Annual Capacity	100,000 Tons
Corrosion Resistance	Very Strong	OEM/ODM	Accepted

Key Advantages

01

Highly Corrosion-Resistant

Excellent weather resistance and fatigue resistance. It can resist external forces such as wind, snow, and earthquakes, ensuring the safety of photovoltaic modules in harsh conditions.

02

High Structural Strength & Stability

Utilizing carbon steel with Zinc Aluminum Magnesium coating treatment, providing sufficient bearing capacity and long-term stability for large-scale solar arrays.

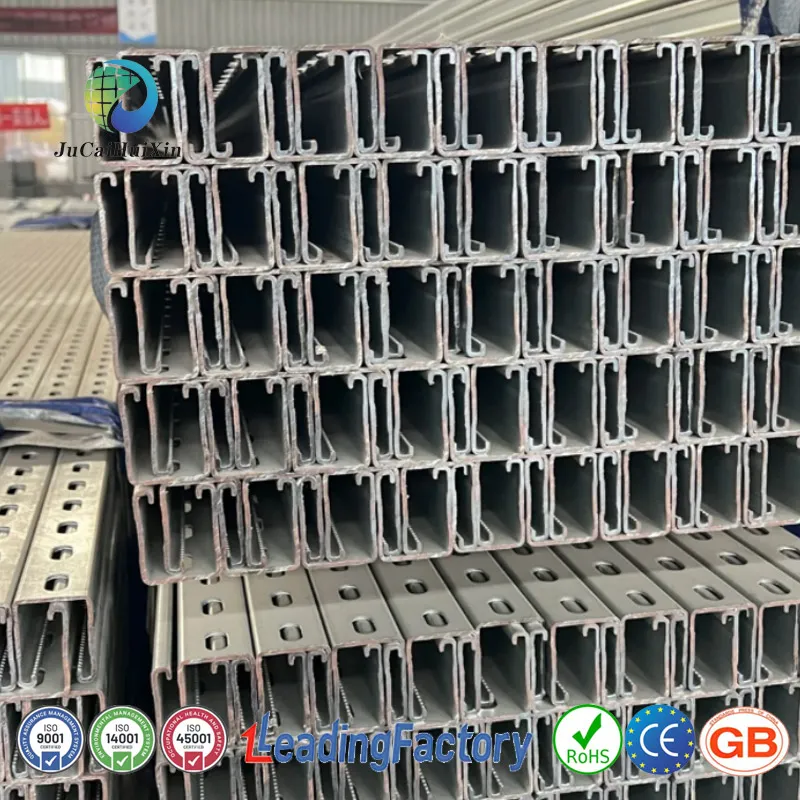

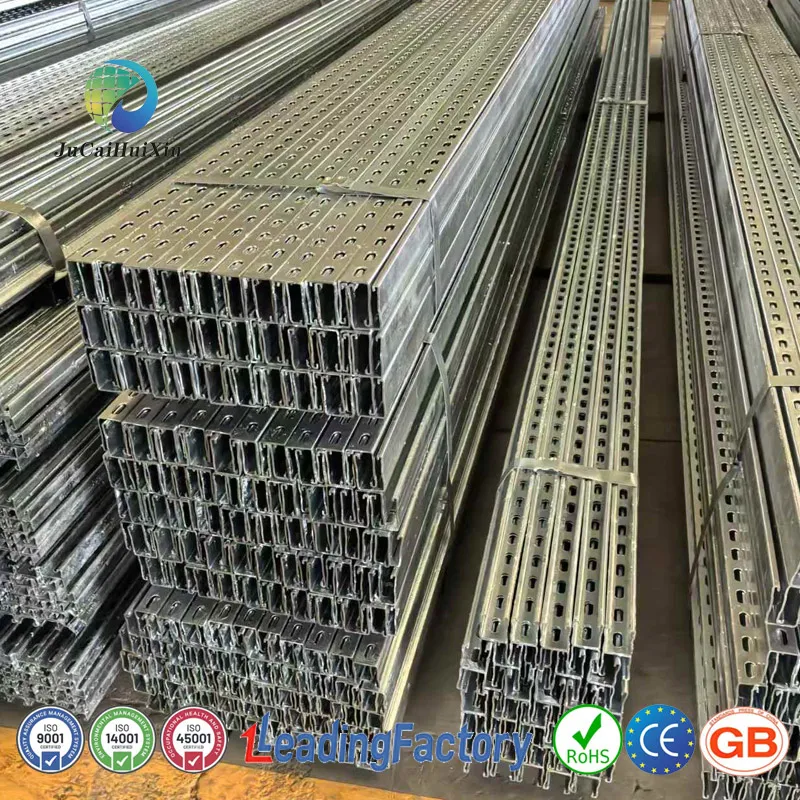

Manufacturing Excellence

⭐ 10,000 sqm Intelligent Base: Professional physical factory ensuring robust production capabilities.
⭐ Advanced Production Matrix: 10 automated CZU steel lines producing 200,000 tons annually.
⭐ Global Passports: Triple ISO system, CE, and RoHS certifications.

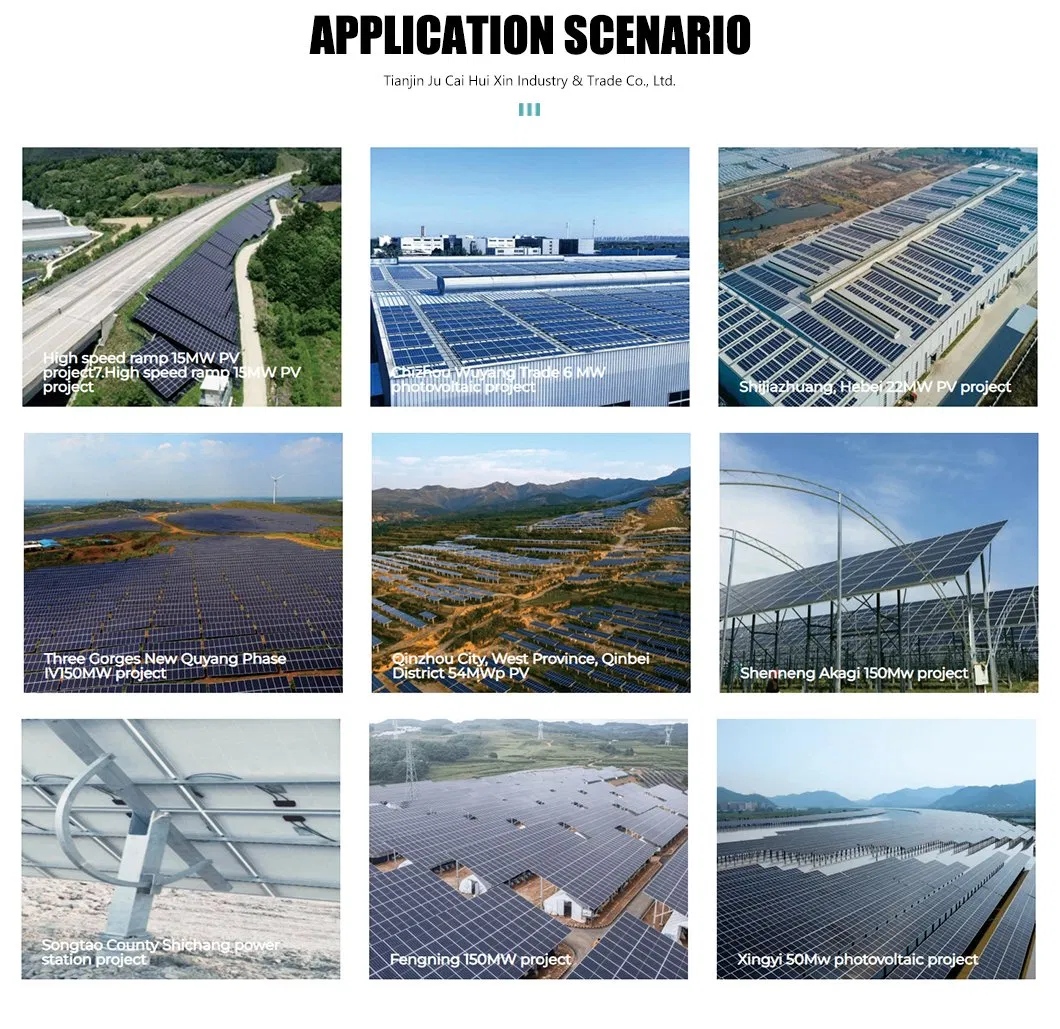

Application Scenarios

National Project Involvement:

Million Kilowatt-level Photovoltaic Oxygen Production Projects
Wind-Solar-Storage Integrated Demonstration Projects
Ecological Photovoltaic Stations
Large-scale Industrial Rooftop Racking

Frequently Asked Questions

What material grades are available for the galvanized strut channel?

We offer two primary material grades: Carbon Steel (cost-effective for general rooftop mounting) and Stainless Steel (304/316) for harsh coastal or chemical environments.

What surface finishes does the product come with?

Available in Hot-Dip Galvanized (HDG) for long-term outdoor use, Pre-Galvanized (GI) for dry environments, and Powder Coated for aesthetic and additional chemical resistance.

What are the standard sizes for solar mounting?

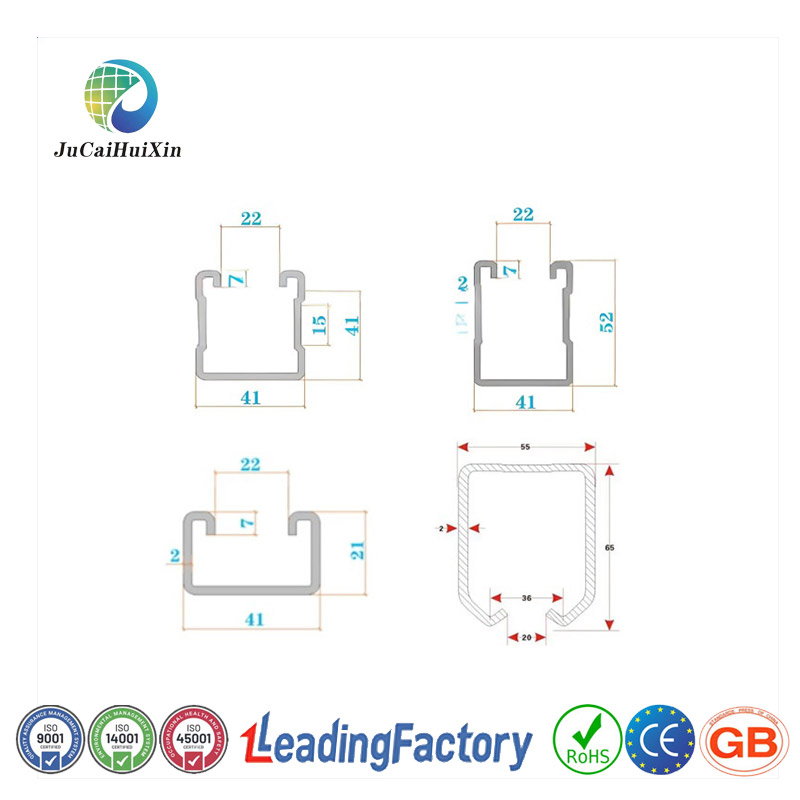

Standard sizes include 41x41mm (C-channel) and 41x21mm (Slim C-channel), with thicknesses ranging from 1.5mm to 3.0mm depending on load requirements.

What is the maximum load capacity?

A standard 41x41x2.5mm channel can support 700-800kg/m (uniform load) over a 1-meter span. We provide technical datasheets for specific wind and snow load calculations.

Can the strut channels be modified on-site?

Yes, they can be easily cut using a hacksaw or angle grinder. Pre-drilled holes allow for easy bolt installation. We recommend using cold galvanizing spray on cut edges to prevent rust.

What is the typical lead time for orders?

Standard in-stock sizes ship within 15-30 days. Custom sizes or large-scale project orders (over 10 tons) typically require 30-45 days.
