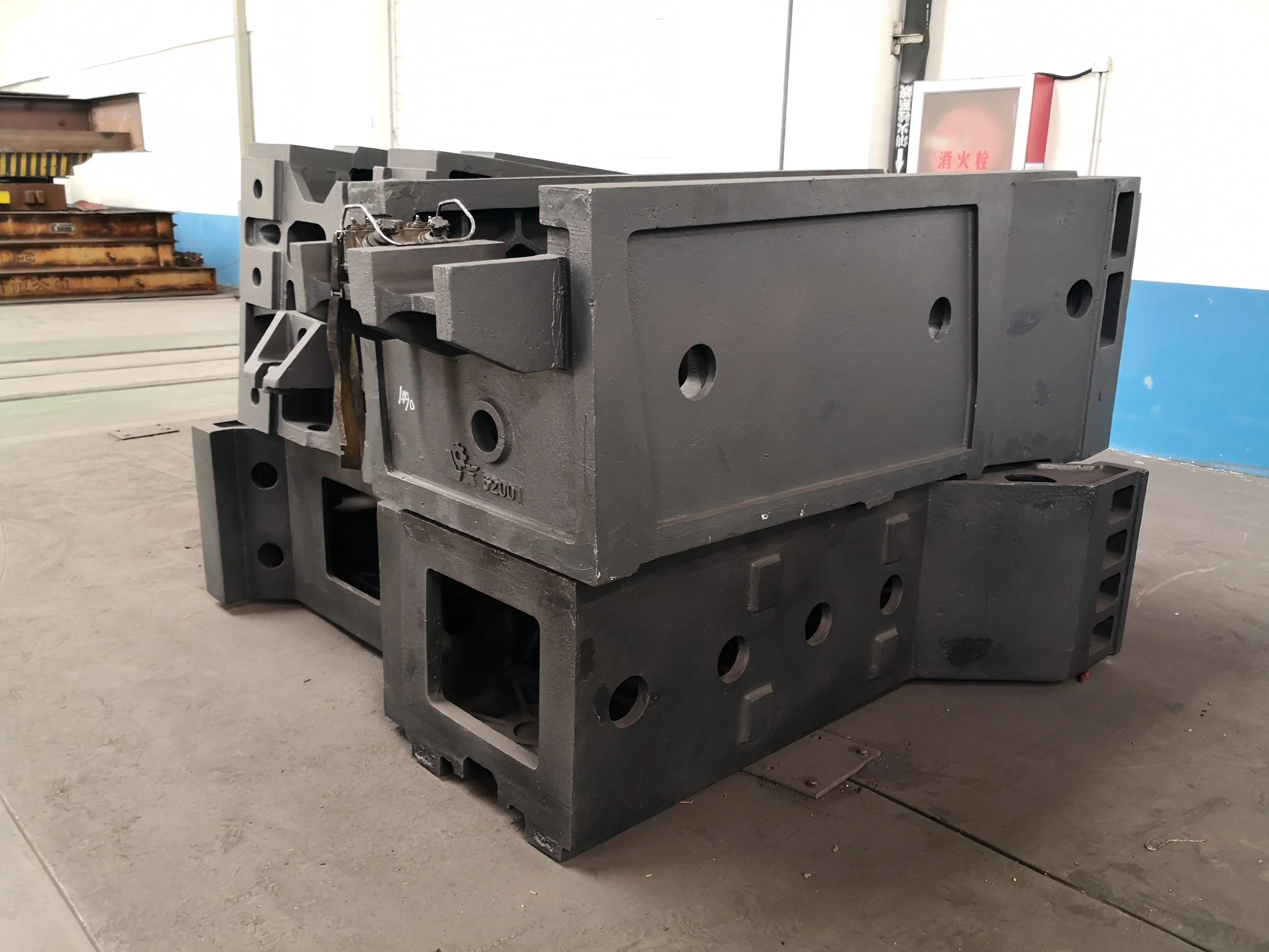

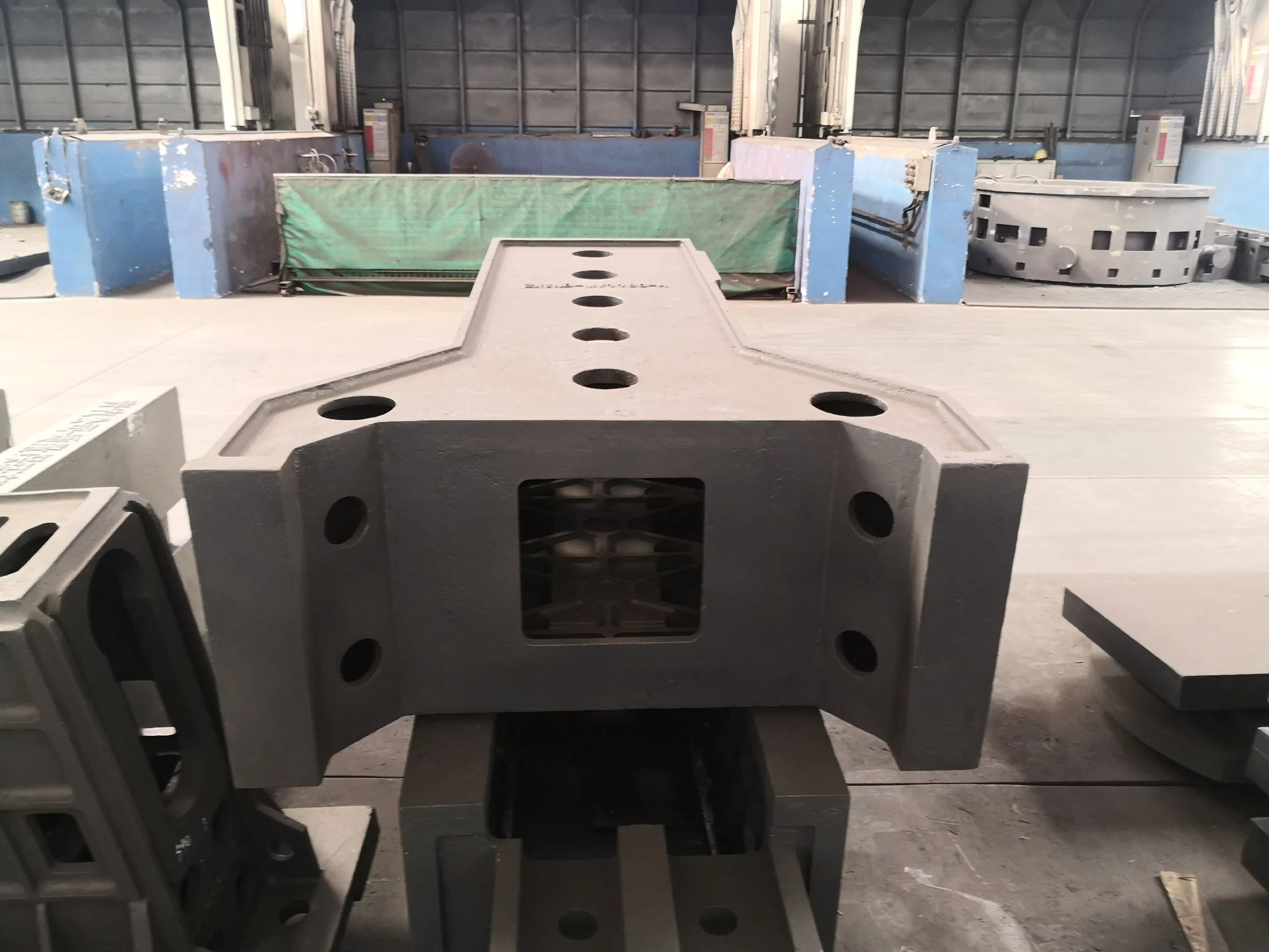

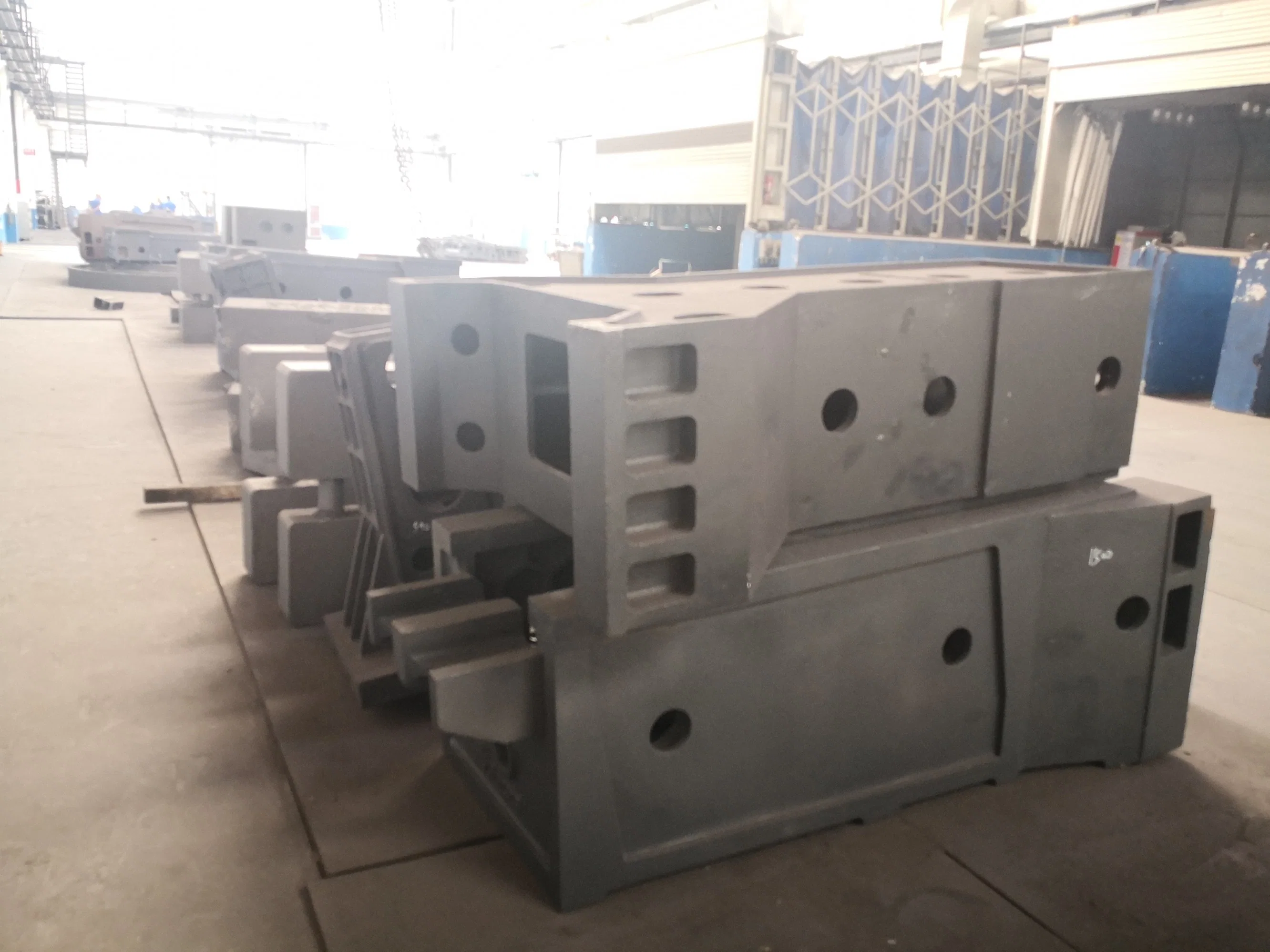

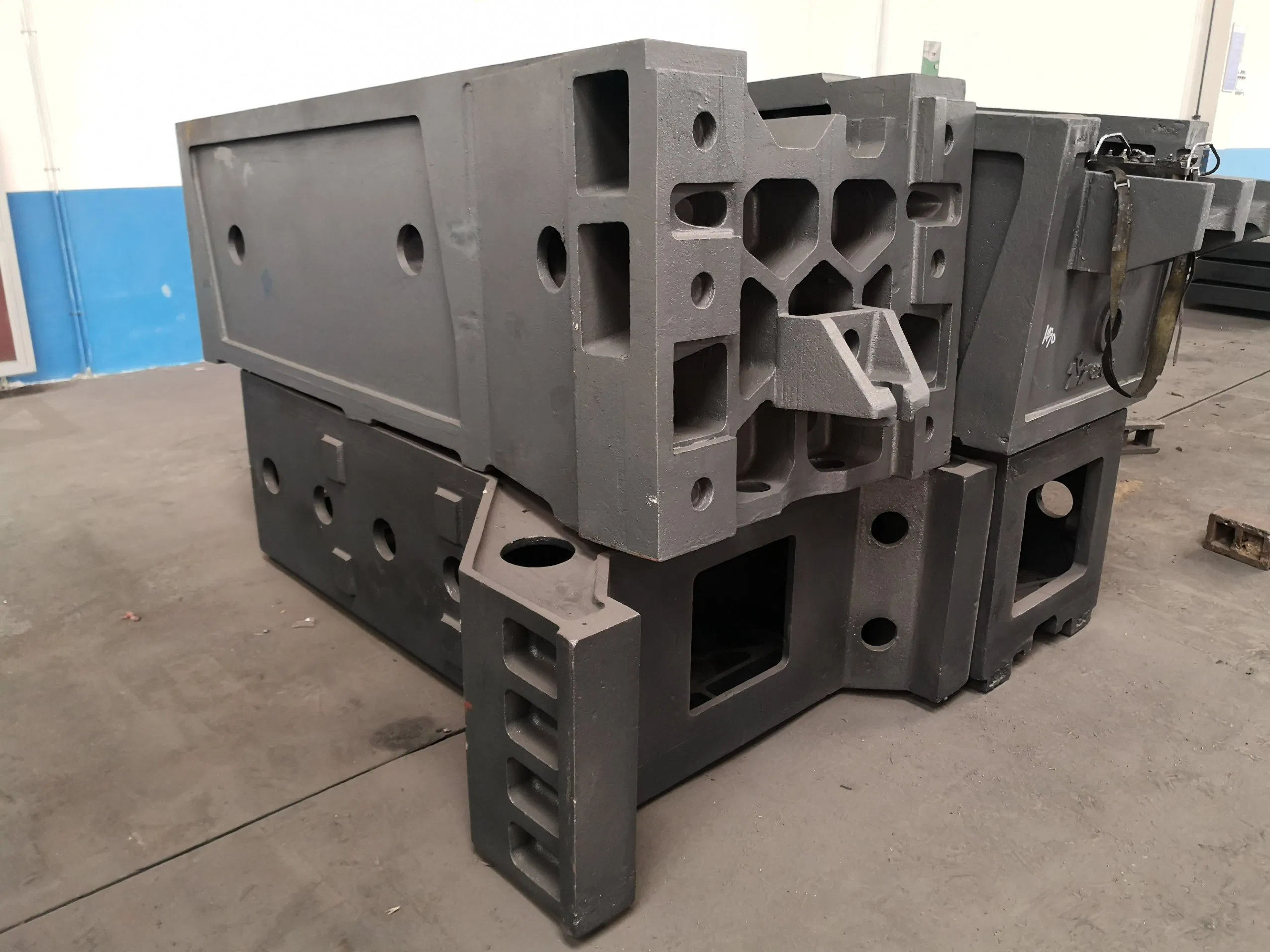

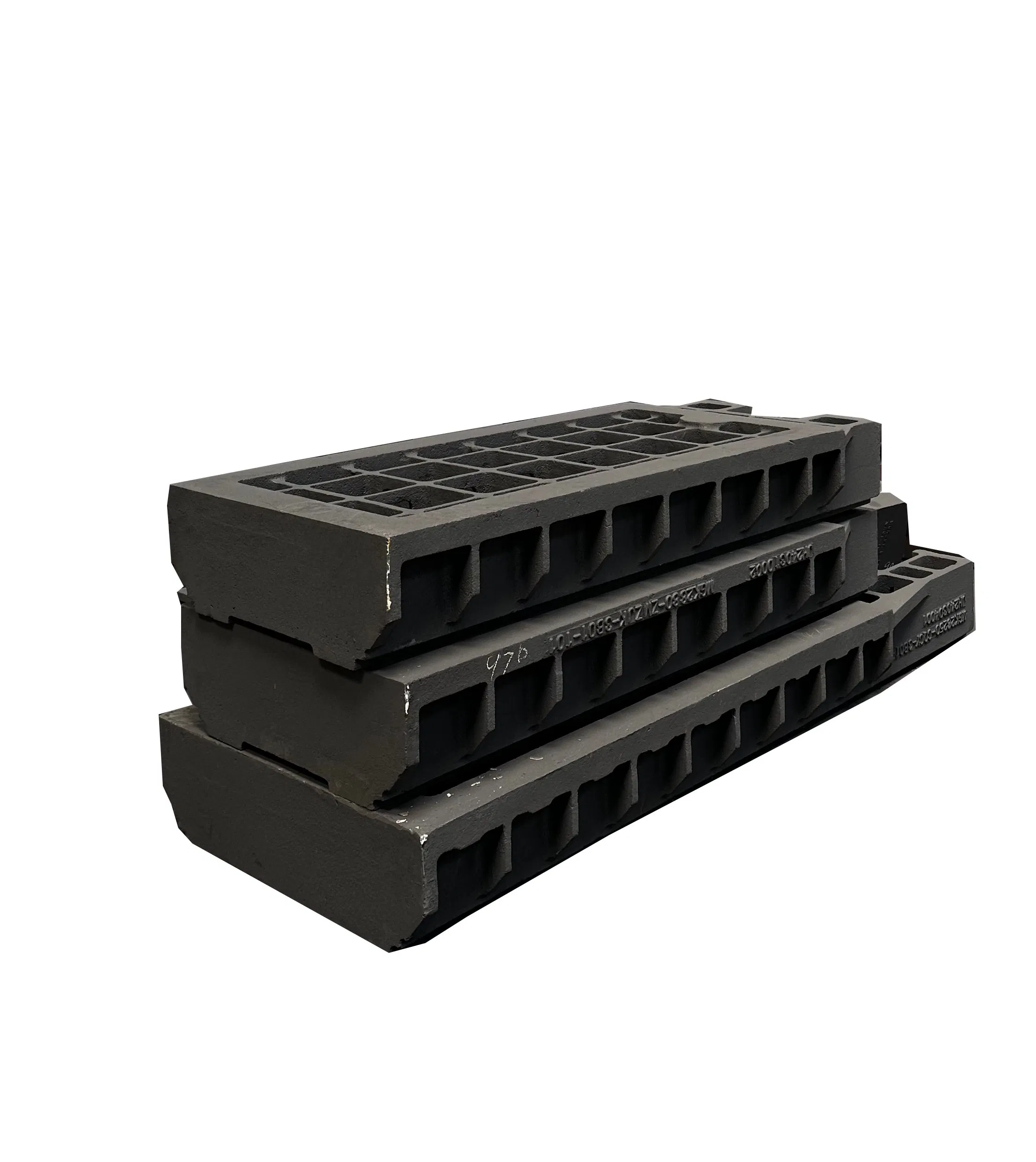

Large Steel Cast Milling Machine Tool Base Bed Frame Sand Casting

1 / 5

Large Steel Cast Milling Machine Tool Base Bed Frame Sand Casting

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

milling machine casting

Sand Core Type

Resin Sand Core

Application

Machinery Parts

Machining

Machining Center

Material

Iron (HT200-300)

Surface Treatment

Shot Blasting, Machining, Painting

Standard

JIS, ASTM, DIN, BS, GB

Weight

17kg to 18000kg Per Set

Certification

RoHS, ISO 9001:2000, V16949

Production Capacity

1000 to 1200tons Per Month

Factory Price CNC Casting Iron Gantry Milling Machine Base Bed Casting

Brief Introduction

Material: Gray Iron or Ductile Iron (HT200-300)
Surface treatment: Shot blast, painting; Heat treatment optional
Customization: According to your drawing, specification, or samples

Large manufacturer for iron casting service. Specializing in CNC machine tools casting, auto stamping molds castings. Product range includes casting machine base, casting saddle, casting workplate, casting column (stands).

Product Specifications

Product	milling machine base casting
Casting Process	Resin sand casting, lost foam casting, steel mold casting, wood mold casting

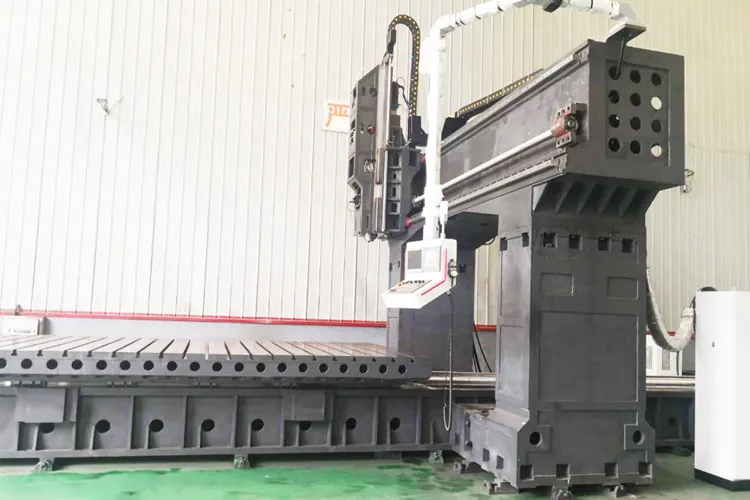

Iron Cast Applications	Machine tool body (machine tool beds, work tables, bases, beams and columns)
Weight Range	30kg to 18 Tons per piece

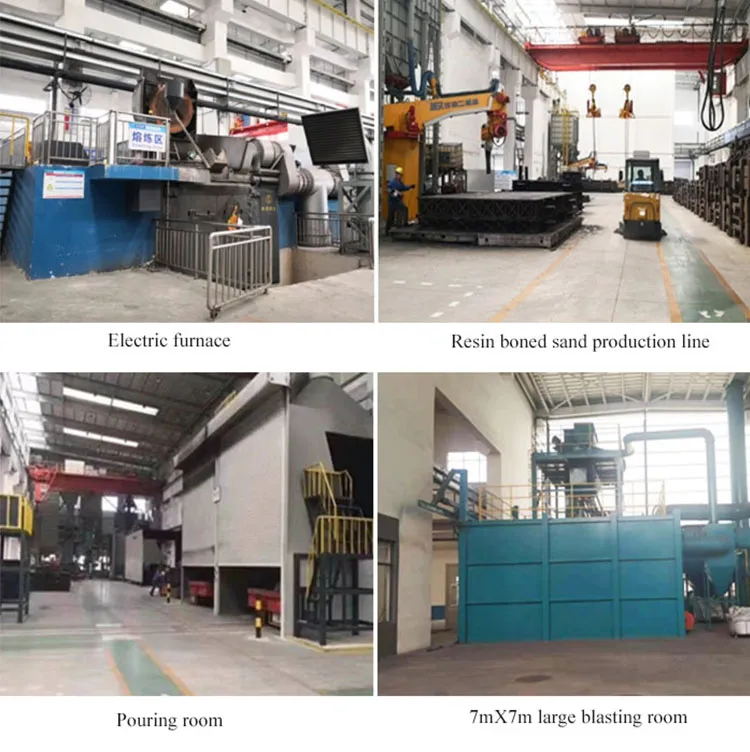

Production Facility	Electric furnace (10T, 2T); Heat treatment house, shot blasting room, lost foam production line; CNC machining center

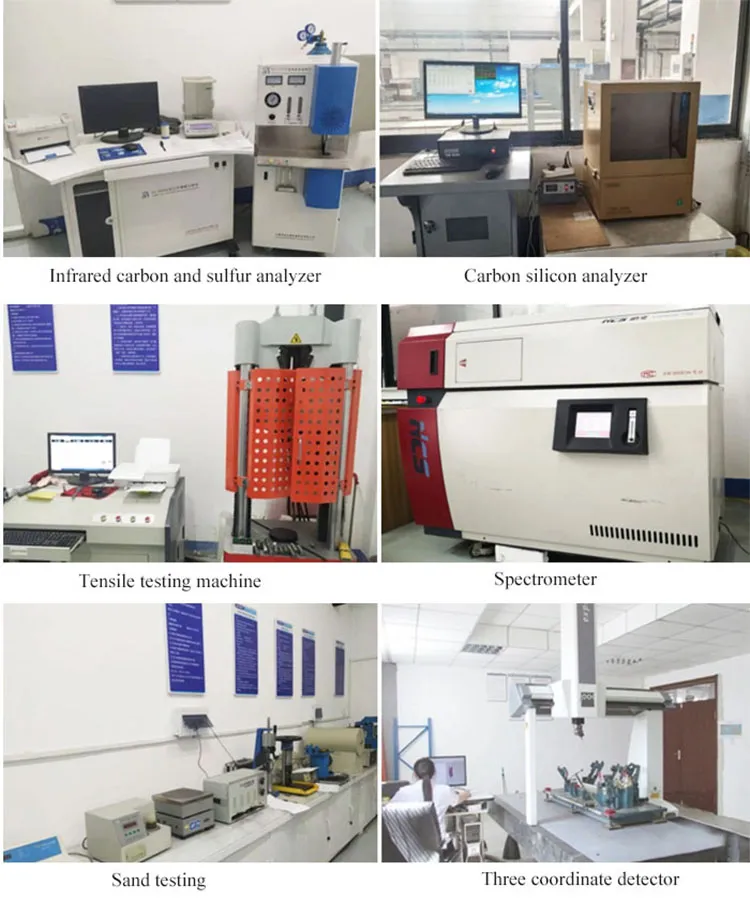

Testing Facility	Spectrometer, tensile test machine, hardness test machine, metallographic microscope

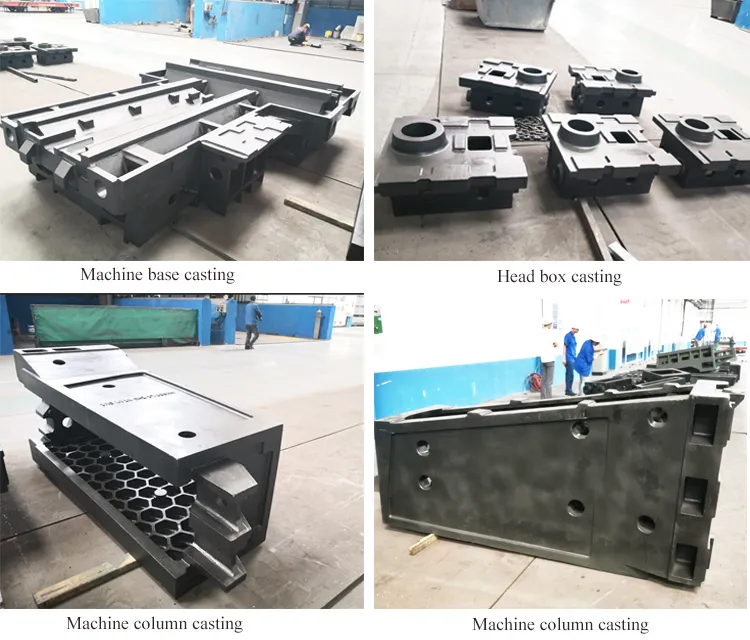

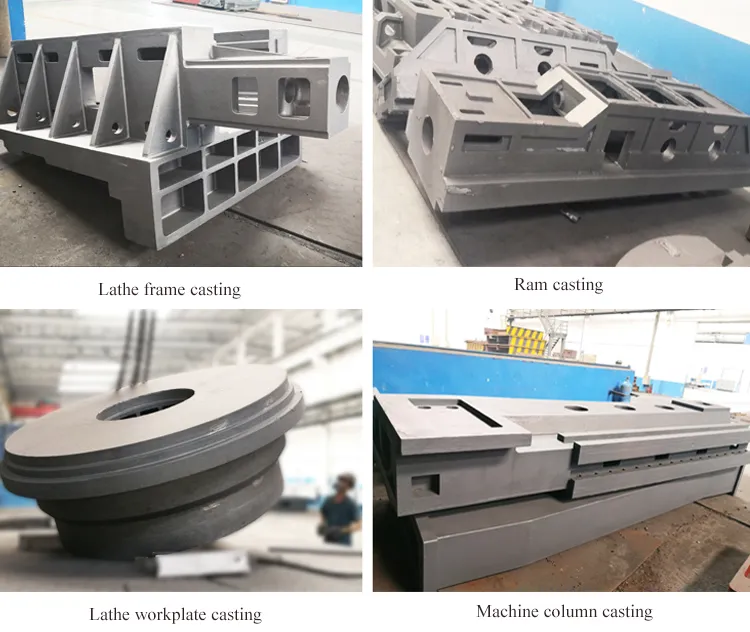

Other Machine Tool Castings

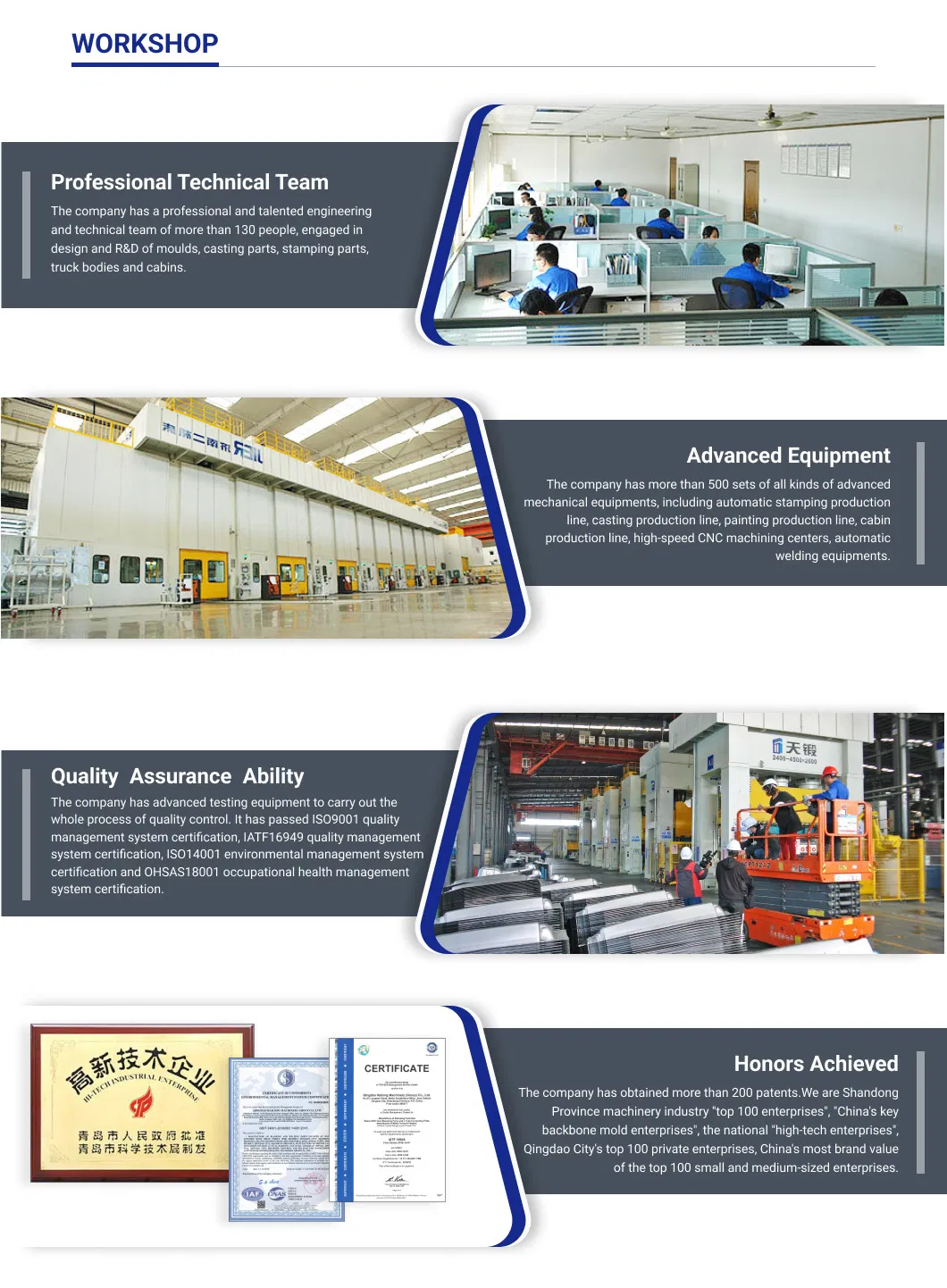

Workshop & Quality Control

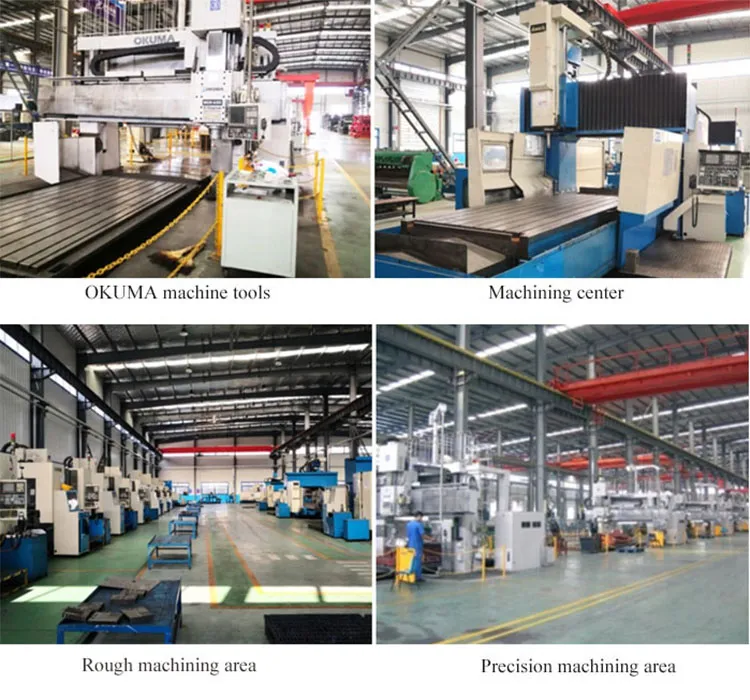

Advanced casting machines and complete testing equipment ensure premium quality control for iron casting parts. Machining treatment is available from raw material to finished products.

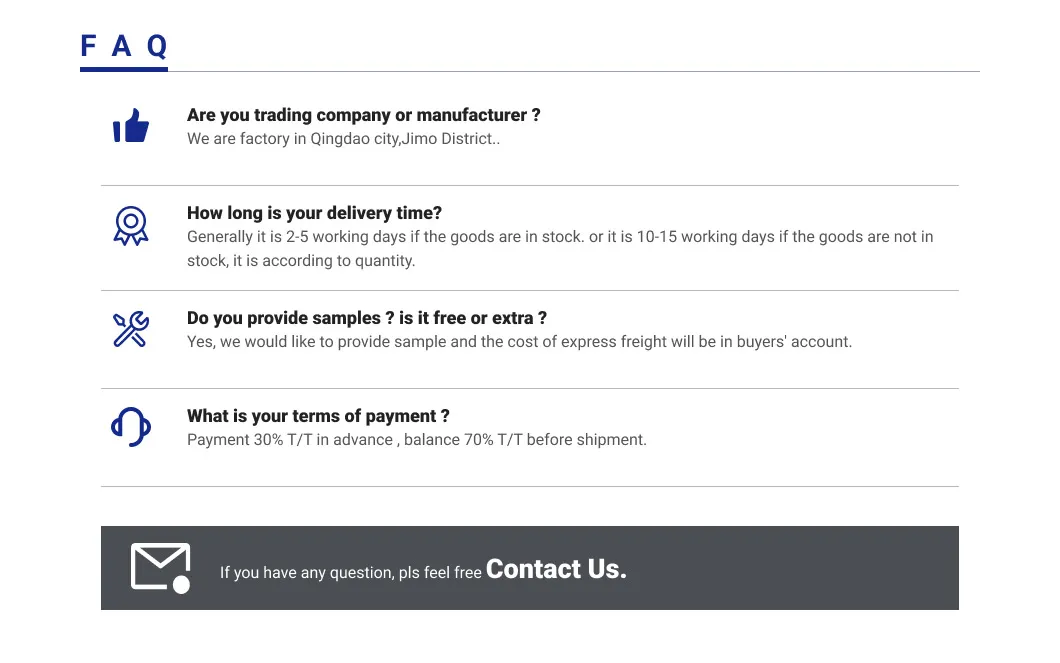

Frequently Asked Questions

What materials are used for your machine base castings?

We primarily use Gray Iron (HT200-300, GG20-30) and Ductile Iron, which offer excellent stability and vibration damping for CNC machinery.

What is the maximum weight capacity for a single casting?

Our facilities can produce single casting pieces ranging from 17kg up to 18 Tons, suitable for various industrial machine tool sizes.

Do you provide surface treatments and machining?

Yes, we provide full surface treatments including shot blasting, painting, and precision machining via our CNC machining centers. Heat treatment is also available.

Which casting processes do you utilize?

We specialize in Resin Sand Casting, Lost Foam Casting, and use both steel and wood molds depending on the product requirements.

How do you ensure the quality of the iron castings?

Quality is controlled through rigorous testing using spectrometers, tensile test machines, hardness testers, and metallographic microscopes at every production stage.

Is OEM service available based on custom designs?

Absolutely. We provide comprehensive OEM services and can manufacture castings according to your specific technical drawings or physical samples.
