Specification
D50, 50*35/70*35/73*36mm, D60
Usage
Terminal Building, Hotel, Office Building
Function
Sound Proof, Fireproofing, Anti-Corrosion
Type
Cold Bending Inner Edge Channel
Width
52mm/72mm/75mm/100mm/148mm
Height
25mm/29mm/32mm/40mm
Production Capacity
1000 Ton/Tons Per Month

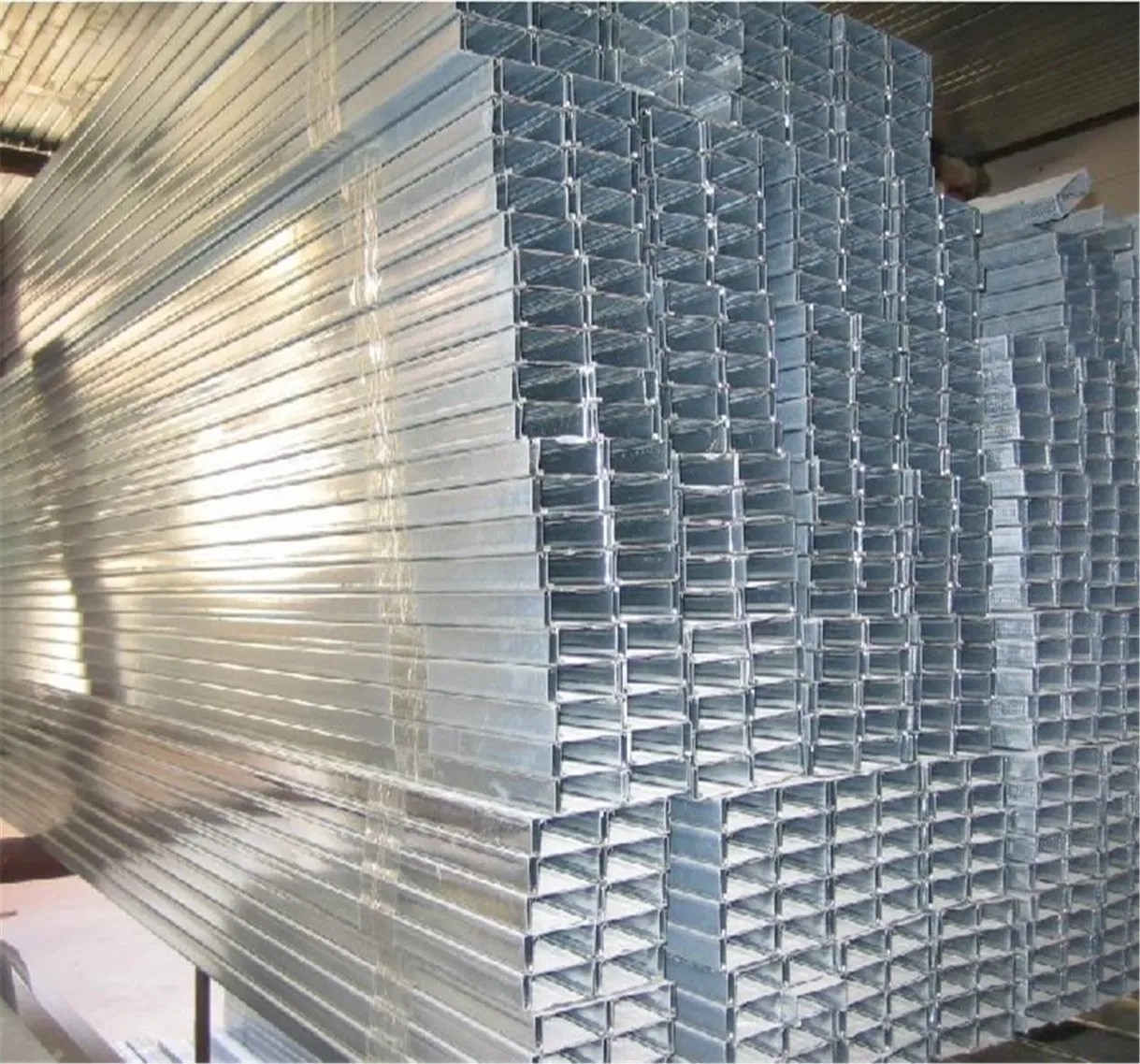

Material: Galvanized Steel

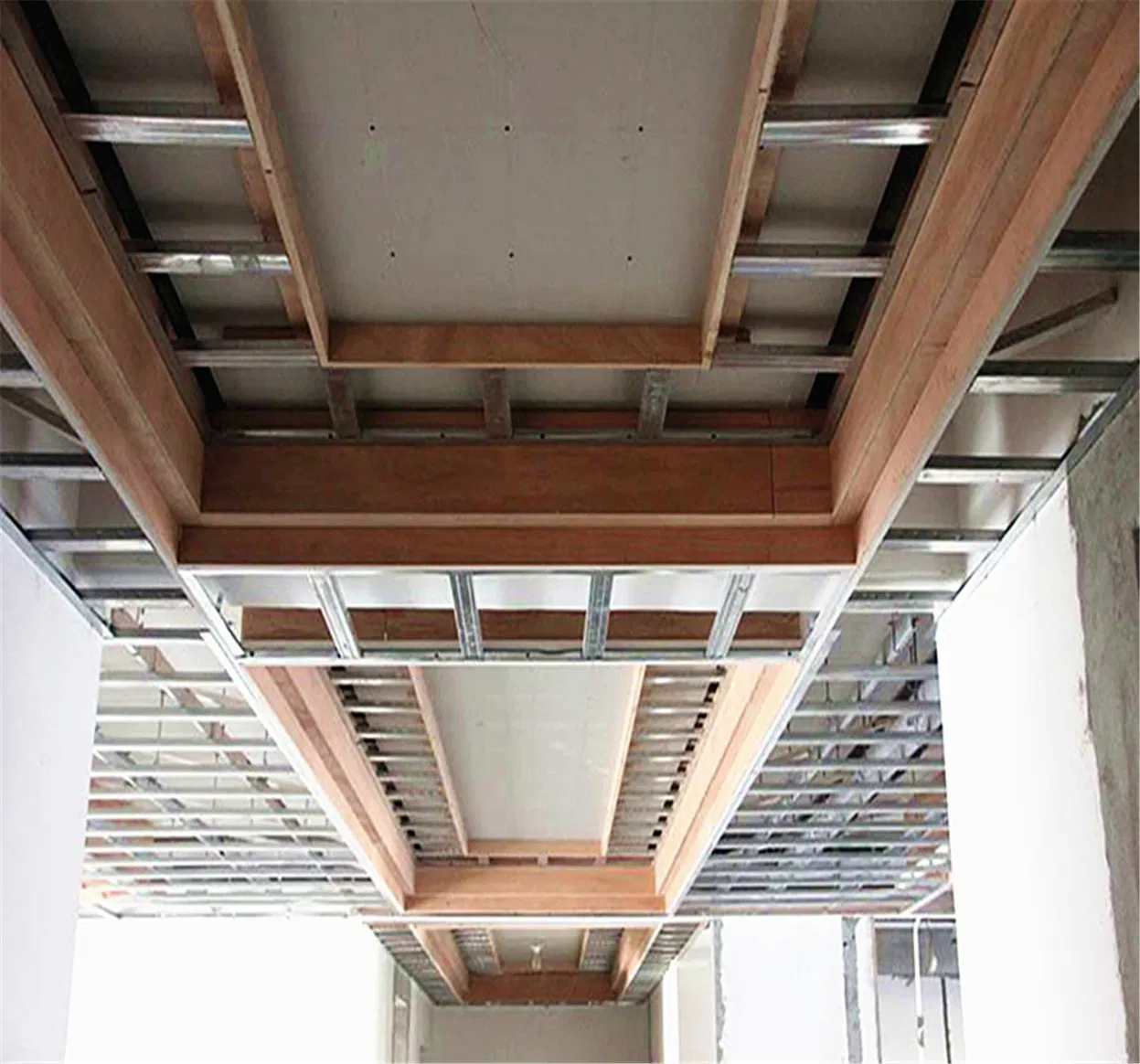

Application: Dry wall Partition and Suspension System
Custom sizes available according to client requirements.
✔Excellent fire resistive ability. Suit residuals and public places.
✔Fast installation. Easy to control the construction progress.
✔Combinative construction. Easy to keep work places clean.
✔Good vibration absorbing ability. Suit buildings on seismic belt.
✔Fast reconstruction for easy assembling and dismantling.
✔Filling acoustic insulation can enhance the sound-proof ability.
✔Surface of the walls are smooth. Easy to paint or paste wallpaper.
✔Electric wires are hidden in the wall.
| Products name |
Interior Wall Partition and Suspended Ceiling Metal Steel Profile |
| Products Design |
Design personalization, according to customers drawings or photos. |
| Services |
Comprehensive service including professional production, sales, and shipping. |

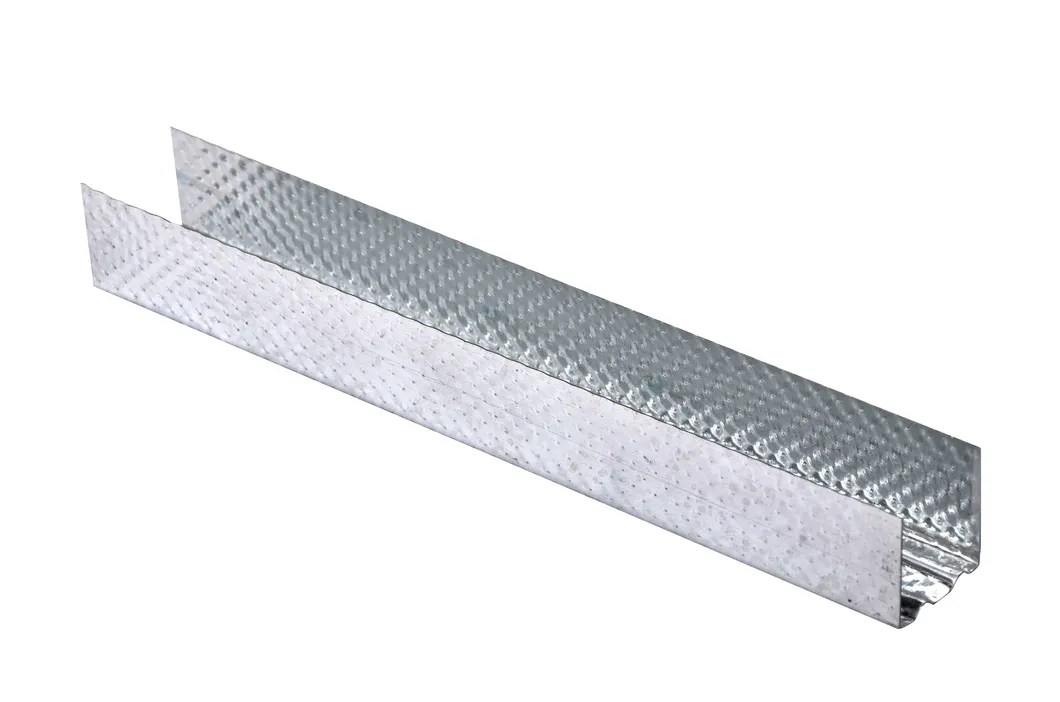

TRACK SPECIFICATIONS:
Width: 52mm / 72mm / 75mm / 100mm / 148mm
Height: 25mm / 29mm / 32mm / 40mm
Thickness: 0.40 to 1.0mm
Standard length: 3000mm

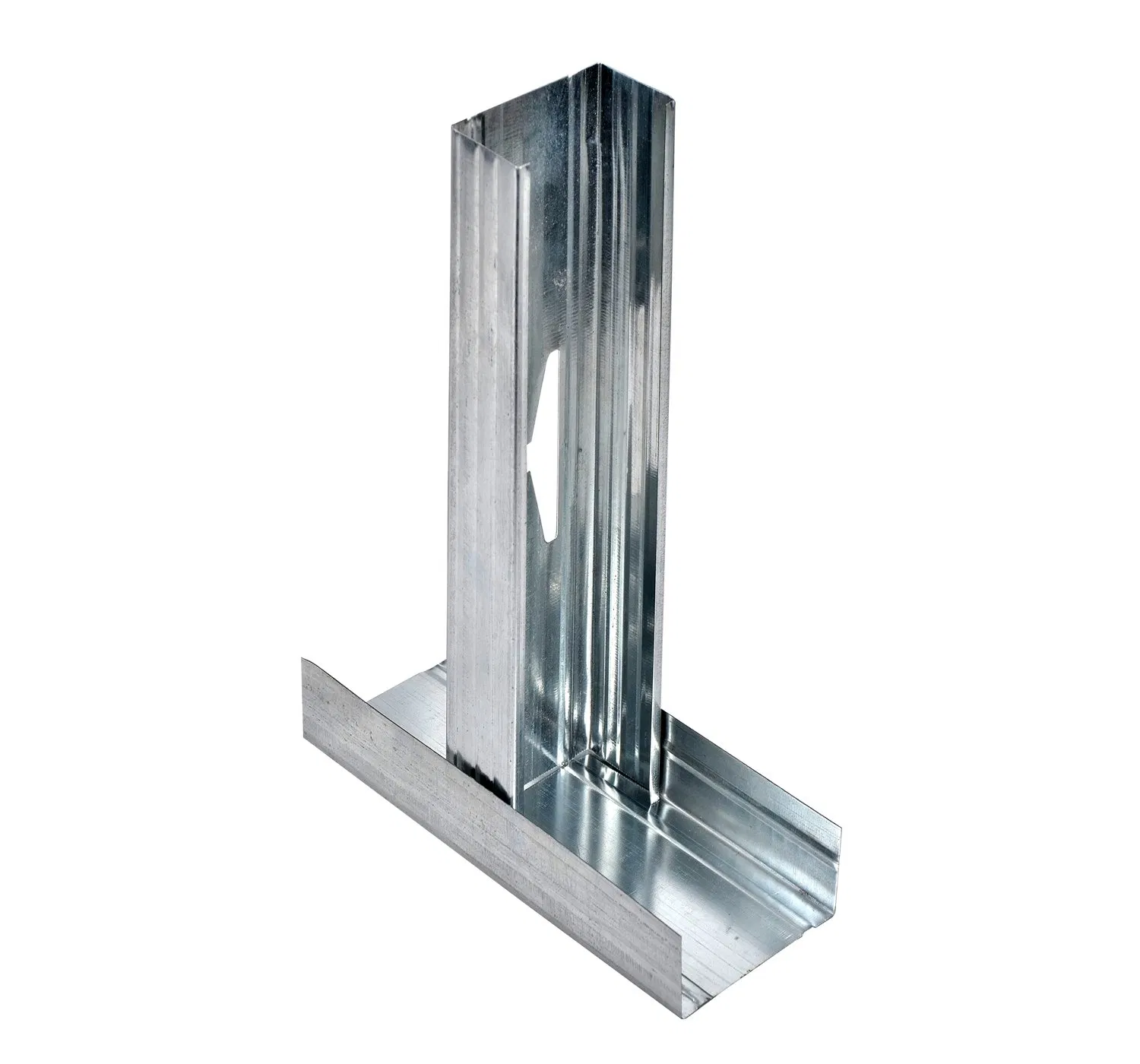

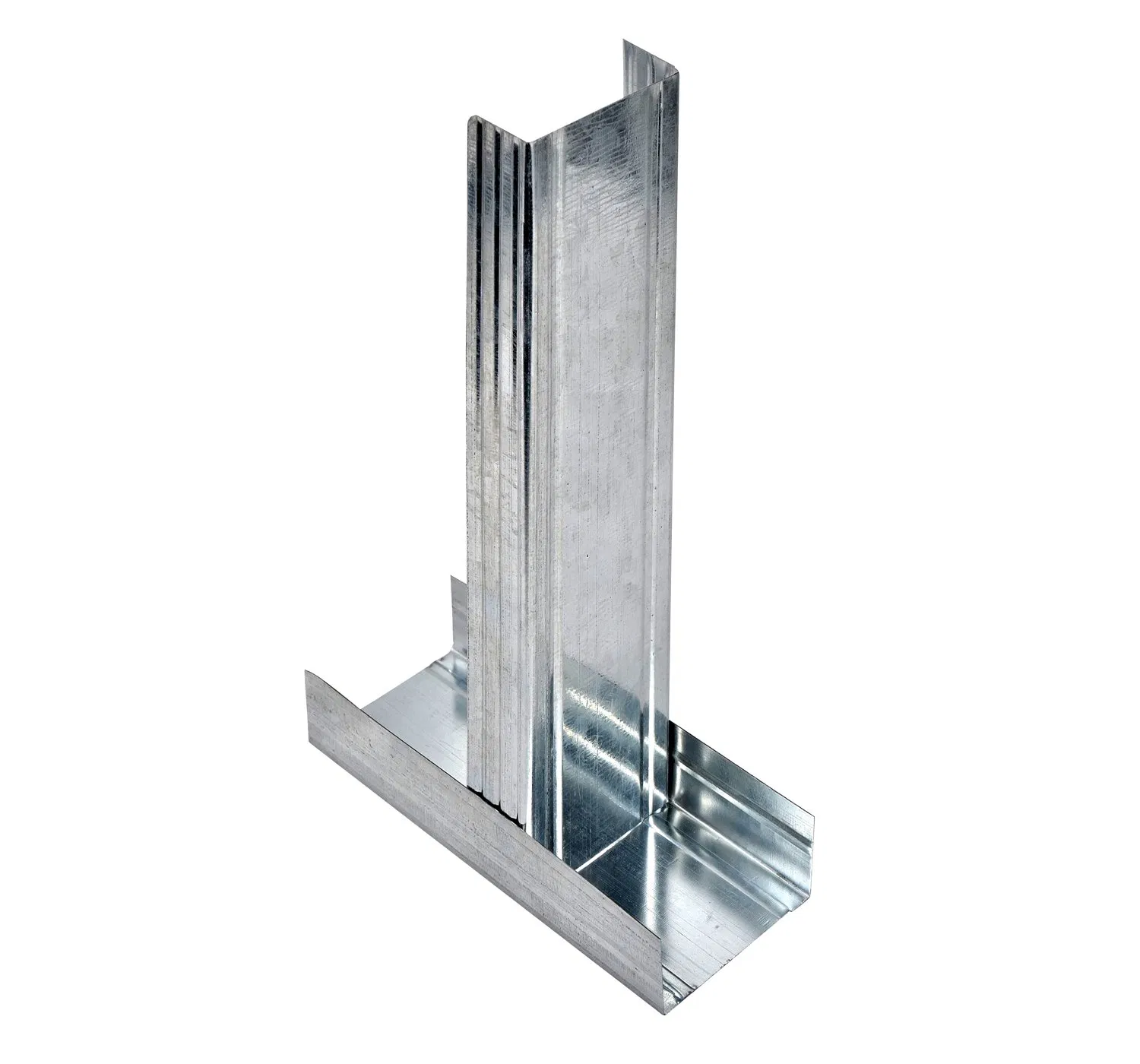

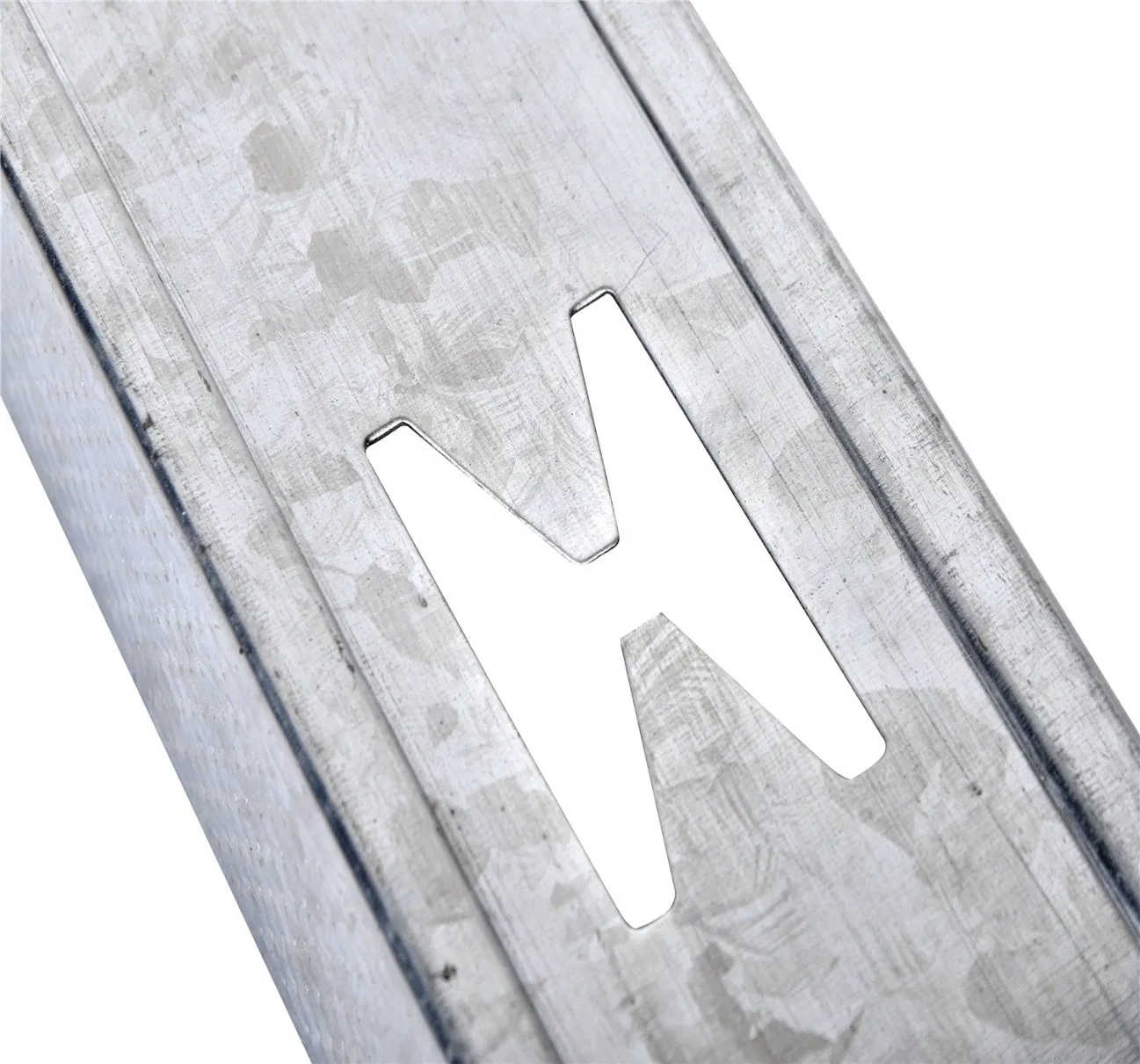

STUD SPECIFICATIONS:
Width: 50mm / 70mm / 73mm / 98mm / 146mm
Height: 32mm / 34.5mm / 36mm
Thickness: 0.40 to 1.0mm
Standard length: 3000mm

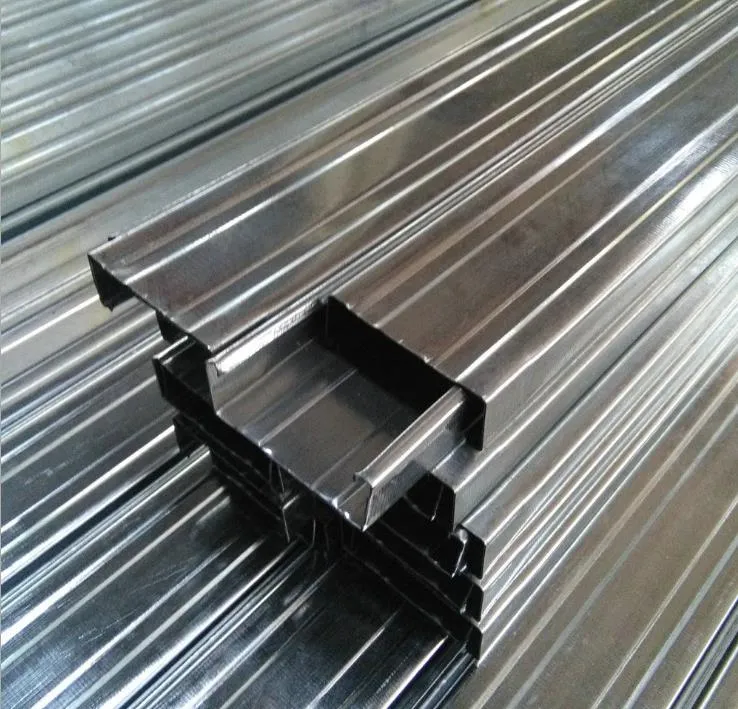

Omega (Furring channel): 35*22mm / 45*22mm / 35*16mm
Wall Angle: 20*20mm / 22*22mm / 25*25mm

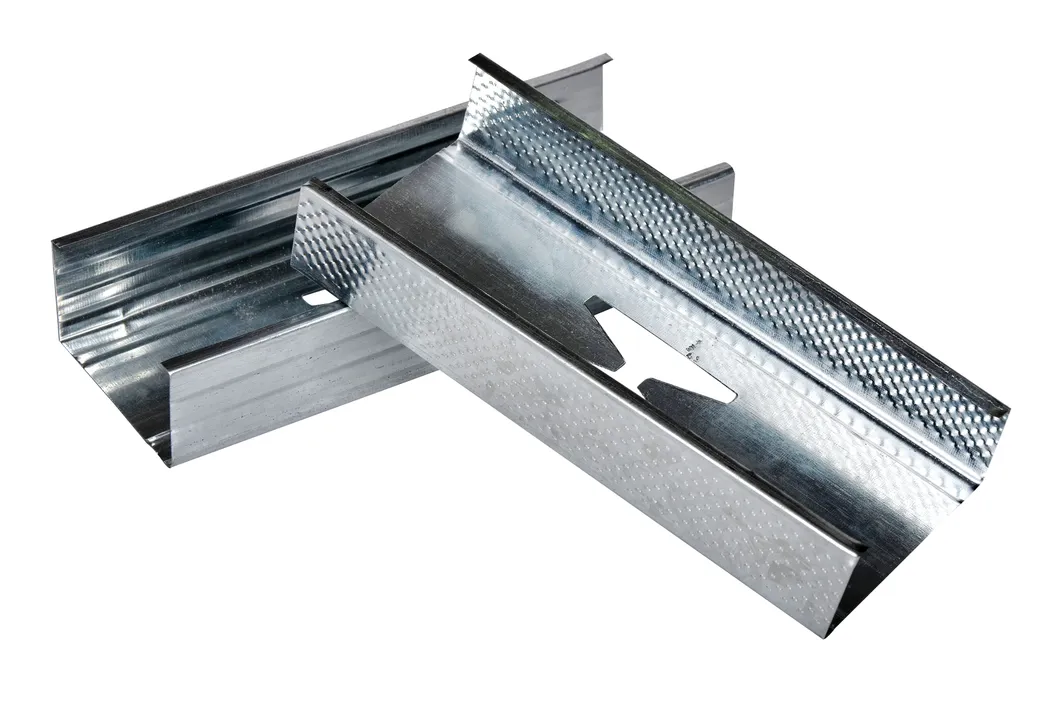

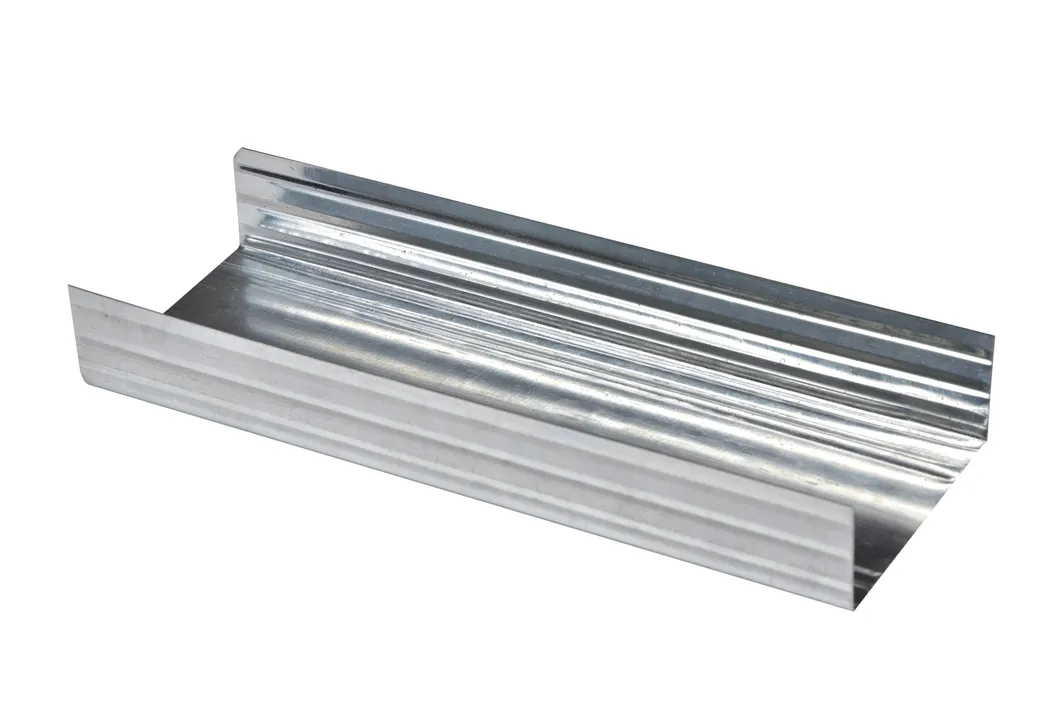

Main Channel: 38*11mm / 50*15mm / 60*27mm
CD & UD SYSTEM: C&D 60*27, 27*28mm
Frequently Asked Questions
What materials are used for these ceiling profiles?
The profiles are made from high-quality Galvanized Steel, ensuring durability and anti-corrosion properties.
Can the product sizes be customized?
Yes, we can produce all sizes including specific widths, heights, and thicknesses according to our clients' specific requirements.
What are the primary applications for this steel keel system?
It is ideal for dry wall partitions and suspended ceiling systems in terminal buildings, hotels, and office buildings.
Is this system fireproof and soundproof?
Absolutely. It offers excellent fire resistive ability and can be filled with acoustic insulation to enhance sound-proofing.
How does the installation process work?
The system is designed for fast and easy installation, allowing for better control over construction progress and easy dismantling if reconstruction is needed.
What is the standard length of the profiles?
The standard length for most tracks and studs is 3000mm, though custom lengths may be available.
