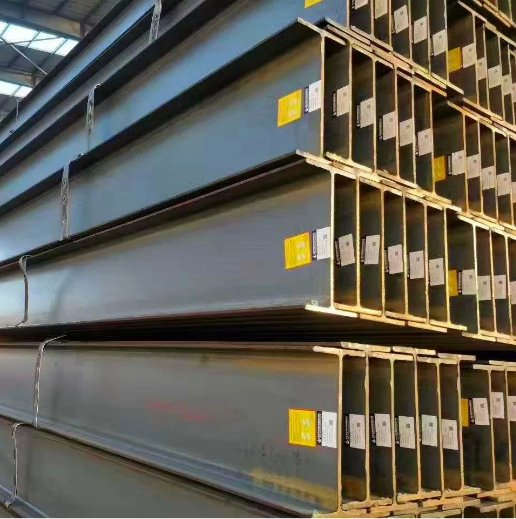

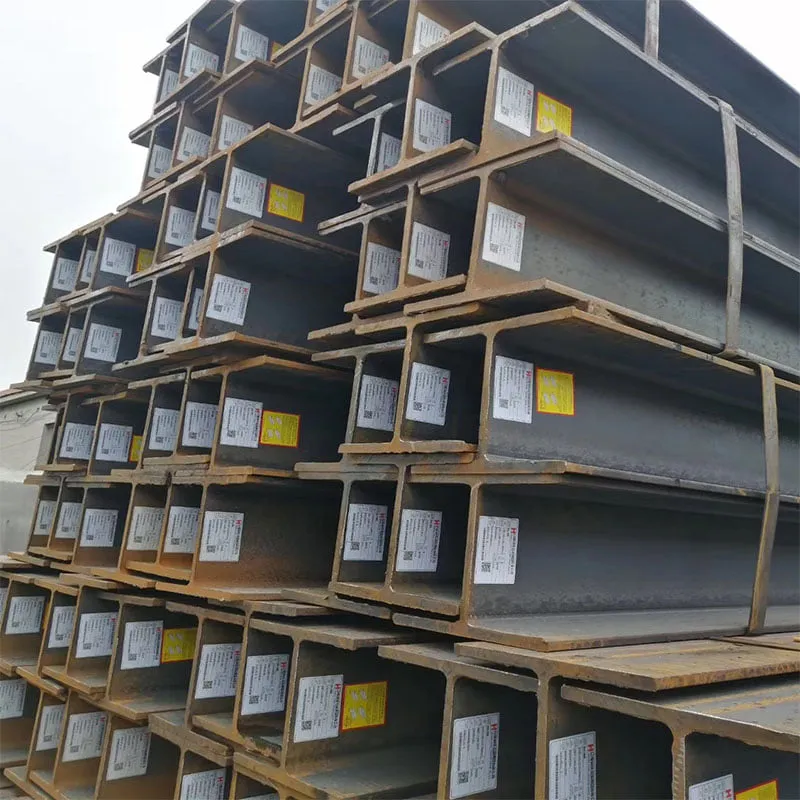

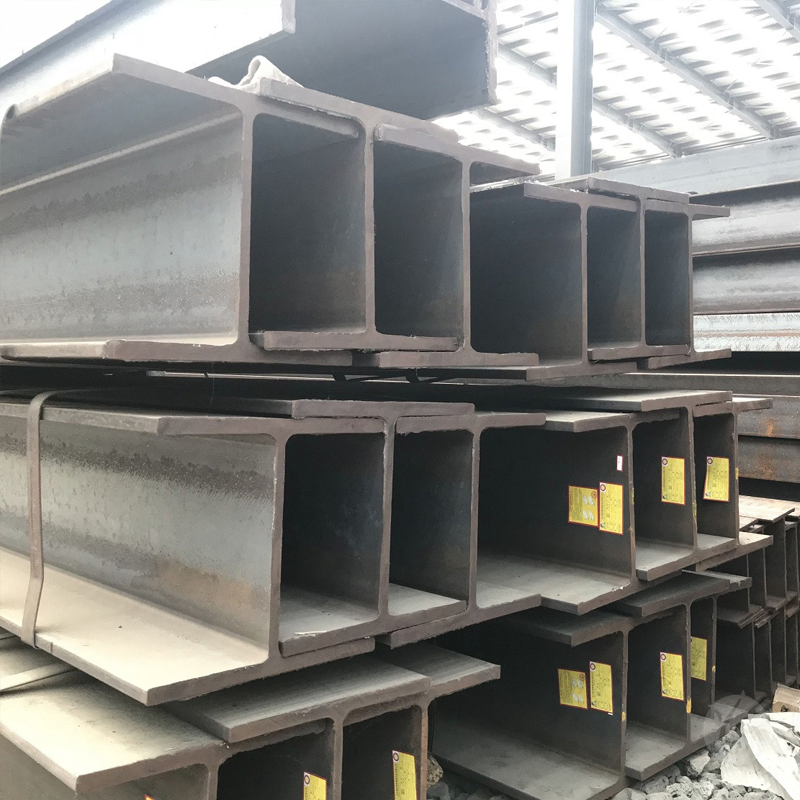

Our H-beams are high-quality structural carbon steel products designed for heavy-duty construction. Using advanced hot-rolled techniques, these beams offer superior strength and durability for diverse engineering projects.
| Property | Details |
|---|---|
| Product Name | Q345B Structural carbon Steel H Beams |
| Material | Q235~Q345 / SS440~SS540 / S235JR / JIS G3192 / ST52 |
| Height | 100-900mm |
| Width | 100-408mm |
| Thickness | t1: 6-21mm, t2: 8-35mm |
| Length | 6~12m |
| Technique | Hot rolled |
| Application | Steel structure/building material/construction/Bridges/vehicles/machinery |
Environmentally friendly and reduces nuisance dust during construction.
Saves working time: Easy to handle and deploy in any weather condition.
Versatile use in highways, bridges, tunnels, and petroleum industries.

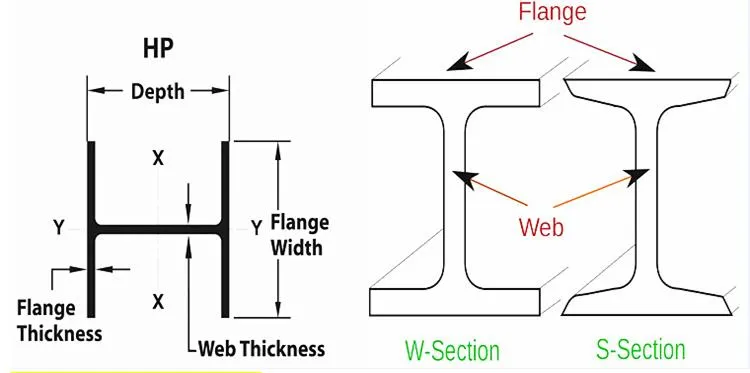

| Size (Height×Breadth) | Web thickness (mm) | Flange thickness (mm) | Weight (kg/m) |
|---|---|---|---|
| 100×100 | 6 | 8 | 16.9 |
| 150×150 | 7 | 10 | 31.1 |
| 200×200 | 8 | 12 | 49.9 |
| 300×300 | 10 | 15 | 93.0 |
| 400×400 | 13 | 21 | 171.7 |
| 200×100 | 5.5 | 8 | 20.9 |
| 500×200 | 10 | 16 | 88.1 |
| 900×300 | 16 | 28 | 240.1 |
