Oil Tempered Spring Steel Wire, Steel Wire, Stainless Steel Wire

1 / 5

Oil Tempered Spring Steel Wire, Steel Wire, Stainless Steel Wire

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Specification

Model NO.

1.0-15.0mm

Application

Construction Wire Mesh, Fence Mesh, Gabion Mesh, Barbecue Wire Mesh, Screw

Type

Steel Coil

Surface Treatment

Spheroidizing

Metal Wire Drawing

Cold Drawing

Status

In Hard State

Annealing

Spheroidizing Anneal

HS Code

72171000

Transport Package

Coil, Spool, Z2

Production Capacity

5,000 ton/Month

📦 Packaging & Delivery

Package Size

800.00cm * 800.00cm * 20.00cm

Package Gross Weight

200.000kg

Delivery Time

15-20 days

⚙️ Product Description

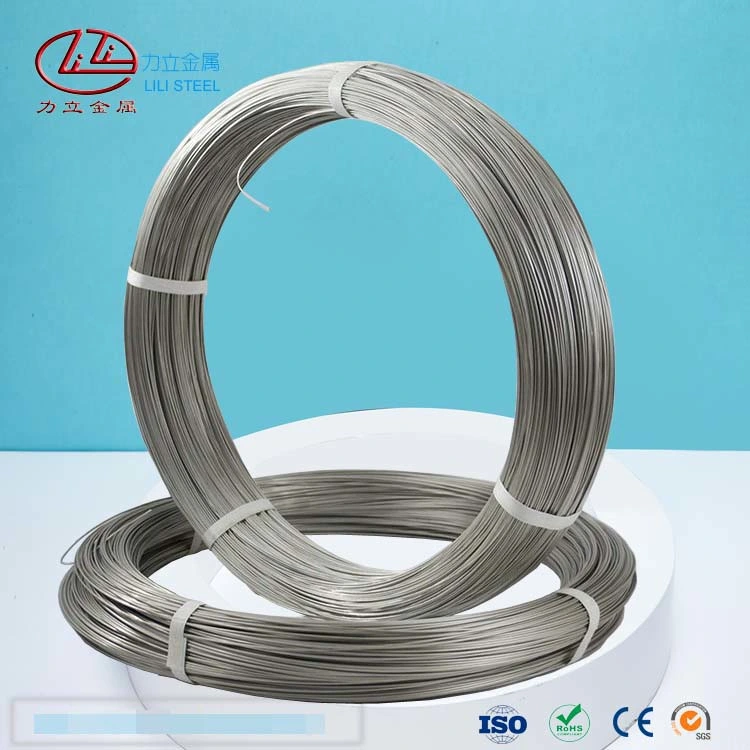

High-quality oil tempered spring steel wire is designed for high-performance applications. With a diameter range of 0.1mm to 12mm (up to 15mm available), our wire is suitable for various industrial needs. It is manufactured according to strict industry standards including DIN17223, EN10270-1, JIS G, and ASTM.

Key Features:

Available in a wide range of diameters (0.1mm to 15.0mm)
Manufactured under GB4357, DIN17223, JIS G 3521, and EN10270-1 standards
High tensile strength and excellent fatigue resistance
Perfect for springs, wire ropes, brushes, and specialized cables

Steel Grade	Carbon %	Silicon %	Manganese %	Phosphorus %	Sulphur %	Chromium %	Nickel %	Cuprum %
60#	0.60-0.61	0.18-0.22	0.52-0.59	0.012	0.007	0.06-0.07	0.05	0.18
65#	0.65	0.21	0.56	0.013	0.008	0.05	0.04	0.14
65Mn	0.60-0.70	0.10-0.25	0.70-1.00	0.030	0.030	0.20	0.20	0.25
70#	0.69-0.71	0.19-0.21	0.53-0.58	0.010-0.012	0.003-0.006	0.01-0.05	0.02-0.04	0.04
72A 72B	0.72	0.19	0.71	0.013	0.006	0.02	0.02	0.03
80#	0.80-0.81	0.22-0.24	0.59-0.76	0.008	0.004	0.04	-	-
82A 82B	0.82	0.24-0.25	0.76-0.77	0.011-0.014	0.004-0.007	0.17-0.17	-	-
