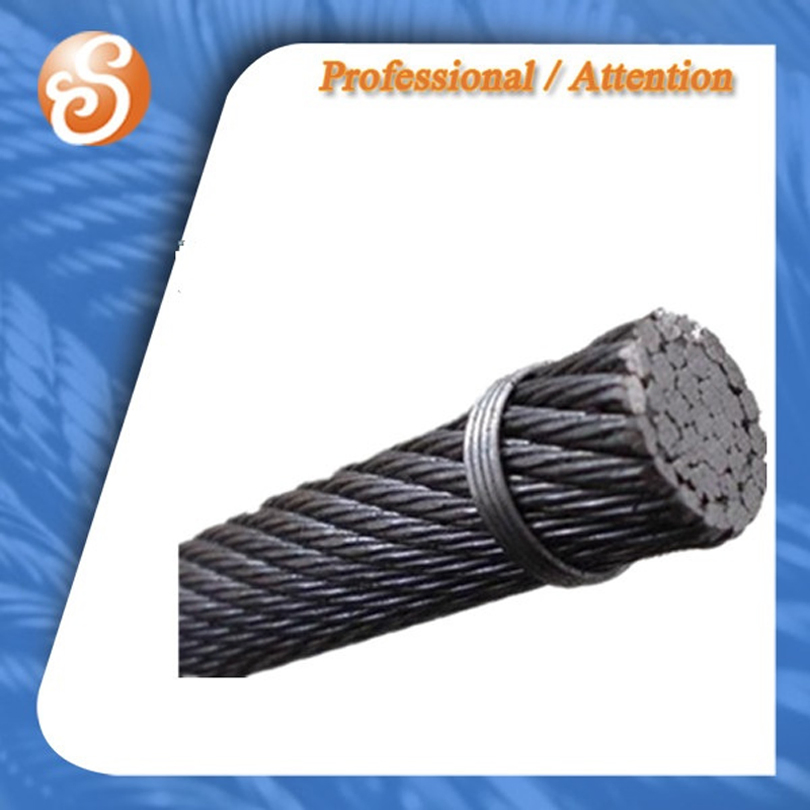

| Product Name | 316 / 316L Stainless steel wire rope |

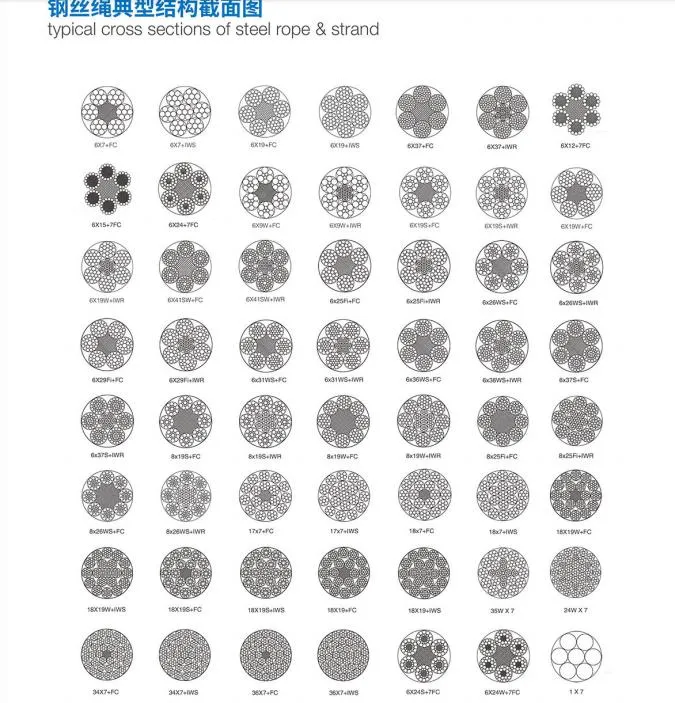

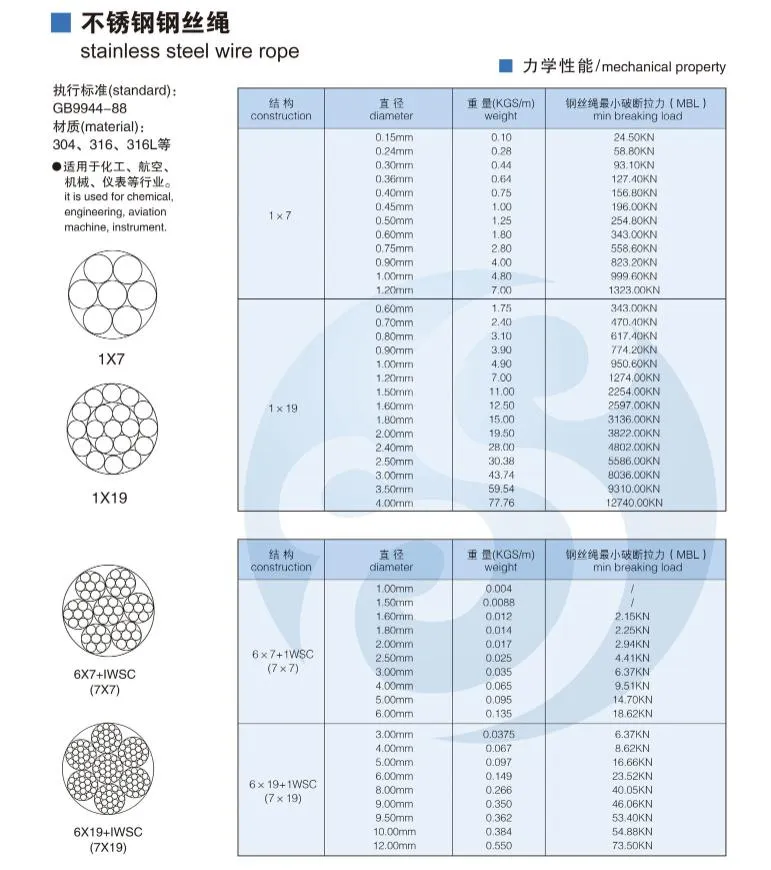

| Construction | 1*7, 7*7, 1*19, 7*19, 7*37, 1*37, 1*3, 6*19+FC, etc. |
| Diameter | 0.6mm-38mm |
| Surface | Highly polished |
| Standard | DIN, ISO, ASTM, BS, JIS, GB, etc. |
| Lay | R.H.R.L / R.H.L.L / L.H.R.L / L.H.L.L |
| Material | AISI 316 / 316L |
| Core | FC or IWRC |
| Nominal T/S | 1570N/mm2, 1770N/mm2 |
| Lubrication | All Dry |

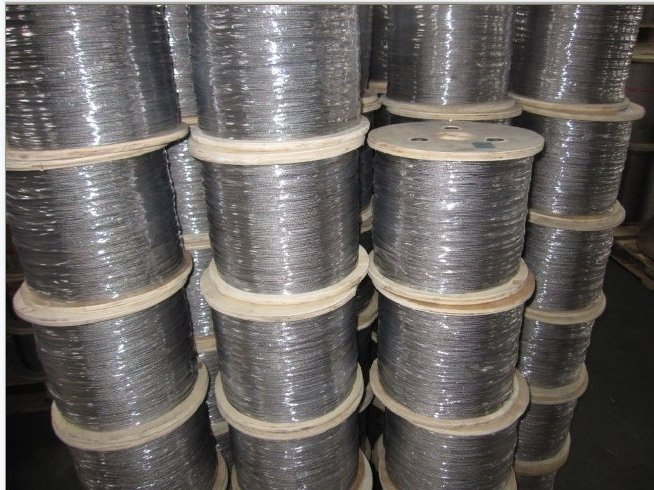

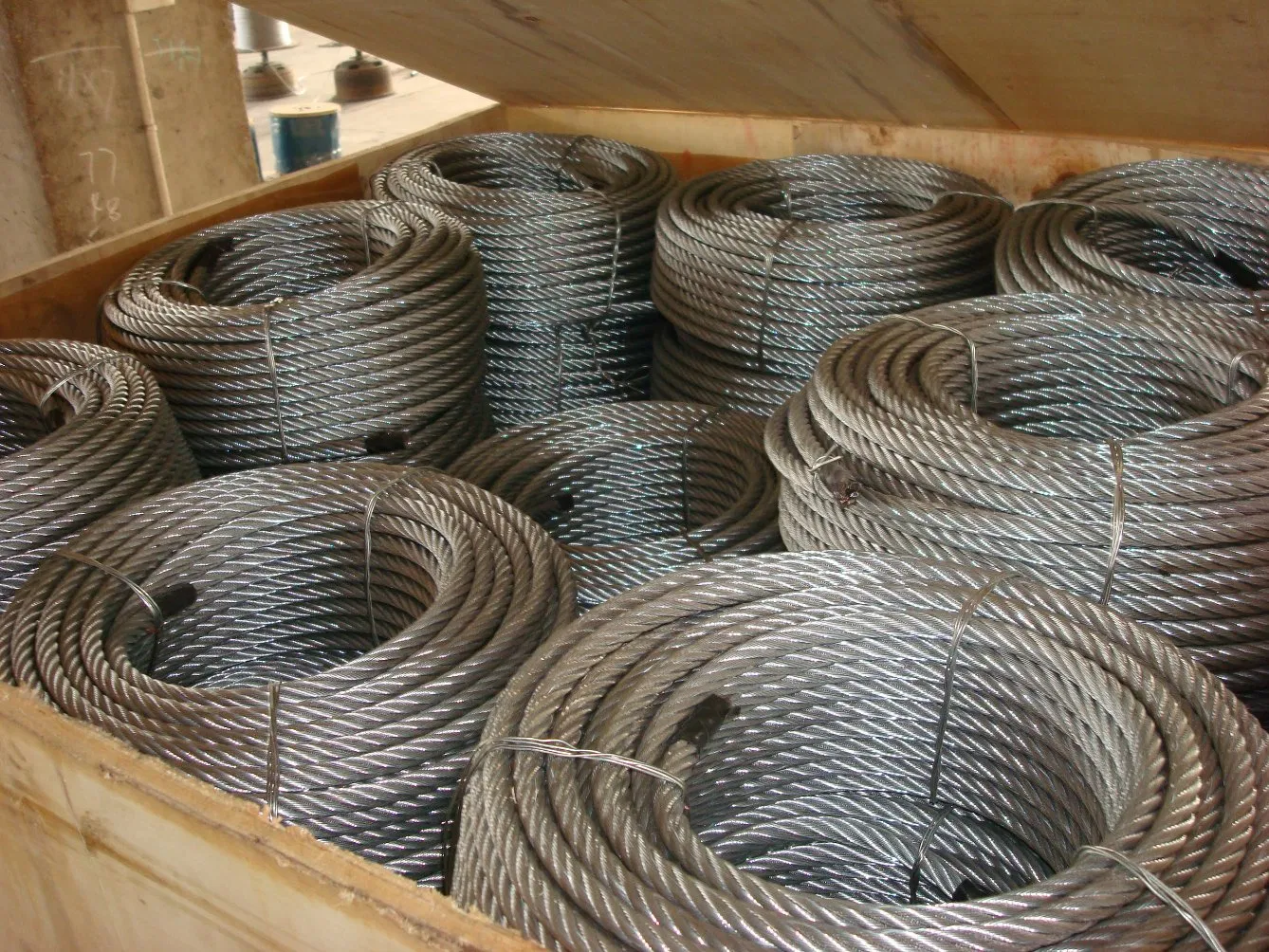

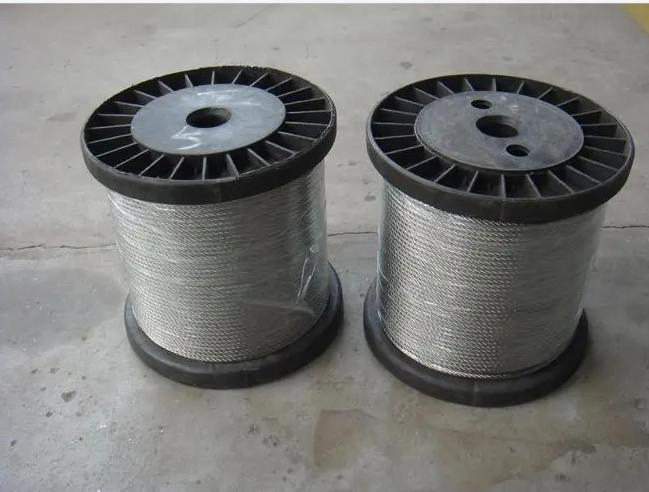

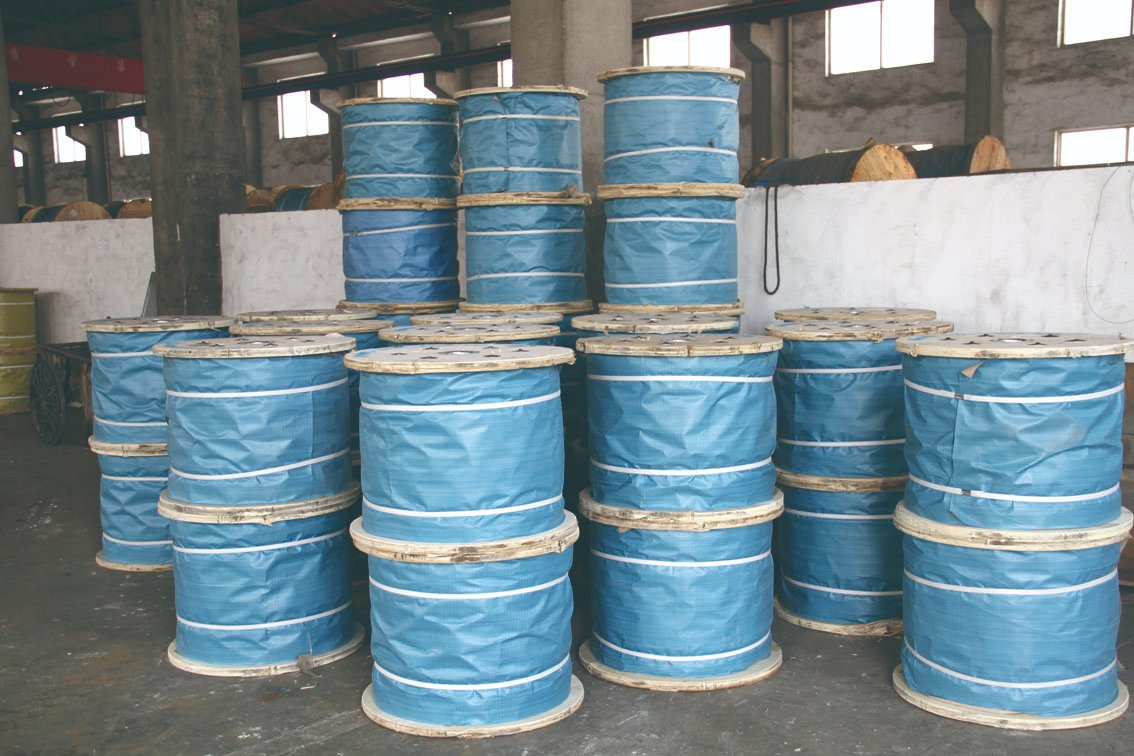

| Packing | Plywood reels / Solid wooden reels / Plastic reels / Soft coils |
We supply various structures of stainless wire rope, but the most popular constructions are 1*19, 7*7, and 7*19. The more wires per strand, the more flexible the wire will be.

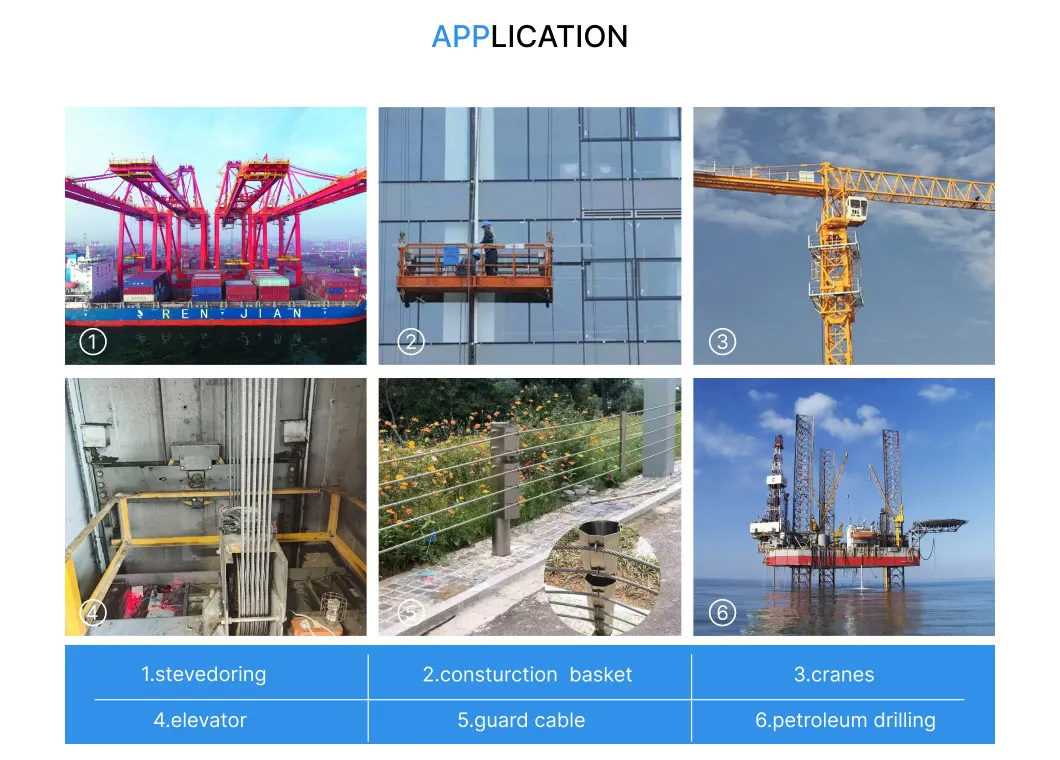

1*19 Strand: This is our most rigid and a very popular stainless steel construction. Its lack of flexibility means it has an excellent breaking load and low stretch characteristics. Combined with its aesthetic appeal, it is a favorite for marine, structural, architectural, decorative, and balustrade applications.
7*7 Wire Rope: More flexible than 1*19 but more rigid than 7*19. It is often used where 1*19 lacks enough flexibility for an application or where 7*19's breaking load is too low.
