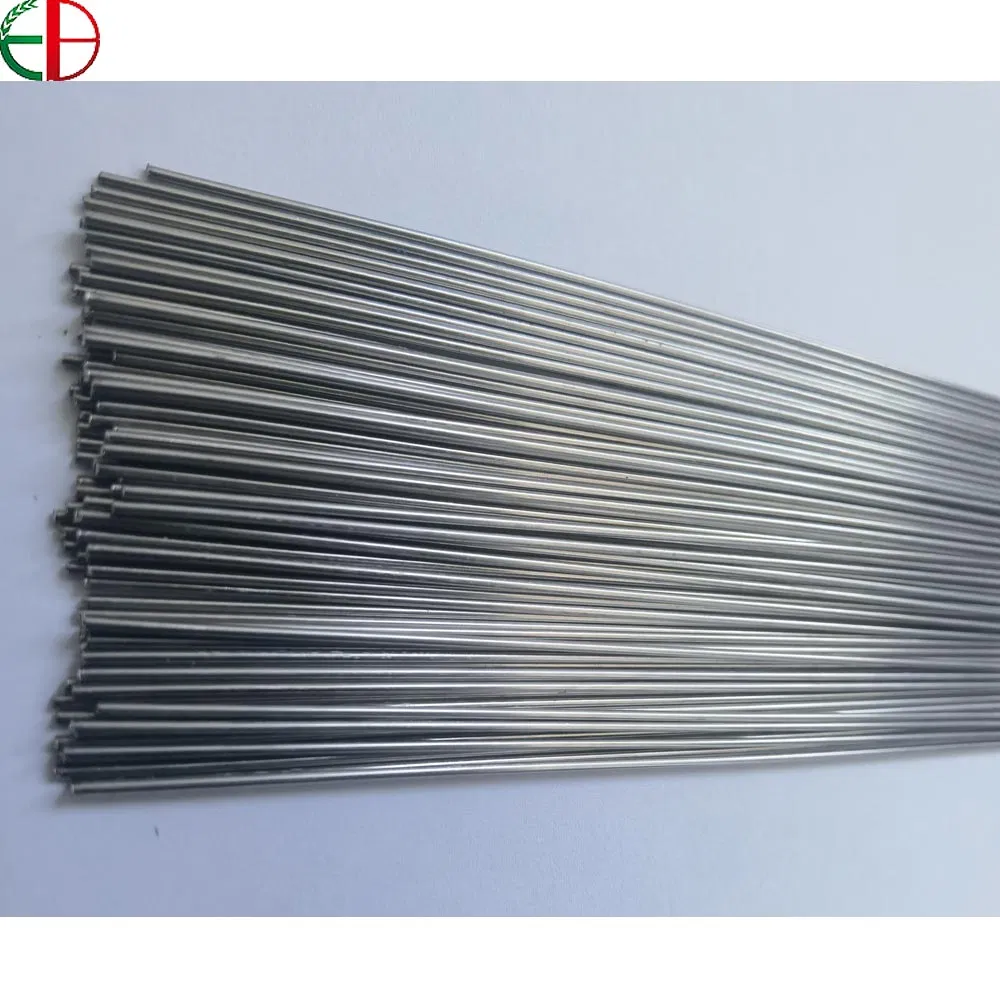

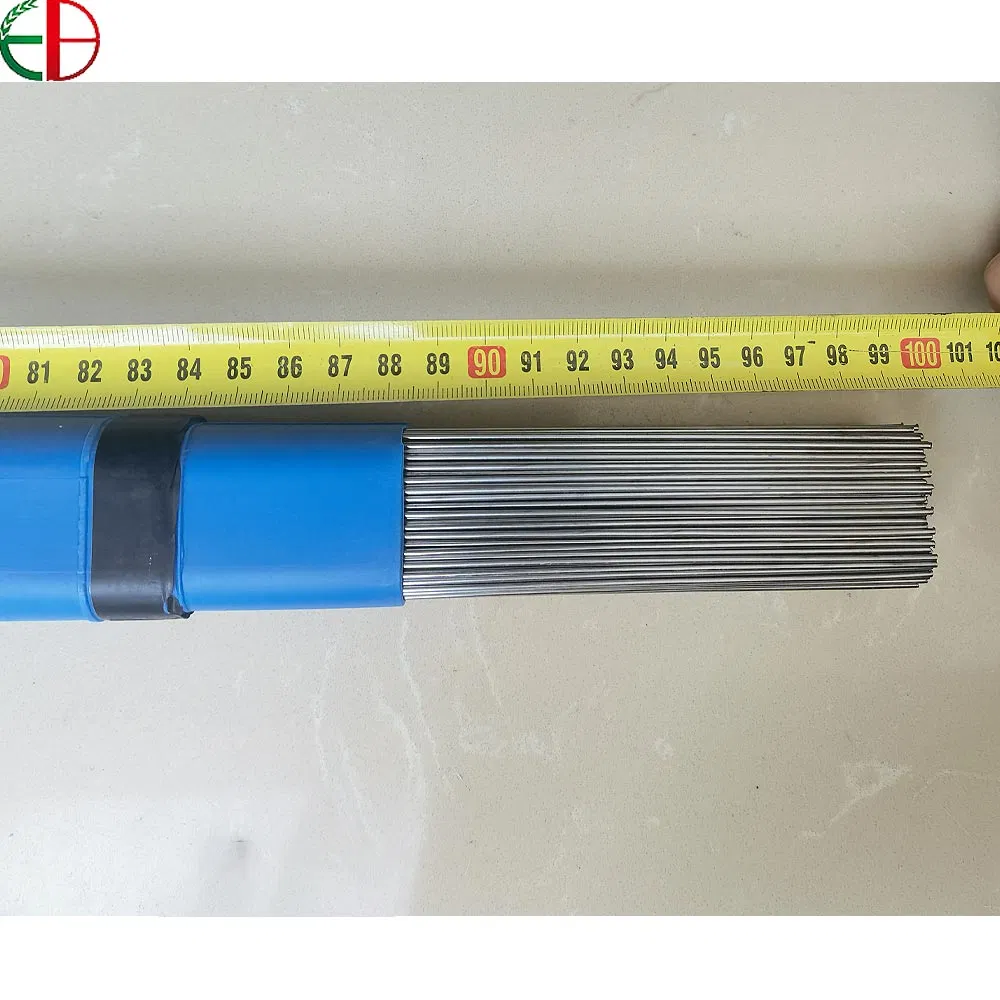

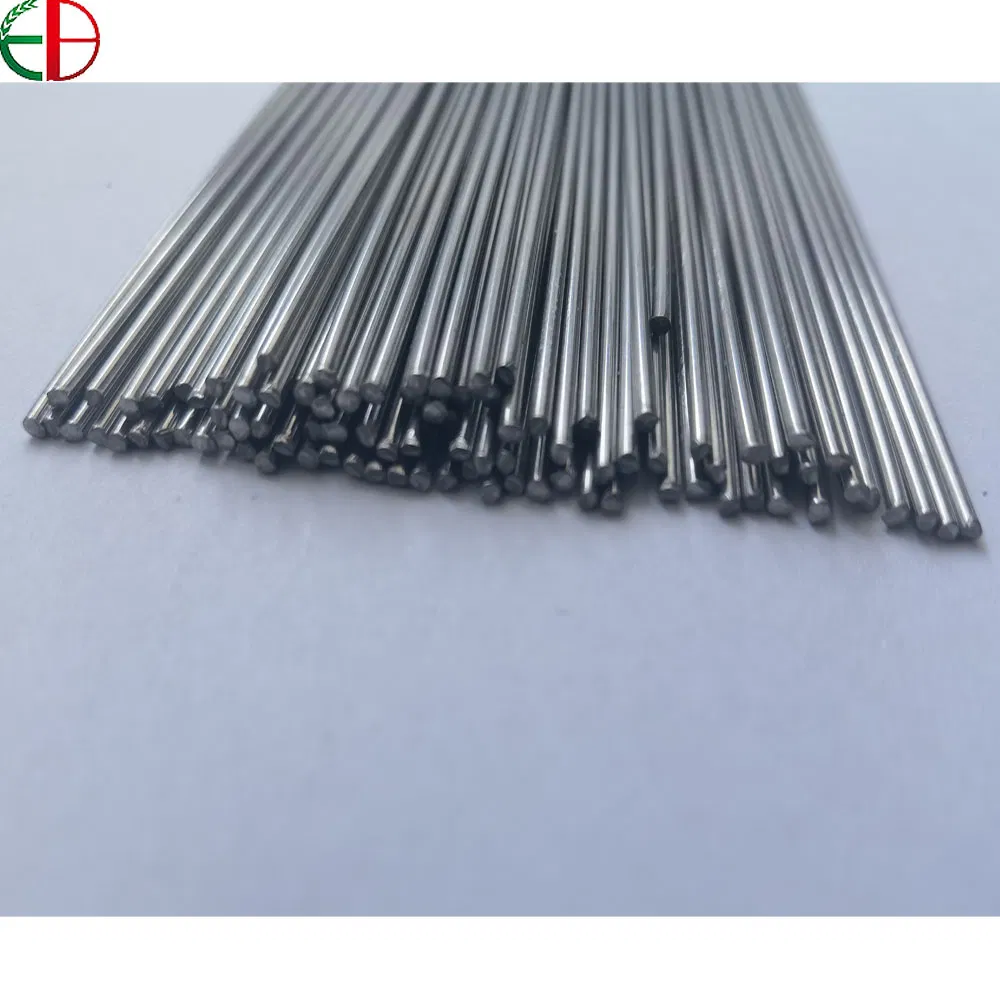

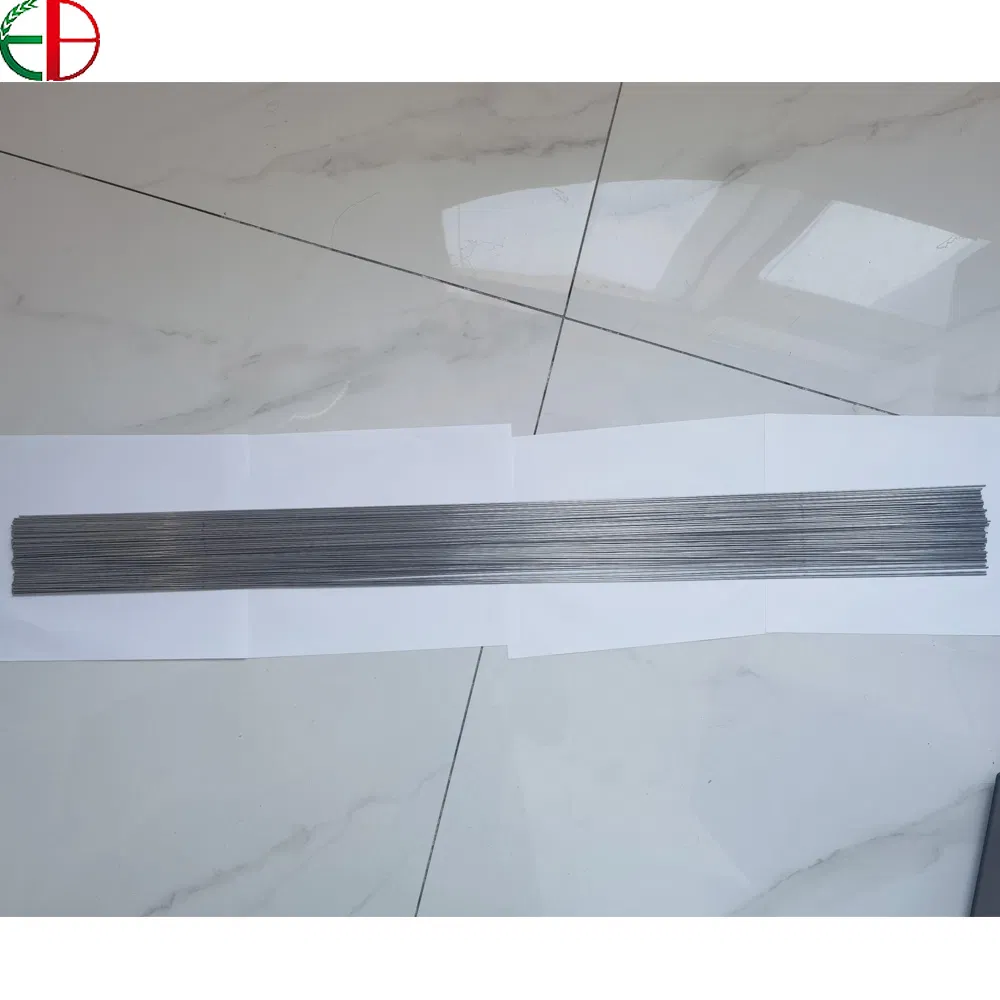

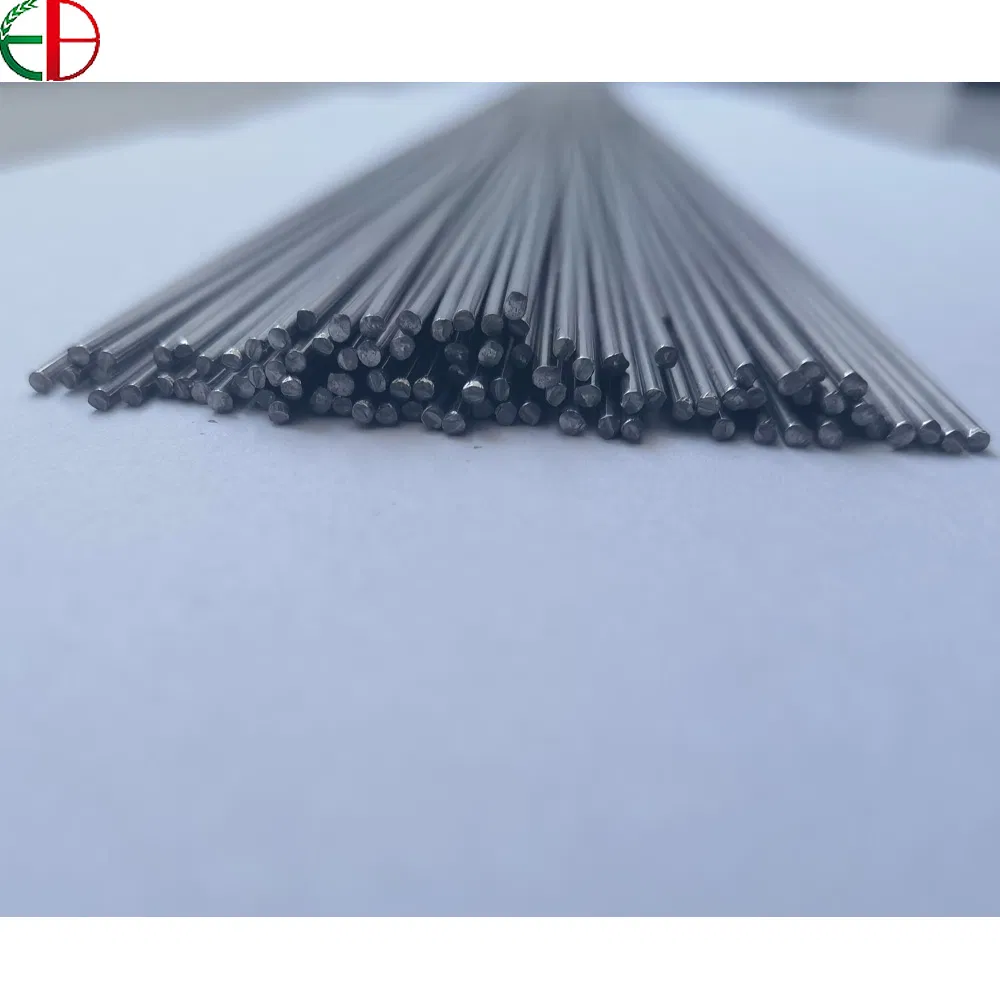

ER316: TIG welding wire for stainless steel. The weld metal is austenitic structure containing 19%Cr-12%Ni-2%Mo, which is excellent in corrosion resistance, heat resistance, and crack resistance. Mo provides superior corrosion resistance against acetic acid, sulfurous acid, and chloride ion pitting.
ER316L: TIG welding wire for ultra-low carbon stainless steel. Primarily used for welding urea and synthetic fiber equipment. Suitable for high-chromium steel and dissimilar steel without post-weld heat treatment.
| Item | C | Si | Mn | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| Standard | ≤0.030 | 0.30-0.65 | 1.00-2.50 | ≤0.030 | ≤0.030 | 18.00-20.00 | 11.00-14.00 | 2.00-3.00 |
| Test Result | 0.022 | 0.42 | 1.89 | 0.009 | 0.007 | 19.12 | 12.62 | 2.62 |
