| Material | SUS304 / 316 / 316L Stainless Steel |
| Hole Shape | Square |

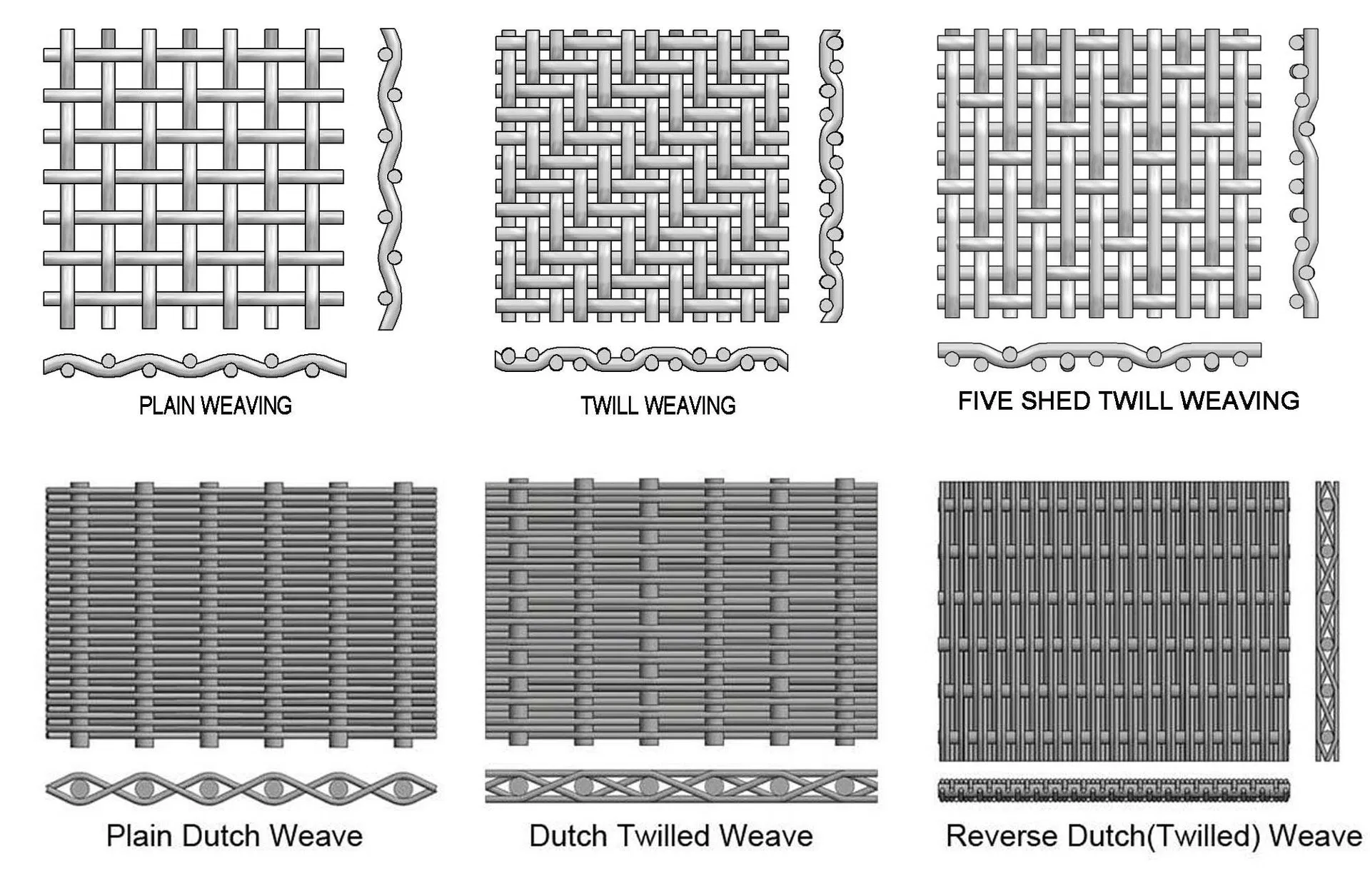

| Weave Technique | Plain Weave / Twill / Dutch |
| Wire Diameter | 0.016mm - 5mm |

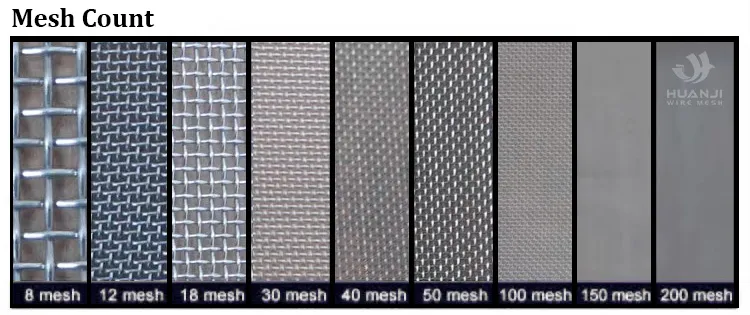

| Mesh Size | 1-3500 mesh |
| Temperature Resistance | Up to 800°C (1472°F) |
| Features | Acid, Alkali, Corrosion-Resistant |
| Certification | ISO9001, RoHS, ASTM E2016 |
| Width | 1m, 1.2m, 1.5m, 2.0m, 2.5m (Customizable) |

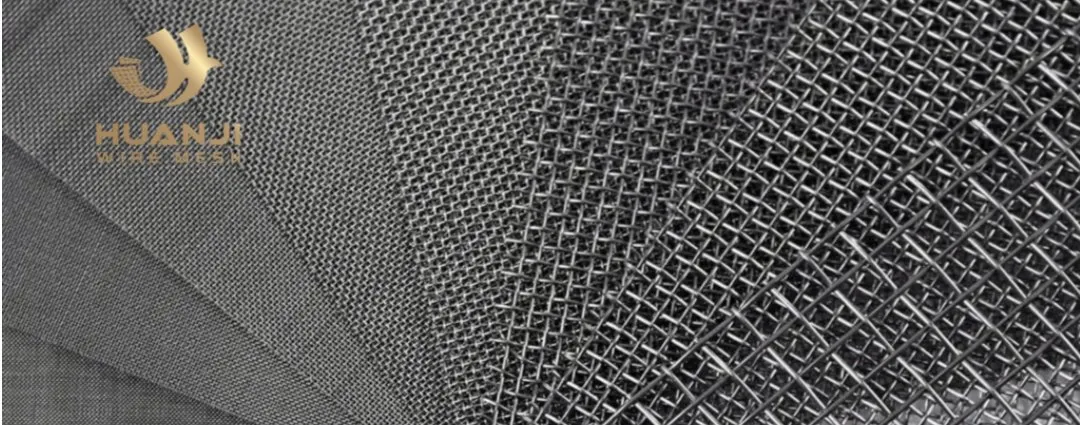

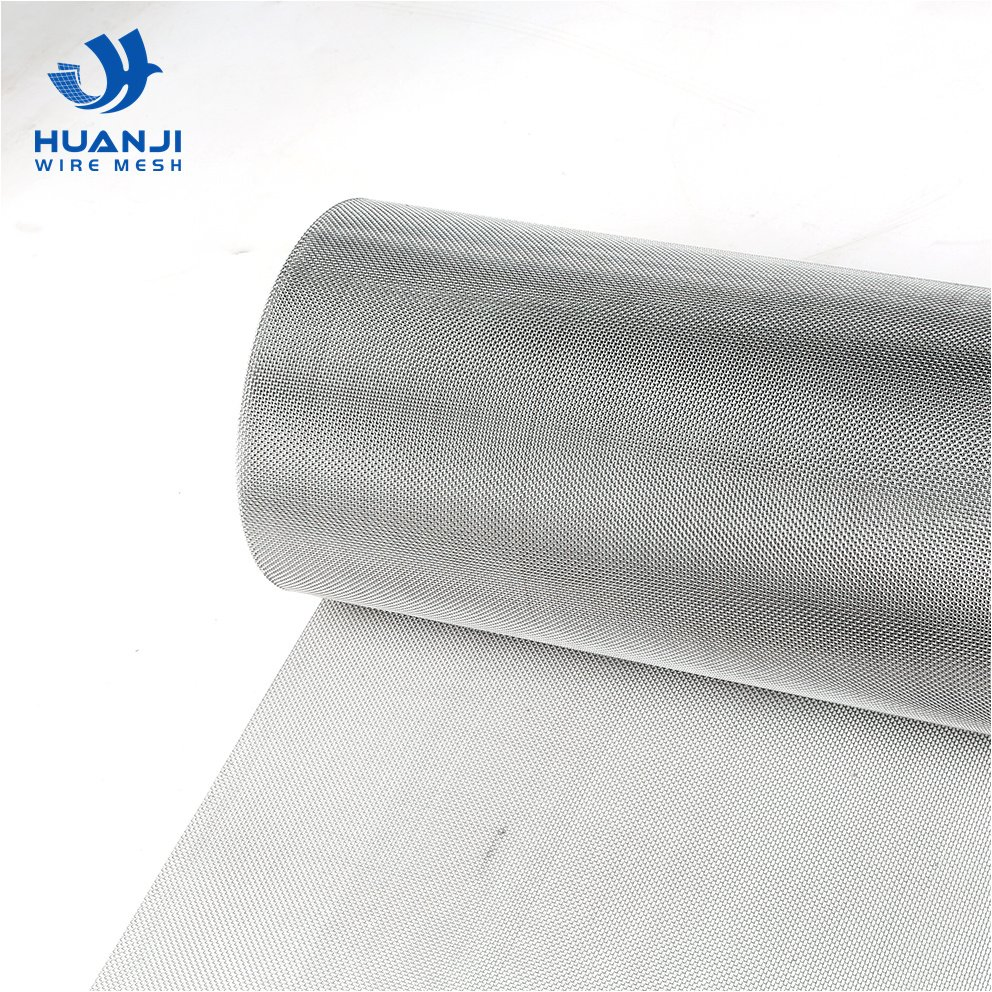

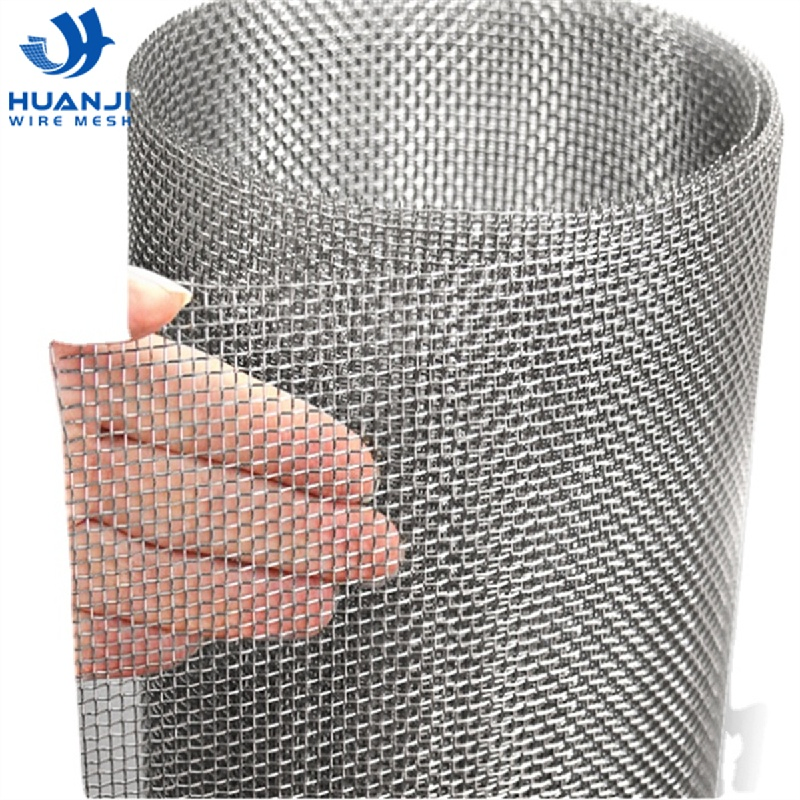

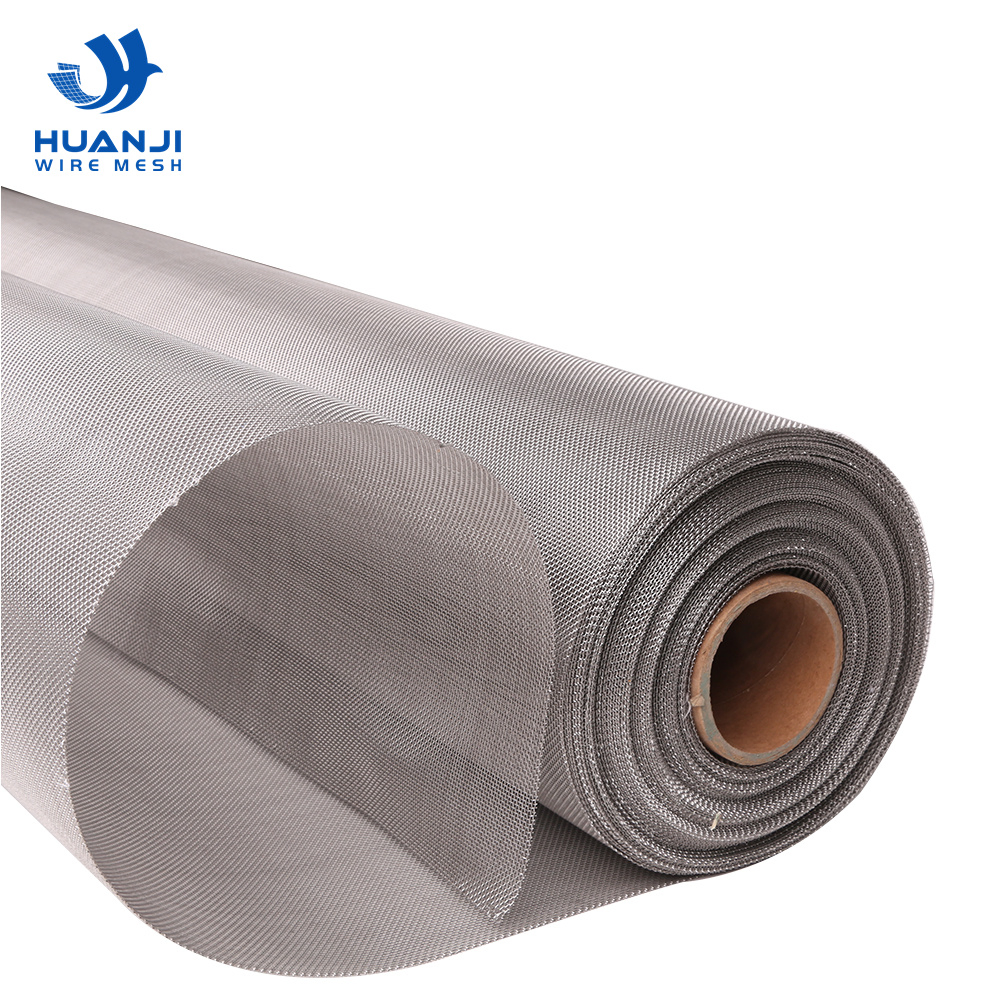

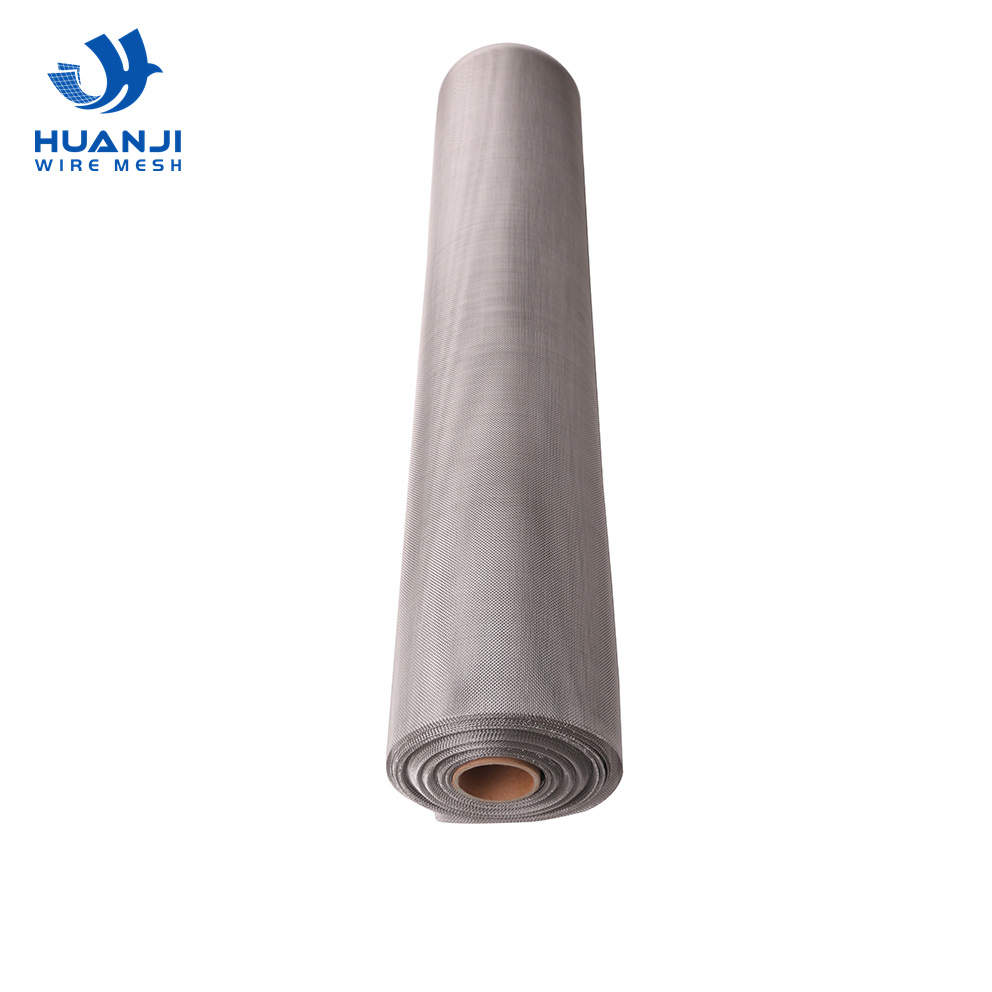

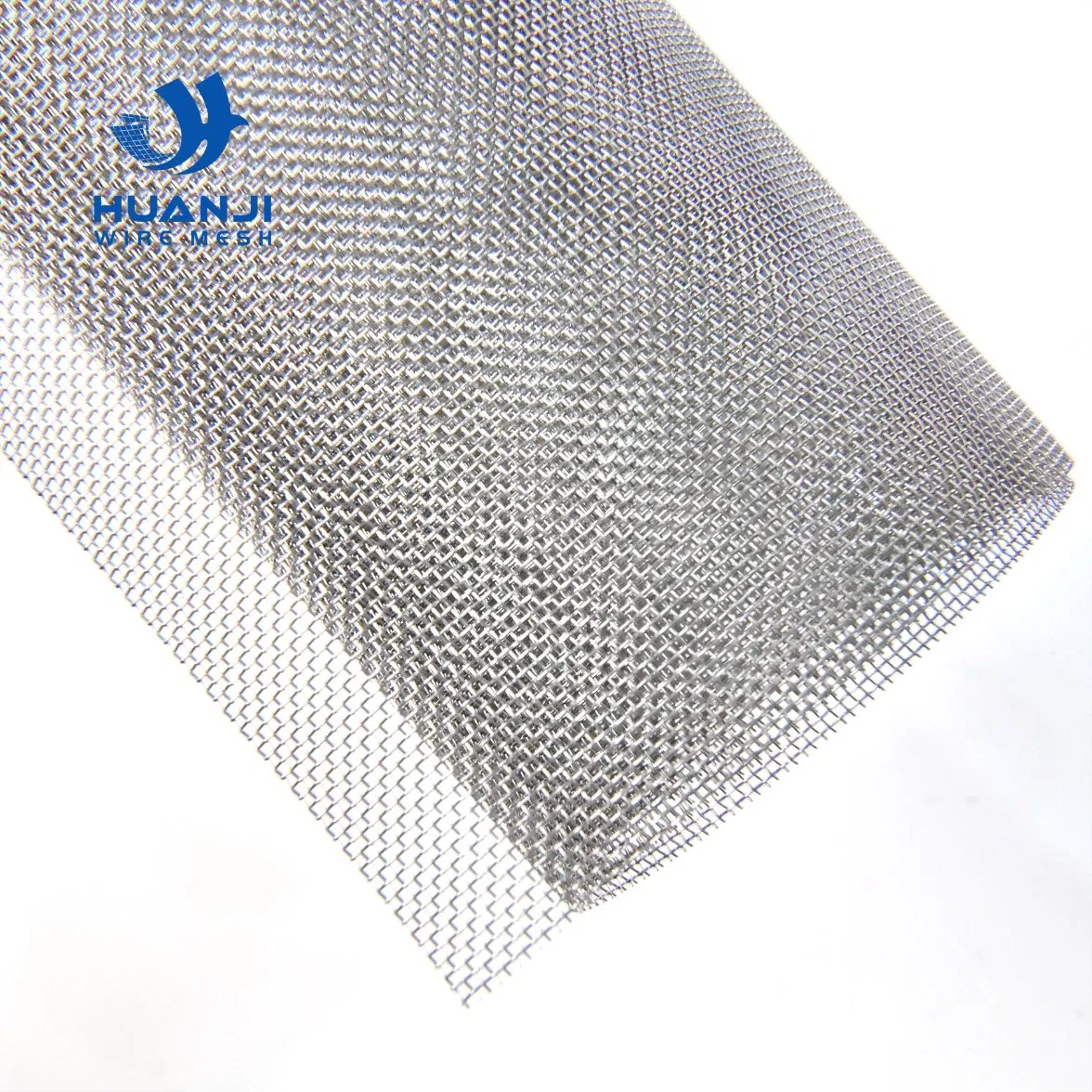

Our woven mesh utilizes metallic wires with superior corrosion and wear resistance to extend service life and enhance performance across industrial applications. It is widely used for manufacturing screens, filter elements, and filter discs.
| Model | Mesh Count | Wire Dia (mm) | Mesh Opening (mm) | Open Area % |
|---|---|---|---|---|
| HJ-0185 | 1x1 | 2.030 | 23.37 | 85% |
| HJ-0276 | 2x2 | 1.600 | 11.1 | 76% |
| HJ-0456 | 4x4 | 1.600 | 4.75 | 56% |
| HJ-1056 | 10x10 | 0.640 | 1.91 | 56% |
| HJ-2046 | 20x20 | 0.406 | 0.86 | 46% |
| HJ-10037 | 100x100 | 0.100 | 0.154 | 37% |
| HJ-40028 | 400x400 | 0.030 | 0.0335 | 28% |
| HJ-63525 | 635x635 | 0.020 | 0.0200 | 25% |
*Custom sizes and opening specifications are available upon request.
Our stainless steel wire mesh is essential for various industries including: Filter, Printing, Sugar production, Sieving, Oil refining, Construction, Decorative Mesh, and Protective Screening.

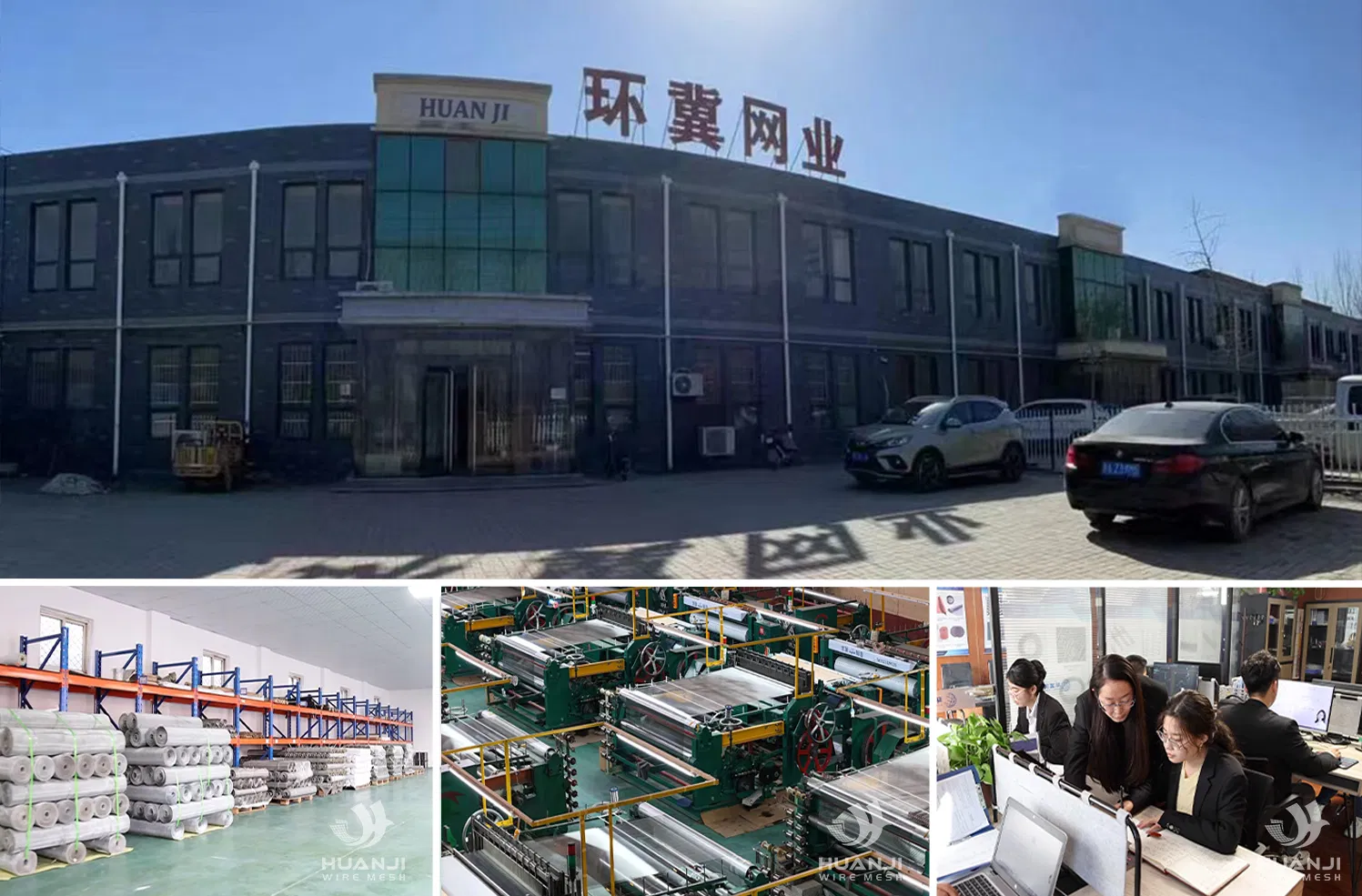

Established in 1999, we focus on the production, development, and sales of stainless steel wire mesh. With 6 mature production lines and a dedicated R&D team, we ensure high-quality raw materials and strict quality control for every roll of mesh.
