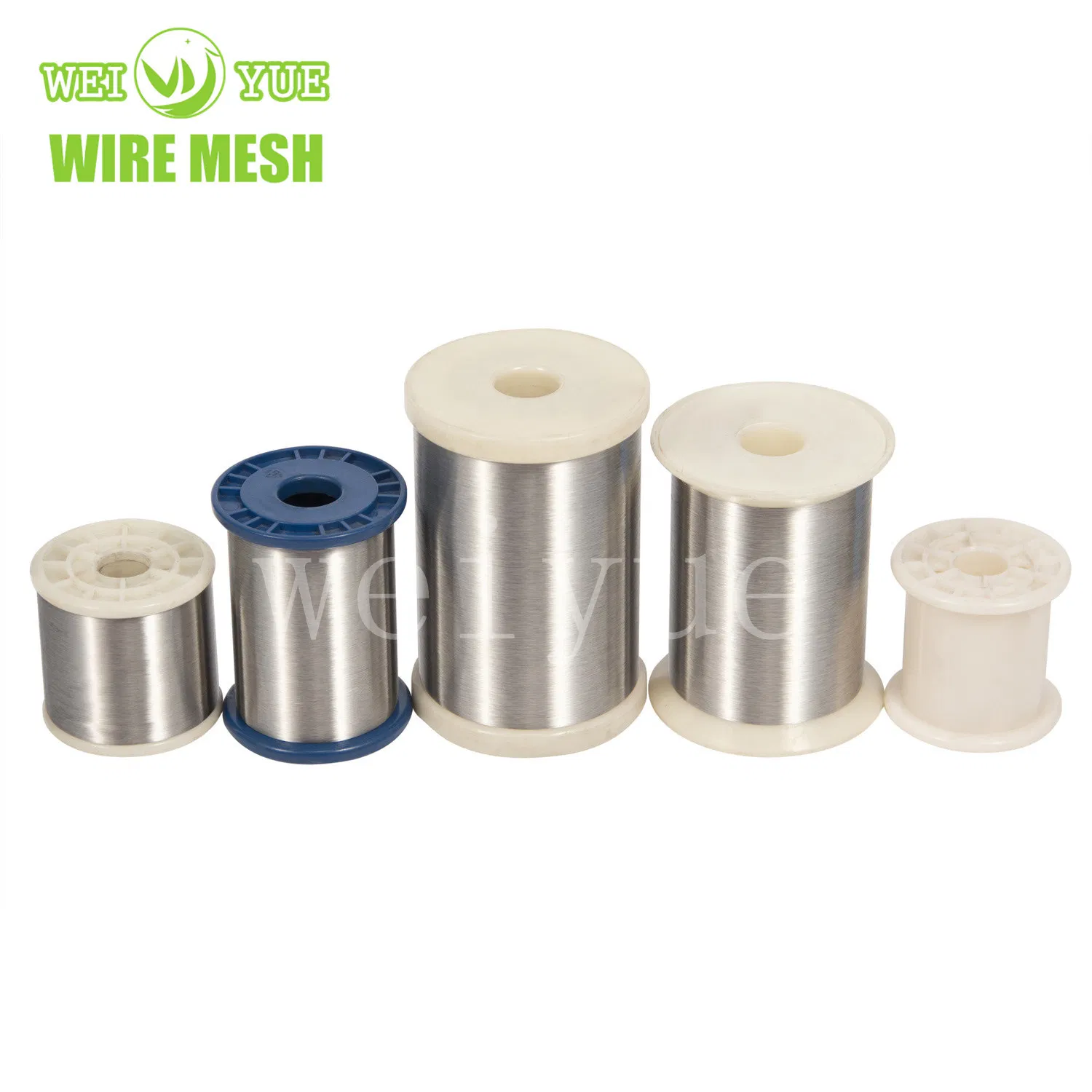

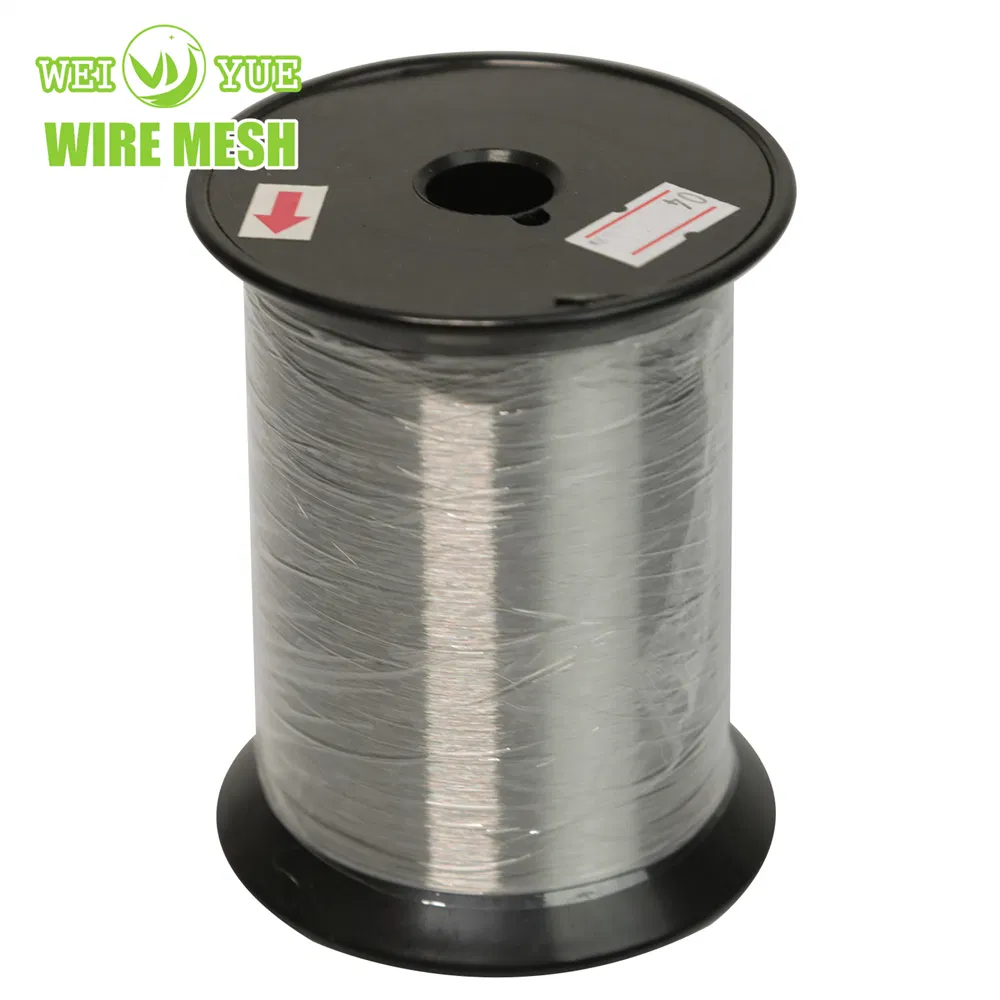

Supply Pakistan 0.035mm Spun Yarn 304/316/316L Stainless Steel Wire Textile Mills Safety Protection Stainless Steel Wire

Customization:	Available
Material:	Stainless Steel Wire
Cross Sectional Shape:	Round

Send Inquiry

Product Description

Basic Specifications

Model NO.WY-Stainless Steel Wire

ApplicationConstruction Wire Mesh, Protecting Mesh, Filter

TypeHigh Roundness

Wire MaterialSS304, 316, 304L, 316L

Wire Diameter0.016-0.08mm

SurfaceBright, Electrolysis, Matt

StatusSoft / Semi-soft / Hard State

ThicknessMetal Microfilament

Production Cap.1000 Metric Ton /Month

HS Code7229901000

Package Size30.0cm * 20.0cm * 20.0cm

Gross Weight1.000kg

Product Description

Product name	Grade	Diameter	Condition	Surface
Stainless steel wire	304, 304L, 316, 316L, etc	0.018mm-0.05mm	soft, semi-soft, hard wire	electrolysis bright, bright, matt

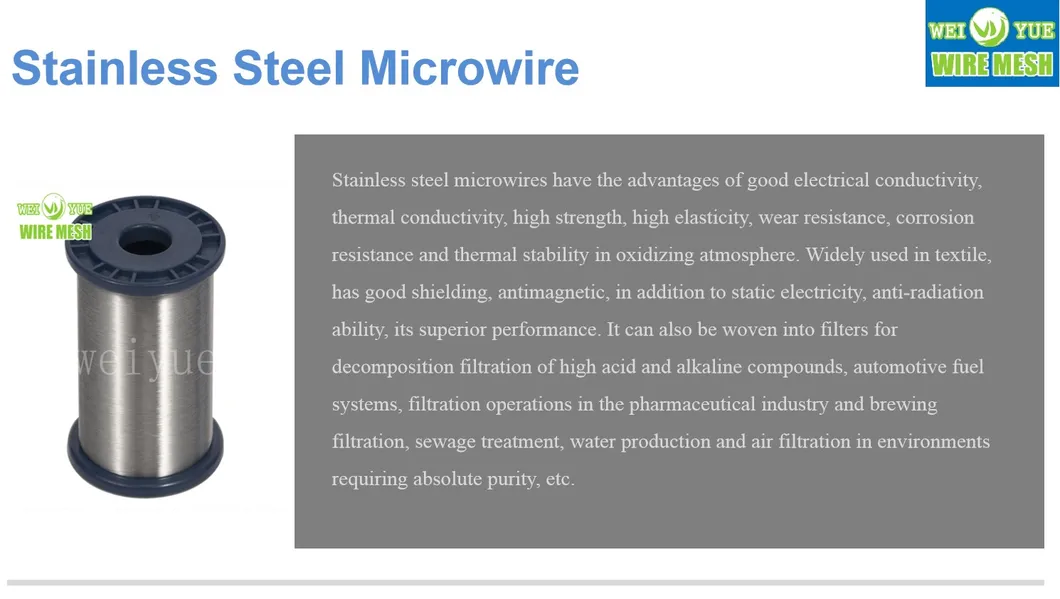

Main Features & Strengths

Good electric and thermal conduction.
Anti-static and radiation protection with a long service life.
Excellent heat resistance and ease of fabrication.
High acid, alkali, and corrosion resistance.
Strong oxidation resistance and high tensile strength.
Bright surface finish with no special surface treatment required.

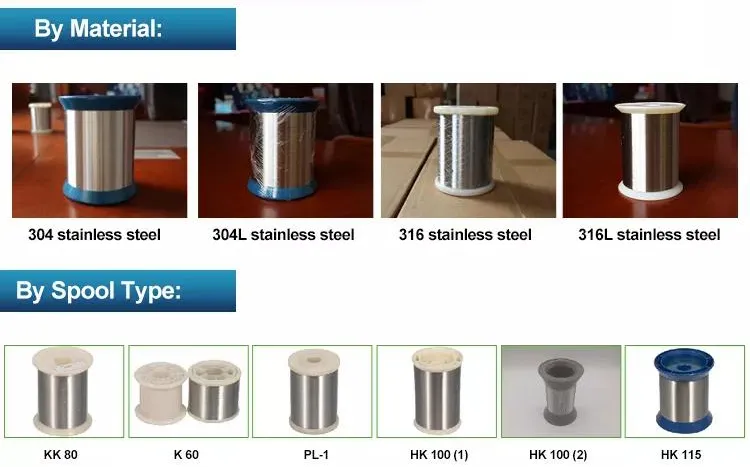

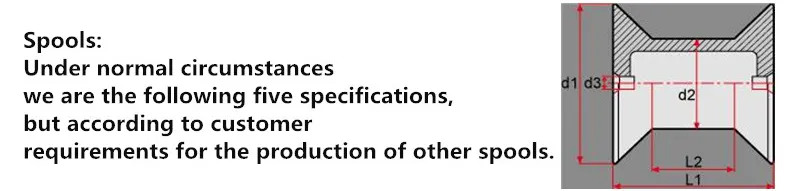

Shaft Body Size & Weight Specifications

Model	HK100	HK115	K90*100	PL-1	KK80
D1	100	115	90	80	80
D2	74	88	60	60	53
Weight(g)	274	280	100	76	82

Material Strength and Elongation

Material	Dia.(mm)	Strength(mpa)	EL(%)	AWG	Inch
316L	0.035	570-800	≥22	AWG 47	0.00138
316L	0.04	550-800	≥23	AWG 46	0.00158
316L	0.05	680-850	≥24	AWG 44	0.00197

Applications

1. Textile Industry: Used in anti-static, conductive, and electromagnetic shielding fabrics. Suitable for blended yarns (20-25% metal fiber) to create protective workwear with excellent air permeability and wash resistance.

2. Filtration: Ideal for highly acidic or alkaline chemical filtration, automotive fuel systems, pharmaceutical filtration, and air purification in cleanroom environments.

3. Rubber Reinforcement: High strength and elasticity make it perfect for tire cords and non-stretching toothed belts in the rubber industry.

4. Aerospace & High Pressure: Widely used in aerospace oil filtration, cable shielding, and high-pressure oil pipe reinforcement due to its durability and shielding properties.

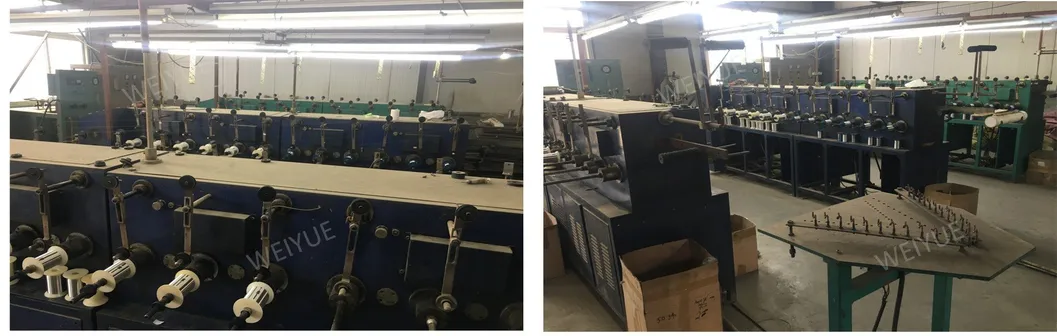

Gallery & Workshop

Frequently Asked Questions

Q1: What are the main grades available for this stainless steel wire? A: We primarily offer SS304, 304L, 316, and 316L grades to meet various corrosion resistance and strength requirements.

Q2: Can this microfilament be used in electronic textile applications? A: Yes, it is specifically designed for textile use (50D-100D), ideal for antistatic and conductive fabrics.

Q3: What is the diameter range for the stainless steel microwire? A: The wire diameter ranges from 0.016mm to 0.08mm, covering ultra-fine microfilament specifications.

Q4: Does the wire offer protection against electromagnetic radiation? A: Yes, when blended into shielding fabrics (20-25% metal fiber), it effectively shields against wide-frequency electromagnetic waves.

Q5: Is the surface treatment durable for industrial use? A: Absolutely. The wire features strong oxidation resistance and high durability, with bright or matt finishes that are easy to maintain.

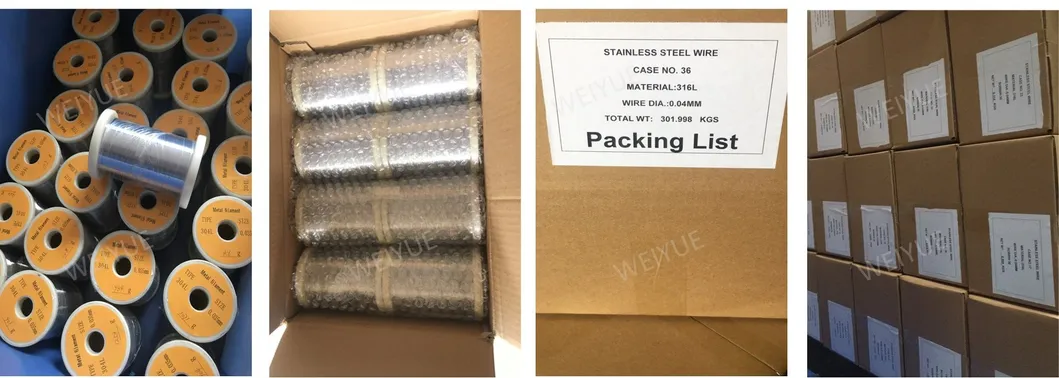

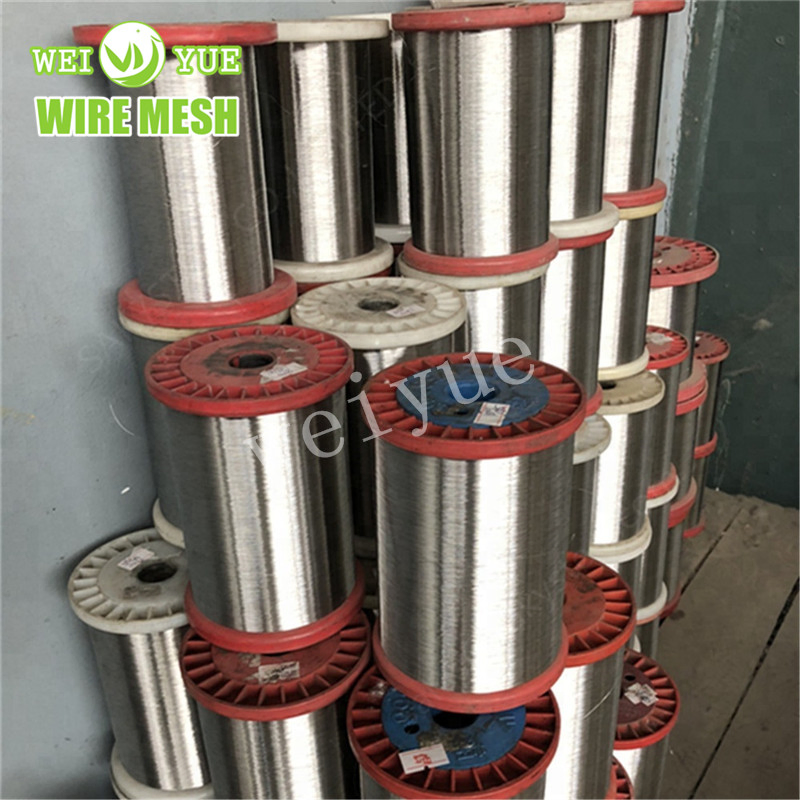

Q6: What type of packaging is used for shipping? A: The products are typically packed in wooden boxes using standard bobbins like PL-1 or KK80 to ensure safe transport.
