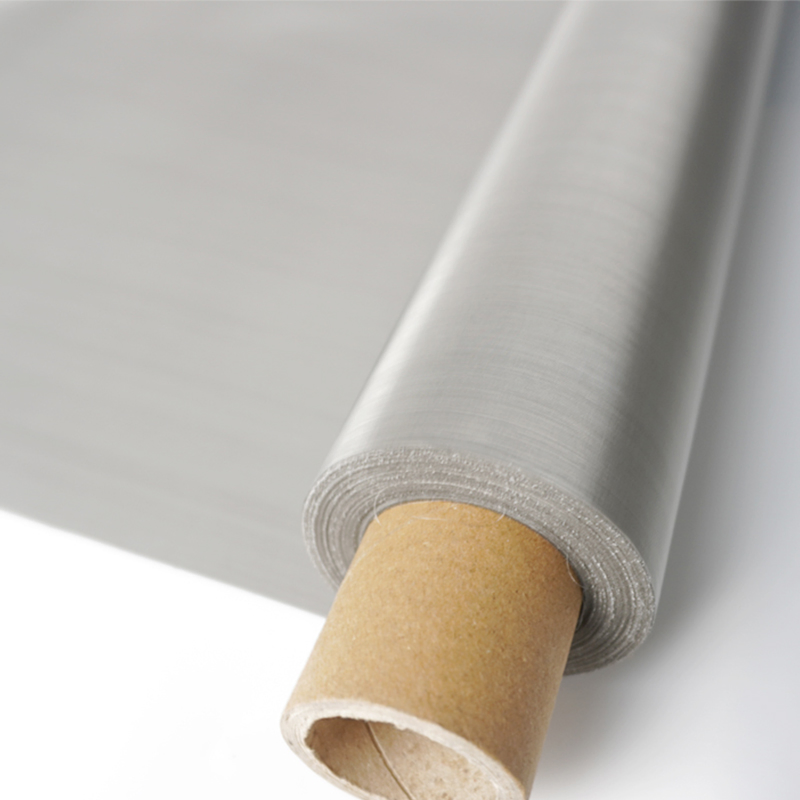

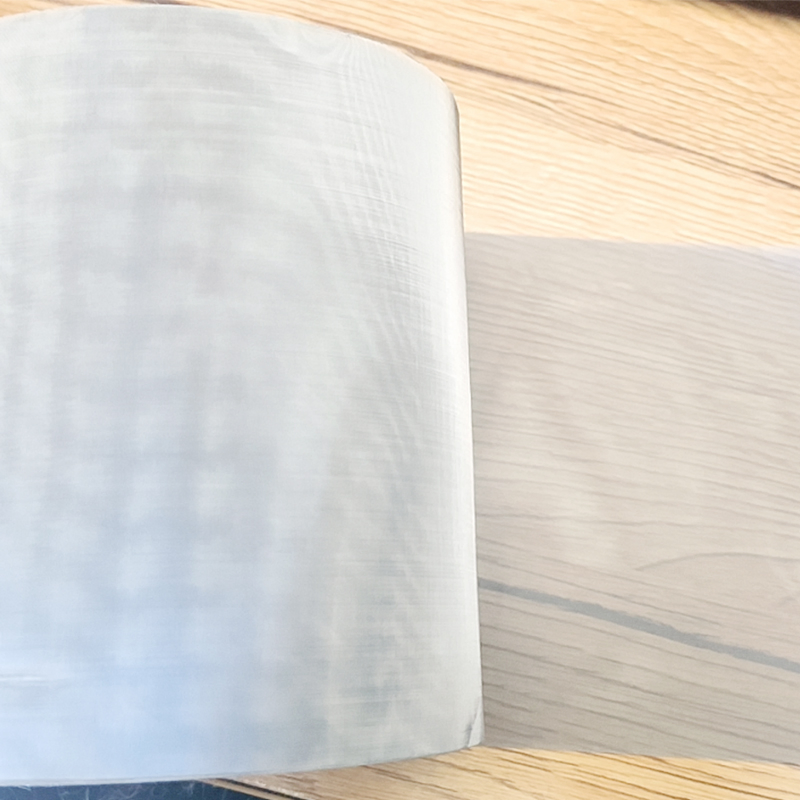

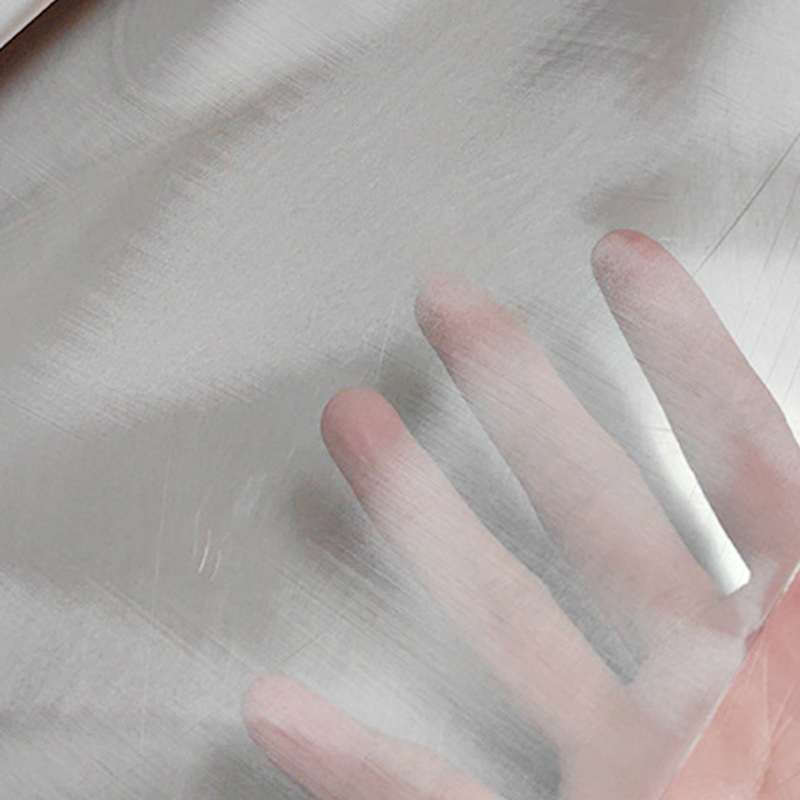

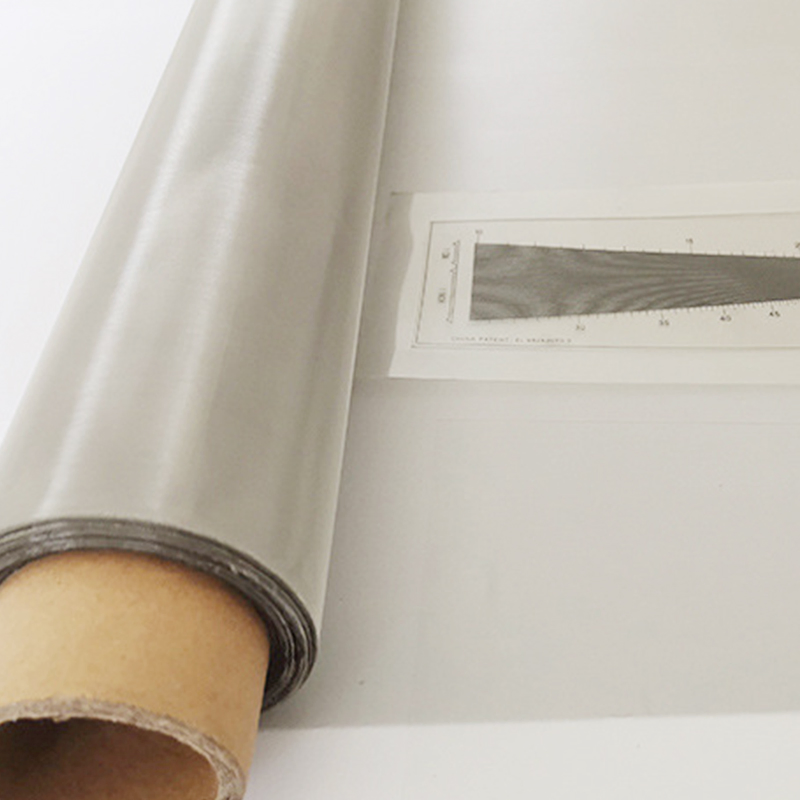

200/300/400 Mesh Plain Twill Ultra-Thin Stainless Steel Filter Screen for Heat Dissipation and Filtration

1 / 5

200/300/400 Mesh Plain Twill Ultra-Thin Stainless Steel Filter Screen for Heat Dissipation and Filtration

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

BL2500

Material

SUS304

Hole Shape

Square

Type

Stainless Steel Plain Wire Mesh

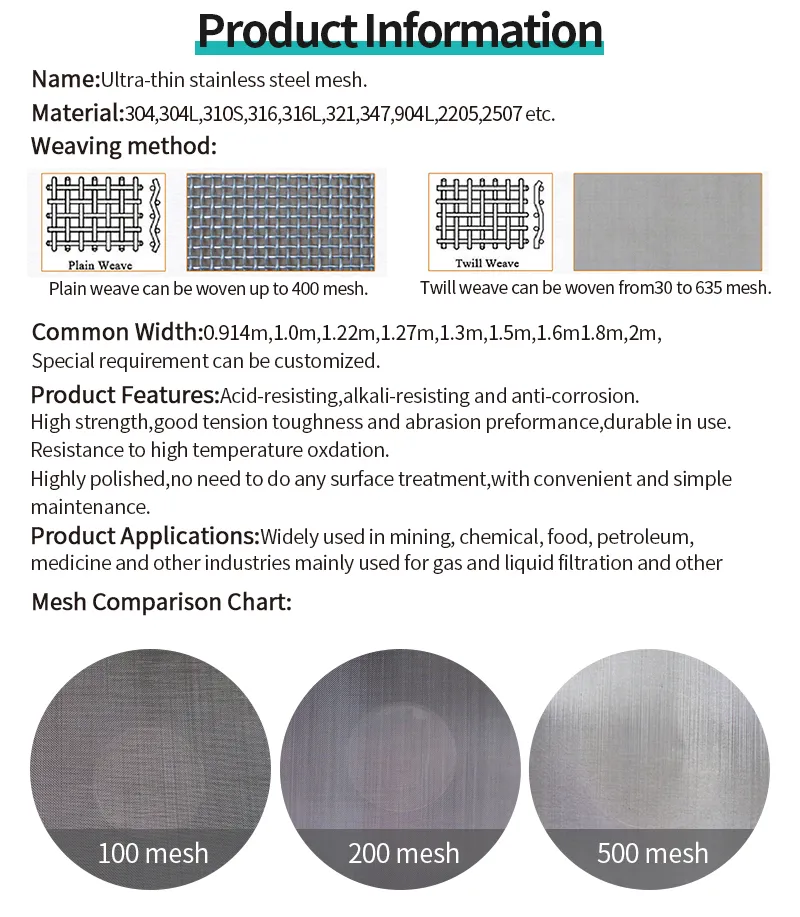

Weave Technique

Plain Weave

Wire Mesh Width

1/1.2/1.5/1.8/2mm

Mesh

200-400

Wire Diameter

0.02-0.05

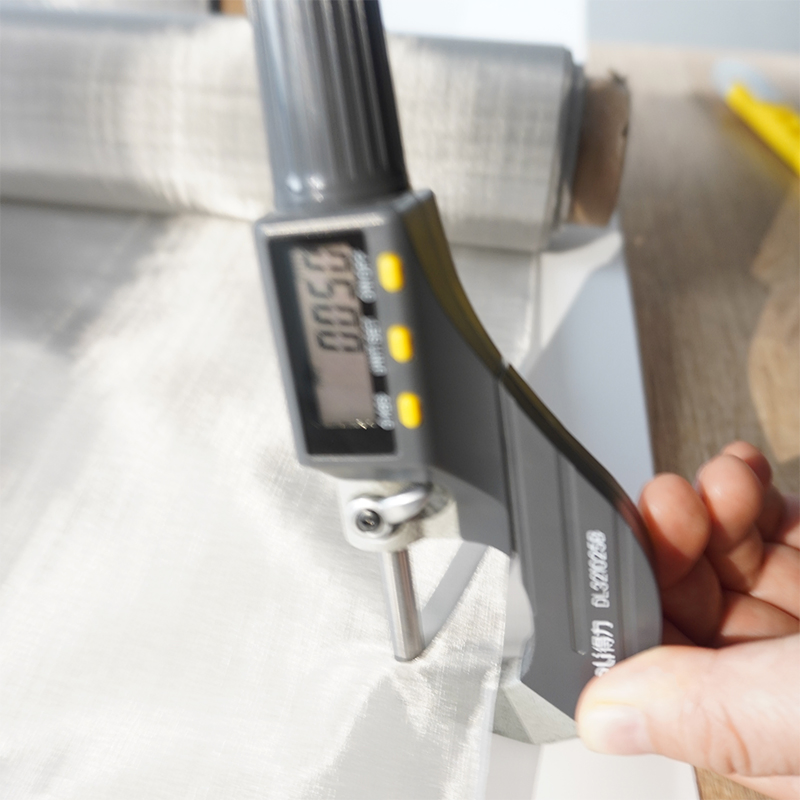

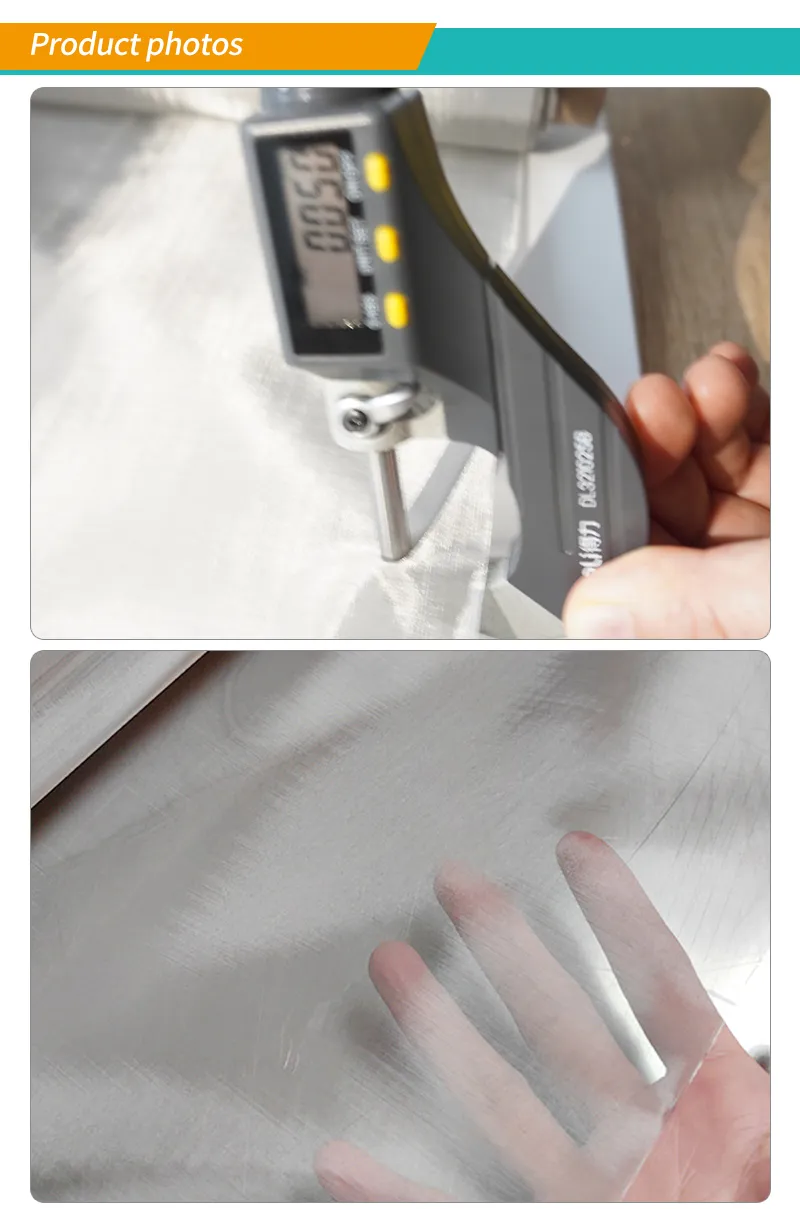

Thickness

0.05-1mm

Filtering Accuracy

1-100μm

Production Capacity

1000 Square Meters/Day

Application

Filter, Construction, Protecting Mesh, Decorative Mesh

Product Description

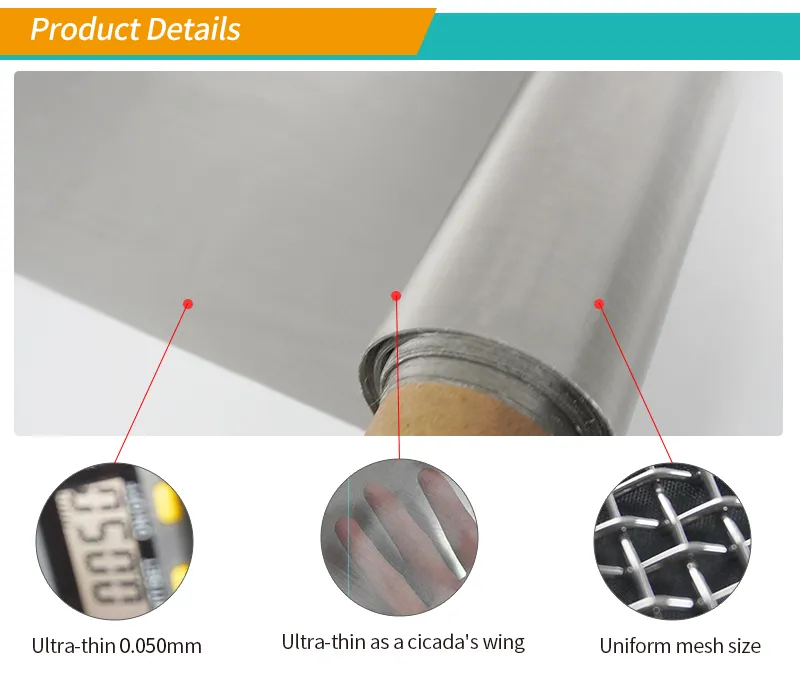

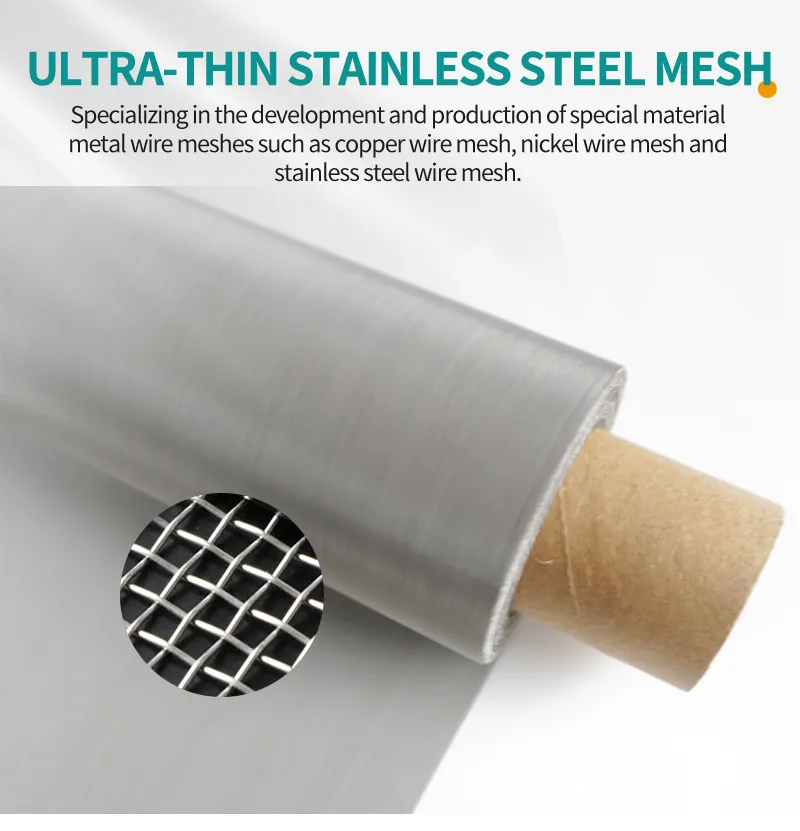

Ultra-thin stainless steel filter screen designed for high-precision heat dissipation and professional filtration. Featuring premium SUS304/316 materials, these meshes are characterized by high durability and superior corrosion resistance.

Applications

Mainly used in electronics for heat dissipation, industrial filtration systems, and construction wire mesh requirements.

Technical Specifications

Mesh	Wire (inch)	Wire (mm)	Aperture (inch)	Aperture (mm)	Open Area (%)
200 × 200	0.0021	0.0533	0.0029	0.0737	33.6
250 × 250	0.0016	0.0406	0.0024	0.061	36
300 × 300	0.0051	0.0381	0.0018	0.0457	29.7
325 × 325	0.0014	0.0356	0.0017	0.0432	30
400 × 400	0.001	0.0254	0.0015	0.37	36
500 × 500	0.001	0.0254	0.001	0.0254	25
635 × 635	0.0008	0.0203	0.0008	0.0203	25

Frequently Asked Questions

What materials are available for the ultra-thin filter screen?

We provide high-quality stainless steel materials including SUS304, 306, and 316L to ensure maximum corrosion resistance.

What is the range of mesh counts available?

Our standard range is between 200 to 400 mesh, but we can provide specifications up to 635 mesh for high-precision needs.

Is it possible to customize the width and length?

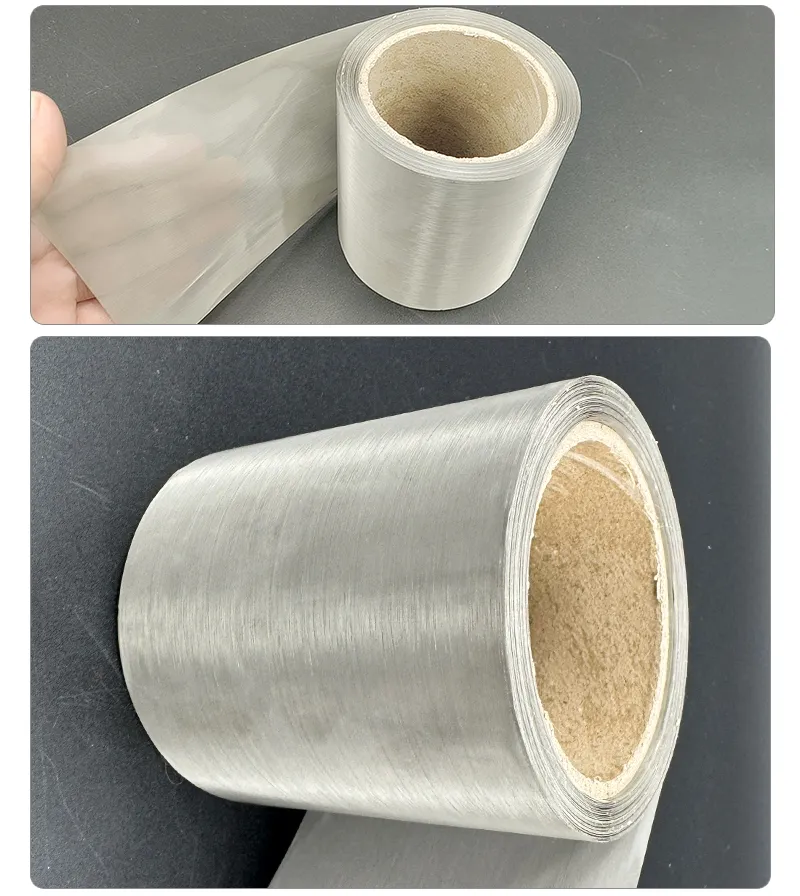

Yes, the width and roll specifications (standard 30m) can be fully customized based on your specific requirements.

What are the primary applications for this thin mesh?

It is widely used for high-accuracy filtration, electronic heat dissipation, construction protection, and decorative purposes.

How is the product protected during shipping?

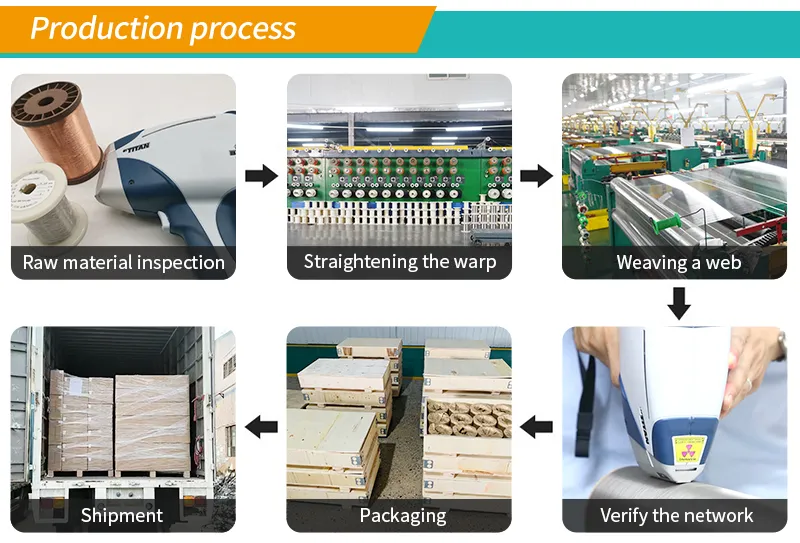

All mesh products are securely packaged in wooden cases or on pallets to prevent any damage or deformation during transport.

What is the daily production capacity?

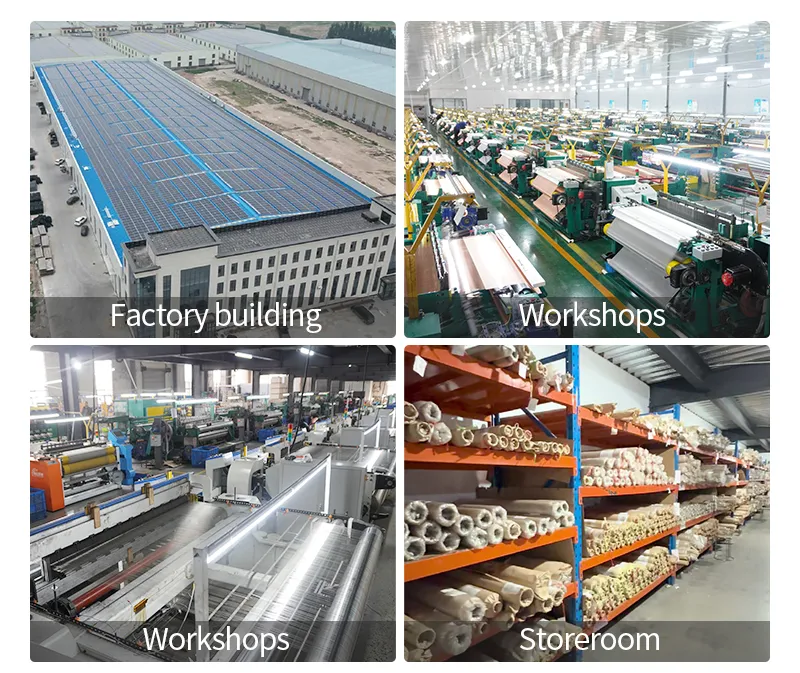

We maintain a high production capacity of approximately 1000 square meters per day to ensure timely delivery.
